There are many brands and types of pool lights on the market today. This guide discusses the different options available in wall mounted pool lights. Other pool light options for perimeter or feature lighting are discussed in another guide.
Click Here to View Our Full Range of Inground Pool Lights
Cb Posted: 8/5/2022
Can I use a standard 300Watt LED flood light bulb for my pool instead of the branded bulbs mentioned here? Any downside to doing this?Reply
InyoPools Product Specialist Matt S. Posted: 8/30/2022
As long as the bulb is the correct socket type and voltage, the bulb should work.Reply
John Posted: 7/27/2022
I was changing the color of the pool light and when I attempted to stop on the desired color pattern, the light did not come on. I tried flipping the switch a few times to adjust to a different color but nothing comes on. My first thought was the light went out and need to replace it....didn't knokw they were so expensive to change. How do i know what kind of light I have ??? new to owning a pool. thanks in advanceReply
InyoPools Product Specialist Matt S. Posted: 7/28/2022

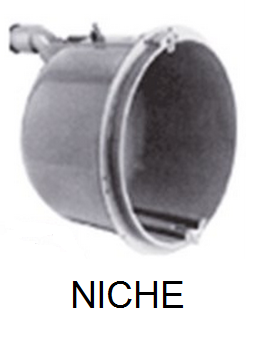

You'll need to remove the light from the wall niche to check its information tag. It should be as simple as removing the single lockscrew that holds it on the niche and reading the label on the back of the fixture.Reply
John Posted: 7/28/2022
Copy, thank you. Do I need to drain below the light? I understand I have to cut the breaker right? Any additional input/steps/procedures would be greatly appreciated.Reply
InyoPools Product Specialist Matt S. Posted: 7/28/2022
Yes, flip the breaker before handling the light to be on the safe side. The pool does not need to be drained below the niche to service the light. The is usually a cord stopper plug or epoxy plug to prevent water from getting into the light niche conduit.This guide and video give a more detailed look at light replacement: Poolside Repair: How To Install A Pool LightReply
Berry McGregor Posted: 6/8/2022
I can not be more appreciative of the information that inyopools gives, awesomeReply
InyoPools Product Specialist Matt S. Posted: 6/9/2022
Thank you for the kind words!Reply
Anonymous Posted: 4/12/2022
Can you use any brand LED pool light with any brand controller, i.e. if I have a Jandy LED fixture and a Jandy control system, can I replace the light with a Pentair InteliBrite or a Hayward ColorLogic for example... or do you have to keep like for like brand, i.e. Jandy light for Jandy controller, Pentair light for Pantair controller and Hayward controller for Hayward light?Reply
InyoPools Product Specialist Matt S. Posted: 4/14/2022
There is no universal crossover with automation systems. Some manufacturers work better with others. This chart is a good reference for what the major manufacturers' automation systems can handle.Reply
Anonymous Posted: 3/15/2022
I have two Pentair lights in my pool, which is around 23,000 gallons and shaped like a pear. One light points to the deep end, the other towards the shallow. The Pentair lights have two 75 watt Halogen MR16 lights with a spinning color dial in the front (inoperable). Each light is 150 watts, with both lights putting 300 watts of light into the pool. The amount of light in the pool is fine. I want to convert my pool to the 120V Hayward Astro lights. Would two 500 watt incandescent bulbs be too bright? Or should I go with two 300 watt bulbs? I do not want LED and want to get away from the 12V transformers.Reply
InyoPools Product Specialist Matt S. Posted: 3/16/2022
What are the length and width dimensions of the pool? When considering the light's coverage area, we need to work in distance measurements units. We need to know the distance the light has to project into. Also, I want to confirm the model of your current light. Does your fixture/bulb resemble what's shown on the following links? Pentair Amerquartz Light or the Pentair Spectrum Amerilite (SAM) LightReply
RBC Posted: 1/19/2022
I currently have a (dead) Colorsplash 120V light fixture. Can I replace that with an LED bulb? Where can I get the fixture and 100' cord to enable this? I assume I would need a faceplate and gasket also, Thanks!!!Reply
InyoPools Product Specialist Matt S. Posted: 1/24/2022
The ColorSplash does not appear to have a replaceable bulb; you would need to replace the fixture and cable. We do not carry a ColorSplash pool light 120 volt, 100-foot cord.Reply
Mary jo Posted: 7/11/2021
I have a Hayward SP-450 Z- 1 and the face plate is broken. Can I ge a replacement for just the faceplate? And what model number would work?Reply
InyoPools Product Specialist Matt S. Posted: 7/14/2021
When you say faceplate, do you mean the lens? Hayward Lens, Clear - SPX0540Z1Reply
Mat Posted: 11/11/2020
I want to replace my incandescent bulb, but not sure if a flood light style is typical or a spotlight style. I already threw the bulb away and forgot to check. What is the most common style?Reply
InyoPools Product Specialist Matt S. Posted: 11/16/2020
The most common pool light models like the Hayward Astrolite and the Pentair Amerilite use the flood light style. Do you know the make and model of your light?Reply
Donny Posted: 7/24/2020
Looking for a replacement of a 200W Tubular Halogen Clear with face plate. I have a 100 Watt transformer but unsure if I can connect your Pool Amerilite 500 Watt 30 ft. Cord 120 Volt - 78454100 with the 100 watt transformer. Additionally, I plan on adding remote control LED Edison base. Any recommendations for this configuration? Do I need to replace the 100 watt transformer in order to use the 500 watt?Reply
InyoPools Product Specialist Matt S. Posted: 9/9/2020
Your transformer is rated for 100 watts, and the light is 500 watts; it is not going to work. You have to have a transformer that is rated for the amount of power your equipment is rated for. Also, is this a 12-volt transformer? If so, then you wouldn't need to use that with the 120 volt light.Reply
Anonymous Posted: 7/20/2020
I’m having an inground pool installed(18x40) Builder is using 2 color logic LED 1.5” lights. Will that be enough to Illuminate the pool?Reply
InyoPools Product Specialist Matt S. Posted: 9/10/2020
This depends on where the lights will be mounted in the pool and the color of the pool surface—the darker the surface, the smaller the broadcast range of the light.We going into more depth about how many lights you need and the criteria needed to figure it out in this guide, How Many Lights Do I Need For My Pool?Reply
Tony Posted: 7/4/2020
My pool guy never installed conduit to my pool niche. It doesn't leak. Is the light cord warer tight or do I need to dig and install conduit. I've had it for 10 years without a problem.Reply
InyoPools Product Specialist Matt S. Posted: 9/23/2020
The installer likely used a rubber cord stopper or epoxied the light cable into place. If it is not leaking, then you can leave it as is. But if you plan to change out the light fixture, that would be the time to install a conduit.Reply
Tom Posted: 6/24/2020
I have a Pentair - Amerlite Pool Light 78428100, 120V, 300W incandescent that's not working. If the fixture is OK, Can I switch to an LED bulb?Reply
InyoPools Product Specialist Matt S. Posted: 10/6/2020

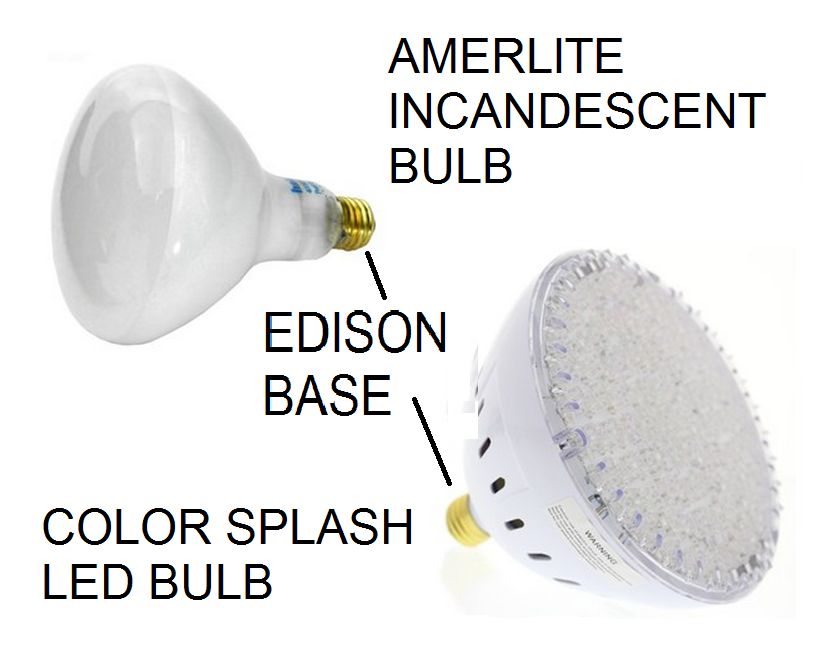

Yes, if the fixture is in working condition, you can switch to an LED bulb. Suitable replacement LED bulbs for the Amerilite are the following: PureWhite LED Pool Lamp 120V or the ColorSplash LXG LED Pool Lamp 120VReply
Steven Bernal Posted: 5/4/2020
It looks like I have a junction box. I don't see a transformer. Is it safe to assume I need a 120 V replacement for my Jandy Watercolor LED pool light?Reply
InyoPools Product Specialist Matt S. Posted: 10/27/2020
If there is no transformer between the fixture and the breaker, then you have a 120-volt light.Reply
Drew Posted: 5/22/2019
Looking to replace my entire light fixture (s). Not sure if they run wires independently or spliced together behind the scenes. What is the most common? In looking in the back of the niche, it looks to have “rubber cement” looking stuff to seal around the cord. Is cutting it out going to cause any issues? Last question, can I buy a regular light fixture and just replace the light bulb with a LED light bulb for cost savings verses buying an LED light fixture?Reply
InyoPools Product Specialist Robert M. Posted: 5/22/2019
The light cables should not be spliced together. It should be one continuous line from the light to the junction box. The most common way to plug the niche is a cord stopper or a 2-part underwater epoxy. Yes, you can buy a standard light fixture and add an LED bulb. We do this with our PureLine PureColors light.Reply
Anonymous Posted: 5/22/2019
If I pull out the wire that’s has the apoxy in the back, my assumption is water will get into the conduit. Is that a bad thing or do I need to drain the pool below the light fixtures? Thank youReply
InyoPools Product Specialist Robert M. Posted: 5/22/2019
You do not need to drain the water down below the niche. It's ok if water gets into the conduit because the end of the cable will terminate at the junction box above the water level.Reply
Eric Posted: 5/17/2019
I bought a 120v light kit but just figured out I HAD a 12v kit. Can I just by pass the converter and wire the line directly to my power supply? What are my options? PleaseReply
Jim Posted: 5/31/2020
Hey Eric, how did this work out for you? Did you wire the hot wire directly to the breaker and ground the other 2? Thanks!Reply
InyoPools Product Specialist Robert M. Posted: 5/17/2019
Assuming your local codes don't require a 12v light, you could bypass the transformer and wire the 120v light to the breaker.Reply
Mike Posted: 5/3/2019
I just had to replace my pool light for the first time. It had a 120V // 500W incandescent bulb in it. The pool company have me a 400W bulb and I didn't notice it until I got home. Should I be concerned with having a 400W vs a 500W bulb? Will I notice a difference in the light output? And if I wanted to just go with an LED bulb, is it as simple as just buying on from the pool store and screwing into the receptacle? Any assistance would be greatly appreciated.Reply
InyoPools Product Specialist Robert M. Posted: 5/6/2019
Hello Mike - The 400w bulb won't be as bright as your old 500w light bulb. We carry a variety of LED bulbs that can screw into most pool light fixtures. They won't be as bright as a 400w or 500w incandescent bulb.Reply
Rob Posted: 4/30/2019
Just installed a Pentair 5G Intellibrite LED pool light to a regular switch. However it is not changing colors as it should be when switching on and off several times. Do I need to add a transformer so those lights will work ? If so which one? Thank YouReply
InyoPools Product Specialist Robert M. Posted: 4/30/2019
Hello Rob - You'd only need to add a transformer if you installed 12v pool lights.Reply
Scott Posted: 4/29/2019
Can a pool light be 24V? My electrician tested the transformer going to the pool and he said it was 24V going to the light.Reply
