Part # APCK1067
Alternate Part #'s 90-249-3069

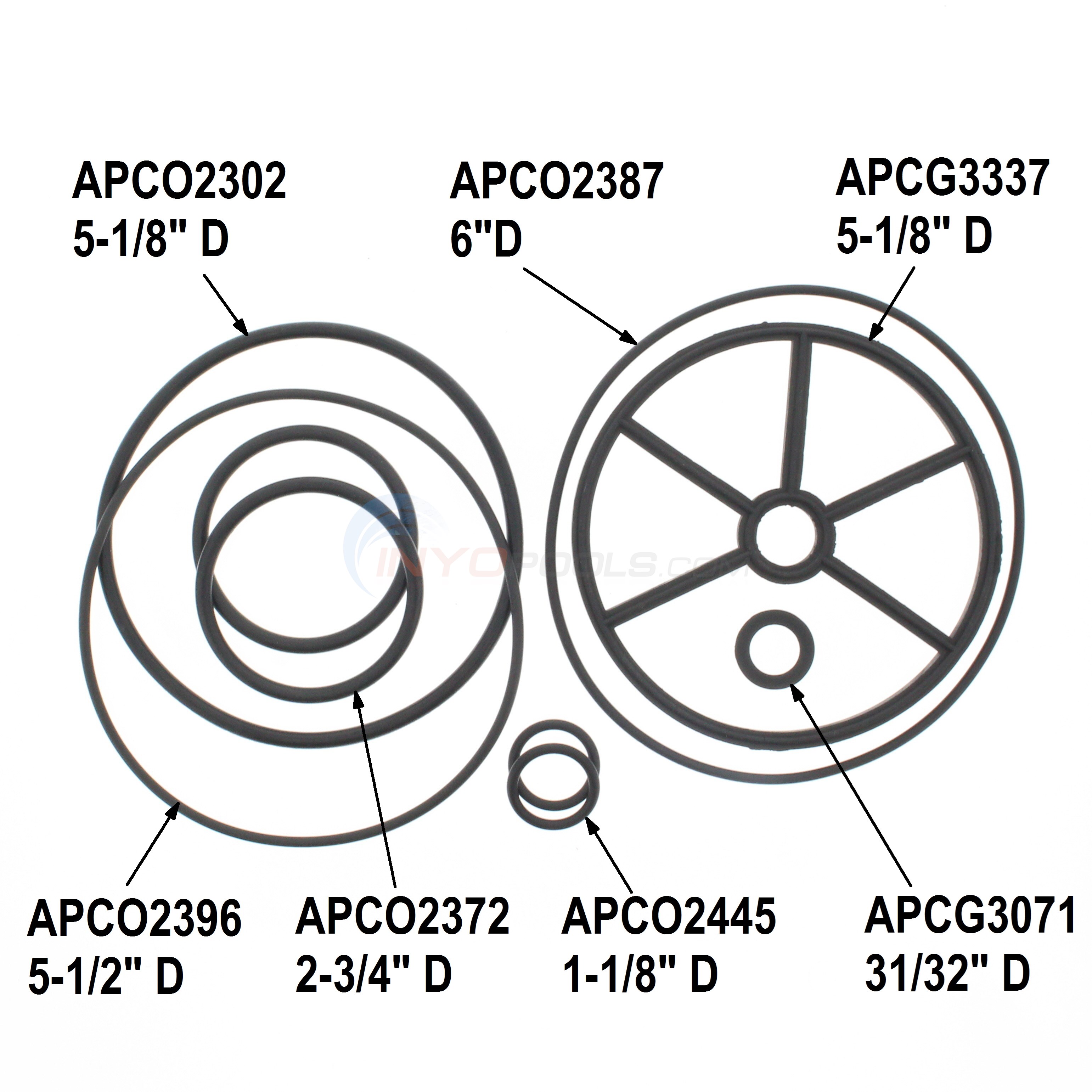

Kit Contents:
(1) APCG3337 - GASKET SPIDER VALVE PENTAIR PACFAB
(1) APCG3071 - SPX710R SITE GLASS GASKET
(2) APCO2372 - U9374 STARITE O-RINGS
(1) APCO2302 - 272541 PACFAB O-RING
(1) APCO2387 - 355051273 SWIMQUIP O-RING
(1) APCO2396 - SPX710Z3 VALVE O-RING
(2) APCO2445 - SPX735G VALVE O-RINGS

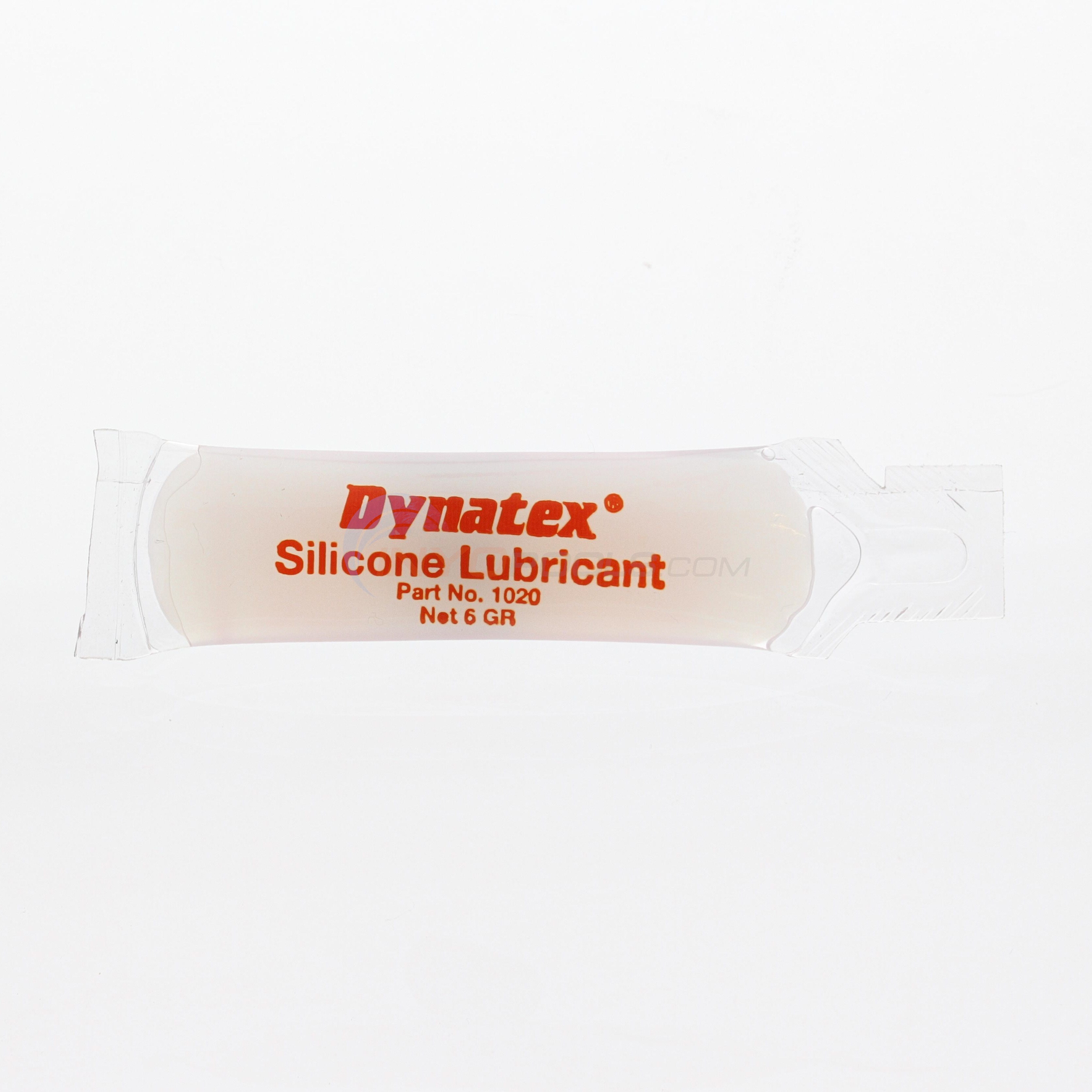

(1) 1020CL86 - 6 GRAM SILICONE PACKET
Does this gasket need to be glued down and if so what kind of glue?
Thanks,
Mike
Reply
The spider gaskets can be glued on the flat side using a thin bead of clear RTV silicone.
Reply
Do you know the part numbers and quantities for the 8 O-rings listed in this Tune Up Kit?
Reply
Hello Ken, The Tune Up Kit includes :(1) APCG3337 - GASKET SPIDER VALVE PENTAIR PACFAB(1) APCG3071 - SPX710R SITE GLASS GASKET(2) APCO2372 - U9374 STARITE O-RINGS(1) APCO2302 - 272541 PACFAB O-RING(1) APCO2387 - 355051273 SWIMQUIP O-RING(1) APCO2396 - SPX710Z3 VALVE O-RING(2) APCO2445 - SPX735G VALVE O-RINGS(1) 1020CL86 - 6 GRAM SILICONE PACKET
Reply
BASIC INFO: Pentair triton II sand filter (PN: 140264). Side mount multiport diverter valve. 1.5" plumbing ( Pentair part number: 27-1140.) Valve is 6 position (white or cream colored). I need the spider gasket.
Is the correct seal/gasket kit APCK 1067? Thanks
Reply
Hi Michael, yes that would be the correct tune up kit.
Reply
I have a Purex Triton side mount multiport valve number SM-10-2 D.E. I need a spider gasket. Please email me the proper part number. Thanks.
Reply
Hello Pat, the APCK1067 PacFab MPV 1.5" Tune Up Kit is all the orings and spider gasket for the SM10-2. If you are only wanting spider gasket its part 4600-1104 Gasket, Diverter 1 1/2in (e-12-s1 1 1/2") - 271104.
Reply
Less than 1 hr
Screwdriver, Adjustable Wrench
0 1
Removed 6 screws and nuts holding valve body, be sure not to drop nuts, use a cup underneath to catch when they come loose. Removed old spider gasket and dried/cleaned groves. Glued new gasket down with gel superglue, and let sit for 20 minutes. Replaced valve top and tightened screws. Works perfectly.
