PER THE MANUFACTURER: THIS ITEM IS NOT AVAILABLE FOR SALE ONLINE

By Hayward Pool Products


Details

Top

Model # HP21104TC

Alternate Part #'s HAY-15-5027, HAYHP21104TC

Product Description

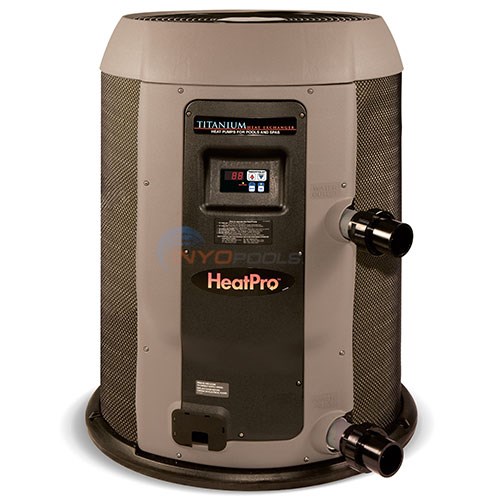

 Industry-Best Heating Over The Broadest Temperature Range HAYWARD HeatPro Low Ambient 140,000 BTU heat pump reliably provides the broadest range of heating performance from temperatures as low as 40°F. Perfect for regions with cooler night-time temperatures.  Created to reliably provide the broadest range of heat pump heating performance at temperatures as low as 40F for an efficient, comfortable and relaxing pool environment, especially in regions that experience cooler ambient temperatures.

Extend your pool season with a Hayward® HeatPro® heat pump.  Quiet and economical, heat pumps use the outside air and a titanium heat exchanger to generate heat for a fraction of the cost of gas.  Save up to 80% on operating costs.

Features:

  • Uninterrupted heat performance at ambient temperatures down to 40°F
  • Most Durable Heat Exchanger Combination:
  • Titanium Condenser
  • UltraGold Evaporator
  • AHRI Certified and Independent Lab Tested Performance Ensures Value and Customer Satisfaction

Warranty:

  • 2 Year Warranty on manufacturer defects
  • 5 Year Warranty on Compressor
  • 10 Year Warranty on Titanium Tube

Product Specifications

Coefficient of Performance:
5.8
Volts:
240V
Hz:
60 Hz
Phase:
Single
Recommended Breaker Size:
60
Min Flow Rate:
30 GPM
Max Flow Rate:
75 GPM
Dimensions:
31.25" Dia x 40" h
Weight:
340 lbs.
Refrigerant:
R-410A
Watts:
5.7 W
Compressor Size:
5 HP
Compressor:
Scroll
Heat Exchanger:
Titanium
Electronic Temp Control:
Yes
Max Water Temp:
104 °F
BTU:
110,000 BTU
Special Feature:
Low Ambient Temp.
Manufacturer:
Hayward
Heater Type:
Heat Pump
Top

?     Asked on 9/11/2014by Guest

Can I install this heat pump indoors?
 Reply

A  Answered on 9/11/2014 by InyoPools Product Specialist Patrick P.

Unfortuantely Hayward does not recommend installing the heat pump indoors.
 Reply


?     Asked on 9/17/2014by Guest

Can the heat pump be turned on and left on with a pool pump that is switched off at night with a timer? Will the heat pump sense the no flow and take care of itself? Is this an acceptable way to operate the heat pump?
 Reply

A  Answered on 9/17/2014 by InyoPools Product Specialist Patrick P.

Yes you can install it that way, The heat pump has a sitch that will turn off the heat pump if there is not enough water flow. If you have any further questions please feel free to reply to this email. In addition, you may view the entire ticket history or enter a response by visiting the link below.
 Reply


?     Asked on 6/30/2015by Craig

How much lower can the ambient temperature be with this model? There is nothing in the description that explains how much more useful it is compared to the regular model.
 Reply

A  Answered on 7/1/2015 by InyoPools Product Specialist Lennox H.

Hi Craig, You will have to contact Hayward directly, based on the HeatPro® Heat Pumps For In-ground Pools and Spas (LITHTPRO15) all the stats and specs are the same regular model.
 Reply


?     Asked on 7/4/2015by Jacques Houle

What mean the code 5H on my disply
 Reply

A  Answered on 7/6/2015 by InyoPools Product Specialist Lennox H.

Hi Jacques, According to the Heat Pro Owner's Manual's error code "SH" referes to a Temperature sensor failure, you will need to contact a service company in your area.
 Reply


?     Asked on 1/7/2016by Alla

What is the difference between low ambient and normal model?
 Reply

A  Answered on 1/7/2016 by InyoPools Product Specialist Brian M.

The main difference between the Low Ambient and the Normal ( according to the Hayward Tech support at 908-355-7995 ) is that the normal heat pump will only work down to 60-65 degrees, where the low ambient with continue to work down to 55 degrees.
 Reply
