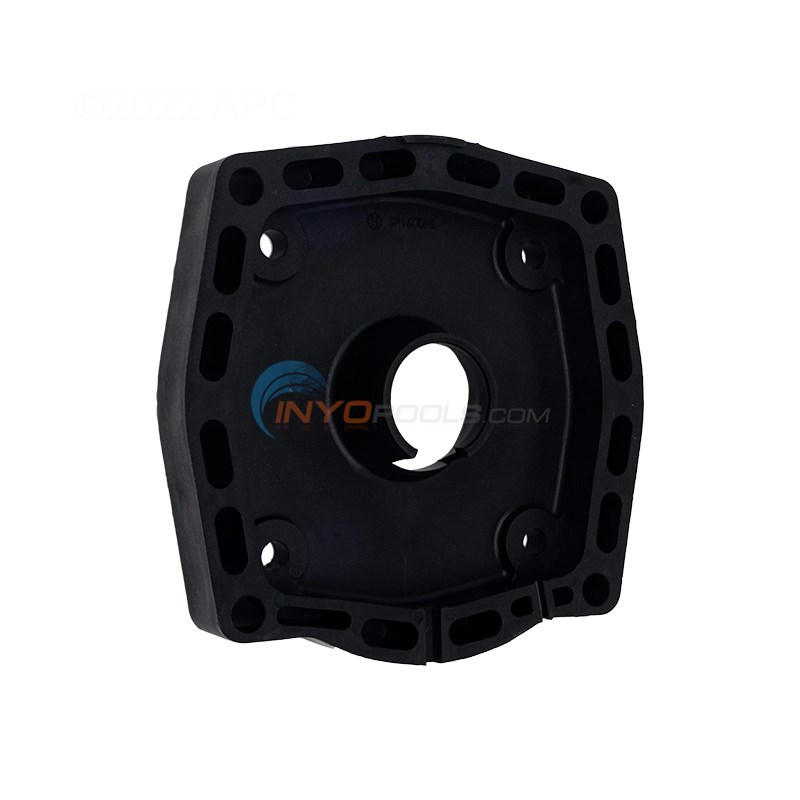

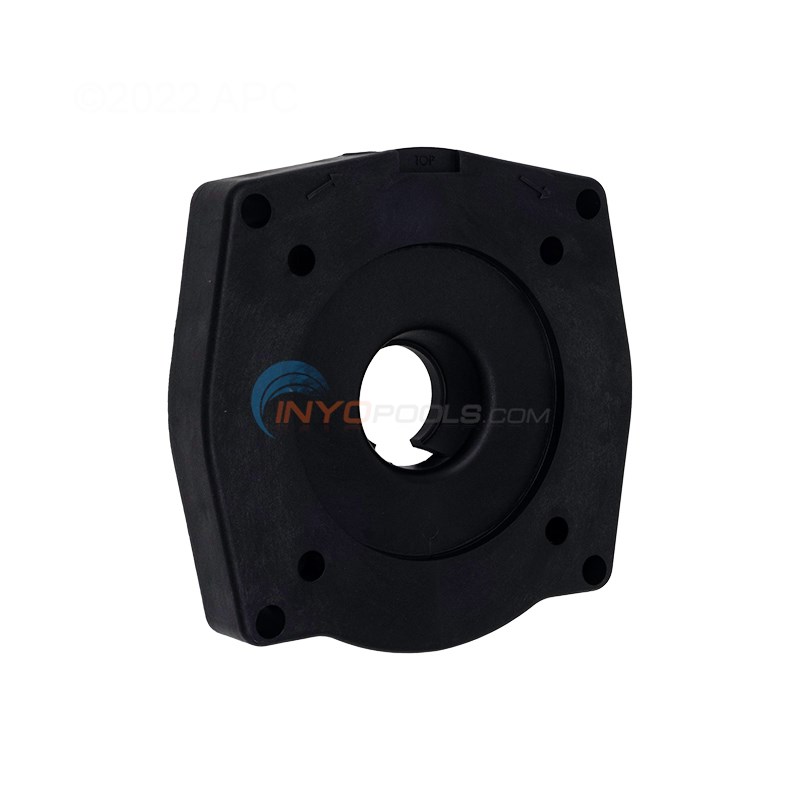

Motor Mounting Plate - SPX1600F5

$46.99

IN STOCK
FREE SHIPPING

Part # SPX1600F5

By Hayward Pool Products

  5 Average

Details

Top

Part # SPX1600F5

Dimensions 7" L x 7" W x 1" D

Product Description

Motor Mounting Plate

Top

?     Asked on 9/17/2019 by Flavia

Does this replace the hayward sp1600f? I need to replace the mounting plate but it looks a bit different than this one.
 Reply

A  Answered on 9/17/2019 by Industry Professional

This is not the replacement for the SP1600F,. You will need to purchase a drive train upgrade kit.
 Reply


?     Asked on 8/15/2019 by Spence Price

I have a pin hole / water leak in the motor mounting plate between the strainer housing and the pump motor. Could this be a result of more extensive damage in the strainer housing as I did not think there was any water pressure in the mounting plate.
 Reply

A  Answered on 8/15/2019 by Industry Professional

Yes it is possible, there should be a very small gasket on the shaft of the motor behind the motor mounting plate. It is called a water slinger & will do just that if there is water coming out the back of the unit. It throws the water away from the motor when running to prevent water from reaching the motor. So, you could easily have an issue with just the shaft seal or the seal plate. See the exploded diagram picture we added to see all the internal parts of the strainer housing.

 Reply
