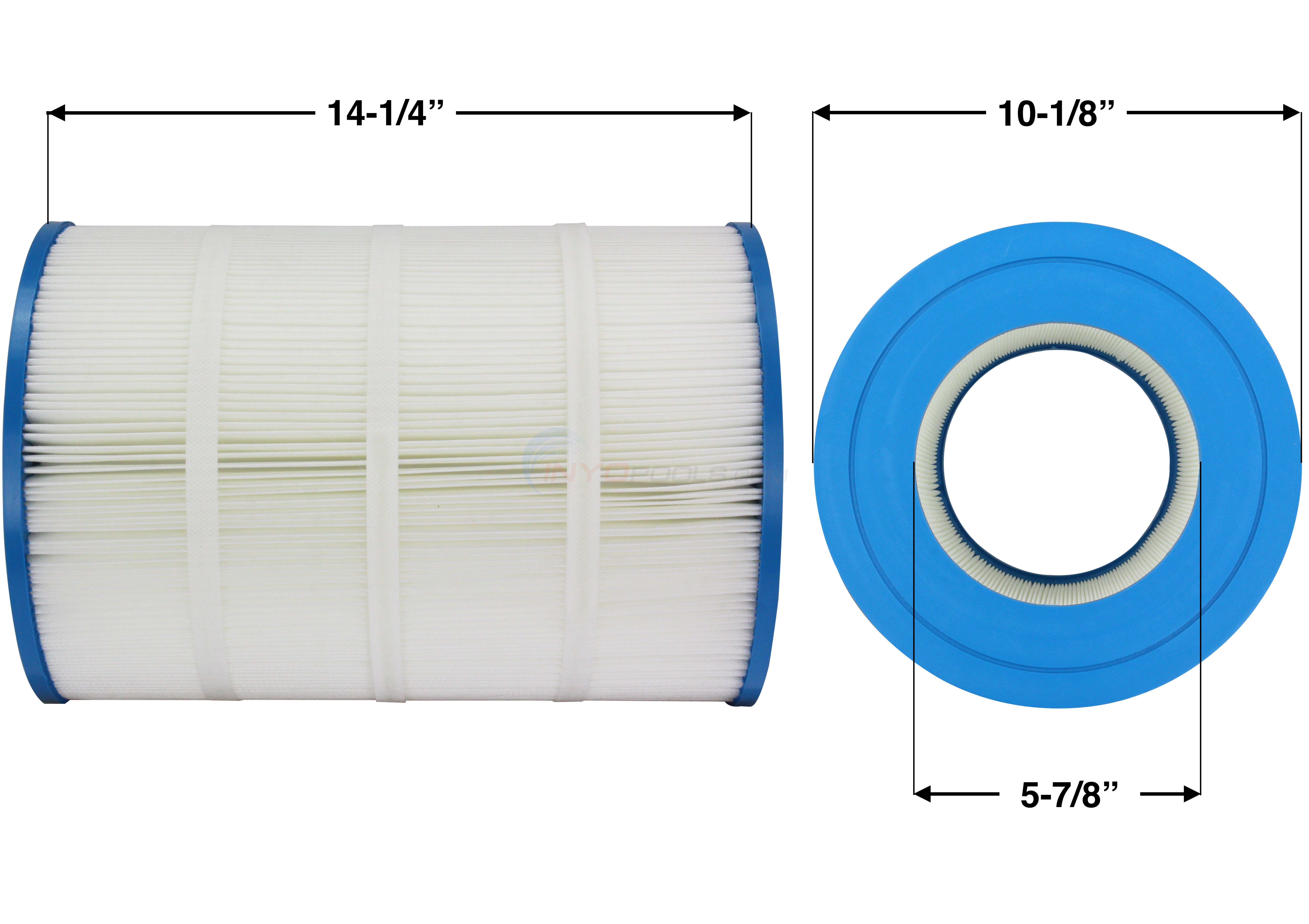

DIMENSIONSEnd Cap = Round, Length = 14 1/4", Outside Diameter = 9 15/16", Inside Diameter = 5 13/16"
ALTERNATE PART #'S17514, 42-2941-08, 42-3509-00, 42-3509-00-R, 42350900, 42350900R, C-9475, C9475, FC-1480, FC1480, PJ75, PJ75-4, PJ754, R173282, UNI605439, XLS-914
HIGH QUALITY POOL & SPA REPLACEMENT CARTRIDGES
- Our generic replacement cartridges are less expensive than the original manufacturers' brands yet still meet the same high quality standards. The key components of a cartridge - filter media, core, and end cap - are all designed for maximum water flow and cartridge life.
- The filter media is point bonded polyester with even fiber distribution which results in an even dirt load and increased water flow.
- The Sharp & Uniform pleated media provides filtration area (square footage) that meets or exceeds the original manufacturers' specifications.
- An open core design provides sturdy support for the media without restricting flow. Increased flow rates result in less wear on the pump and reduced energy usage.
- Anti-microbial end caps inhibit the growth of bacteria, mold and mildew while supporting the core and media.
- Banded Pleats maximize flow during operation, and help to reduce the frequency of cleaning. Banded pleats also make the cartridge easier to clean.
- We carry thousands of generic cartridges to replace all of the most popular OEM brands such as Sta-Rite, Pentair / Pac Fab, Hayward, Purex, American Products, Jacuzzi, Hot Springs, Coleman, and more.

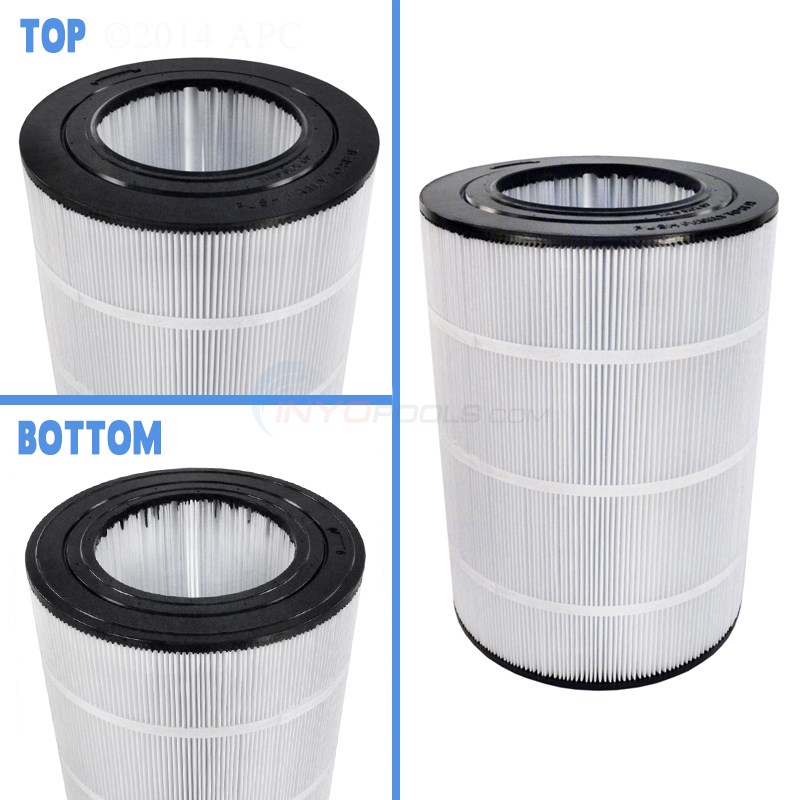

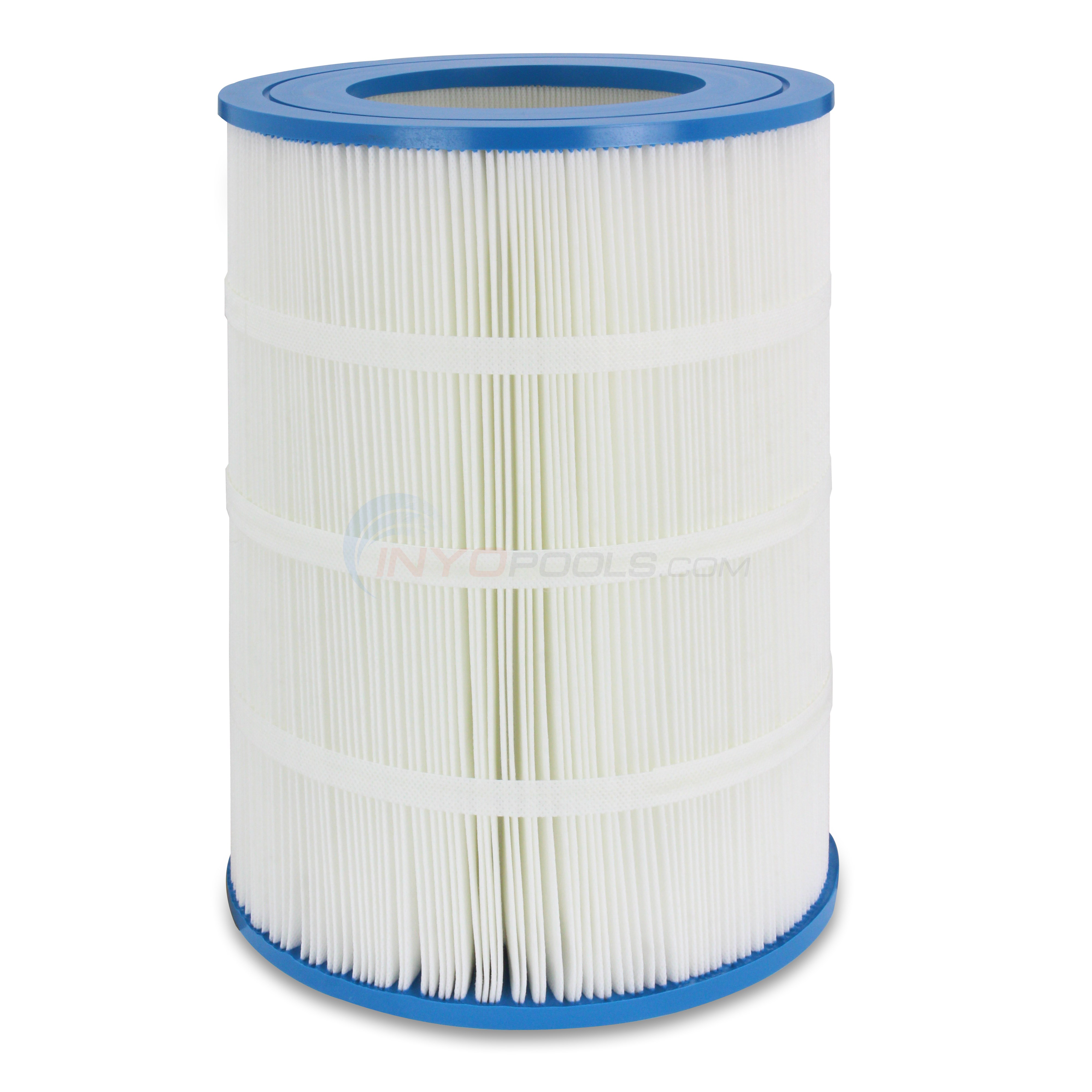

|Jacuzzi CFR 75 Generic Cartridge
|Top / I.D. (in)
|Bottom / I.D. (in)
|Top End Cap Image
||Bottom End Cap Image
9 - 15/16 in.
14 - 1/4 in.
Top Inside Diameter:
Bottom Inside Diameter:
75 sq. ft.
