Collector Hub Assy. T-170 Bp (wc137-516p)

$74.99

IN STOCK
FREE SHIPPING

Part # 4684-13

By Sta-Rite

  4 Average

Details

Top

Part # 4684-13

Manufacturer Code WC137-516P

Dimensions 21" X 1.5"

Alternate Part #'s 24100-40, 24100-42, 2410040, 2410042, STA0518375, WC137516P

Product Description

INYO # 4684-13 STA-RITE # WC137-516P

************************************************

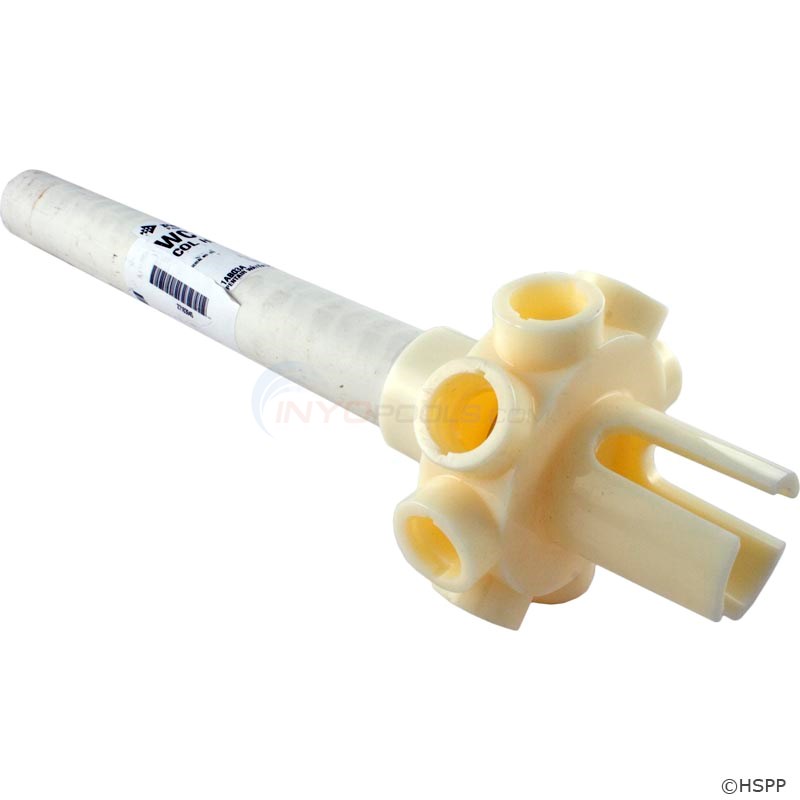

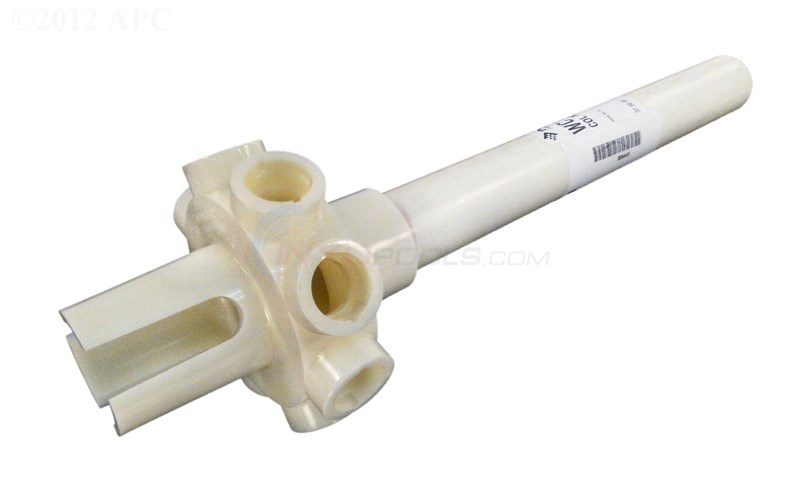

GENERAL DESCRIPTION: THIS IS THE STANDPIPE AND HUB ASSEMBLY USED ON THE WATERFORD / CRISTAL FLO TOP MOUNT T-170 FILTER THERE ARE NO LATERALS INCLUDED

************************************************

MATERIAL: VARIOUS COLOR PLASTIC LATERAL TYPE: PUSH TWIST THIS USES 8 LATERALS WITH A SMALL TAB ON EACH SIDE

************************************************

DIMENSIONS: TOTAL HEIGHT: 20-3/4" TOP PIPE ONLY HEIGHT: 14-1/4" TOP PIPE DIAMETER: 1-7/8" OD (1-1/2" THINWALL PVC PIPE) HUB DIAMETER: 5-5/8" THERE IS NOT A PIPE EXTENSION UNDER THE HUB BUT THERE IS AN EXTENSION BUILT INTO THE HUB. THIS EXTENDS 2-7/8" BELOW THE MAIN HUB BODY AND HAS 3 SLOTS IN IT THE EXTENSION IS ABOUT 2-3/8" IN DIAMETER

************************************************

INCLUDES: HUB WITH STANDPIPE ONLY

************************************************

LATERALS USED WITH THIS: THIS USES 8 OF THE 24600-0003 LATERALS WHICH ARE 4-9/16" LONG THESE ARE NOT INCLUDED

************************************************

MARKINGS: SWIMQUIP 24100-40 IS MOLDED ON THE TOP OF THE HUB SWIMQUIP 24100-42 IS MOLDED ON THE BOTTOM OF THE HUB
