Lateral SD35/TA30 - 155007

Part # 4600-5007

By Pentair Pool Products

  5 Average

Details

Top

Part # 4600-5007

Manufacturer Code 155007

Dimensions 5.39" X 1.46"

Alternate Part #'s 155007, 72206, PAC0512864

Product Description

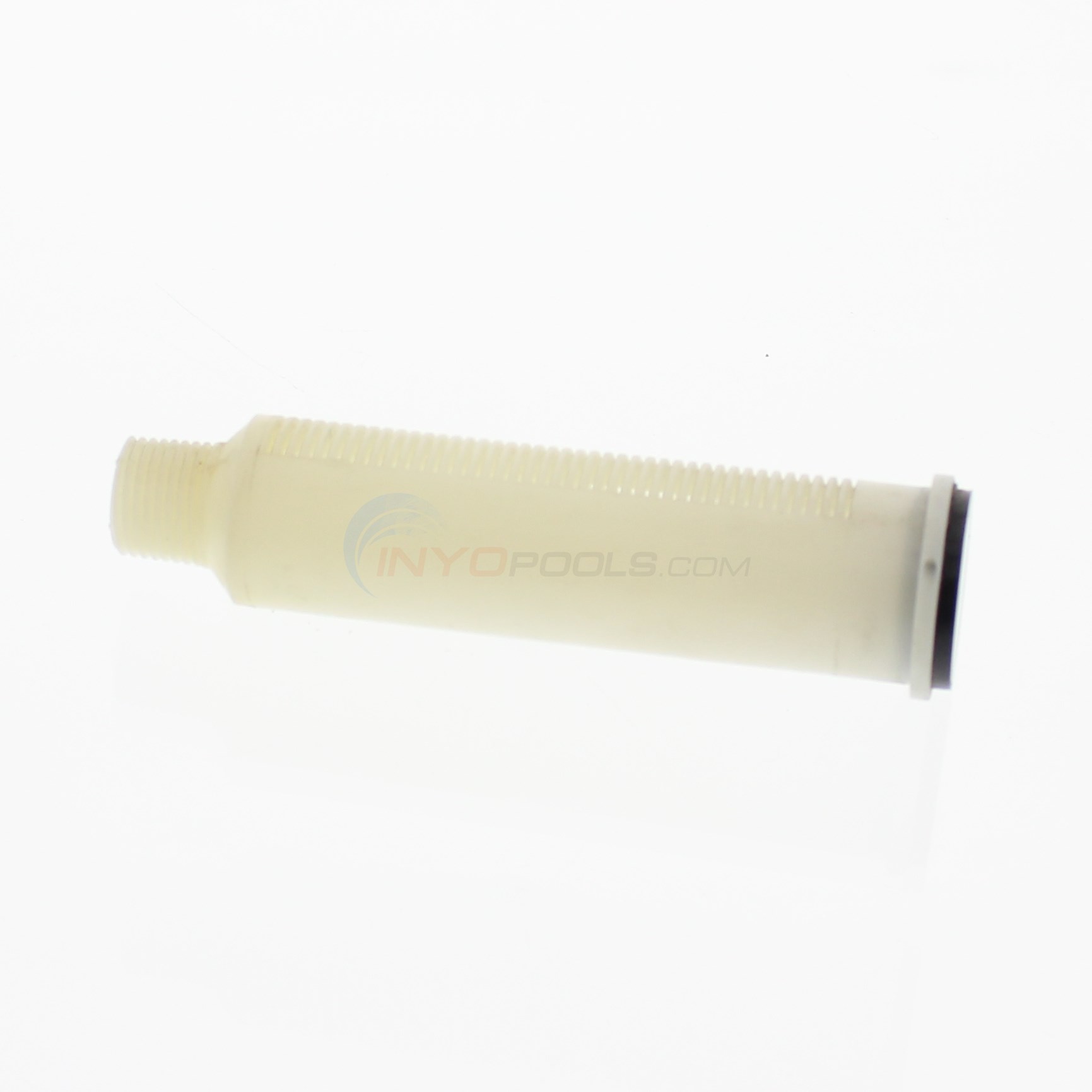

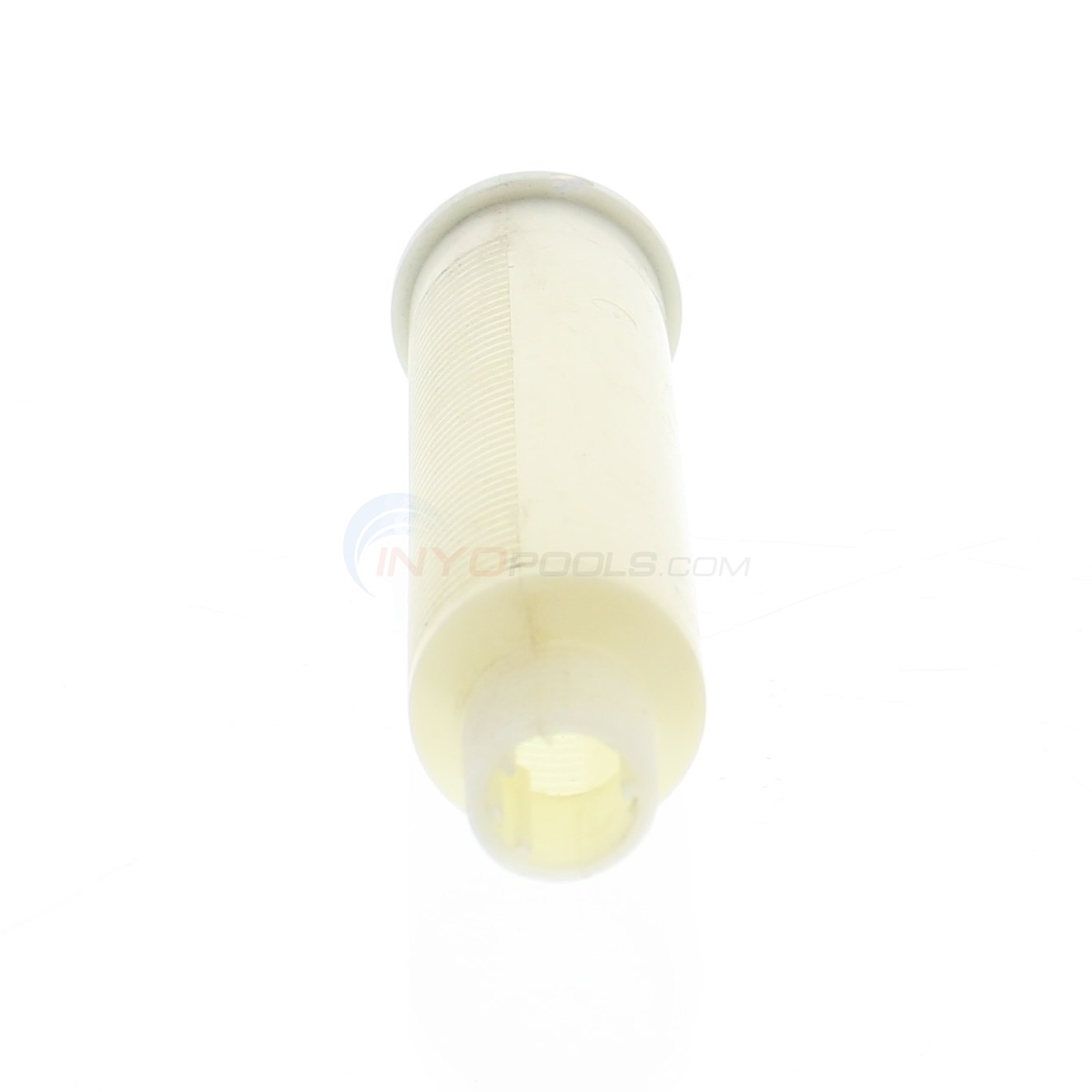

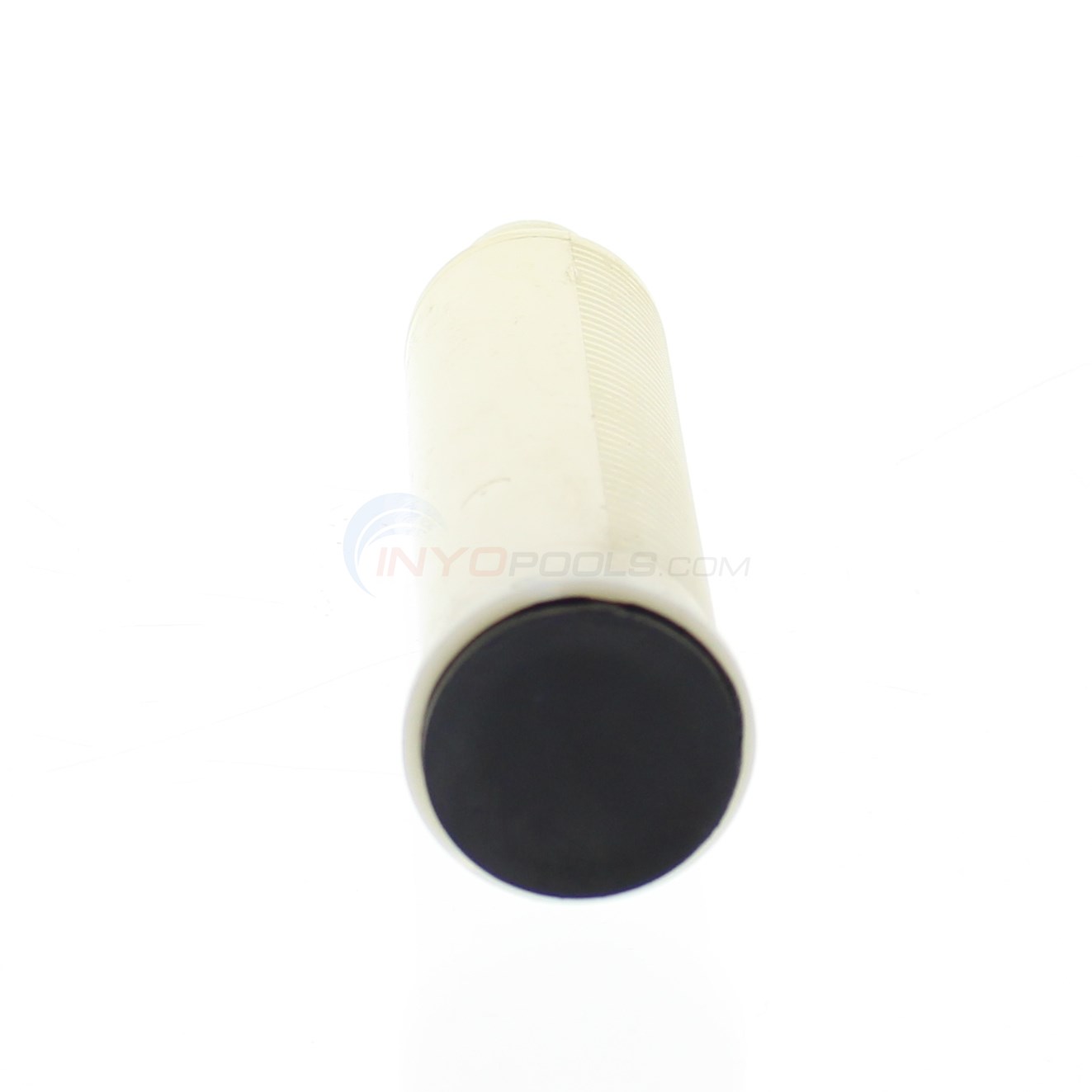

Lateral SD35/TA30 - 155007

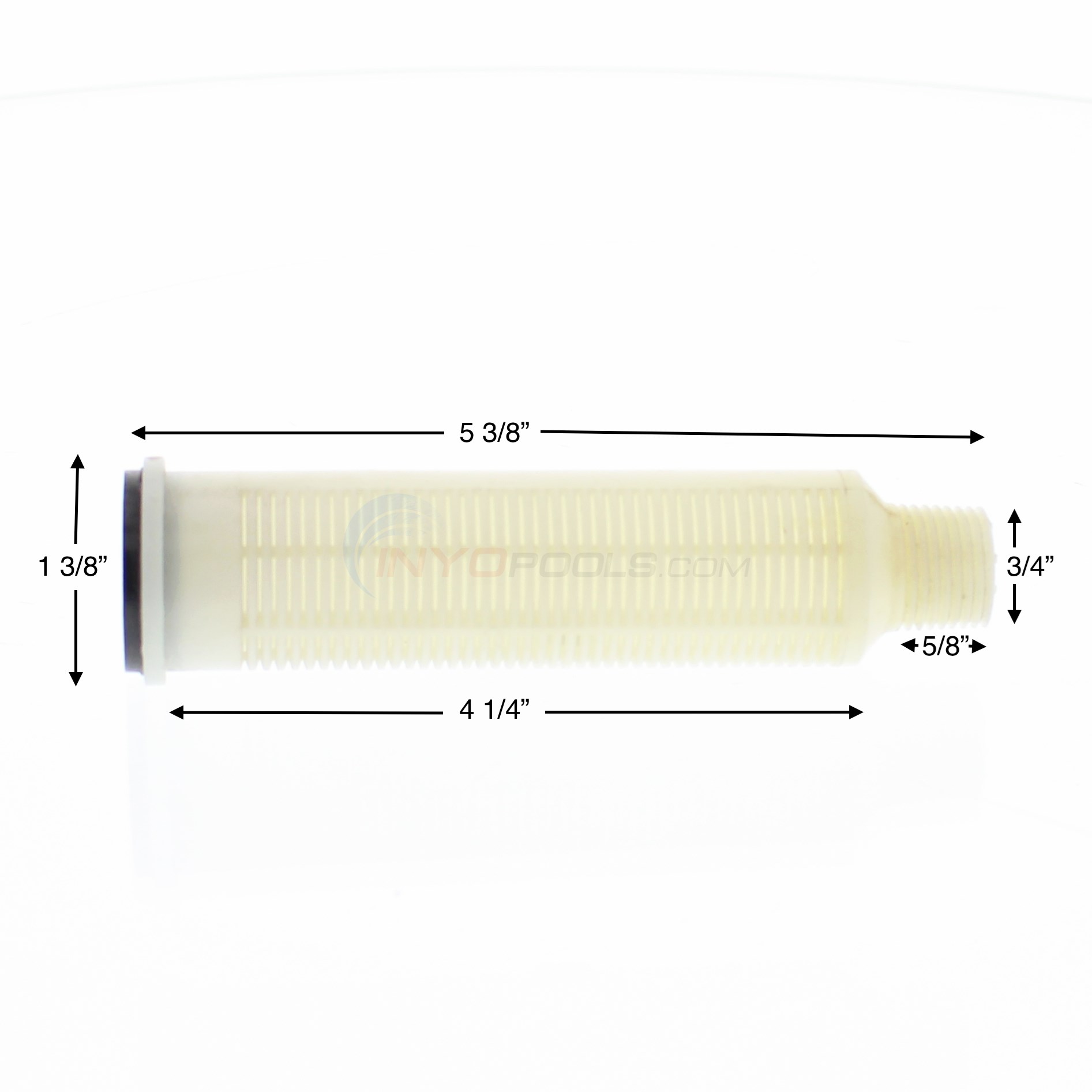

Specifications:

  • LENGTH: 5 3/8"
  • DIAMETER: 1 7/16"
  • THREAD: 1 1/4" MPT
  • CASTING #: NONE
Top

?     Asked on 5/7/2017 by

when replacing the laterals, should they be placed with fins up or fins down
 Reply

A  Answered on 5/7/2017 by InyoPools Product Specialist Patrick P.

When replacing the laterals the fins should go up. Here is a Video on Replacing Laterals which you may find helpful.
 Reply


?     Asked on 6/12/2016 by Sarah

Hi, I am putting my filter assembly back together and I need to know how the laterals are supposed to be positioned. Do the slits be on top bottom or sideways. My filter is a pentair tagelus ta50d, please help ??
 Reply

A  Answered on 6/14/2016 by InyoPools Product Specialist Patrick P.

Hi Sarah, The slits on the laterals face up.
 Reply


?     Asked on 6/10/2016 by Pete

I have a lateral, part number 155007 for Starbright DS-30 filter. I removed the laterals from the center tube for inspection. Al of them are OK. Since there is a blank side to the lateral, is there a certain position they must be in when reassembling ?
 Reply

A  Answered on 6/19/2016 by InyoPools Product Specialist Lennox H.

Hi Pete, The Laterals are installed so that the water exits from the lateral vertically.
 Reply


?     Asked on 5/31/2016 by JESSE

HI, DO YOU HAVE LATERALS FOR A PF-50?
 Reply

A  Answered on 5/31/2016 by InyoPools Product Specialist Patrick P.

Hi Jesse, Yes we do carry your laterals here PF-50 Sand Filter Laterals
 Reply


?     Asked on 7/5/2015 by sheila lambert

is this interchangeable with a lateral assembly of a pro series 2400ghp sand filter. We just got the filter and the lateral assembly broke while putting the sand in and I cant find one any where
 Reply

A  Answered on 7/7/2015 by InyoPools Product Specialist Lennox H.

Hi Sheila, I was not able to find a manual for the Pro Series 2400GPH Sand Filter, without the specs or p/n of the lateral I'm unable to confirm if the Lateral (155007) will fit.
 Reply
