Motor, Thrubolt, 56 Fr, 4 Hp 230v, 2spd (b235, 372162103, b2235)

PART#5298-0

MANUFACTURERWaterway

  0 Ratings

product q&a:   Ask a Question  | View Answers (1)

item is in stock

includes free shipping

Description Documents2 Q&A1 Parts4 Reviews

Back To Top

Product Details

MANUFACTURER CODEB235

ALTERNATE PART #'S187563, 193315, 193540, 3721621, 372162103, 7-187563-02, 7-193315-01, 8-187563-02, 8-187563-05, 819331501, B2235, B235


Product Description

THIS MAY BE EITHER A MAGNETEK CENTURY MOTOR OR AN A.O. SMITH MOTOR, BOTH ARE THE SAME BUT THERE WILL BE A MEMO FOR EACH

********

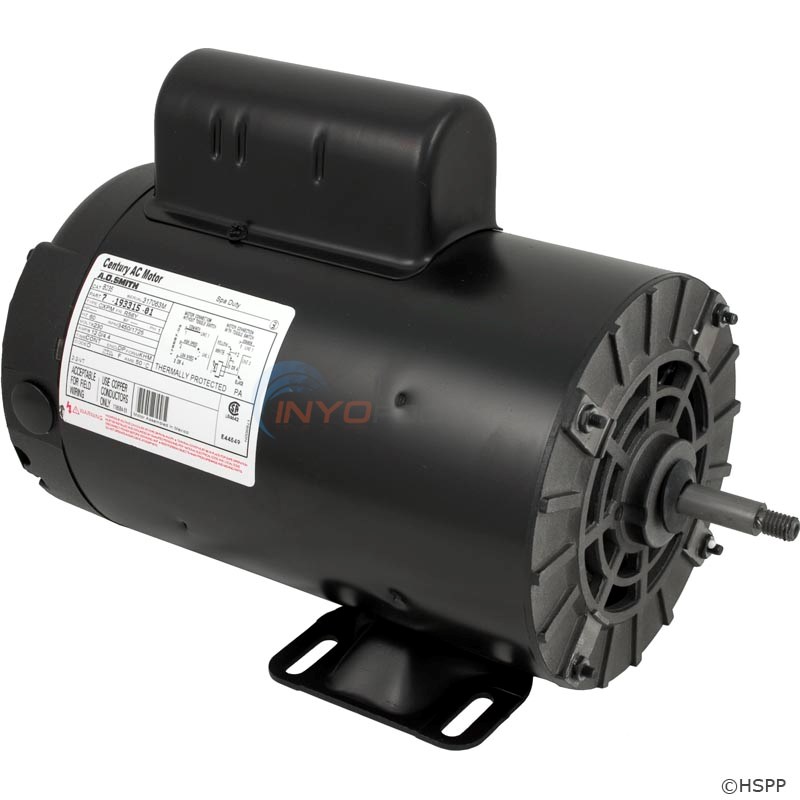

MAGNETEK THRU BOLT 56 FRAME 2 SPEED MOTOR (THRU BOLTS FARTHER APART THAN STANDARD 48 FRAME) . 4-1/8" FROM BOLT HOLE TO BOLT HOLE ........ HORSEPOWER LABEL HORSEPOWER NO HP SHOWN ON LABEL . (MAGNETEK CALLS THIS A 4 HP) SERVICE FACTOR NO SF SHOWN ON LABEL ........ DIMENSIONS LENGTH: 11-1/4" (EXCLUDING SHAFT) SHAFT LENGTH: 2" DIAMETER: 6-3/8" HEIGHT: 9" (TO TOP OF CAPACITOR) ........ CAPACITOR MOUNTED ON TOP OF MOTOR ........ ELECTRICAL VOLTAGE: 230 VOLTS SINGLE PHASE AMP DRAW: 12.0 - 4.4 ....... SHIPPING WEIGHT 41 LBS

Motor Dimensions Motor Dimensions Motor Image Motor Image
Motor Name:
4 HP B235 & B2235 Replacement Spa Motor
Waterway HP - SPL Rating:
4.0/ .5
Speed:
Dual
RPM:
3450/1725 RPM
Volts:
230 V
Amps:
12.0/4.4 amp
Frame:
56Y
Stock #:
B235 or B2235
Shaft:
Threaded
Overload Protector:
Auto
Dimension Letter:
C
Dimensions:
13.37 in.
Waterway #:
3721621
Insulation Class:
F
Commonly Used On:
Waterway Spa Pumps
Notes:
HP-SPL is a special horsepower rating used by Waterway
Documents

DRAWING B2235 (456.66 KB)

Recommended wire gauge for motors (111.76 KB)

Please feel free to view our complete library of owners manuals.

Ask a Question
Q&A

Asked on 01/11/2012 by Guest

What is Service Factor?

Answered on 01/11/2012 by Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
