Part # 4890-067
Manufacturer Code V34-016
Dimensions 17.5" L x 4.5" W x 2" D
Alternate Part #'s 004906, 39960333, V34016, 27-612-1000

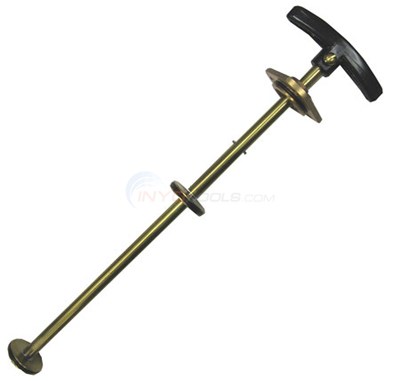

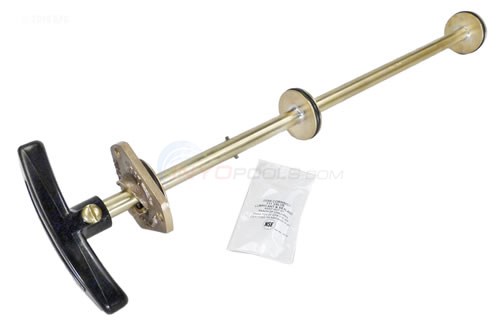

INYO # 4890-067 ANTHONY # 39960333 GENERAL DESCRIPTION: THIS IS THE COMPLETE MAIN SHAFT WITH SPACERS, TOP PLATE, AND HANDLE USED IN THE ANTHONY 1-1/2" PUSH PULL VALVE THE HANDLE IS A T-STYLE, BLACK PLASTIC, HELD ON WITH A SINGLE SET SCREW GENERAL INFO MATERIAL: BRASS WITH BLACK PLASTIC HANDLE DIMENSIONS: LENGTH: 17-1/4" (INCLUDING HANDLE) LENGTH: 16-1/2"(A) (WITHOUT HANDLE) SHAFT DIAMETER: 1/2" (B) SPACERS: TOTAL # 2 SPACERS INCLUDED 3RD SPACER IS ALSO INCLUDED,AS PART OF THE TOP PLATE DIAMETER: 1-5/8" THICKNESS: 1/4" FROM OUTSIDE TO OUTSIDE GROOVE: 1/8" SPACING: (MEASURED ON CENTERLINE FROM FIRST SPACER WITH THE FIRST SPACER AT ZERO) 1ST 0 2ND 9" 3RD 14-3/8" SPACER O-RINGS: (3) INCLUDED THESE ARE STRETCHED ON TO THE SPACERS SO THE DIMENSIONS SHOWN ARE FOR THE ORIGINAL O-RINGS BEFORE THEY ARE STRETCHED OUTSIDE DIAMETER: 1-5/8" INSIDE DIAMETER: 1-3/8" HOLES IN SHAFT: (MEASURED ON CENTERLINE FROM THE HANDLE END OF THE SHAFT) HOLE: 3/32" AT 1-1/2" FROM END HOLE: 3/32" AT 4-5/8" FROM END ASSEMBLY INCLUDES: SHAFT WITH 2 SPACERS O-RING FOR EACH SPACER (3 TOTAL) SHAFT O-RING SPRING PINS (2 TOTAL) HANDLE HANDLE SET SCREW MARKINGS: THERE ARE NO MARKINGS
*******************************************************************************
TOP PLATE INFO INCLUDED? INCLUDED INYO # 4890-064 ANTHONY # 39960324 GENERAL DESCRIPTION: THIS IS THE TOP PLATE USED IN THE ANTHONY 1-1/2" PUSH PULL VALVE MATERIAL: BRASS SHAPE: TRIANGLE WITH ROUNDED POINTS THERE IS A 5/16" AT EACH POINT THE HOLE CENTERLINE IS ABOUT 5/16" FROM THE EDGE THIS TOP PLATE ALSO INCLUDES THE TOP SPACER CAST AS PART OF THE PLATE DIMENSIONS: WIDTH(CENTER TO POINT): 2-1/2" (A) TOTAL HEIGHT: 11/16" (B) CENTER HOLE DIAMETER: 1/2" INCLUDES: TOP PLATE WITH SPACER ONLY MARKINGS: "OPEN" AND "LOCK" WITH ARROWS CAST ON TOP
*******************************************************************************
HANDLE INFO INCLUDED? INCLUDED INYO # 4890-048 ANTHONY # 21300913 GENERAL DESCRIPTION: THIS IS THE HANDLE USED IN THE ANTHONY 1-1/2" AND 2" PUSH PULL VALVE MATERIAL: ORIGINAL WAS CHROME PLATED BRASS THIS HANDLE IS BLACK PLASTIC SHAPE: T STYLE, WITH SET SCREW HOLE IN THE SIDE DIMENSIONS: LENGTH: 4-1/2" (A) WIDTH: 1" HEIGHT: 1-3/8" (B) INCLUDES: HANDLE ONLY MARKINGS: "ANTHONY" OR "VAL PAK" MOLDED ON THE TOP
*******************************************************************************
The plunger part of my backwash valve needs a new o-ring. Can I just purchase an o-ring? Also if that is not available, can I just purchase the plunger part without buying a whole new backwash valve.
Reply
How do I determine if I have 2" or 11/2" valve?
Reply
Hi Matt, You would want to look at the pipe going into the valve, there should be some sort of digital writing or embossment which says either 1-1/2" or 2".
Reply
I have an Anthony 52" filter with the backwash valve. I purchased new o-rings and was able to install the three large round ones but cannot see how to install the small ring at the top ?? which without it water flows out the top when in the closed position and the filter pump running. Is there a special tool for installing the small o-ring ?
Reply
At this time we do not have stock we would be able to confirm with.
Reply
How do you replace the small 0-ring in the top plate on the Anthony Plunger 1 1/2" assembly V34-016
Reply
We unfortunately do not have any guides for this repair however I was able to locate a few youtube videos with some technicians repairing these slide valves.
Reply
You need to bang out the pins in the shaft with a hammer. Then the top housing comes right out. Be sure to have a couple of replacement pins in case you break one.
Reply
The Most Helpful Review
1 0
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
easy to install. Works great now
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Works perfectly
Was this review helpful to you?
