$134.92

Qty:

By Praher


Details

Top

Part # 4708S

Alternate Part #'s TM12E, 26-253-1010

Product Description

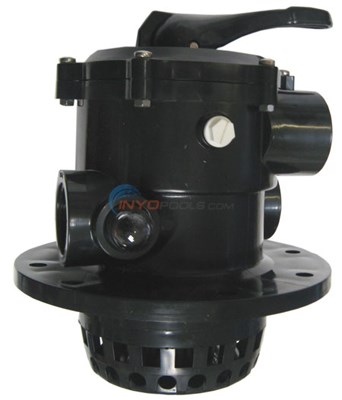

Sta-Rite #14962-0105 THIS IS A STA-RITE TOP MOUNT BOLT ON VALVE STA-RITE #14962-0105 (1-1/2" MPT VERSION) FLANGE DIAMETER IS ABOUT 9-5/16" 8 BOLT HOLES IN FLANGE,ABOUT 2-5/8" BETWEEN HOLES HEIGHT IS 10-1/2" VALVE COLOR IS BLACK, COVER IS 6 SIDED THE NUMBERS "14962" & "14964" ARE ON THE COVER S 14962-1 MOLDED ON SIDE OF FLANGE USED ON VARIOUS FILTERS ..... WILL REPLACE 4708- PRAHER VALVE (TM-12-E) ..... VALVE POSTIONS (CLOCKWISE FROM TOP) STARTING ABOVE THE WASTE PORT WASTE,CLOSED,BACKWASH,RECIRCULATE,RINSE,FILTER ..... PORT ARRANGEMENT (CLOCKWISE FROM TOP) 1ST SIDE - WASTE PORT & HOLE FOR PRESSURE GAUGE 2ND SIDE - NO PORTS 3RD SIDE - PUMP PORT & RETURN PORT (PUMP PORT IS .. DIRECTLY ABOVE THE RETURN PORT) 4TH SIDE - NO PORTS ..... INCLUDES 1/4" PLUG INSTALLED IN PRESSURE GAUGE HOLE SIDE MOUNT PRESSURE GAUGE (8) U30-72SS SS BOLTS (MOUNTS VALVE TO FILTER) (8) 38907-3192 SS WASHER (1) 14962-0021 GASKET (VALVE TO FILTER) USED ON SAND FILTERS

Top

?     Asked on 7/13/2016by Mike DeMarea

I am needing a replacement valve for a Sta-Rite 14962-0105. I have found two that looks like to be the same. 4708S list at $216 and 4708-O that list at $135. Can you tell me the difference of the two and the manufacture of each.
 Reply

A  Answered on 7/20/2016 by InyoPools Product Specialist Lennox H.

Hi Mike, The valve that is listed as p/n 4708S is the only valve that can be used as a replacement for p/m 14962-0105. Part  number 4708-0 is a clamp-on style valve versus p/n 4708S is a bolt-on style valve.
 Reply


?     Asked on 5/22/2017by Mike

I purchased this replacement valve and I am now getting ready to install it onto the tank. The gasket that was included has a defect and I am afraid that if I use it will leak. ANd I thought that I would receive 8 new bolts and 8 washers.
 Reply

A  Answered on 5/25/2017 by InyoPools Product Specialist Lennox H.

Hi, Mike. The bolts are not included with the valve. Please sent pictures of the gasket so we can find out if the gasket is indeed defective.
 Reply
