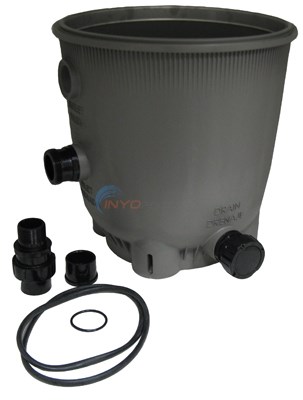

Filter Bottom Assembly, Cl And Dev (r0466500)

PART#4580-163

MANUFACTURERZodiac

  0 Ratings

product q&a:   Ask a Question

item is in stock

includes free shipping

Description Q&A Parts1 Reviews

Back To Top

Product Details

MANUFACTURER CODER0466500

ALTERNATE PART #'SR0466500


Product Description
INYO # 4580-163 JANDY / ZODIAC # R0466500 THIS IS THE FILTER TANK BOTTOM USED IN THE JANDY CV AND DEV FILTERS. THIS IS ALSO USED AS A REPLACEMENT FOR THE CL AND DEL FILTERS.

************************************

INCLUDES: 1 FILTER TANK BOTTOM 1 RETAINING RING, INSTALLED 3 BULKHEAD FITTINGS (2 INSTALLED) MARKED A01221 3 BULKHEAD O-RINGS, 3-1/8" OD X 2-3/4" ID 3 UNION NUTS (1 INSTALLED) MARKED A0578900 1 DRAIN CAP END (INSTALLED) MARKED A0118300 3 UNION O-RINGS (1 INSTALLED) 2-7/8" OD X 2-5/8" ID 2 UNION TAILPIECE, MARKED A0578800 1 TANK O-RING (22-5/8" OD X 21-3/4" ID) 1 INLET ELBOW (INSTALLED) THIS DOES NOT INCLUDE THE OUTER TUBE ASSEMBLY OR THE ANCHOR BRACKETS THE TANK O-RING HAS A SLIGHTLY FLATTENED SHAPE. THE DIMENSION SHOWN IS INSTALLED IN THE TANK. IT MAY BE SLIGHTLY SMALLER WHEN IT'S NOT INSTALLED.
