Part # 5030-220

Manufacturer Code 310-0900B

Alternate Part #'s 310-020F, 310-0900, 310020F, 3100900, 35-270-1714, WW3100900B

Product Description

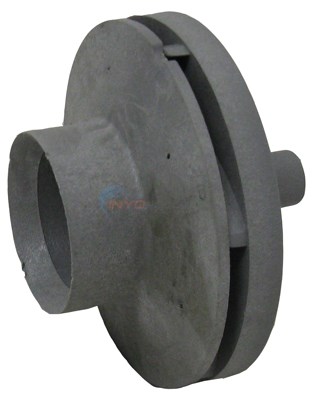

Impeller Iron Might - 310-0900B No Longer Available and Replaced by Uni-might Pump Wet End, 1/8 Hp (310-5070) PART # 5175-103



INYO # 5030-220 WATERWAY # 310-0900 THIS IS THE IMPELLER USED ON THE 1/8 HP IRON MIGHT PUMP

************************************************

GENERAL DESCRIPTION: CLOSED FACE GRAY IMPELLER THE SHAFT SIDE OF THE IMPELLER HAS A RIDGE WHICH EXTENDS ABOUT 1/4" PAST THE FACE. THIS ALSO HAS A RING AROUND THE SHAFT COVER ABOUT 1-9/16" DIAMETER AND 9/16" TALL

************************************************

MATERIAL: GRAY PLASTIC TYPE: CLOSED FACE NUMBER OF VANES: 6

************************************************

DIMENSIONS: OUTSIDE DIAMETER 3-7/8" TOTAL LENGTH: 3-1/8" OUTSIDE THICKNESS AT EDGE: 11/16" INSIDE THICKNESS AT EDGE: 3/16" SHAFT LENGTH: 1-1/2" SHAFT DIAMETER: 5/8" INLET OPENING OUTSIDE DIAMETER: 1-7/8" INLET OPENING INSIDE DIAMETER: 1-7/16" LENGTH OF INLET OPENING: 13/16"

************************************************

MARKINGS: MOLDED ON THE INLET SIDE ASSY 310-020 F 3 HP
