By Hayward Pool Products


Details

Top

Part # 5112-275

Manufacturer Code SPX3220Z2MER

Alternate Part #'s SPX3220Z2MER, 35-150-1518, HAYSPX3220Z2MER, HPPSPX3220Z2MER

Product Description

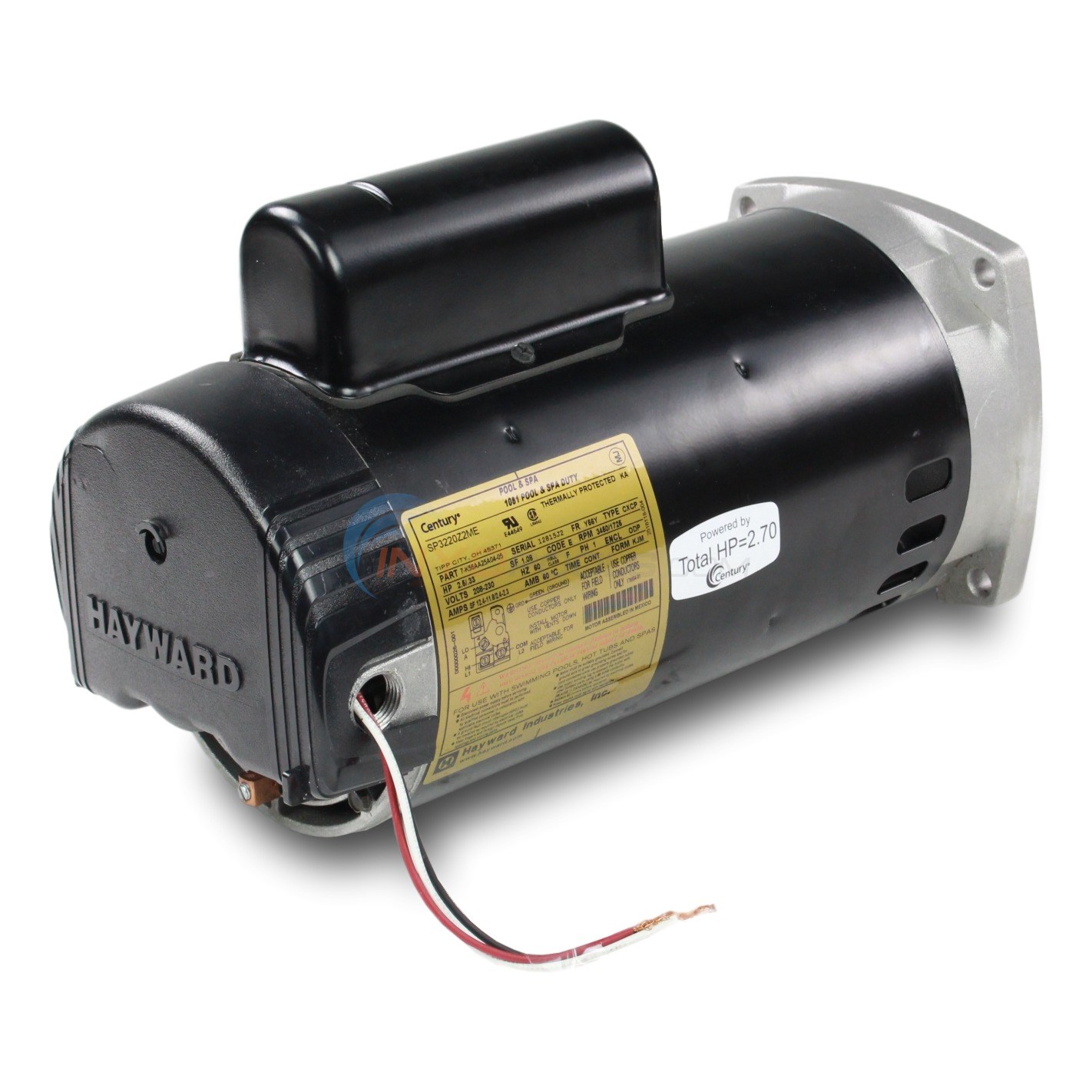

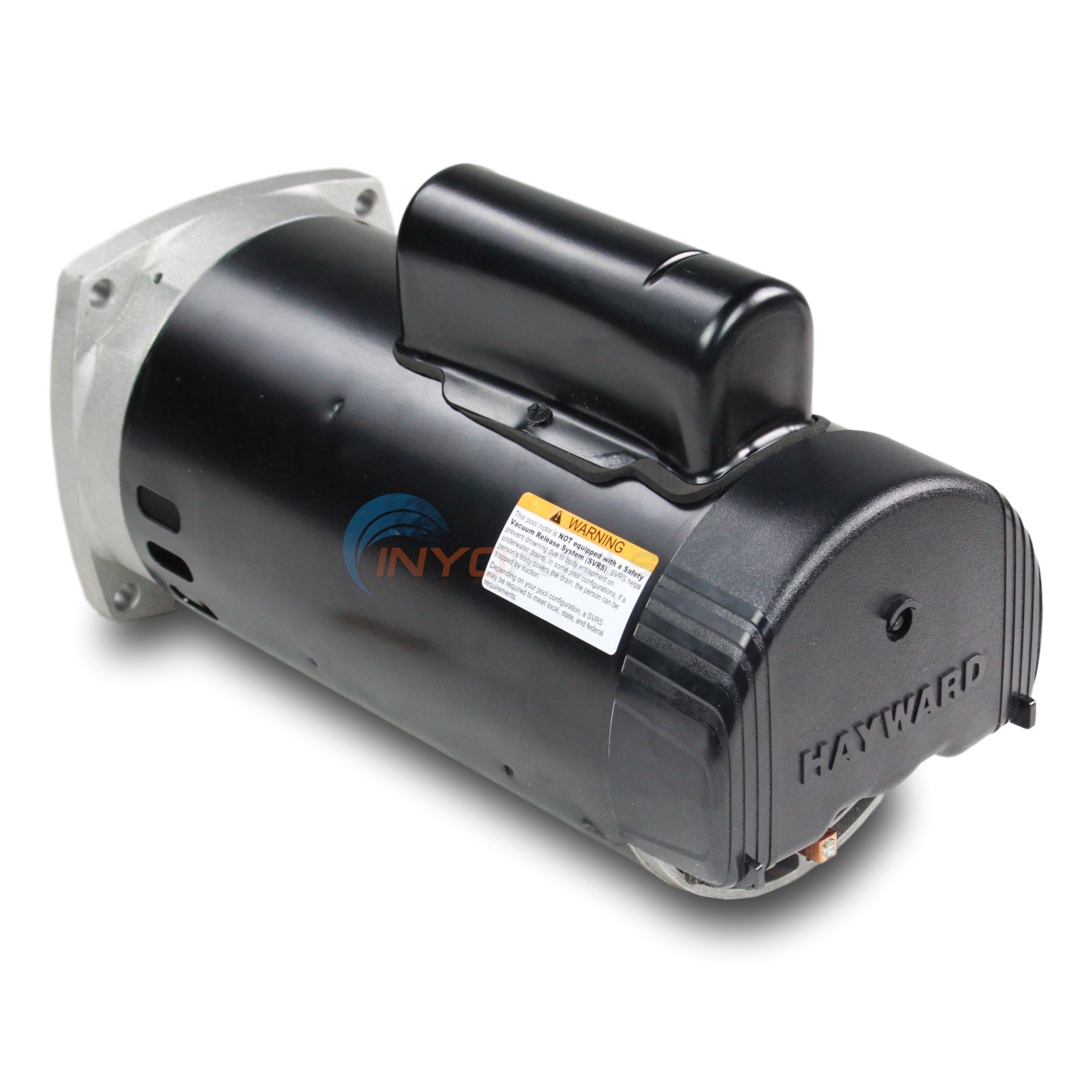

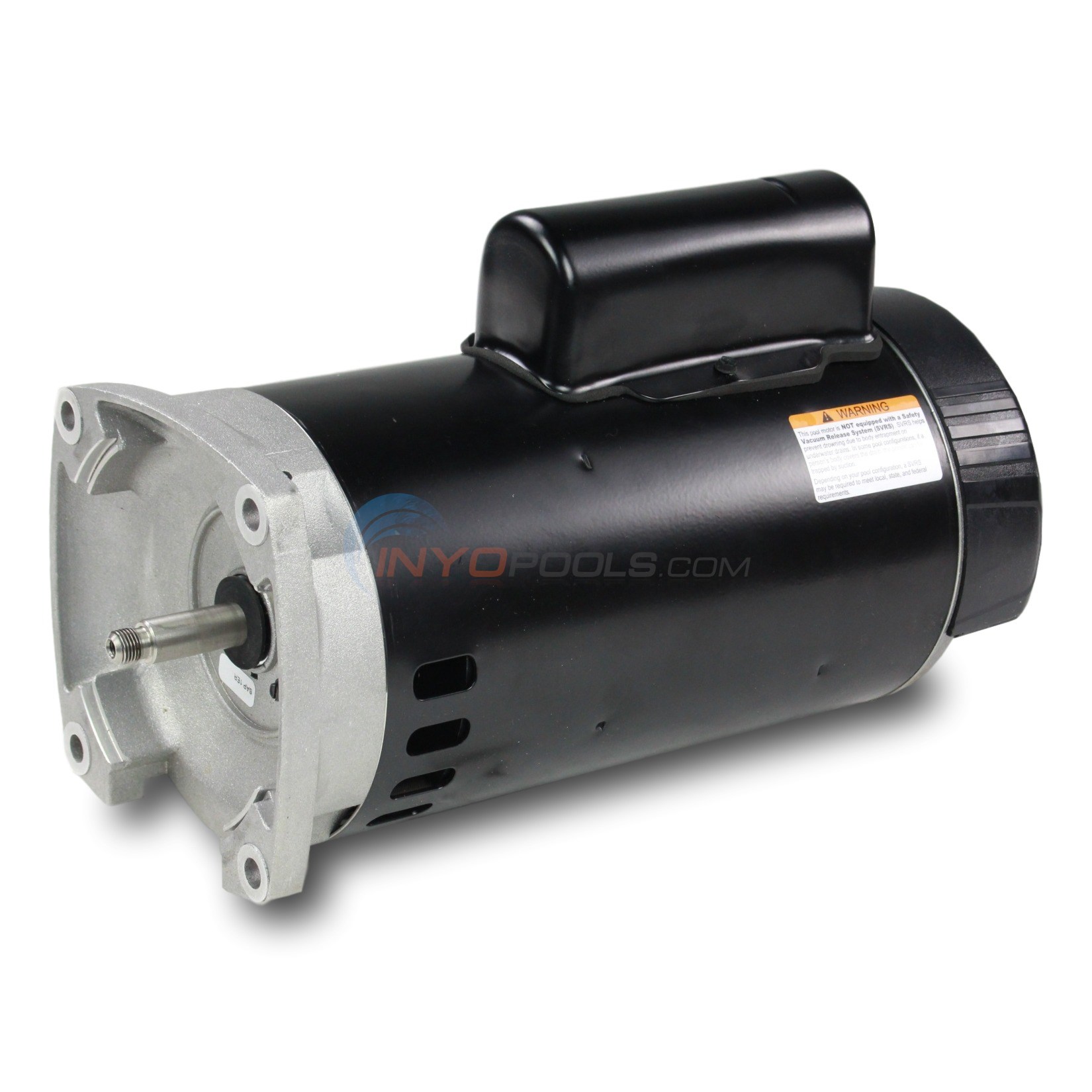

Motor, 2-1/2hp Maxrate 2-speed Tristar 208/230v (spx3220z2mer, sp3220z2mer)

Top

?     Asked on 1/11/2012by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

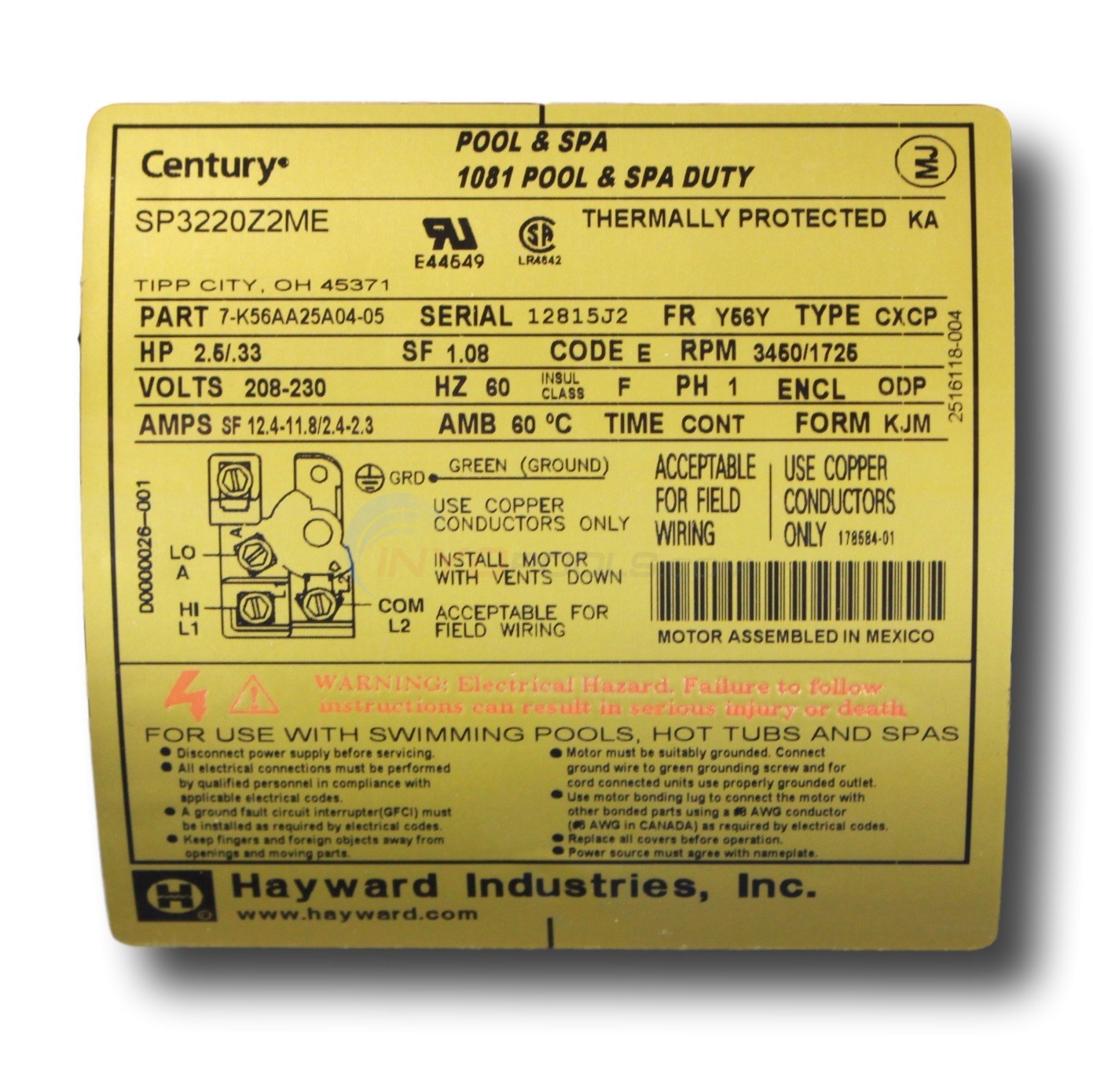

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply


?     Asked on 7/9/2016by Sang Le

My current motor SP3220Z2MER, motor specs are 2.5 HP, SF 1.10, Frame 56Y, Volt 230, RPM 3450/1725, will this one compatible with my current pump?
 Reply

A  Answered on 7/13/2016 by InyoPools Product Specialist Lennox H.

Hi Sang Le, Yes, this motor is the exact replacement to the motor you have.
 Reply


?     Asked on 6/22/2019by Sang Le

How long is the MFG Warranty on this pump unit?
 Reply

A  Answered on 6/23/2019 by InyoPools Product Specialist Michelle B.

Hello, This will have a one year warranty with the manufacturer.
 Reply


?     Asked on 9/12/2019by Vicki Languein

I am buying the sp3220Z2me pump what other parts should be ordered at the same time?
 Reply

A  Answered on 9/18/2019 by InyoPools Product Specialist Hector F.

If you have a Hayward Tristar then we also recommend replacing the seals and gaskets being the GOKIT81
 Reply


?     Asked on 11/11/2019by Danny

If I start it in high speed (controlled by a T106M timer) it works great and I can switch to low speed and it also works great, but it just won't start in low sped.
 Reply

A  Answered on 11/13/2019 by Industry Professional

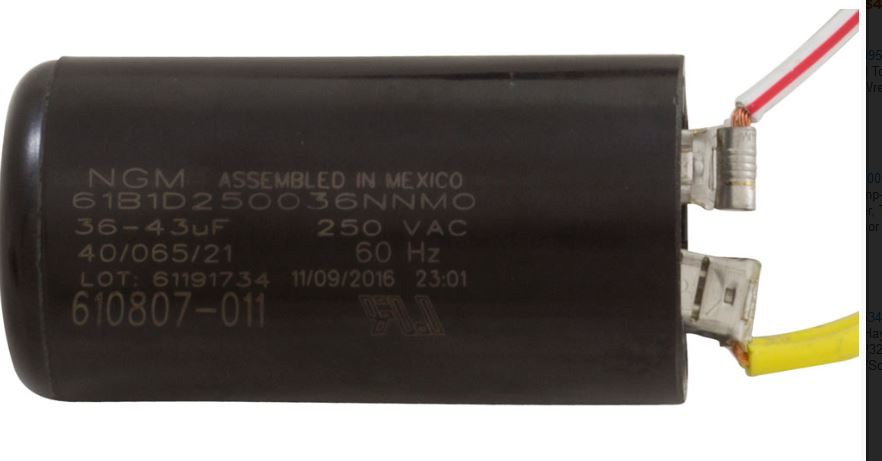

Sounds like the start capacitor, see image we added. Start capacitor is at the back of the motor, not the one on the top of the motor.

 Reply
