$48.49
Model # RLP8AV101
A112.19.8-2007 Standard
For Single or Multiple Drain Use (See Installation Instructions)
Single:
Floor: 100 GPM at 4.2 fps / Wall: 70 GPM at 2.9 fps
Dual:
Floor: 100 GPM at 2.1 fps / Wall: 70 GPM at 1.5 fps
Triple System:
Floor: 200 GPM at 2.8 fps / Wall: 140 GPM at 1.9 fps
Floor: 108 GPM at 1.5 fps
7.7 sq. in. Opening

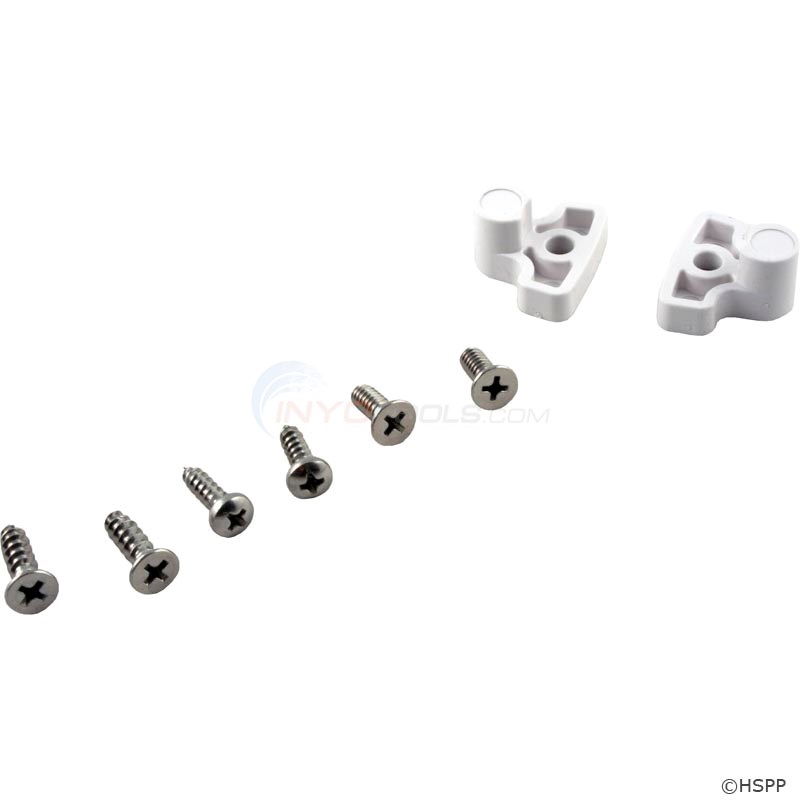

3 Sets of Different Stainless Steel Screws
Manufactured from Super Strong UV Resistant ABS/ASA Material
Easily and Safely Retrofits to Most Brand's Existing Frames and Sumps That Model #s LP8AVxxx and 8AVxxx Do Not Already Fit* (See Cross-Reference Chart and Installation Instructions for Details)
Patent Pending Flow-Max® Technology Super Low-Profile Eliminates Cleaner Hang-Ups
Meets or Exceeds ASME/ANSI A112.19.8-2007 National Standards and ASTM G154 UV Testing
A Single, Unblockable Suction Outlet that Exceeds the New VGB Mandate and ASME/ANSI A112.19.8-2007 Standard.
For Single or Multiple Drain Use (See Installation Instructions)
Single:
Floor: 206 GPM at 5.8 fps / Wall: 96 GPM at 2.8 fps
Dual:
Floor: 206 GPM at 2.9 fps / Wall: 96 GPM at 1.4 fps
Triple System:
Floor: 412 GPM at 3.9 fps / Wall: 288 GPM at 2.7 fps
Floor: 157 GPM at 1.5 fps
11.2 sq. in. Opening
#316 Stainless Steel Screws
Manufactured from Super Strong UV Resistant
ABS/ASA Material
Easily and Safely Retrofits to Most Brand's
Existing Frames* (See Cross-Reference Chart and
Installation Instructions for Details and Special
Requirements)
All Components (Cover, Adapter Plate,
Frame, Screws) Meet or Exceed ASME/ANSI
A112.19.8-2007 National Standards and
ASTM G154 UV Testing Exposure
*This AquaStar suction outlet cover/frame is complaint with the new Virginia Graeme-Baker(VGB) Pool and Spa Safety Act (ASME/ANSI A112.19.8-2007)
are you going to restock this item?
Reply
Hi Michael this unit does not conform to the entrapment protection standards of the ASME/ANSI A112.19.8 performance standard, or any successor standard regulating such swimming pool or drain cover. - See more at: http://www.poolsafely.gov/pool-spa-safety-act/read/#sthash.OcHCvgbT.dpuf it will be best to contact CMP at Phone: 800.733.906 to see if there is a new verison for this drain cover
Reply
Is there a replacement part for this ?
Reply
Hi DC, The AquaStar VGB Retro Fit Cover (A10RCFR101) will replace this grate.
Reply
You are recommending a 10" drain cover to replace this 8" drain cover?
Reply
The Most Helpful Review
1 0
(5 out of 5 stars) Beats the Competition!
Reviewed By: Pool Owner from Phoenix Arizona ()
Pros: Low Profile, more so than any I could find.
Cons: None really.
While I understand the reason that they had to modify the rules on the drain covers it was dissapointing that the thing has to stick up so high from the bottom of the pool floor. This was the lowest I could find and the quality seems good. The price definitely was.
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars) Excellent Jacuzzi 7" Cover Replacement
Reviewed By: Marion B. from Palm Coast, FL ()
Excellent Jacuzzi 7" cover replacement, all parts supplied for easy refit.
Was this review helpful to you?
