By Nidec Motor Corporation (formerly Emerson Motors)
Model # NPTT165

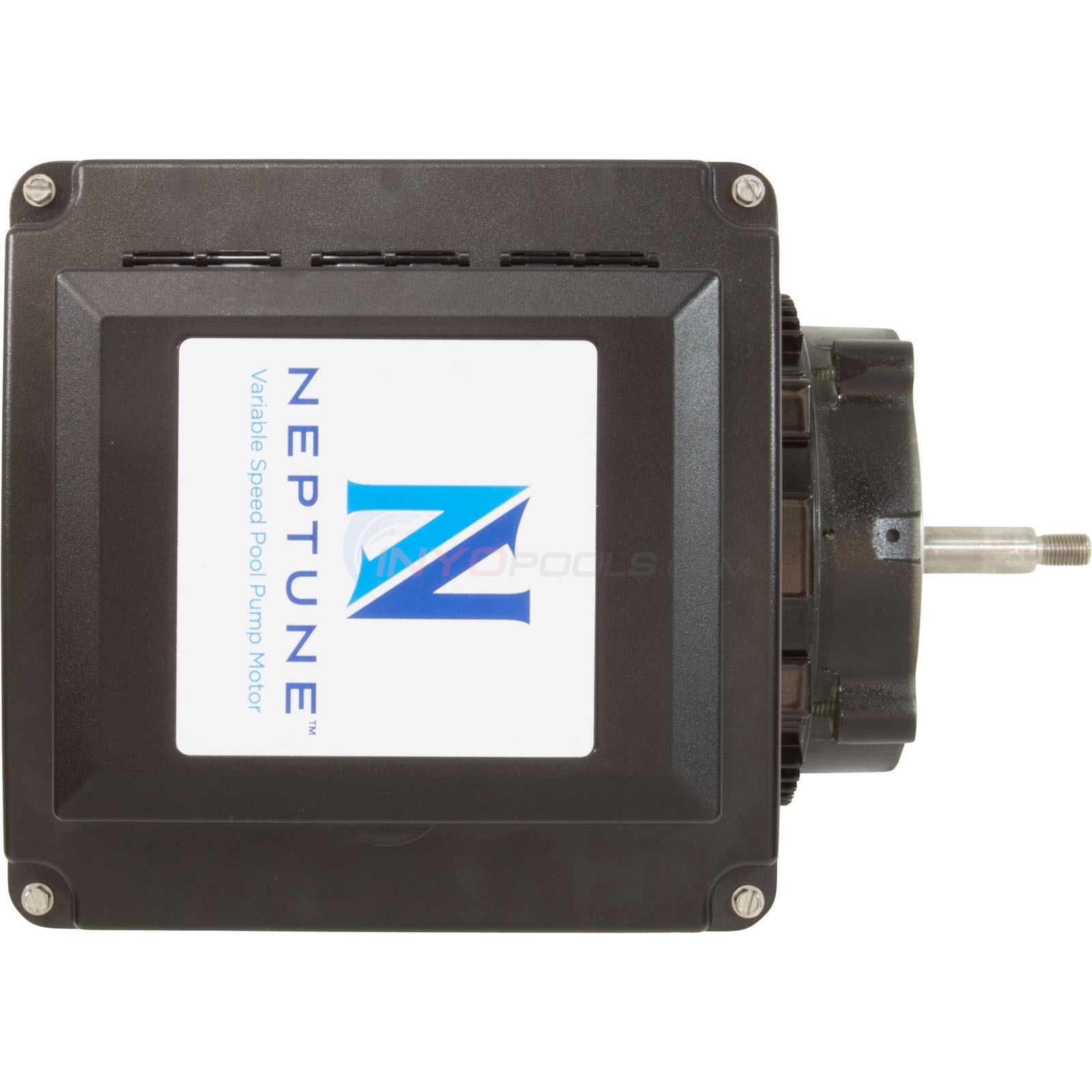

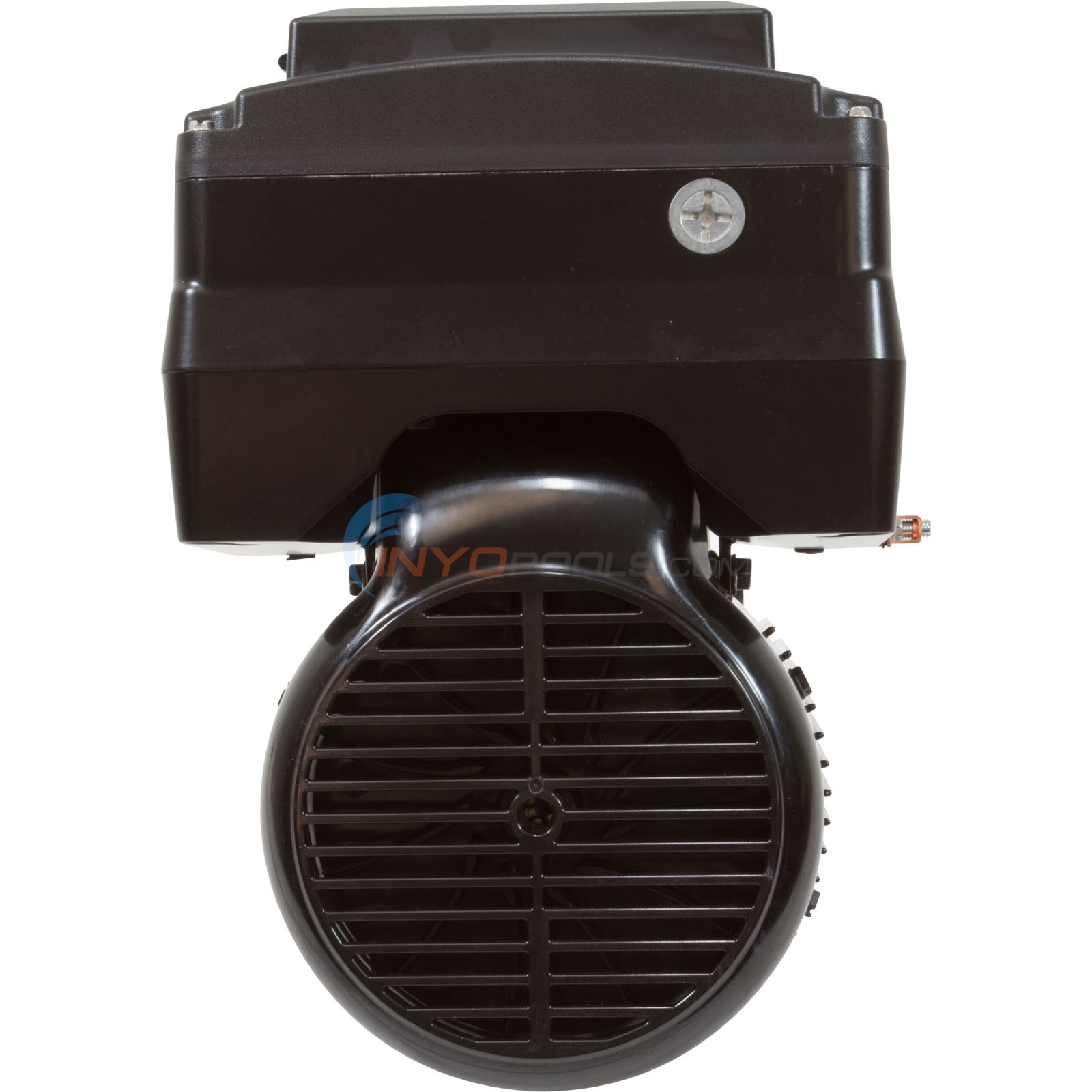

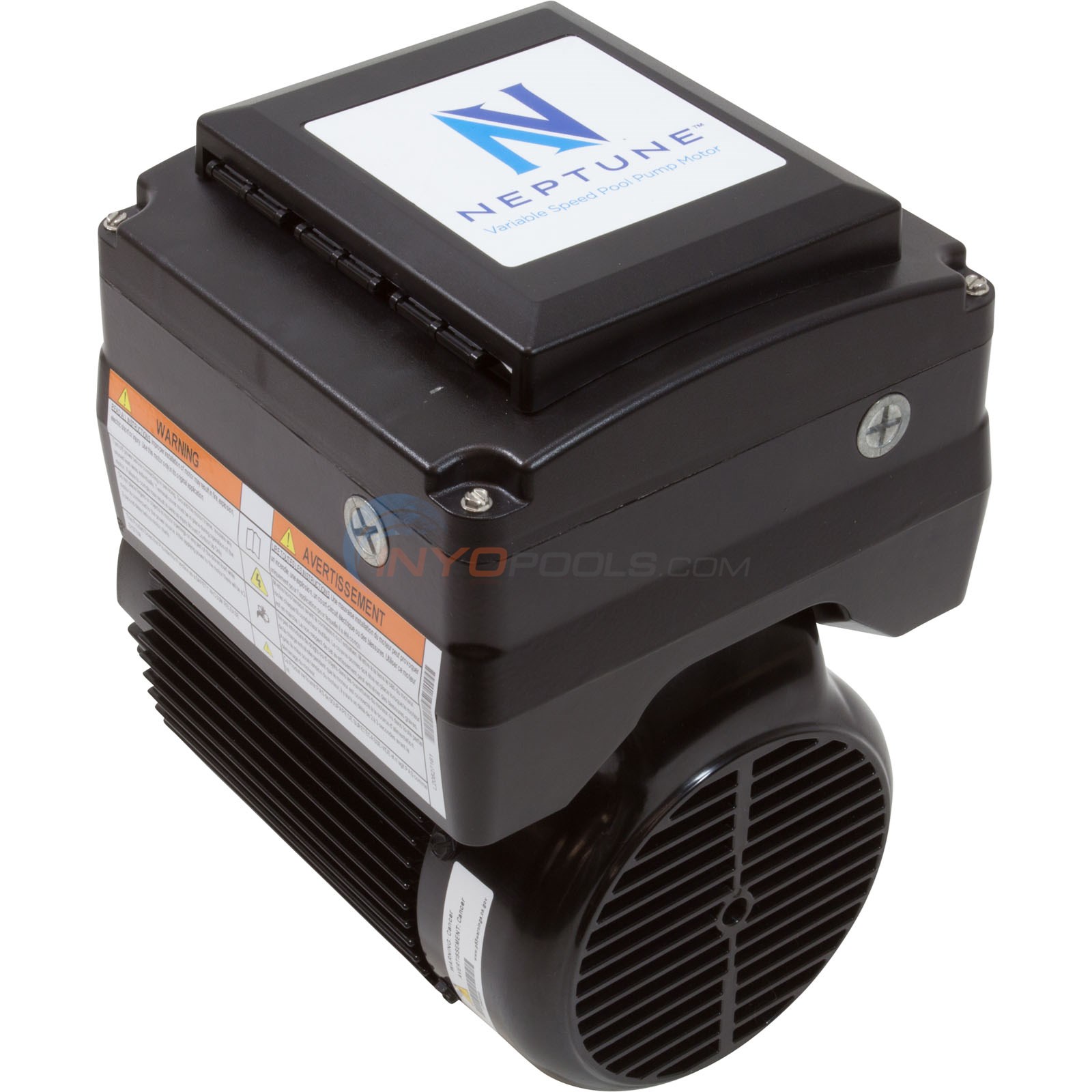

Nidec Neptune 1.65 HP Variable Speed Pool Pump Motor

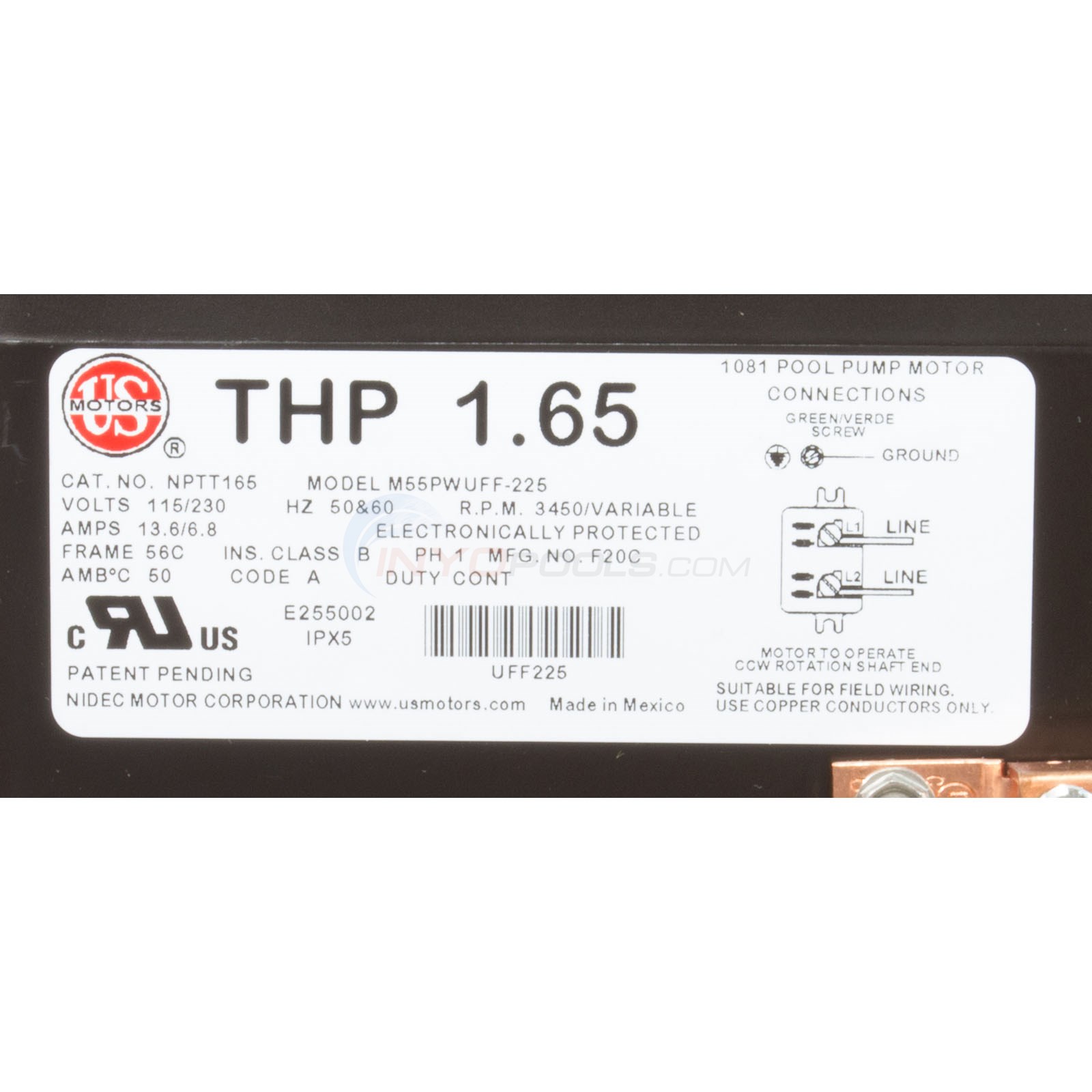

Model NPTT165 | 115–230V | 56J Round Flange
✅ Features & Benefits

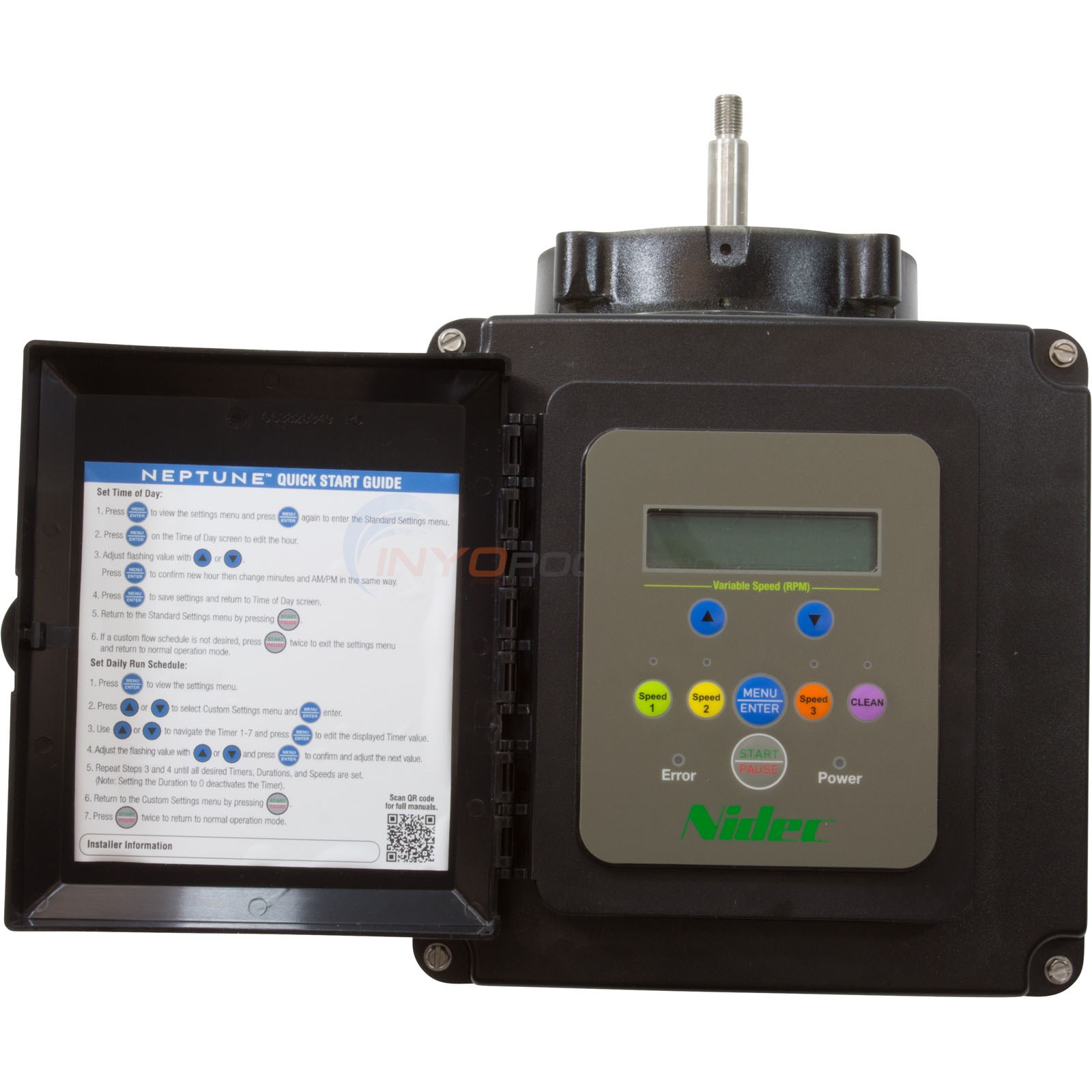

✅ Integrated motor, UI, and controls in one compact unit
✅ Wide programming flexibility with extensive speed range
✅ Operates standalone via onboard controls or integrates with most major automation systems
✅ Energy-efficient variable speed technology helps reduce operating costs
✅ Quiet operation and long-term reliability for residential pools
✅ Compatible with many popular pumps from Hayaward, Jacuzzi, and Jandy
➡️ Smarter Pool Motor Upgrade
➡️ Replace outdated single-speed motors with the Nidec Neptune NPTT165 to gain efficiency, automation flexibility, and quieter performance.
⚠️ Tech Tips & Cautions

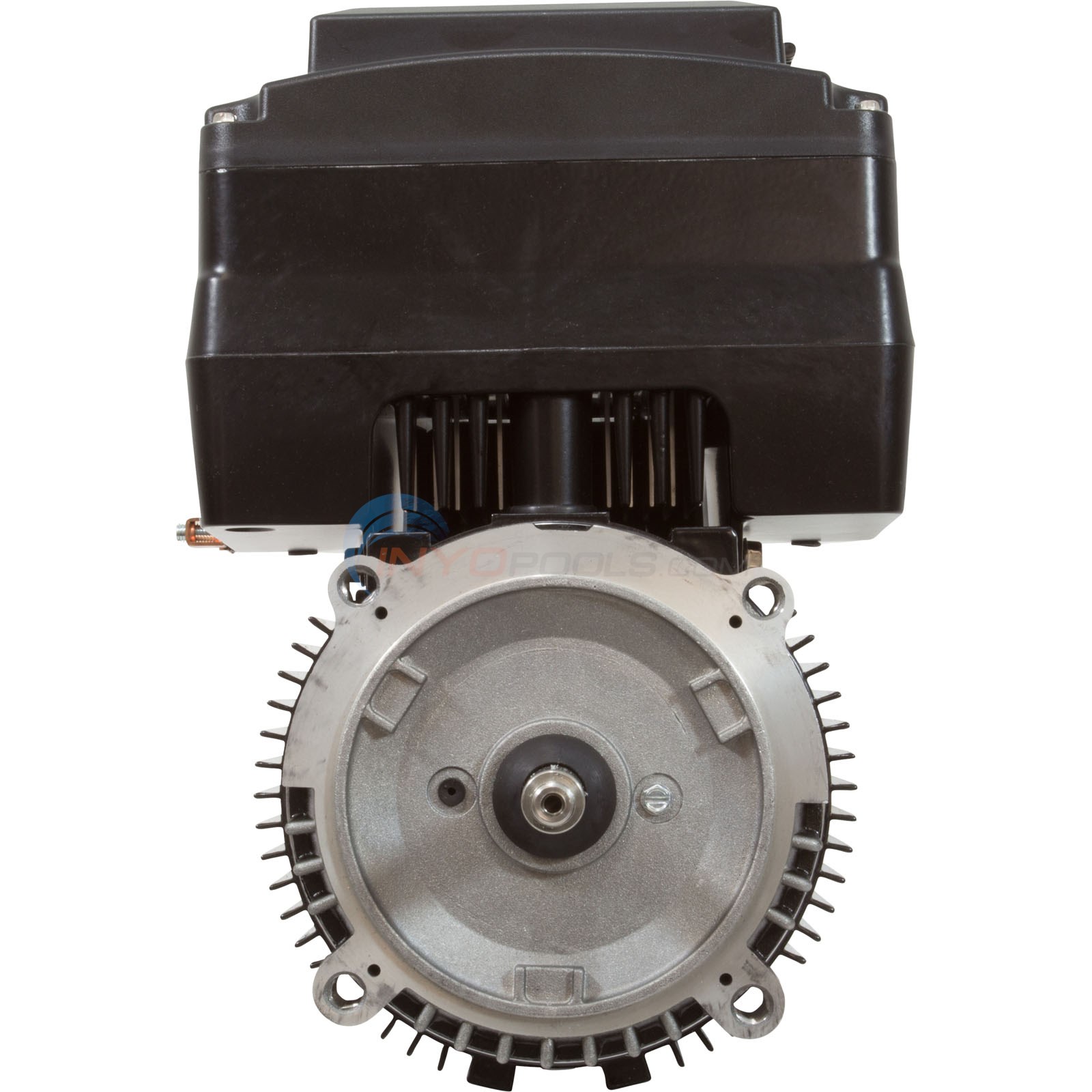

⚠️ Confirm motor frame size: 56J Round flange required for proper fit
⚠️ Verify compatibility with your specific pump housing before ordering
⚠️ Voltage must match your setup (115–230V compatible)
⚠️ Always disconnect power before installation; professional installation recommended
⚠️ For automation, check controller compatibility before setup
✅ Compatible Pump Models
This motor is a replacement/upgrade option for many leading pump series, including:
Hayward Super pump, Super II, MaxFlo
Jandy JHP & JHPU Series, PHP & PHPU Series, HHP & HHPU Series
Jacuzzi Magnum
