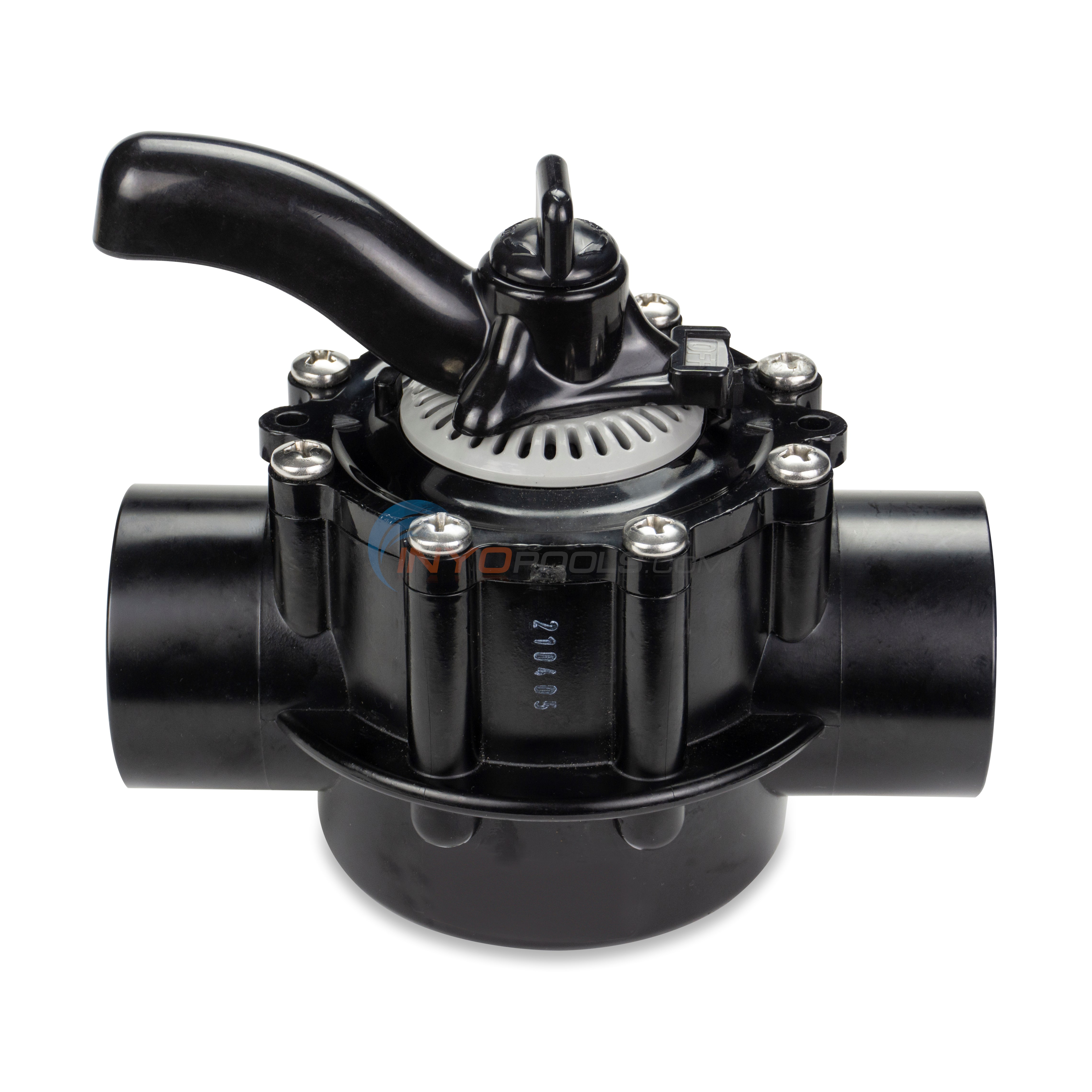

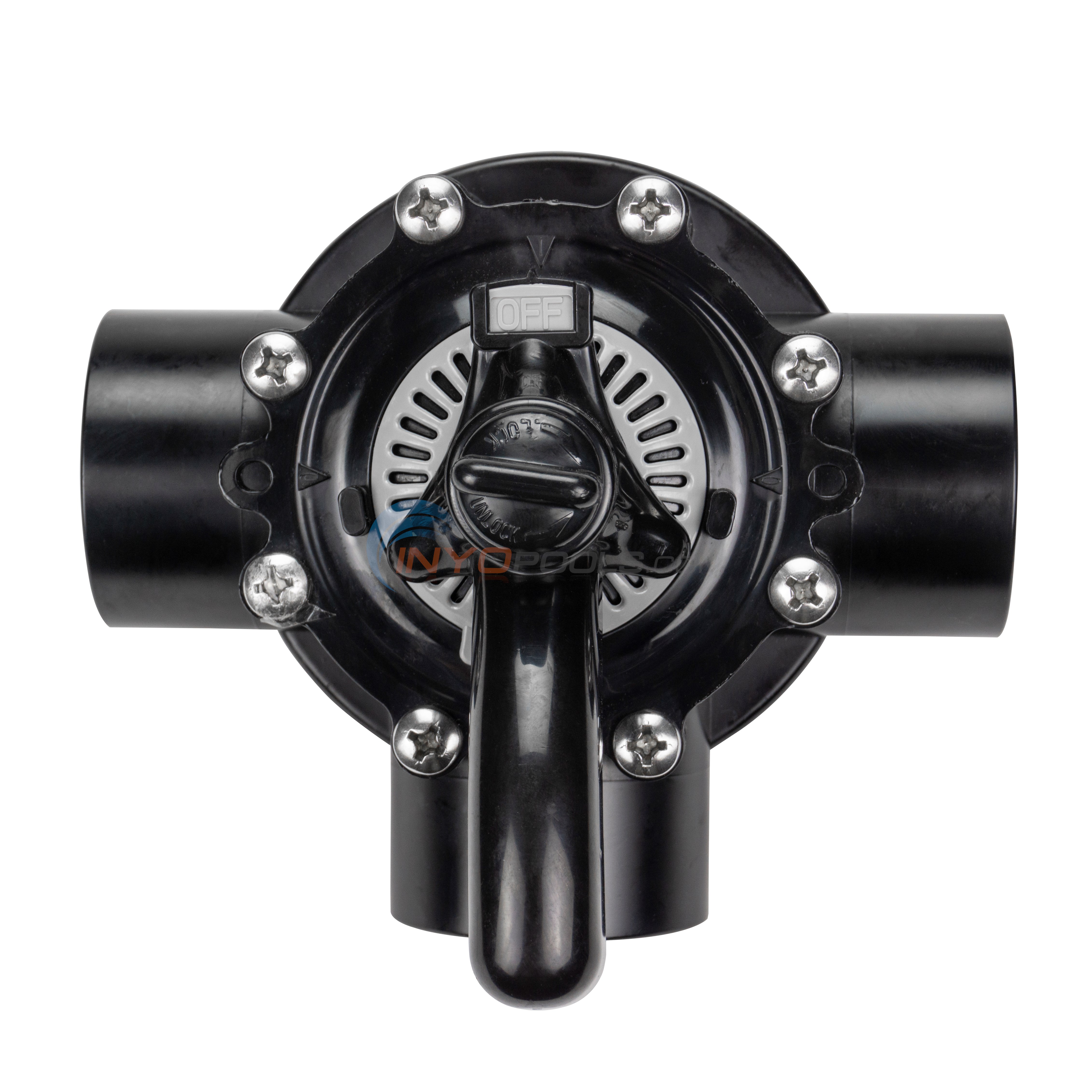

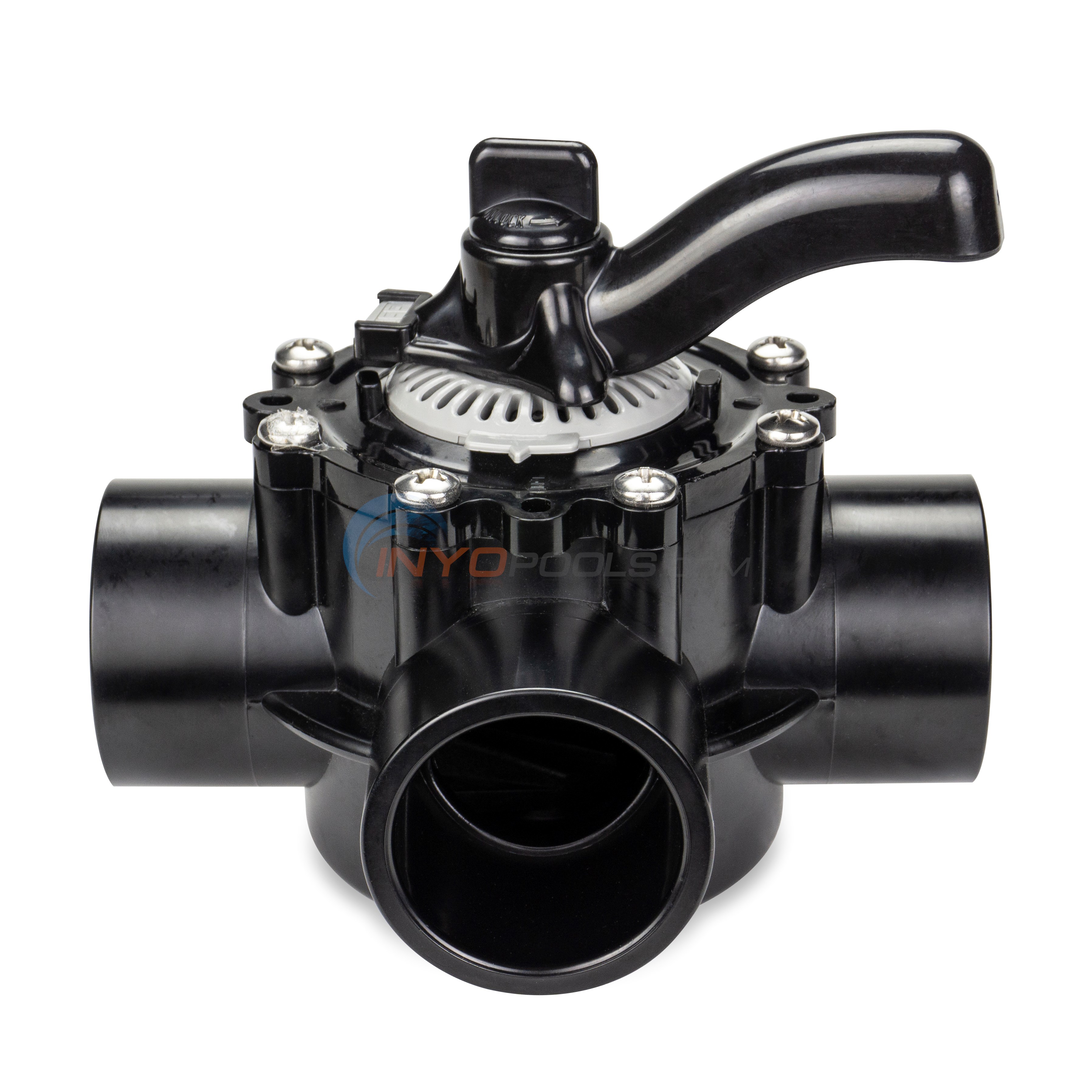

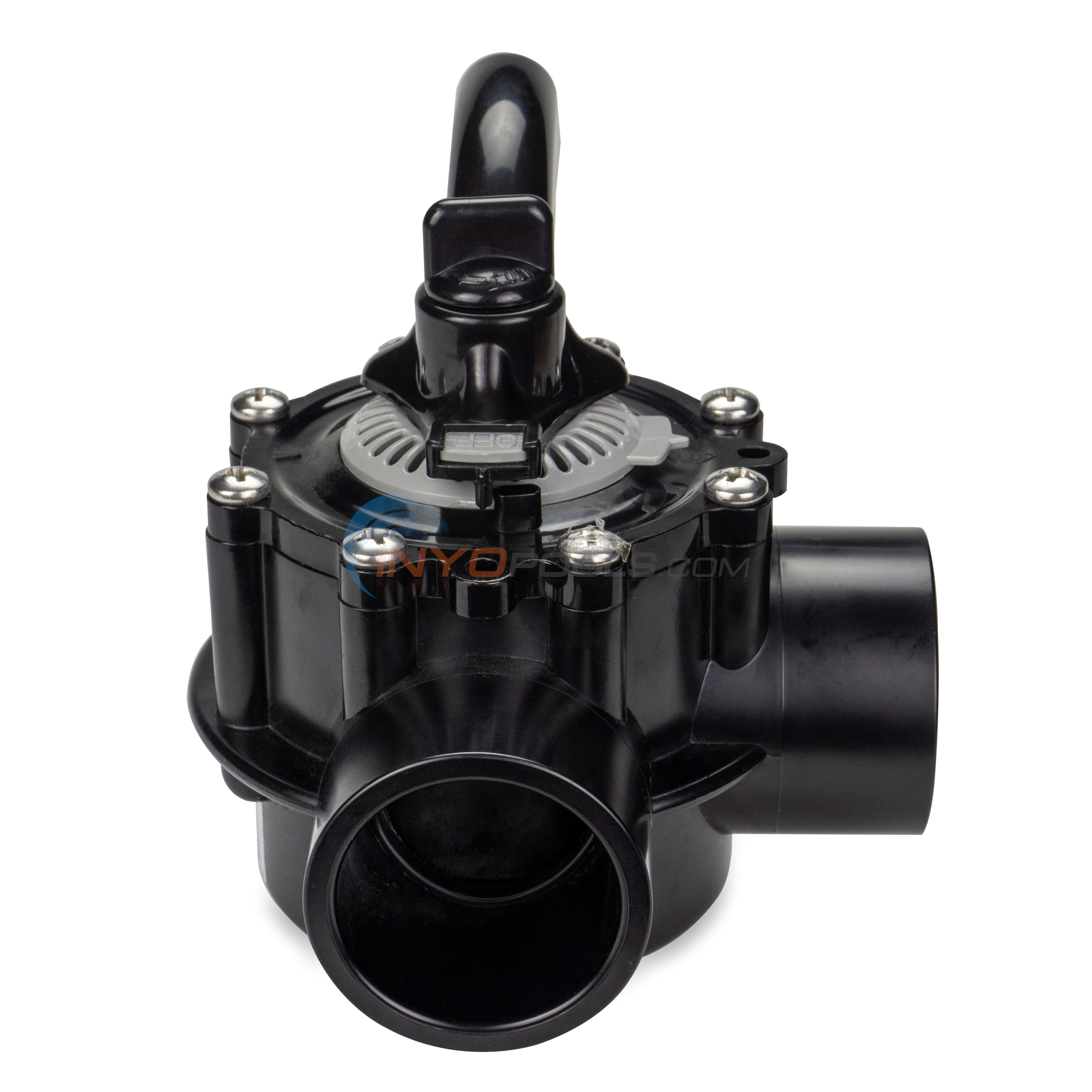

CMP 3 Way Diverter Valve 2" Inside 2.5" Outside - 25913-204-000

$57.99

IN STOCK
FREE SHIPPING

Part # 25913-204-000

By Custom Molded Products

  5 Average

Details

Top

Part # 25913-204-000

Alternate Part #'s 4717, 600-7100-CPVC, OV3-2000

Product Description

3-Way HydroSeal Valves

  • LifeSealsTM never need lubrication
  • Exclusive adjustable indicator plate for flow control
  • Flow tabs included for marking ports (English & Spanish)
  • Awarded the NSF International seal

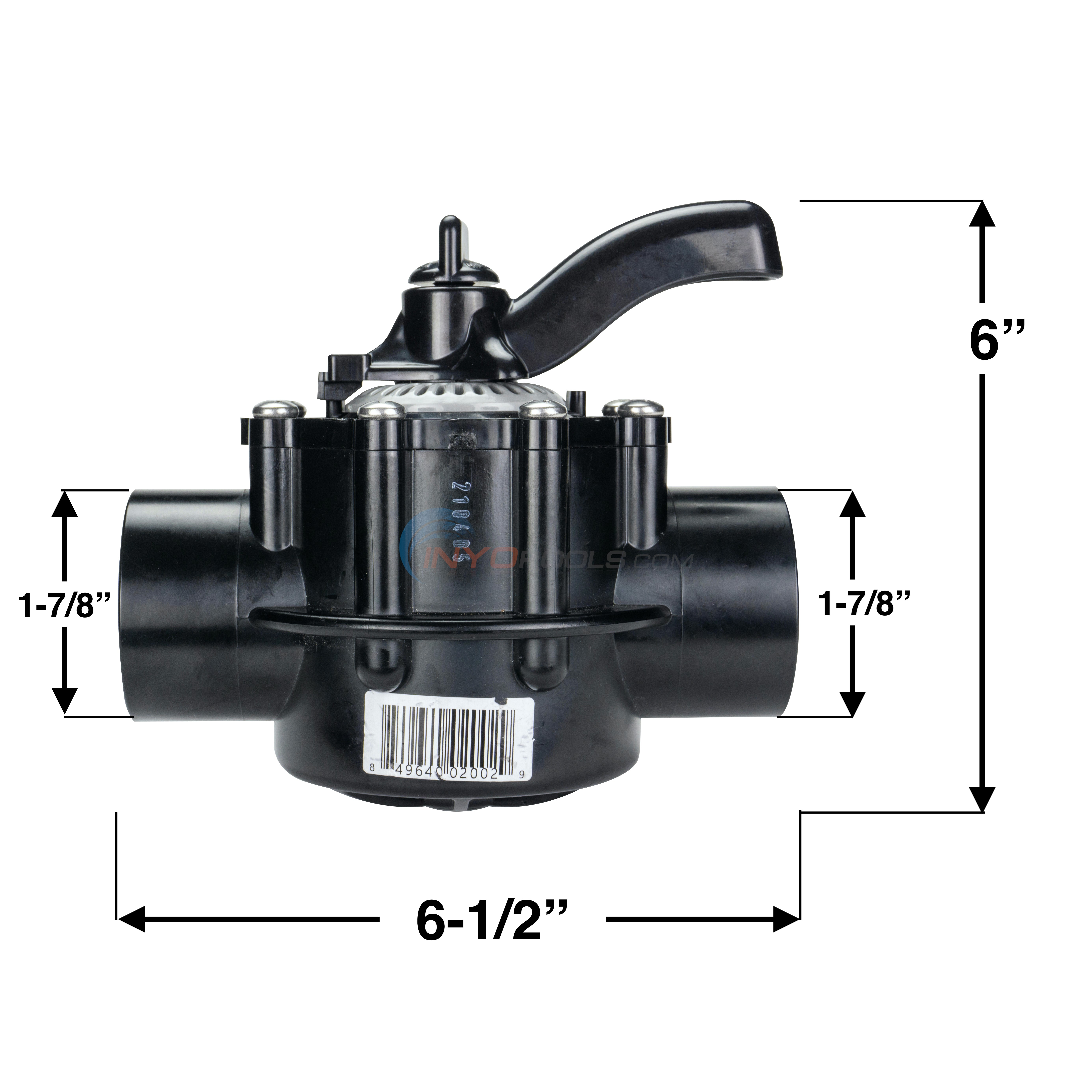

Product Specifications

Outside Diameter:
2 1/2 in.
Inside Diameter:
2 in.
Valve:
3 Way
Top

?     Asked on 10/12/2020 by James A Oxford

Is this the correct replacement for my NSF D042403?

 Reply

A  Answered on 10/20/2020 by InyoPools Product Specialist Joe S.

Hello James, yes, the Custom Molded Products CMP 3 Way Diverter Valve 2" Inside 2.5" Outside would be the replacement for that unit.
 Reply


?     Asked on 4/2/2020 by Billy

Can any one on the 3 ports be used for inflow?
 Reply

A  Answered on 4/2/2020 by InyoPools Product Specialist Lennox H.

Hi, Billy. Yes, any port can be used.
 Reply

  • Commented on 7/20/2020 by Product Owner

    Wayne, Wanted to follow up on Billy's question. Will the diverter valve configuration permit one of the inline inlets to serve as a supply and the valve connect either the inline direction or to the 90 vertical inlet? See photo of friend's system attached. The horizontal flows right from the filter. Depending on the diverter valve position, this discharge is either to the pool heater down that vertical isolation valve or horizontal to the pool.

     Reply

    • Commented on 2/19/2021 by InyoPools Product Specialist Hector F.

      Hi Michael, this 3 way valve can be used in place of the 2-way valve and T fitting in your image.
       Reply


?     Asked on 4/29/2018 by Fran

Does this valve allow for each of the three ports to be shut or is the center port always open and only the end ports can be closed?
 Reply

A  Answered on 5/1/2018 by InyoPools Product Specialist Megan C.

One port will always be closed or partially closed with a three-way valve.
 Reply


?     Asked on 2/16/2018 by Robert Jonsen

will the CVA24T actuator control the 3 way divert Valve 2" (25913-204-000 ) and can it be controlled (switched on ) by a high heat sensor. using 110 volts.
 Reply

A  Answered on 2/22/2018 by InyoPools Product Specialist Lennox H.

Hi, Robert. The CVA24T Actuator will control a 3-Way diverter valve. The CVA24T requires 24VAC, not 110 volts.
 Reply


?     Asked on 11/20/2017 by Ted

Is this valve a 3 position valve?
 Reply

A  Answered on 11/20/2017 by InyoPools Product Specialist Hector F.

Yes, this is a 3 position valve for various plumbing applications.
 Reply


?     Asked on 9/30/2017 by Alison

I need a diverter assembly for this valve. Do you have those available?
 Reply

A  Answered on 10/3/2017 by InyoPools Product Specialist Lennox H.

Hi, Alison. The replacement diverter assembly for this valve is P/N 25913-204-800
 Reply


?     Asked on 6/1/2017 by wayne

I need 2 sets of O Rings for Jandy 3 way diverters: one 3-way measuring 2" OD on each leg; the other measuring 2" OD on two opposing legs with a 2.5" middle leg. What do you suggest?
 Reply

A  Answered on 6/8/2017 by InyoPools Product Specialist Lennox H.

Hi, Wayne. The o-rings for the Jandy Diverter valve are available in the Jandy Tune Up Kit - GOKIT72.
 Reply
