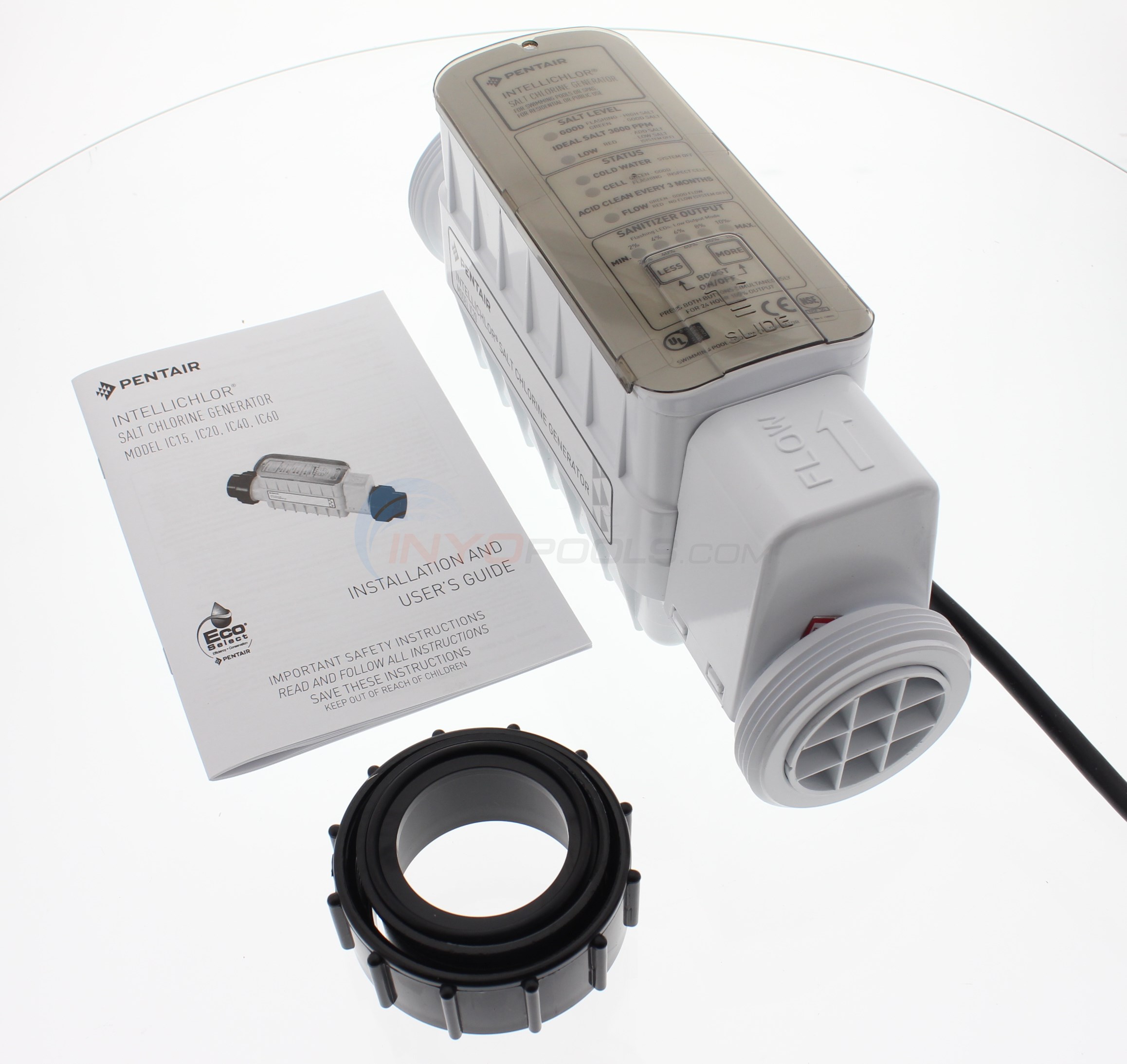

Intellichlor IC20 Replacement Cell - 520554



Part # 520554

By Pentair Pool Products

  3 Average



Part # 520554

Warranty One Year

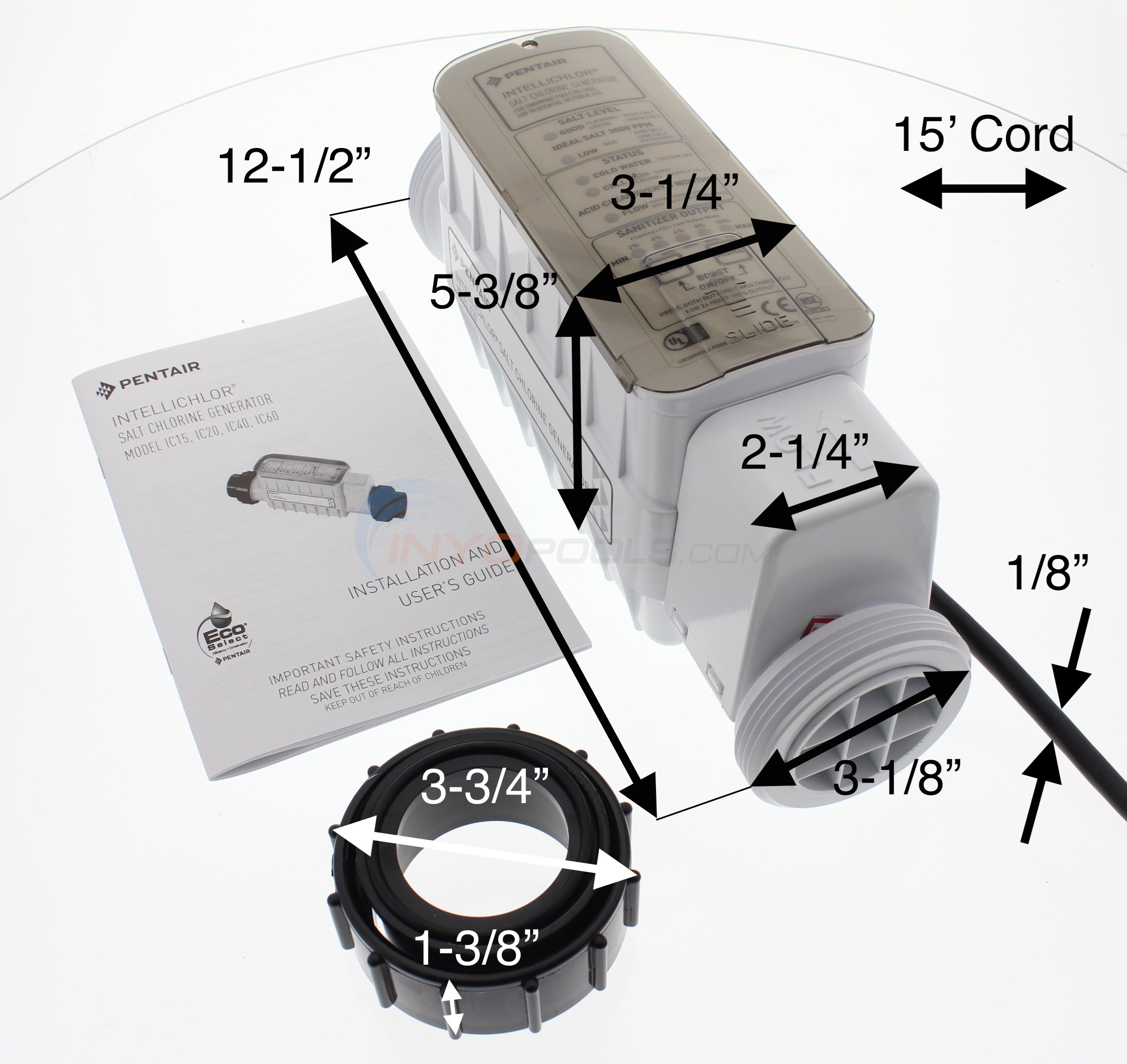

Dimensions 12-1/2" X 5-3/8"

Product Description


Now, Crystal Clear, Safe Water is Automatic Electrolytic Chlorine Generation is the easiest, most effective and convenient way to keep pool water sparkling clean. The Pentair IntelliChlor chlorine generator uses common table salt to produce all the chlorine your pool needs, right in your pool - safely, effectively, and automatically. Same Sanitation performance as manual chlorine addition without the drawbacks. No need to buy, transport and store expensive chlorine compounds. No more odor, stinging eyes, irritated skin and bleached out swimsuits.

The Pentair IntelliChlor chlorine generator is engineered to stand up to the toughest pool conditions and provide years of dependable performance. Titanium electrode cell blades are coated with Ruthenium oxide and are rated for more than 10,000 hours of operation - five years of reliable chlorine output under normal operating conditions.

Conrol electronics are isolated in the cell, away from high heat components, for longer cell life.

- Three LED Salt Level Indicators
- Two-color Status Displays
- Five Sanitizer Output Levels with Two-button Control

Two Models Available:
IntelliChlor IC 20
IntelliChlor IC 40

Click here for more Intellichlor

Product Specifications

Treatment Capacity:
20,000 gal.

?     Asked on 7/20/2017 by John Veasey

What's the best way to clean the cell?

A  Answered on 7/20/2017 by InyoPools Product Specialist Joe S.

Mix one quart of muriatic acid with one gallon of tap water in a plastic five (5) gallon bucket. Always add acid to the water, never add water to the acid. Always wear eye protection and use rubber gloves. Always work in a well-ventilated areaPlace the cell vertically in the bucket with the cap end down, as shown in right side illustration. Carefully pour the acid solution (as described above) into the cell until the blades are just covered. Allow the acid solution to bubble, and to clean the blades. The acid should only be contained in the cell and not around it. A foaming action will begin, which is caused by scale being dissolved from the plates. If rigorous foaming action does not begin, the cell does not need to be cleaned.

?     Asked on 6/23/2017 by Jan Wijte

I live in France. Can you deliver de IC-20 in France. Thanks for your answer.

A  Answered on 6/25/2017 by InyoPools Product Specialist Lennox H.

Hi, Jan. We can ship to France, however, we do not have the IC20 Cell European Version - 520881 available.

?     Asked on 6/8/2017 by Mike

MY intellichlor IC20 is not producing . the flow light is green, the salt light is green but, i cannot get any of the % lights to come on. does the cell need to be replaced.

A  Answered on 8/5/2017 by InyoPools Product Specialist Alex V.

Mike, I would recommend trying the steps on page 33 in the owner's manual. If that does not help, I would recommend calling Pentair. You can reach them at 800-831-7133.

?     Asked on 3/20/2017 by DENNIS L. SMTH

I installed the IC20 IntelliChlor in April 2016. it just fried itself and blew the the whole top completely off. How do I go about replacing it under the warranty?

A  Answered on 3/20/2017 by InyoPools Product Specialist Andy O.

Hello Dennis- For the warranty on this item you will need to contact Pentair directly at 1-800-831-7133.

?     Asked on 3/11/2017 by Peter

I have an IC-15 installed by a pool company 6 years ago and needs to be replaced. Can my power supply work with the IC-20 cell?

A  Answered on 3/13/2017 by InyoPools Product Specialist Scott W.

Yes, your power supply will work with all of the Intellichor cells so if you want to move up to a stronger cell you can.

?     Asked on 12/17/2016 by

I have a Pentair IntelliChlor IC40 Cell, can i put a Pentair IntelliChlor IC20 Cell. in and use the same power supply?

A  Answered on 12/19/2016 by InyoPools Product Specialist Lennox H.

Hi. Yes, you can use the same power supply for the IC40 with the IC20.

?     Asked on 9/1/2016 by CHUCK

Pool is operating since 2008. IC20 was replaced after 6 years in 2014. Current IC20 shows green lights but water testing at pool supply store shows no chlorine. Possible dead cell, don't know. How can it be tested to determine if it's still good or if another replacement IC20 is needed?

A  Answered on 9/2/2016 by InyoPools Product Specialist Megan C.

Hello, Chuck. The Intellichlor IC20 Replacement Cell - 520554 is based on 10,000 hours of cell life. If you operate a salt cell at 100% for 24-hours a day for two years, that would equate to 10,000 hours. Ideally, we do not operate our salt systems that way. Depending on your swimming pool gallons and the % output you have set the generator at you may have surpassed the 10,000 hours of cell life. The replacement Intellichlor IC20 Replacement Cell - 520554 (20k gallons) is shown here. You may also, view our How To Know When a Salt Cell is Bad - General by clicking here.

?     Asked on 7/13/2016 by

My intellichlor keeps blowing the fuse. Does this mean it is time to replace it? It is about five years old.

A  Answered on 7/17/2016 by InyoPools Product Specialist Lennox H.

Hi, It's possible, the life expectancy of these cells is about 3-5 years.

?     Asked on 7/12/2016 by MM

I have an Intellichlor IC20 Cell which is coming up on 2 years old. My pool is showing ZERO chlorine. I've cleaned the cell with acid, all lights are green, I am running it at 100% for 9-10 hours a day in AZ, I drained my pool this past fall and filled it with water which I used a filter on the hose, I've even added salt to my pool and it is at about 3500ppm. Its less than 20K gallon pool. Pool store said all my water levels look good. I am at WITS END with this thing.

A  Answered on 7/16/2016 by InyoPools Product Specialist Lennox H.

Hi MM, You may need to check the CYA level of the pool make sure it's high enough. If that level is within range then the cell might not be working.

?     Asked on 6/9/2016 by Ronald

After cleaning the unit with acid and reinstaling it,the unit will not light up. Please advise

A  Answered on 6/19/2016 by InyoPools Product Specialist Alex V.

Ronald, I would recommend checking the breaker and making sure that the cell is properly plugged in.

?     Asked on 5/21/2016 by breda

I purchased a replacement IC20 Cell from my local pool supplier and had it professionally installed by them. The original cell had been in use for 6 years and was installed in the opposite direction of this one. I was told by the service guy they must be installed with the flow going in the correct direction or will not produce chlorine.The words FLOW on the white collar are now at the bottom of the cell instead of the top.Flow indicator is green so which way is correct?Worked ok before.

A  Answered on 5/22/2016 by InyoPools Product Specialist Lennox H.

Hi Breda, When the "Flow" indicator is green that means that water is flowing so the cell is installed correctly.

?     Asked on 5/18/2016 by Christie

My pentair intellichlor system was professionally installed. I just need to change the cell. Is there a warranty on the cell if purchased here?

A  Answered on 5/18/2016 by InyoPools Product Specialist Alan M.

Hi Christie, The Intellichlor IC20 Replacement Cell comes with a one year manufacturer's warranty.

?     Asked on 11/25/2015 by Bill

The pool man has said my salt generator is bad and must be replaced. Is replacement the only solution? It is about three years old. It is an IC 20.

A  Answered on 12/1/2015 by InyoPools Product Specialist Andy O.

Hello Bill! Unfortunately there is no way to repair these units. You would have to replace the entire cell with the Intellichlor IC20 Replacement Cell part # 520554.

?     Asked on 11/5/2015 by Joe Hilliard

What is the ratio of acid to water to clean the cell? Also do submerge the whole cell into the solution or do you seal off one end and only put the solution inside? Thanks

A  Answered on 11/6/2015 by InyoPools Product Specialist Lennox H.

Hi Joe, You will need to mix one (1) quart of muriatic acid with one (1) gallon of tap water in a plastic bucket, using the Intellichlor Acid Cleaning Kit - Salt (520670) to cap one side of the cell. The Intellichlor Owner's Manual has more detailed instructions.

?     Asked on 10/3/2015 by cindy

Installation instructions please.

A  Answered on 10/5/2015 by InyoPools Product Specialist Bob D.

Hi Cindy. Here is a link to the instructions for the IC20 from Pentair.

?     Asked on 8/29/2015 by samuel

We have had our salt chlorine generator for about 6 months now, for some reason it isn't producing chlorine, it has been cleaned regularly by our pool company and the last (2) weeks hasn't produced chlorine. CAN YOU HELP

A  Answered on 9/1/2015 by InyoPools Product Specialist Lennox H.

Hi Samuel, You would need to find out why the system isn't generating chlorine. If there is any indicator light on the system you can find out what it means by using the troubleshooting guide in the Intellichlor Owner's Manual.

?     Asked on 4/27/2015 by EDWARD ALLINGER

Hello, I just replaced my salt chlorinator with a replacement and I discovered that the scale in front has been installed upside down. So now if I want to read what the green and red lights mean I have to read it upside down, and that doesn't make sence . why did they change this set-up .for this kind of money I would expect a better quality.

A  Answered on 4/28/2015 by InyoPools Product Specialist Lennox H.

Edward, Unfortunately that a common problem that customers have with this system. Other than having to read the control panel upside down customers are very happy with this unit.

?     Asked on 9/25/2014 by Guest

What is the warranty on the intellichlor if I install it myself?

A  Answered on 9/25/2014 by InyoPools Product Specialist Patrick P.

According to an update we received 10/1/13 from Pentair, a self-installed replacement salt cell will have a 60-day warranty.

?     Asked on 9/28/2012 by Guest

What is the average life of a Pentair Intellichlor IC20 cell?

A  Answered on 9/28/2012 by InyoPools Product Specialist Patrick P.

The average life of an IC20 cell is 3-5 years.

?     Asked on 1/31/2012 by Guest

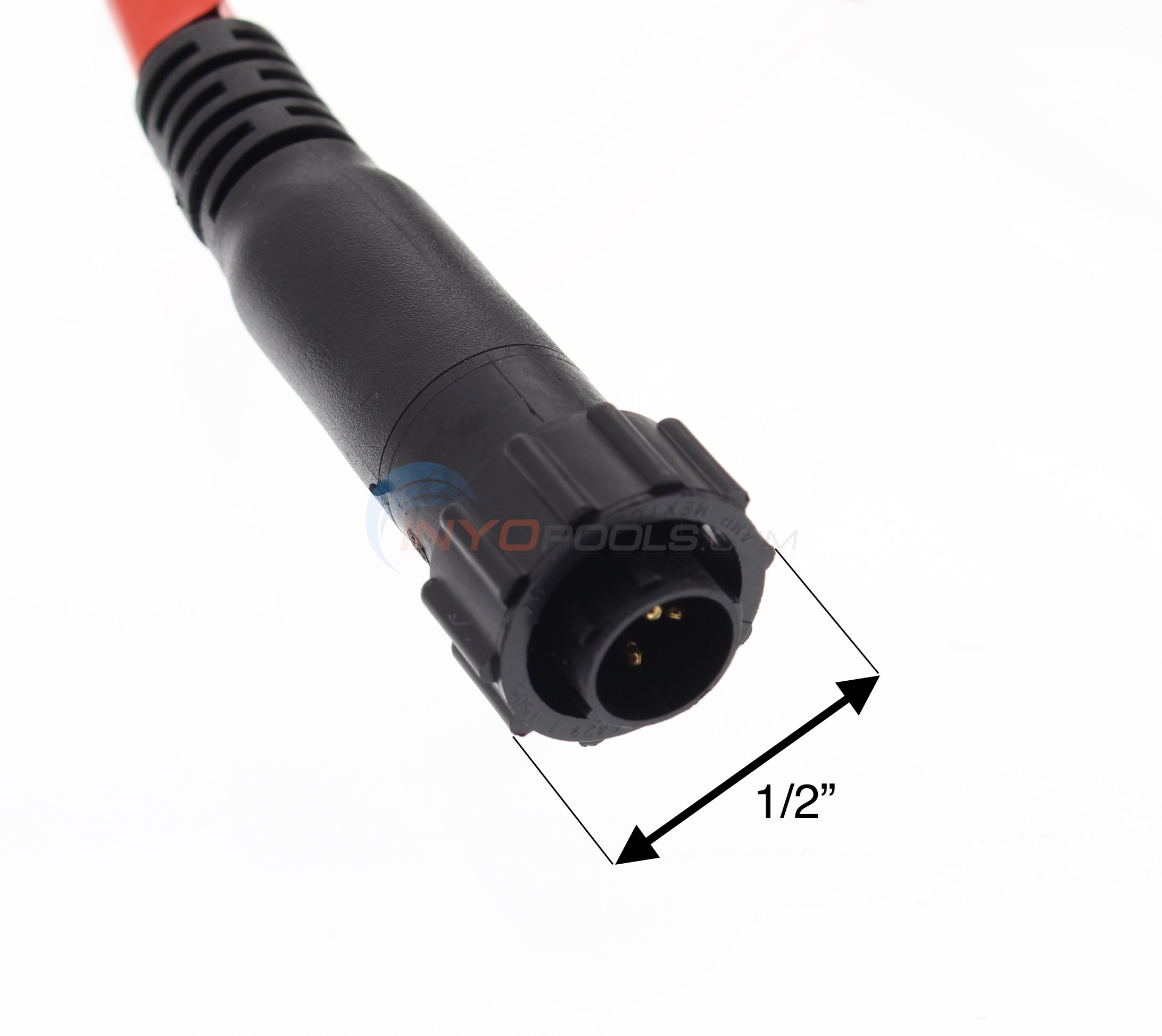

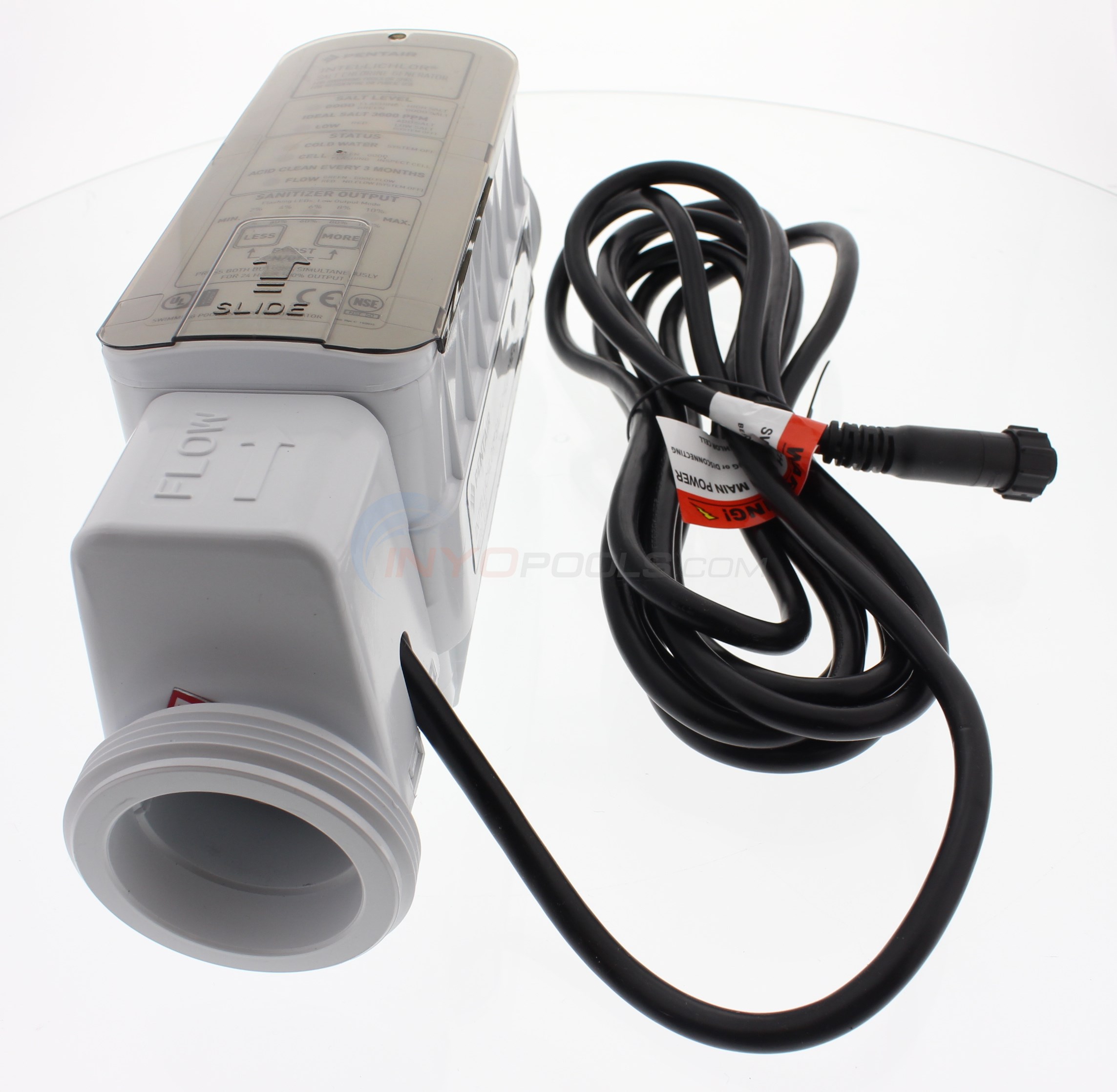

I need an Intellichlor replacement cell and the 15' plug that goes between the cell and the control box, Does this come with both?

A  Answered on 1/31/2012 by InyoPools Product Specialist Patrick P.

Yes, this item comes with both the replacement salt cell and the cell power cord.

?     Asked on 7/1/2009 by Guest

What is the Pentair Intellichlor Dummy Cell used for?

A  Answered on 7/1/2009 by InyoPools Product Specialist Patrick P.

The Dummy cell is basically a cell with no internal parts, this cell is used during cleaning of the real cell. So when you remove the real cell for cleaning you would put the dummy cell in place of the real cell. After you have finished cleaning the real cell you would remove the dummy cell from the plumbing and place the real cell back in place. You may view or purchase the Dummy Cell here >
