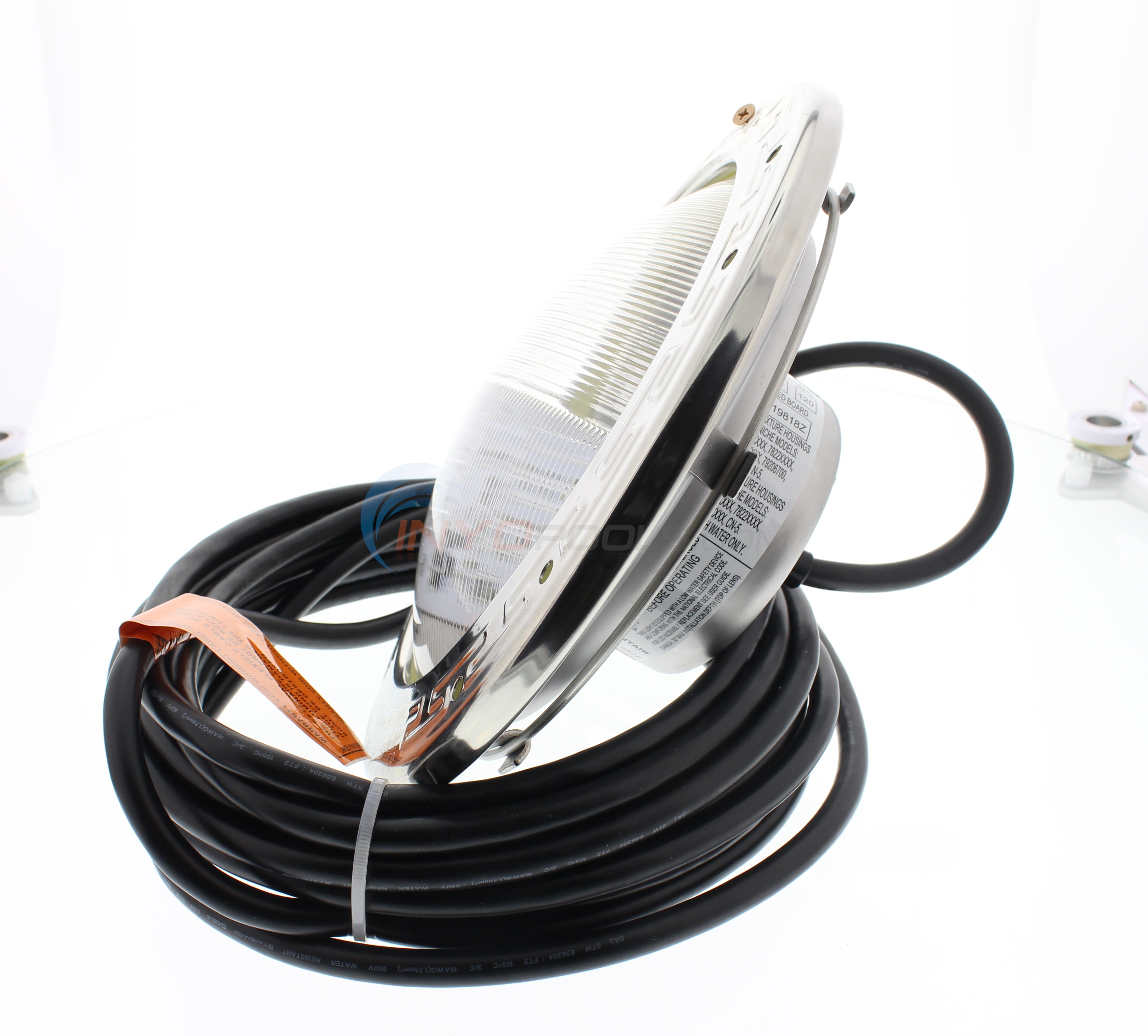

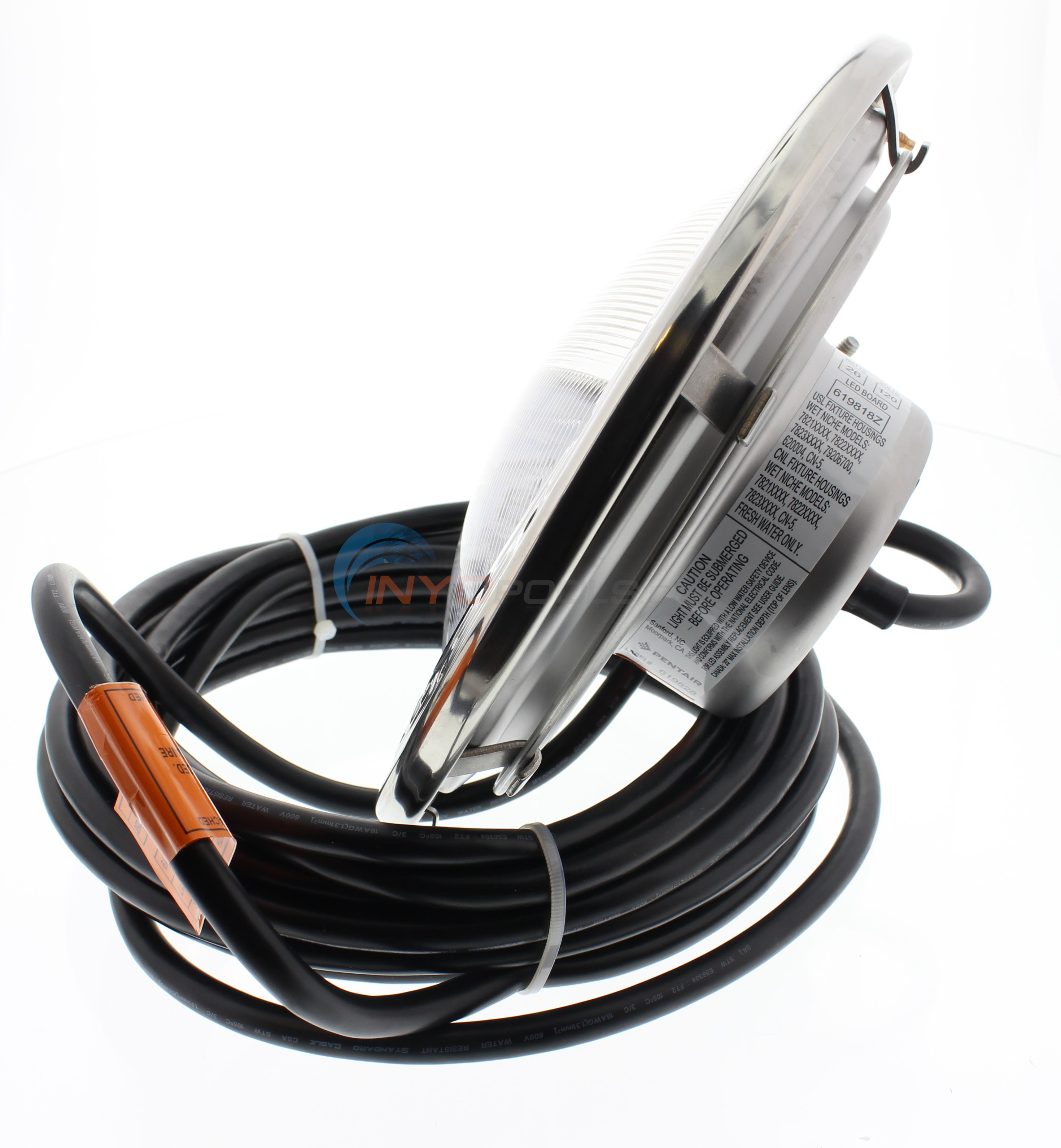

Intellibrite 5g 120v 50' Color LED Pool Light - 601001



Part # 601001

By Pentair Pool Products

  4.67 Average



Part # 601001

Warranty 1 Year

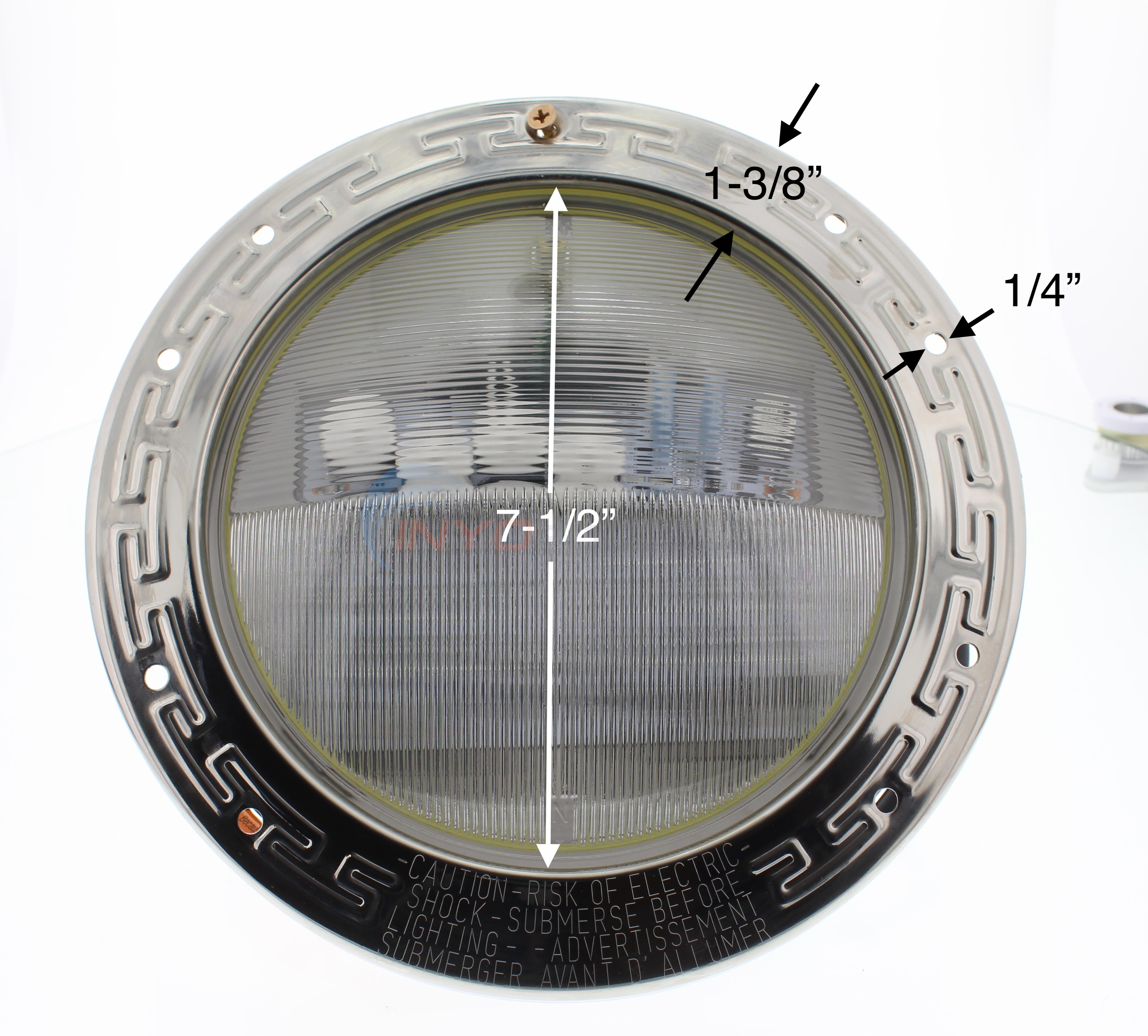

Dimensions 10-3/8" X 4" X 50'

Product Description

IntelliBrite ® 5g Color LEDBrilliant underwater lighting at nearly half the energy used by competing LEDs IntelliBrite ® 5g color-changing pool lights and IntelliBrite ® spa lights feature LED technology - the wave of the future in energy efficiency, lifetime value, quality of light and the ability to control it. With IntelliBrite 5g, combinations of individual colored LEDs are mixed and matched to achieve a vibrant spectrum of colors. These combinations are power sequenced to illuminate and cycle through colors at varying speeds, and in different sequences of color. With its custom reflector and unique lens design, the IntelliBrite 5g is the brightest and most efficient underwater LED light available.

An Eco Select ™ Brand Product: IntelliBrite and IntelliBrite 5g are among Pentair Water Pool and Spa's greenest and most efficient choices. Features

  • A superior reflector design assures more light is directed toward the pool bottom to further increase intensity and color effects, while minimizing glare
  • Superior lens geometry distributes light in an optimum way to avoid “hot spots" on the pool bottom. Light intensity and color are distributed more uniformly throughout your pool
  • Lens can be rotated to 180 degrees to provide wide beam pattern (standard) or narrow beam pattern.
  • IntelliBrite technology makes use of the brightest LEDs available in underwater pool and spa lights - up to 50% less energy comsumption than competitior's lights.
  • Set one of 5 predetermined fixed colors to match or create the mood for the evening – blue, green, magenta, white, and red or select from 7 popular pre-programmed "light shows".
  • IntelliBrite was designed to work with IntelliTouch ® and EasyTouch ® the leading control systems for pool, spa, and poolscape equipment automation. In effect, you transfer control of IntelliBrite to the IntelliTouch or EasyTouch system which controls all your other backyard and pool features.
  • IntelliBrite 5g color pool lights are backwards compatible with first generation IntelliBrite lights.

What is the difference between the older version Inteillibrite and the newer 5g version? The new 5g version has a lower wattage consumption with the same out put of light, the older version had a wattage consumption of 70 watts where the newer version has a wattage consumption of 50 watts.

Niche Compatibility

Gunite Pools: 79206700 Light Niche
Fiberglass or Vinyl Liner Pools: 78232500 Light Niche

Intellibrite 5g Pool Lights Specs.

Product Specifications

120 V
Cord Length:
50 ft.
Pool / Spa Type:

?     Asked on 9/13/2017 by George Martinez

I'm replacing a Pentair series 600015, 600016, 600017 and 600022. It is hooked up to my Jandy Aqualink system. I'm able to cycle through colors by turning on and off. Can I control the Intellibrite 5G colors the same way? or do I need to buy the controller also? Thanks

A     Answered on 9/14/2017 by InyoPools Product Specialist Lennox H.

Hi, George Martinez. You can use your AquaLink to control the Pentair Intellibrite light by turning the circuit on/off.

?     Asked on 6/30/2017 by

What is the benefit of 12v vs. 120V LED light

A     Answered on 6/30/2017 by InyoPools Product Specialist Lennox H.

Hi, The top benefits of 12v that it's more energy efficient than the 120v.

?     Asked on 5/4/2017 by Bryan

Do I have to purchase a controller separately or is it included with the Intellibrite 5G Color LED?

A     Answered on 5/5/2017 by InyoPools Product Specialist Hector F.

Those controllers are sold separately. The part number is 600054. The lights can also be controlled by a standard light switch as well.

?     Asked on 12/4/2016 by Mike

I have a Pentair series 600015/600016/600017/600022 color changing pool light. The seal went bad and water leaked into the unit. Is it possible that the unit still works? The pool is drained and light fixture removed, everything looks good except the two MR1675 watt light bulbs

A     Answered on 12/5/2016 by InyoPools Product Specialist Adam Y.

Good morning Mike, The fixture can still be good. If the inside socket isn't rusted out the fixture could still be good. You will just need to replace the lens gasket and bulb.

?     Asked on 9/6/2016 by Brent

I need to replace my fiberstars Jazz light 019652. it is suggested that i use the Pentair Intellbrite LED. my question; can I use the existing cord?

A     Answered on 9/30/2016 by InyoPools Product Specialist Stacey M.

Hello Brent, Unfortunately no you cannot use the same cord because one is fiber optics and one is LED.

?     Asked on 7/6/2016 by Ryan

I bought a house with pool. The light is out. It's is Pentair 600017. What's the best way to tell if it's 12v or 120v?

A     Answered on 7/10/2016 by InyoPools Product Specialist Lennox H.

Hi Ryan, The Pentair 600017 light is 120 volt so this Intellibrite (601001) will work as a replacement.

?     Asked on 7/4/2016 by

My Pentair series 600015,16,17 and 600022 expired. I'm moving shortly and want a simple 300 watt incandescent replacement. Will the Pentair 78428100 fit the existing 9.50" wide X 7.50" deep niche that is there now?

A     Answered on 7/8/2016 by InyoPools Product Specialist Lennox H.

Hi, The Pentair Amerlite (78428100) will fit into the same niche as the Spectrum Amerlite.

?     Asked on 6/30/2016 by Joe

I have a 500w halogen bulb that I would like to replace with a color changing LED. The 500w bulb provides ample, but not bright light to my pool, which is a lazy L approx. 50 ft. Do you think color will provide enough light, or should I stick with white?

A     Answered on 7/4/2016 by InyoPools Product Specialist Lennox H.

Hi Joe, The Intellibrite is bright but not as bright as a 500 watt bulb, you can go with the Intellibrite 500 Watt LED White Light (601301).

?     Asked on 5/2/2016 by Bobby

I have a hayward SAM 2.0 light that I amreplacing. Would this fit the niche?

A     Answered on 5/3/2016 by InyoPools Product Specialist Hector F.

Yes the Intellibrite pool light is the replacement for the Sam light pool light.

?     Asked on 3/27/2016 by Steve

Mike - I have a 28' long pool that houses a Pentair Model #77168100. Will this light fit into the light niche? Will it provide as much light as my 250w that Pentair that I will replace?

A     Answered on 3/28/2016 by InyoPools Product Specialist Lennox H.

Hi Steve, The Intellibrite 5g 120v 50' Color LED Spa Light (640121) will replace the Pentair Model #77168100 AquaLight.

?     Asked on 3/21/2016 by Mike

How does the light output of this LED light compare to a 300W incandescent pool light? Thanks!

A     Answered on 3/23/2016 by InyoPools Product Specialist Lennox H.

Hi Mike, This LED light is not as bright as a 300w incandescent pool light.

?     Asked on 9/26/2015 by Tom

I have the Intellibrite 5g 120V color LED pool light for 2yrs; now it doesn't change to different colors any more, even I try to switch off and on for a number of times as instructed; it shows only one deep blue color. What 's wrong with it? Are other colors dead. Do I need to replace any part or have to replace the whole fixture? Thank you!

A     Answered on 9/30/2015 by InyoPools Product Specialist Joe S.

Hi Tom, It sounds as if the board has gone out in the unit. You would be looking at replacing the complete unit

?     Asked on 9/6/2015 by kathie

I have a Pentair SAM pool light which is no longer made. Will this replace this light with no problems

A     Answered on 9/7/2015 by InyoPools Product Specialist Lennox H.

Hi Kathie, The Pentair Intellibrite Color LED Pool Light  will replace the Pentair SAm Light. You would need to confirm the voltage needed.

?     Asked on 7/12/2015 by Jeff

I have 2 Pentair 863330 lights in my in-ground pool. One lights but doesn't change color. The other leaked and doesn't work at all. Is there a replacement light for these? Are there replacement parts for the electronics for these lights?

A     Answered on 7/15/2015 by InyoPools Product Specialist Hector F.

The first generation Intellibrites manufactured between 2007-2009 have a replacement engine kit being part number 60076 and the second generation Intellibrites manufactured after 2009 have a replacement kit being part number 619818Z. Both are special orders and have an approximate lead time of 2-3 weeks.

?     Asked on 6/12/2015 by

We have a Pentair series 600015, 600016, 600017 and 600022, is there a cross reference number for a replacement light?

A     Answered on 6/13/2015 by InyoPools Product Specialist Patrick P.

You would have the older Pentair SAM Light which has been replaced by the new Pentair LED Intellibrite Lights. The Intellibrite lights are replacements for the SAM light and fit into the same niche as your SAM lights. When clicking through to the Pentair LED Intellibrite Lights you will just need to select if you have a pool or spa light, your voltage (12V or 120V) and your cord length.

?     Asked on 6/3/2015 by Ron

Will the Intellibrite 5g LED fit in fiberstar niche that's 5 inches deep?

A     Answered on 6/4/2015 by InyoPools Product Specialist Brian M.

I am sorry, but no it will not fit. The dimensions of the Pentair Intellibright 5g LED are 11 x 11 x 9 inches

?     Asked on 6/1/2015 by

Can I replace a Jandy CPHV150WS50 with the Intellibrite fixture?

A     Answered on 6/1/2015 by InyoPools Product Specialist Andy O.

No, the Intellibrite 5g 120v 50' LED Pool Light 601001 will not work in a Jandy niche.

?     Asked on 1/5/2015 by Cindy

I now have 2 SAM lights in my pool controlled by my Jandy Aqualink. I would like to get 2 Pentair Intellibrite 5g lights. Will they work with my Jandy? Also will they operate together and stay in sync?

A     Answered on 1/5/2015 by InyoPools Product Specialist Robert M.

Hello Cindy - The Jandy can turn the Intellibrite lights on an off. The Intellibrite lights will stay synced up as long as they are wired to the same relay.

?     Asked on 12/19/2014 by clayton

What size pool is recommended for the maximum effect of this light fixture?

A     Answered on 12/22/2014 by InyoPools Product Specialist Robert M.

Hello Clayton - In a pool with a light colored surface, one Pentair model 601001 is enough for a pool size up to 16'x32'. Anything larger will require multiple lights.

?     Asked on 12/14/2012 by Guest

My pool has a dark blue surface. Can I use the Intellibrite color LED?

A     Answered on 12/14/2012 by InyoPools Product Specialist Patrick P.

We would not recommend any color-changing LED lights in a dark colored pool as the colors will not show up. The 601101 Intellibrite 5g Pool LED White Light would be a better choice.

?     Asked on 6/26/2012 by Guest

I would like to replace my existing pool light which is a Purex Model 6425 halogen with the Pentair 5G LED light. The dimensions of the pool niche is 9.5" diameter with a depth of 9". Will the 5G light fit?

A     Answered on 6/26/2012 by InyoPools Product Specialist Patrick P.

Yes any of the older Purex Lights may be replaced by the Pentair Intellibrite LED Lights or by the Pentair Amerilight White Incandescent lights.

?     Asked on 2/16/2012 by Guest

What is the difference between the older version Intellibrite and the newer 5g version?

A     Answered on 2/16/2012 by InyoPools Product Specialist Patrick P.

>The new 5g version has a lower wattage consumption with the same out put of light, the older version had a wattage consumption of 70 watts where the newer version has a wattage consumption of 50 watts >.

?     Asked on 1/20/2012 by Guest

For a color-changing LED light, how do I switch between the different settings with just a standard light switch?

A     Answered on 1/20/2012 by InyoPools Product Specialist Patrick P.

The LED lights are designed to move to the next programmed setting each time you turn the switch on and off.  This will toggle through the different color settings and shows.
