Raypak Heater 406000 BTU LP MV - PR406AMP



Part # 009203

By Raypak



Part # 009203

Warranty 1 year

Manufacturer Code PR406AMP

Product Description


  • Dial control for temperature selection and heater settings

  • Capron resin headers prevent rust stains from harming pool surface

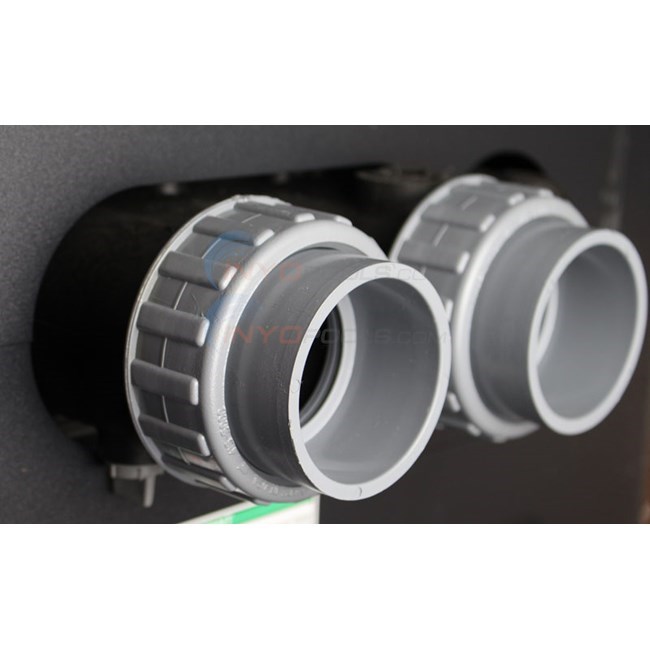

  • Plumb directly from provided 2" PVC threaded union

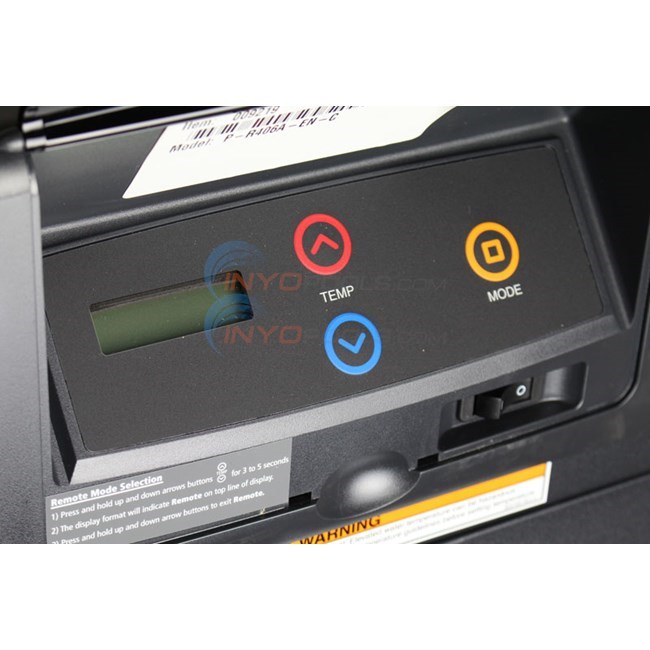

  • Smart microprocessor controls diagnostic read-out and continuously monitors operating status

  • Completely field serviceable

  • Small footprint

  • High efficiency

  • Guaranteed high wind reliability

  • Looks smart and works smart

  • 1 Year Warranty

  • Thermal Efficiency of 83%


Elevation: 0 Ft. – 2000 Ft. Click Here for High Altitude Pool Heaters

California Customers Please Note:  South Coast Air Quality Management District ( SCAQMD) Area of Jurisdiction REQUIRES a Low Nox Heater be installed.  The following 6 California Counties are affected:  Los Angeles, San Bernardino, Ventura, Orange, Riverside, & Kern. Installing a non-compliant heater in these counties will void the manufacturer's  warranty and could result in a fine from your local code enforcement.    Click here for RayPak Low Nox Heaters

Product Specifications

406,000 BTU
Digital Readout:

?     Asked on 6/28/2017 by linda

how far does the pool heater have to be from the house - huntington ny

A     Answered on 6/29/2017 by InyoPools Product Specialist Joe S.

For U.S. installations, the point from where the flue products exit the heater must be a minimum of 4 ft below, 4 ft horizontally from, or 1 ft above any door, window or gravity inlet into any building. The top surface of the heater shall be at least 3 ft above any forced air inlet, or intake ducts located within 10 ft horizontally

?     Asked on 2/25/2017 by ken

How do I calculate the size of heater needed ? Pool is 11 x 4 x 1.5 metres, in sub-tropical location... thanks

A     Answered on 2/27/2017 by InyoPools Product Specialist Scott W.

If you are trying to heat the pool only and you do not have a hot tub to heat I recommend a heat pump over a heater. It is going to be more cost efficient.

?     Asked on 8/30/2013 by Guest

Can you provide me the dimensions for the Raypak RP Series model PR406AEP? What size gas line does this heater use?

A     Answered on 8/30/2013 by InyoPools Product Specialist Patrick P.

The Raypak 406 BTU RP2100 Series the cabinet measures are as follows: Width - 29 inches, Depth - 28 inches, Height - 38 inches. the gas line needed for the 406K BTU is a 3/4 inch. Any further technical data like voltage be found in the Raypak Specifications Guide

?     Asked on 10/10/2012 by Guest

What is the difference between an Electronic and Millivolt ignition?

A     Answered on 10/10/2012 by InyoPools Product Specialist Patrick P.

The basic answer is that Millivolt is the old style of ignition, using a standing pilot light. While the electronic ignition uses a spark start system like a gas grill. Electronic ignitions are more efficient in gas usage and also are better suited for high wind areas where a pilot light might get extinguished.

?     Asked on 1/16/2012 by Guest

Will a gas heater operate at the low speed of a dual speed motor?

A     Answered on 1/16/2012 by InyoPools Product Specialist Patrick P.

Probably not - Most gas heater will shut off at low GPM levels (20-40) to keep the heater cores from overheating - 20 for 200 BTUs, 40 for 400 BTUs. Depending on your pool system you might get these GPM levels at the low speed but generally these heaters must be run at the motor's high speed.
