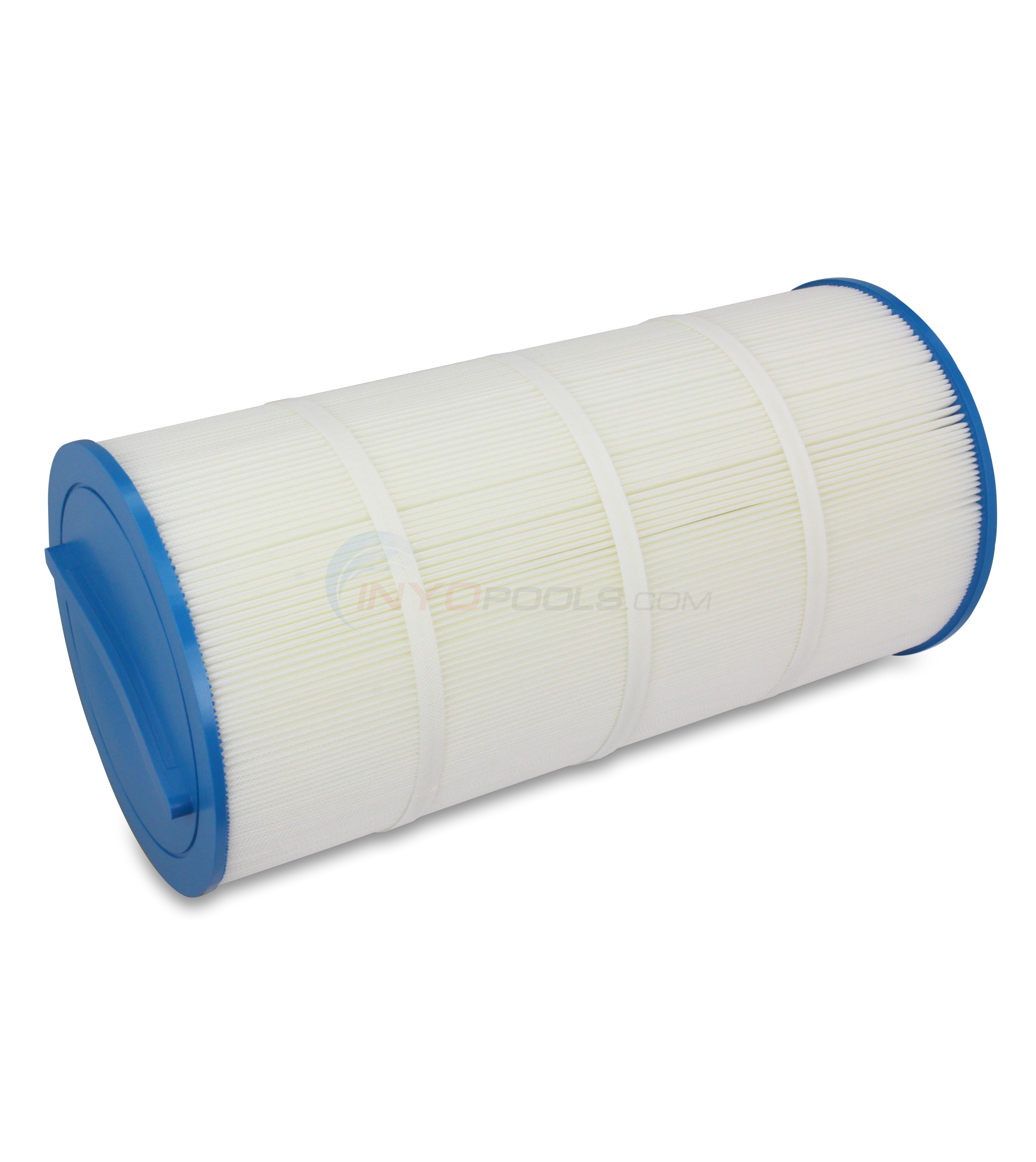

Jacuzzi Sherlock 120 Replacement Cartridge - PL0150



Part # PL0150

By PureLine

  5 Average



Part # PL0150

Dimensions 10" L x 10" W x 20.0625" D

Alternate Part #'s 22006, 42-3675-08-R, 42367508R, 42367508R000, 42367530, C-9481, C9481, FC-1401, FC1401, PJ120, PJ120-4, PJ1204, XLS-934

Product Description

PureLine After-Market Replacement Cartridge for Jacuzzi Sherlock SHER120 120 Sq. Ft. Filter

Is your pool water starting to look a little dull? Is your pressure gauge reading a higher PSI than normal? Are your pool jets a little less powerful? These are all signs that it is time to replace your pool filter cartridge. Replace your pool filter cartridge today and regain that crystal clear pool water and extend the life of your pool pump.

Typically for single cartridge pool filters we suggest replacing your cartridge every 6-12 months and for filters which take multiple cartridges, we suggest replacing your cartridges every 3 years.

This Cartridge is Commonly Used In

PureLine Cartridge Benefits

  • Less expensive than the original manufacturer with the same quality standards
  • Designed for maximum water flow to extend cartridge life
  • Designed for even dirt distribution resulting in increased water flow
  • Increased flow rates results in less wear on pump & reduced energy usage
  • Banded Pleats reduce frequency of cartridge cleaning

Not Your Cartridge?

Is this not your Cartridge? Don't worry we carry thousands of Pool Filter Replacement Cartridges to replace all of the most popular OEM brands such as Sta-Rite, Pentair / Pac Fab, Hayward, Purex, American Products, Jacuzzi,  Hot Springs, Coleman, and more. Click here for more Pool Filter Replacement Cartridges

Top End Cap Top End Cap
Bottom End Cap Bottom End Cap

Product Specifications

Filter Model:
Sherlock 120
10 in.
20 - 1/16 in.
Top Style:
Top Inside Diameter:
Bottom Style:
Bottom Inside Diameter:
Filtration Area:
120 sq. ft.
Media Weight:
4 oz.
OEM #:
Unicel #:
Filbur #:
Pleatco #:
120 sq. ft.
Sherlock 120

?     Asked on 4/22/2017 by Joan C. Jones

A comment more than a question.....the last filter I got from you still looks new and white but since my husband passed away, I had a neighbor change the cartridge for me and the handle broke off in his hand...never had this happen before. My husband always ordered from you....has this been a problem? I'm about to order a new one but don't want the same thing to happen.

A     Answered on 4/23/2017 by InyoPools Product Specialist Patrick P.

Hi Joan, I'm sorry to hear about your husband. The handle breaking has not been a common issue with this cartridge.


Est. Repair Time

Less than 1 hr

Tools Needed


DE filter to cartridge

Written on 2/12/2018 by Guest

Was not sure i would like a cartridge filter after having DE forever, but it seems to be easier to take of and does not require a lot of time!

Were these instructions helpful?


Est. Repair Time

Less than 1 hr

Tools Needed


1     0

Old filter cartridge. Had to clean the old filter cartridge every few days.

Written on 6/1/2017 by Guest

The new filter cartridge was shipped quickly. The cartridge is slightly different than the original Jacuzzi brand cartridge, as it does not have a handle on the top. But at less than half the price of the local pool store, I can live without the handle.
To install the new cartridge, shut the filter off, and then shut off the ball valve leading to the filter inlet. Then loosen the pressure relief screw at the top of the filter housing cover to relieve the pressure. Then unscrew the locking ring that holds the filter housing cover in place. Then pull straight up to remove the filter housing cover. This then reveals the filter cartridge which can be removed by pulling straight up. The new filter cartridge can then be placed back into the filter. The cover can be placed back on, and the locking ring screwed back in place. At this point the ball valve can be opened, and the power turned back on. Keep the pressure relief screw open until a steady stream of water is discharged from the screw. At that point the pressure relief screw can be tightened and the installation is complete.

Were these instructions helpful?
