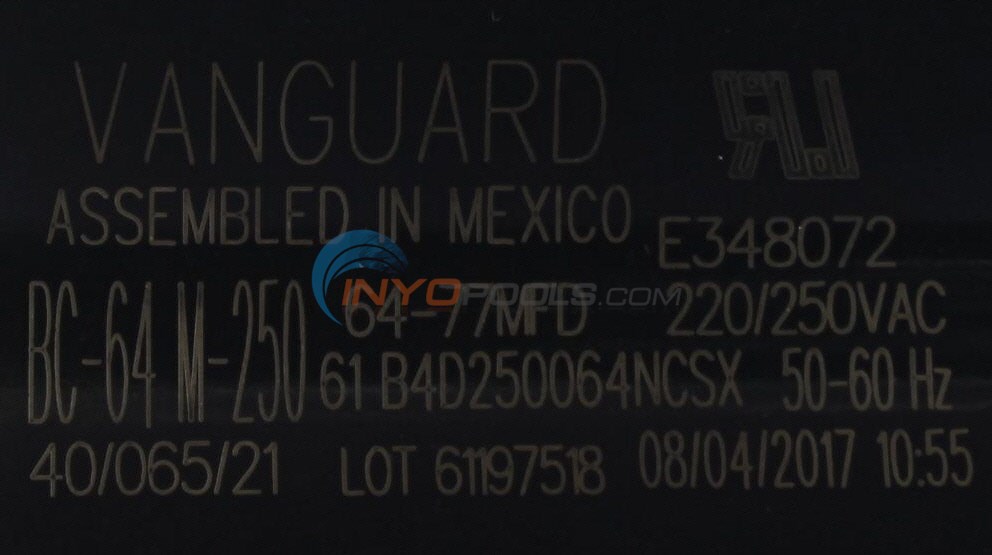

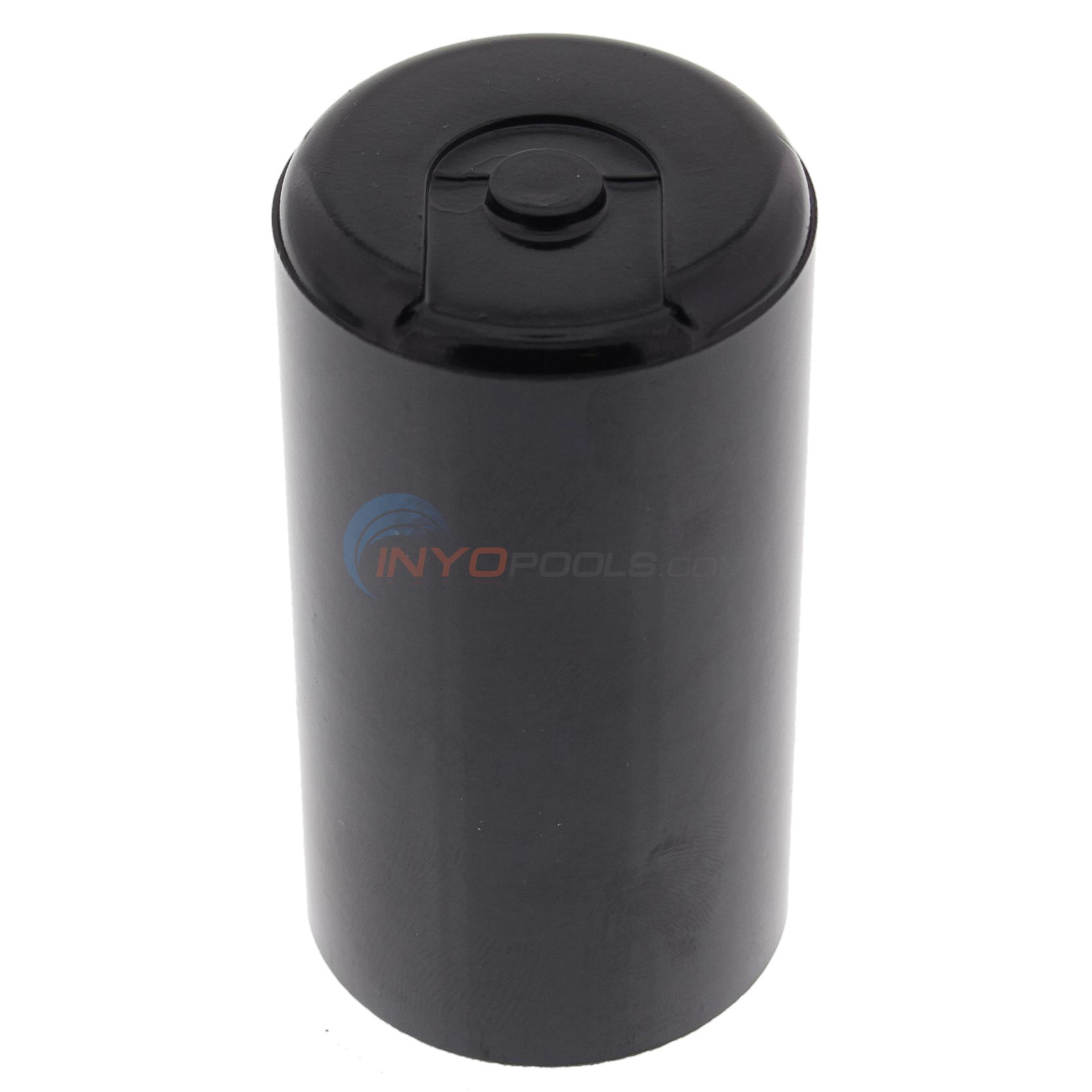

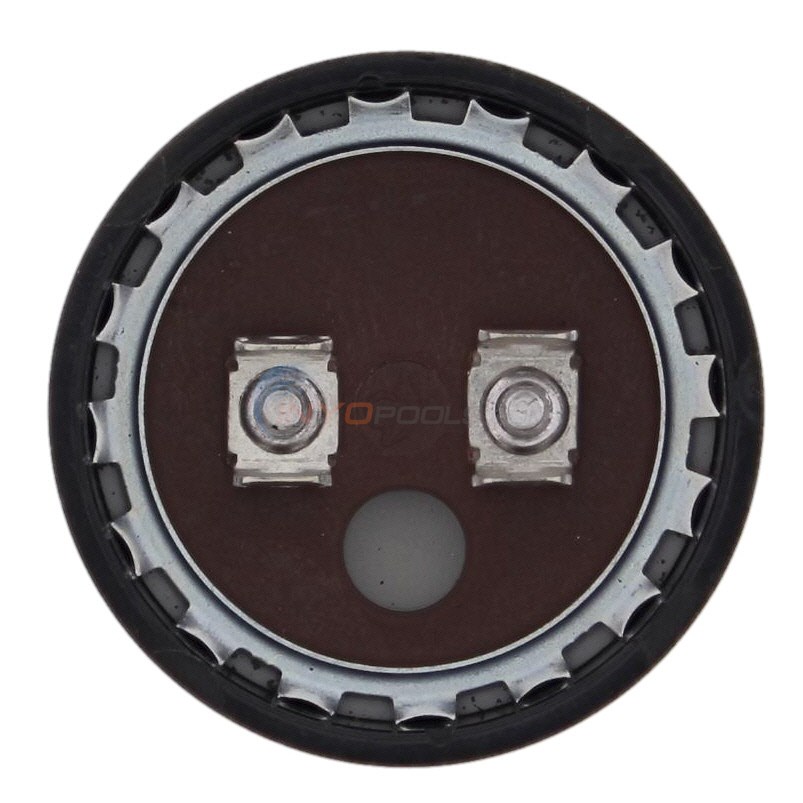

START CAPACITOR, 66-77 MFD (BC-64M-250S)

$23.99

IN STOCK

Part # 5270-29

By Essex Group

  5 Average

Details

Top

Part # 5270-29

Manufacturer Code BC-64M-250S

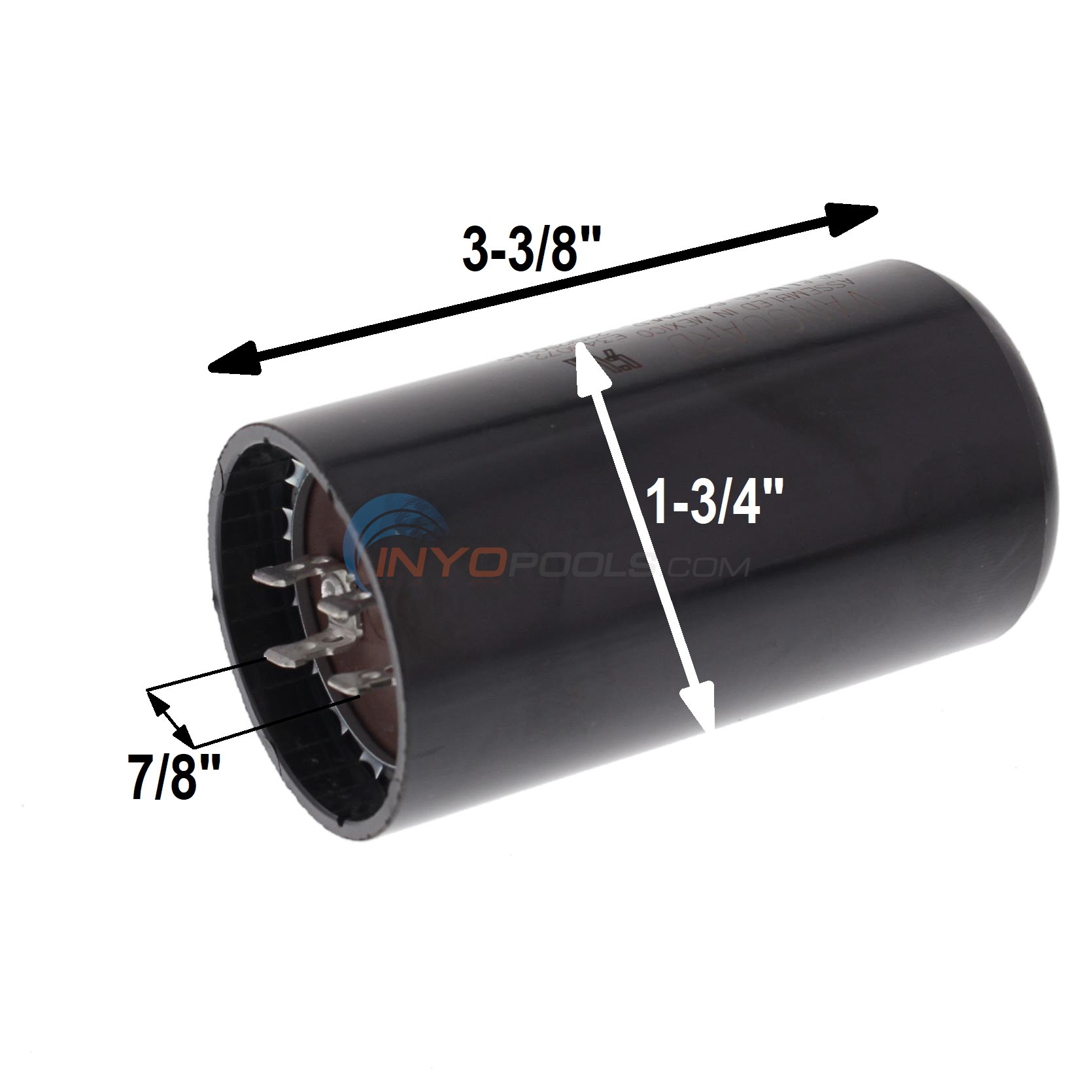

Dimensions 1-3/4" x 3-3/8"

Alternate Part #'s 2A07-B02, 35-125-1070, 64-77MFD, 6477MFD250VAC, bc-64m-250s, BC64M250S

Product Description

Start Capacitor1-7/16"dia x 2-3/4"hgt

Product Specifications

Diameter:
1-3/4 in.
Length:
3-3/8 in.
Volts:
220-250 V
Capacitor Microfarad Rating:
66-77 MFD
Top

?     Asked on 6/5/2017 by

which capacitor works on pump motor j218-600c?
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Patrick P.

Could you pull the specs. directly off the capacitor and supply to us? We would need MFD and Volts.
 Reply


?     Asked on 5/25/2017 by

Where do I find ngm motor start capacitor 61b1d220124nnca op t max 70-c 50/60hz 124-148uF 220vac or it's equivalent
 Reply

A  Answered on 5/25/2017 by InyoPools Product Specialist Scott W.

What is the part number of your motor that start capacitor goes to, I can find it by that?
 Reply


?     Asked on 7/6/2015 by xxxxxxxxx

replacement capacitor for 1 hp pool motor
 Reply

A  Answered on 7/6/2015 by InyoPools Product Specialist Dennis R.

To help you find the correct capacitor for your 1 HP motor we will need the MFD and VAC specifications stamped on the capacitor. If that is not readable or available, we would need the motor model number. See our guide on "How to Read an AO Smith Pool Motor Label" for the location of the model number.
 Reply


?     Asked on 1/23/2012 by Guest

I need to replace my the capacitor on my 1.5HP pool pump. Do you carry the capacitor I need?
 Reply

A  Answered on 1/23/2012 by InyoPools Product Specialist Patrick P.

Please note that capacitors store an electric charge and should be handled with the utmost caution and care. We do not encourage handling a capacitor without any type of safety measures in place and highly recommend contacting a professional service company for repair/replacement. For those that feel comfortable changing the capacitor here's  >How to replace a pool pump capacitor. In order to match up the capacitor you will need more specifications on the capacitor. You will need to match the voltage, the MFD, whether or not the capacitor is a >run or >start type and the actual dimensions of the capacitor body.
 Reply
