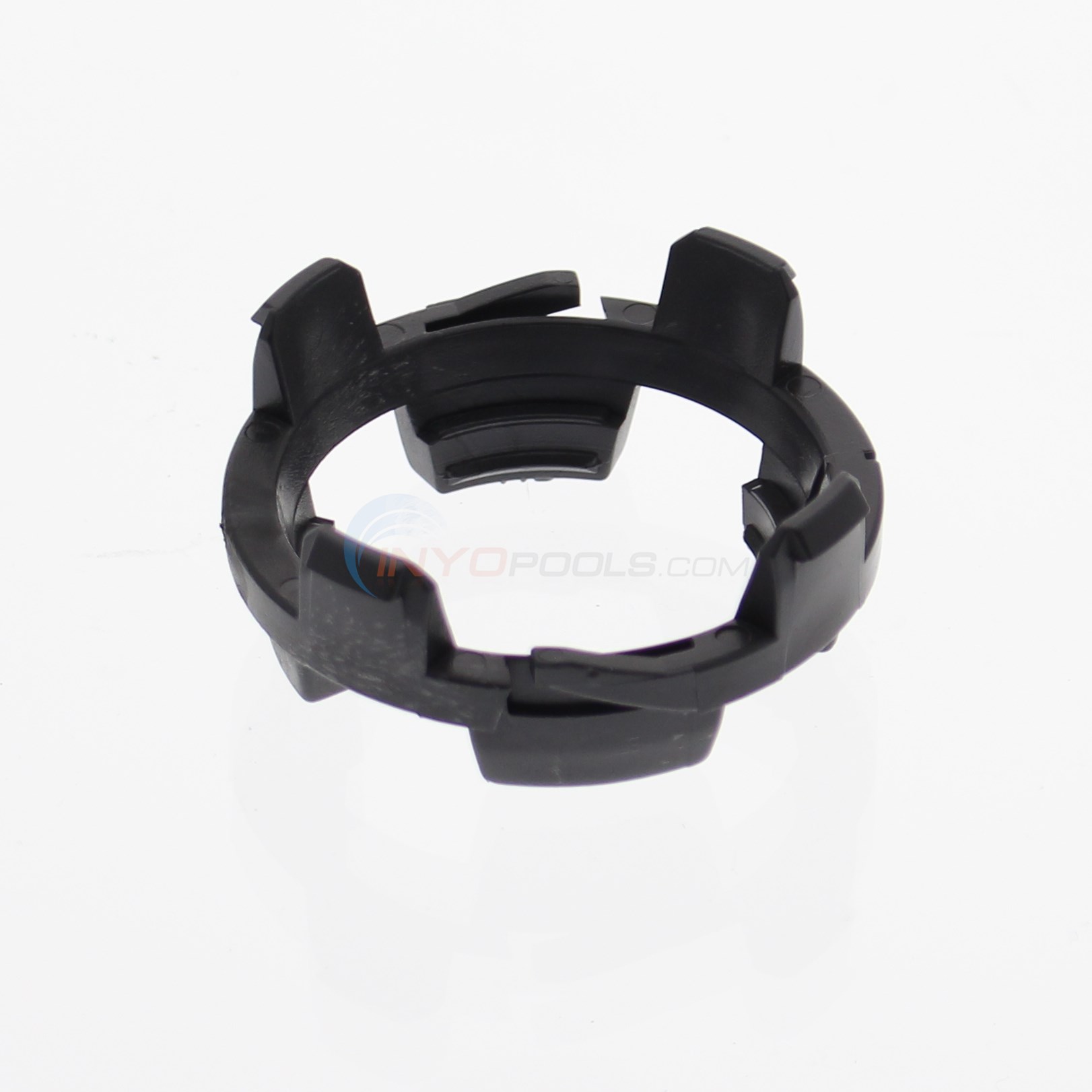

Compression Ring (w74000)

$11.99

IN STOCK

Part # 3230-05

By Zodiac

  3 Average

Details

Top

Part # 3230-05

Manufacturer Code W74000

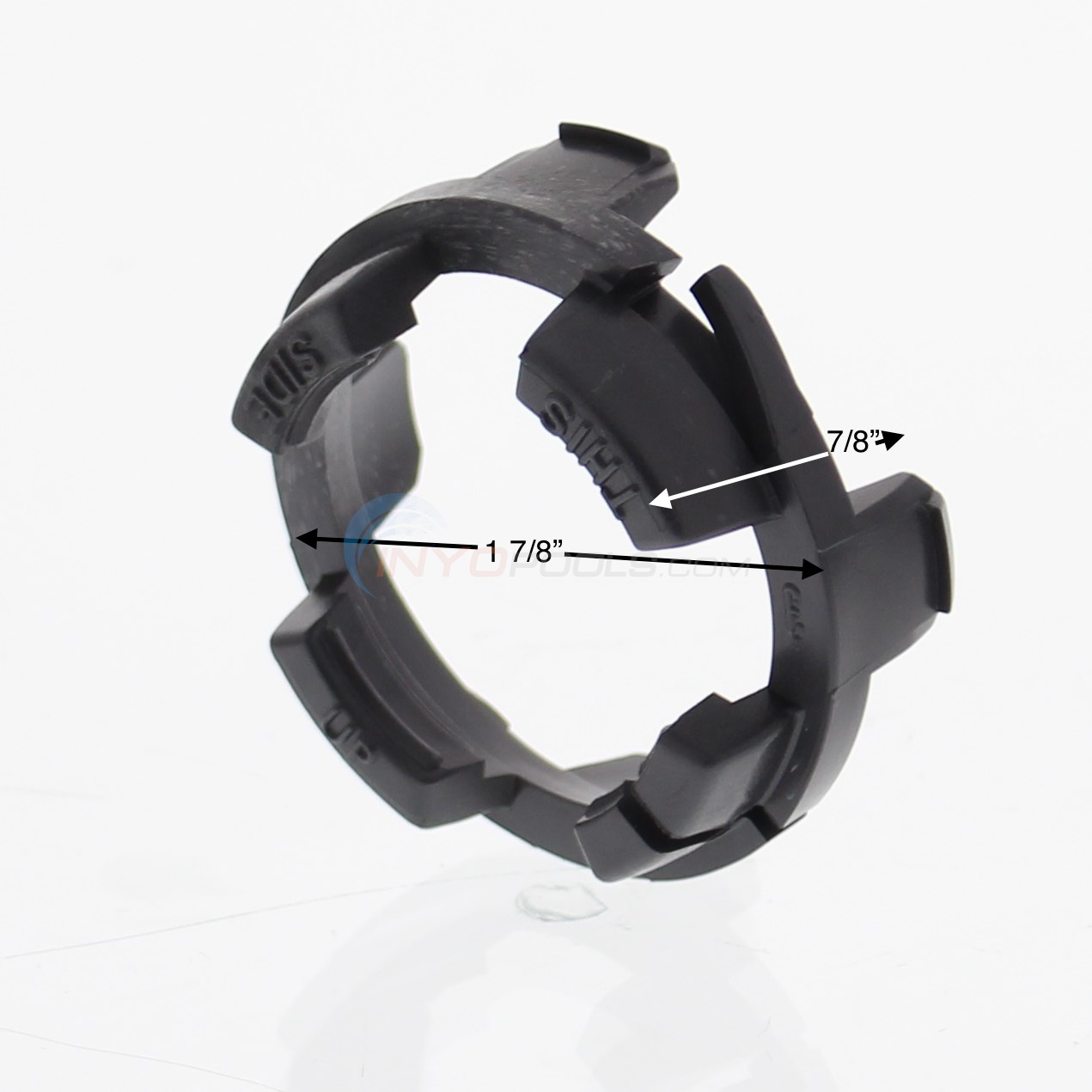

Dimensions 1.92" L x 1.92" W x 0.85" D

Alternate Part #'s 74000, BAR2011058, TCR50, W74000

Product Description

COMPRESSION RING

Top

?     Asked on 10/24/2014 by Rick

Hello, the exploded view of the Manta Baracuda (inground) is not very clear to me as to where to install the compression ring. Should it be slid down the inner pipe to go over the diaphragm where the retaining ring on the diaphragm is? Please help. Sincerely, rick
 Reply

A  Answered on 10/24/2014 by InyoPools Product Specialist Brian M.

Hello - I have a much better diagram of the explolsion of the Baracuda Manta that shows where the compression ring . Please look at page 20.
 Reply
