Grid Assy., 36sq.ft. - FNS36 - 195183

$349.99

IN STOCK
FREE SHIPPING

Part # 195183

By Pentair Pool Products


Details

Top

Part # 195183

Dimensions 15"

Alternate Part #'s 195183, 4600-75A, 460075A, PAC0512984

Product Description

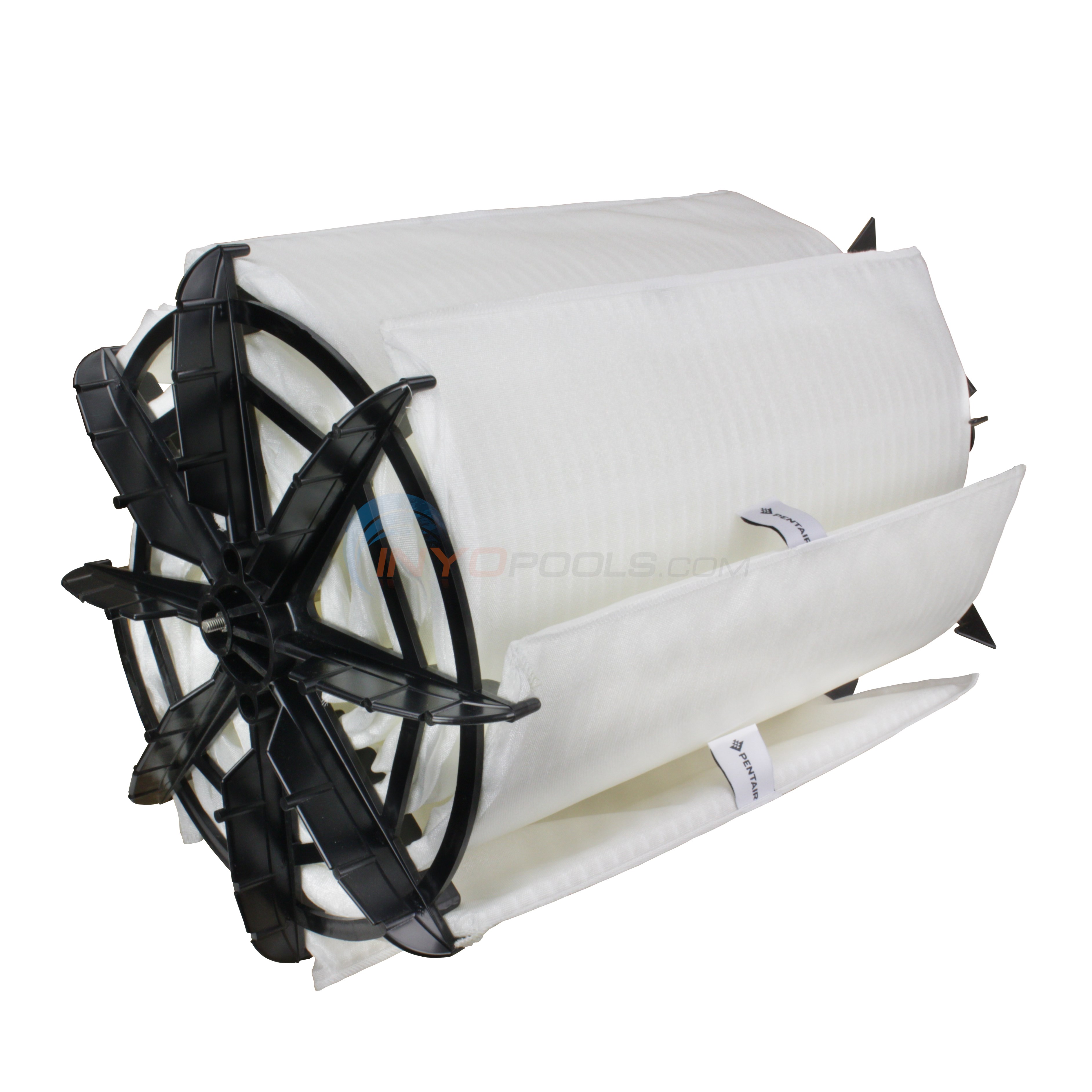

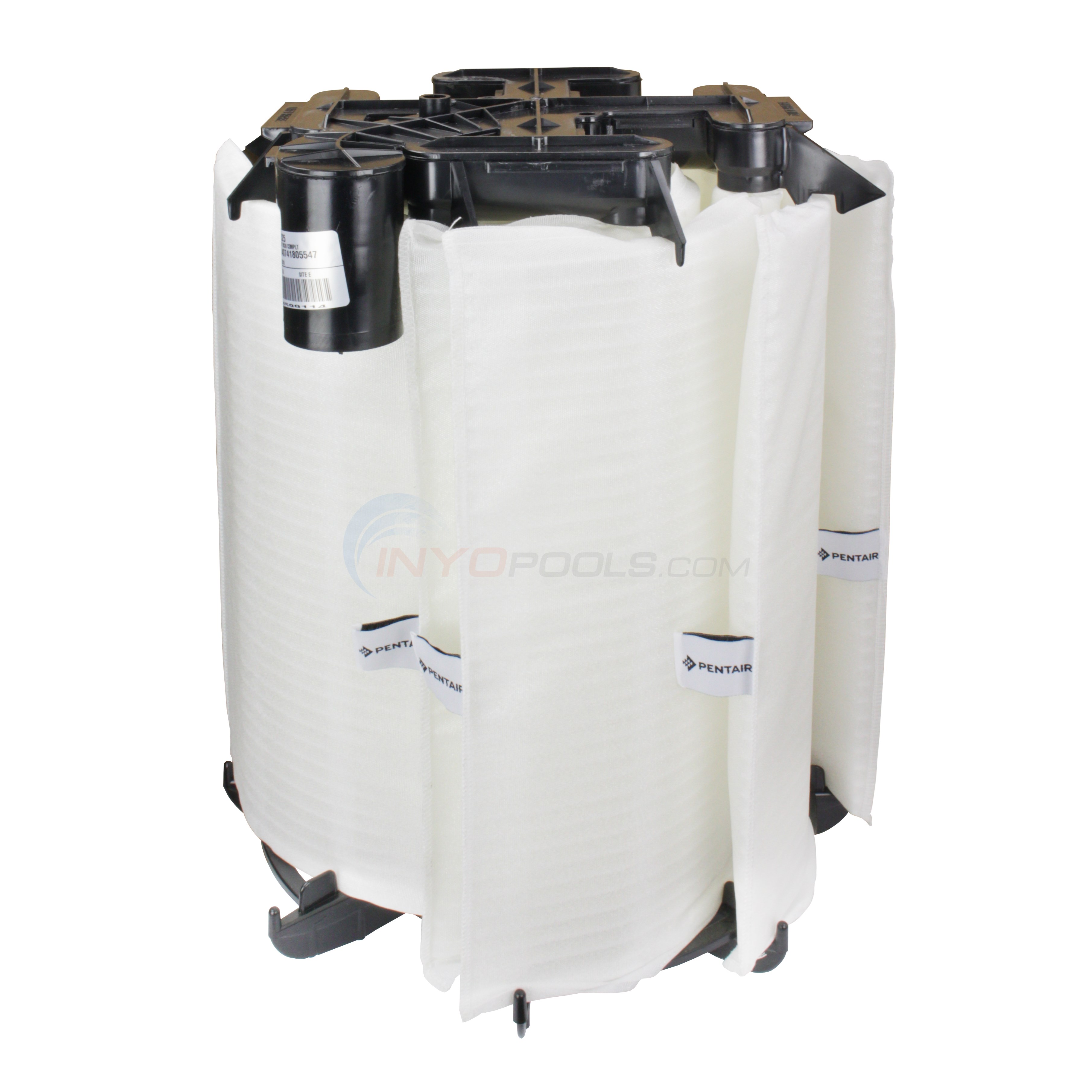

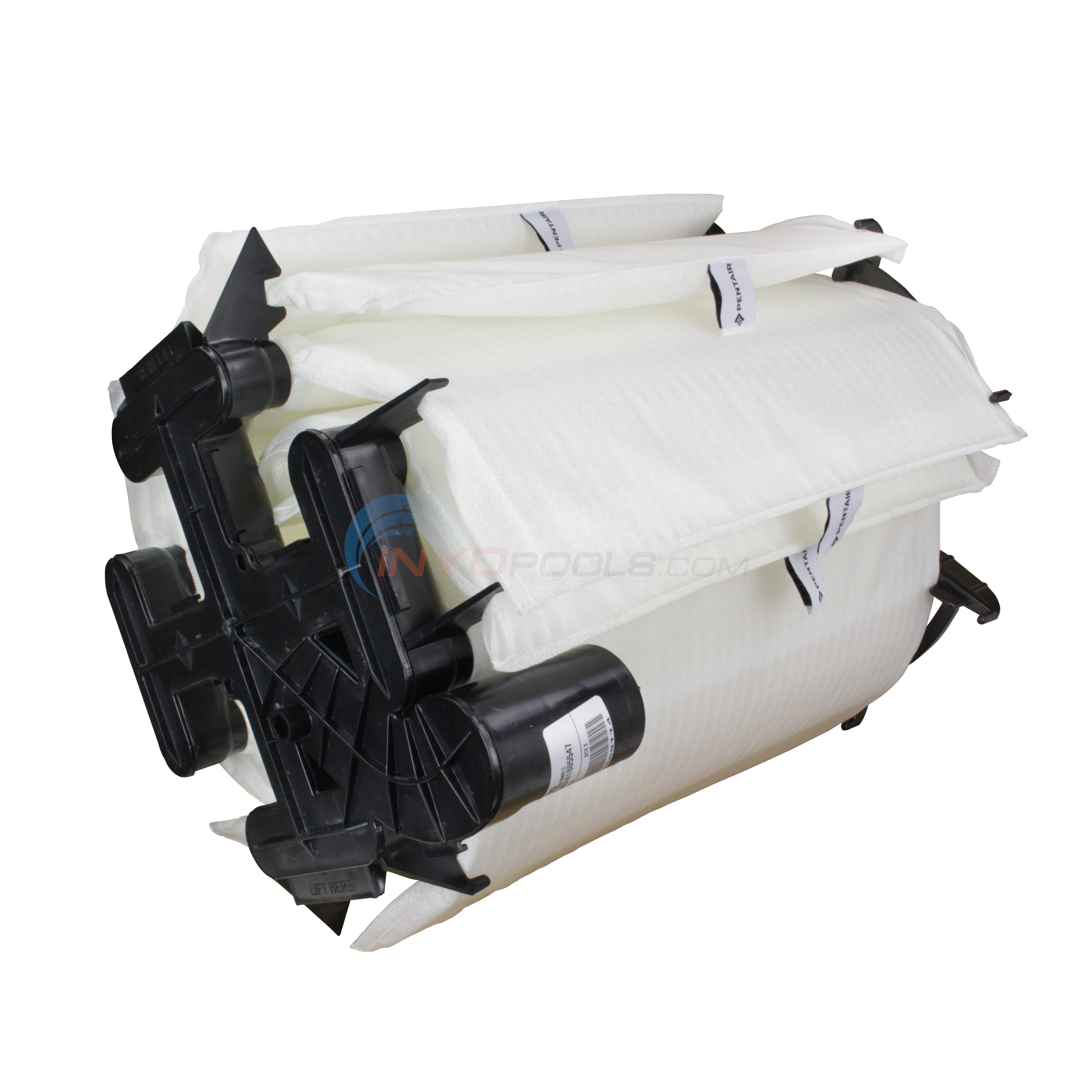

Pre-Assembled Drop in Grid Assembly for the FNS 36 Sq. Ft. DE Filter (FNS-36)

No more hasseling with re-assembling your grids!

This is the complete DE grid assembly used on the Pentair, Purex, Pac-Fab and American Products FNS 36 Sq. Ft DE filter. (FNS-36)

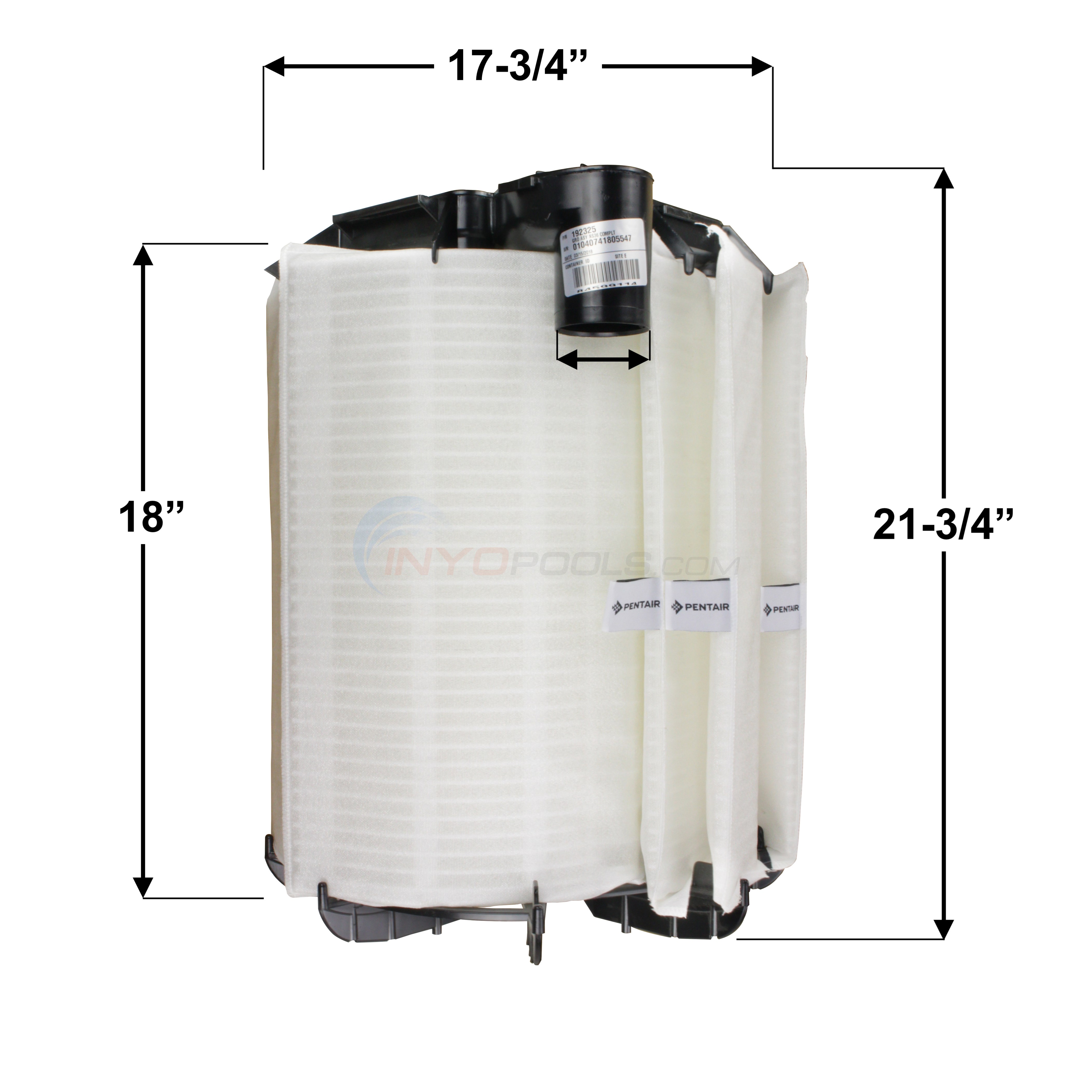

The DE grids on the 36 Sq. Ft. FNS filter measure 18" in length. This is the complete pre-assembled grid assembly which includes 8 DE grids, top manifild, bottom manifold, template, air relief strainer, extension and tie rods.

MFG# 19-2187 GRID ASS'Y INCLUDES; 7 GRIDS INYO# 4950-02 1 GRID INYO# 4950-02A MFG# 19-2330 MANIFOLD INYO# 4600-2173 MFG# 19-2173 RETAINER INYO# 4600- MFG# 19-2194 19" ROD INYO# 4600-2141 MFG# 19-2141 NUT 5/16" INYO# 6931- MFG# 19-2013 WASHER 5/16" INYO# 4600-4955 MFG# 17-4955 3/4" STRAINER INYO# 4600-2855 MFG# 17-2855

Top

?     Asked on 8/17/2017 by Mike

Will this fit my purex triton nautilus FNS 36 sq ft filter.
 Reply

A  Answered on 8/18/2017 by InyoPools Product Specialist Hector F.

Yes, this is the correct assembly for that model filter.
 Reply


?     Asked on 4/23/2017 by trish

hello, Is this grid assembly already assembled to install?
 Reply

A  Answered on 4/25/2017 by InyoPools Product Specialist Scott W.

Yes, the grid assembly is assembled and ready to install.
 Reply


?     Asked on 5/16/2015 by Emily

My original question was, "Is this grid assy. compatible with the older model Nautilus NS36?". I do not have the "FNS36". Is there a grid assy. specific to the NS36, no F in front of it?
 Reply

A  Answered on 5/16/2015 by InyoPools Product Specialist Lennox H.

Emily, The complete grid assembly for you Nautilus NS36 Filter is P/N 192325.
 Reply


?     Asked on 5/15/2015 by Emily

Is this grid assembly compatible with the older model Nautilus NS36 D.E. filter?
 Reply

A  Answered on 5/15/2015 by InyoPools Product Specialist Lennox H.

Emily, This 36sq.ft. Grid Assy is compatible with the Pentair Nautilus FNS D.E. Filter.
 Reply
