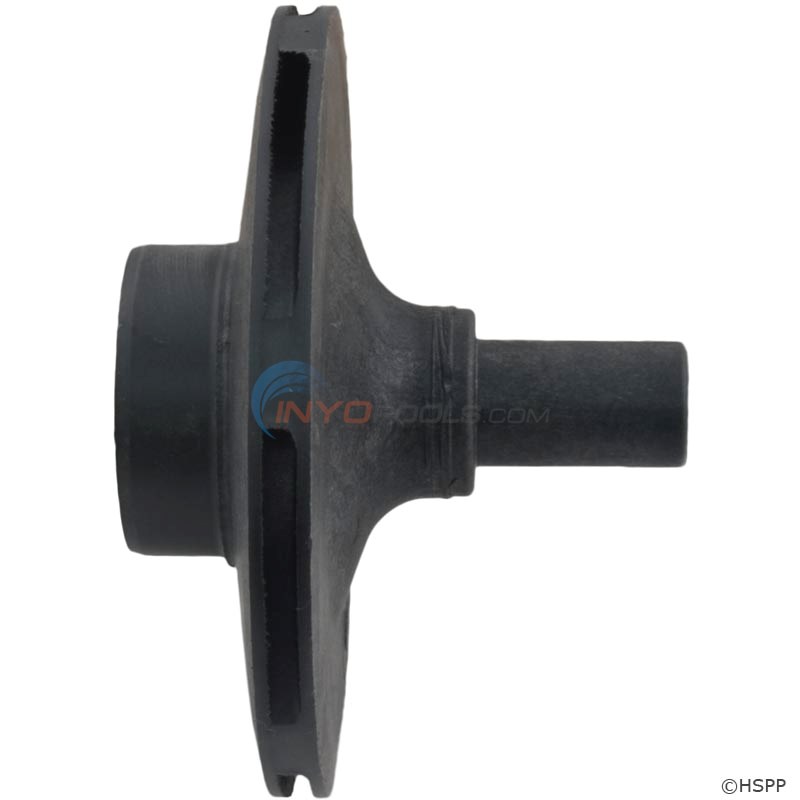

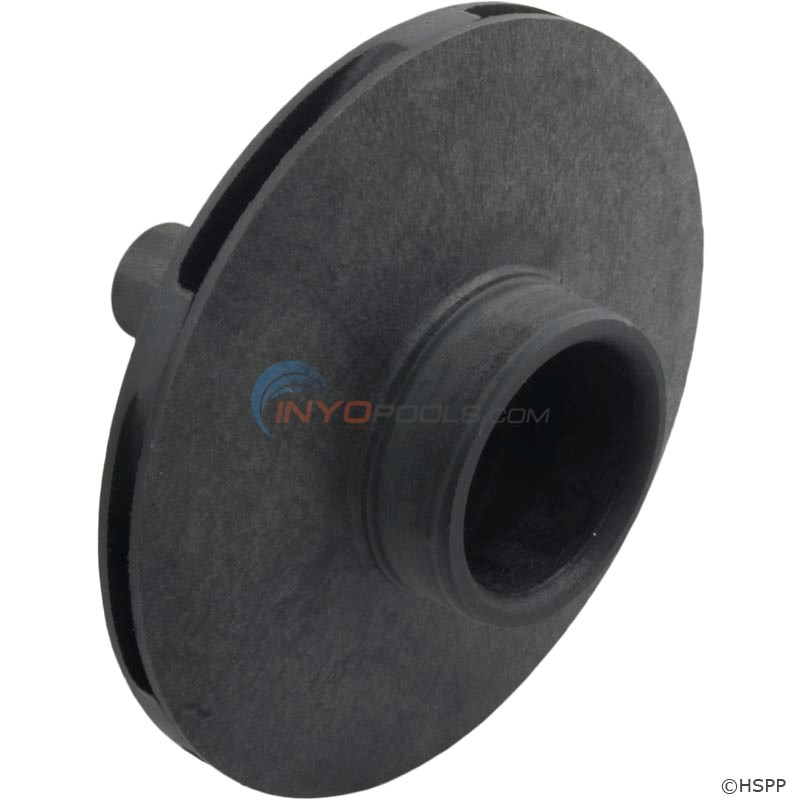

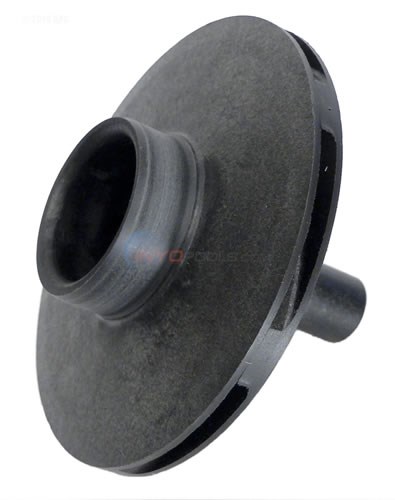

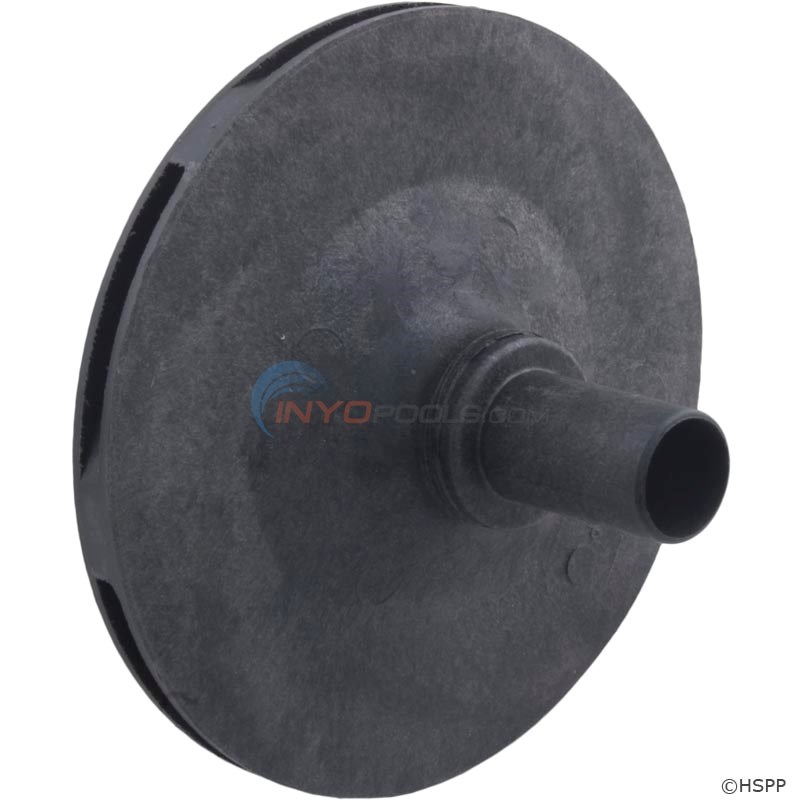

Impeller (c105-238p)3/4 hp full rated/1 hp up rated



Part # 5055-11

By Sta-Rite

  5 Average



Part # 5055-11

Manufacturer Code C105-238P

Dimensions 4.685" X 0.35"

Alternate Part #'s 351021150, C105238P, STA1018551

Product Description

Impeller (c105-238p)


?     Asked on 5/8/2018 by Rod

I have a Sta-rite P6RA6G-207L 2HP pump/motor and was replacing the motor when I found the impeller scored. It is stamped C105-238P. I see several with the same number but different letters eg. PB, PEBD. etc. Do you know which impeller is the correct model for my pump/motor. Tks

A     Answered on 5/11/2018 by InyoPools Product Specialist Lennox H.

Hi, Rod. The correct impeller for your model pump is Part #C105-238PDBA

?     Asked on 2/1/2018 by RICK

I am wanting to rebuild my sta-rite max-e-pro p6e6d-205L pump motor, how do I pick the right 3/4 hp motor, impeller, diffuser, o-rings.

A     Answered on 2/2/2018 by InyoPools Product Specialist Lennox H.

Hi, Rick. Here is the list of parts for your model pump. Motor - QC1102, Impeller - C105-238P, Diffuser - C1-271P1, and Tune Up Kit - GOKIT79

?     Asked on 9/12/2017 by Gary

I have a Sat-Rite 3/4 hp model # P6E6D-203L pump that has a broken impeller. How does the impeller come off the motor shaft?

A     Answered on 9/12/2017 by InyoPools Product Specialist Patrick P.

Hi Gary, Here is a Guide on How to Remove a Pool Pump Impeller which will walk you through the process.

?     Asked on 11/23/2016 by

is c105-138peb interchangeable with c105-238 p

A     Answered on 11/23/2016 by InyoPools Product Specialist Scott W.

No, the c105-138peb is for the Dura-Glas and the c105-238p is for the Dura-Glas II.

?     Asked on 4/20/2016 by Tim C.

Hello I have a Sta-Rite Model P458E-1561L Code: 1F93M pump and motor that motor is bad and looking to replace it. Also have Pump Impeller #C105-238P I understand it is for a 1Hp uprated motor, but not sure just what that means? lol I still don't know witch motor it will require because nothing is showing for Model P458E-151L so not sure motor will work with pump housing and brackets..And it is also looking like may need new impeller as well, so any suggestions on motor and impeller sets?

A     Answered on 4/21/2016 by InyoPools Product Specialist Lennox H.

Hi Tim C., The USQ1102 will be the correct replacement motor. Up-rate is just a term used for motors that operate at the rated hp. The C105-238P Impeller will also work with the USQ1102 motor, I would also recommend getting the Sta-Rite Max-E-Glas II / DuraGlas II Tune Up Kit.

?     Asked on 2/18/2016 by ron

have impeller for sta rite part#105-137p eb what impeller do I need either a 1 hp or 11/2hp motor

A     Answered on 2/19/2016 by InyoPools Product Specialist Lennox H.

Hi Ron, The 1HP Full/1.5HP Max Rate Impeller (C105-137PEB) would be the correct impeller needed.

?     Asked on 5/8/2015 by Ed

I just got my UQC1102 motor to replace my original K48K2PA105C1. Which impeller is right -- C105-238P or C105-238PB? What is the difference or could I use either one? Thanks.

A     Answered on 5/8/2015 by InyoPools Product Specialist Patrick P.

Hi Ed, The UQC1102 is a 1 HP uprated impeller so you would require this C105-238P impeller as it is used for a 1 HP uprated motor.

?     Asked on 12/7/2014 by ron

Is the 238P and the 238PEBA interchangeable.. I have the USQ1202 motor and am wondering if the 238P (from old motor) is sufficient

A     Answered on 12/8/2014 by InyoPools Product Specialist Brian M.

Hello Ron. Unfortunately they are not interchangeable. The 238P is listed as 3/4  to 1 HP , while the 238PEBA is for a 2. to 2.5 HP. The UST1102 motor is a 2 HP , so please go with the C105-238PEBA
