Part # 5063-08A
Manufacturer Code 05375902R
Dimensions 3.75" L x 3.75" W x 2.75" D
Alternate Part #'s 05375902, 351051920, 35-105-1920

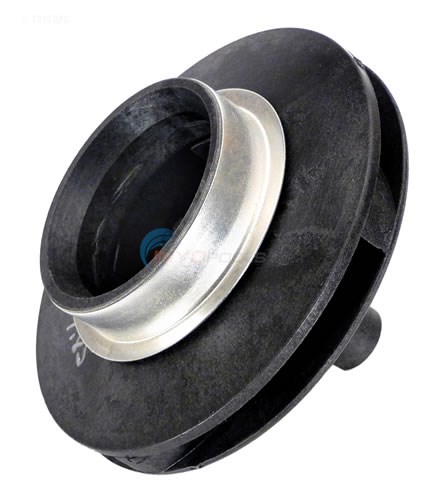

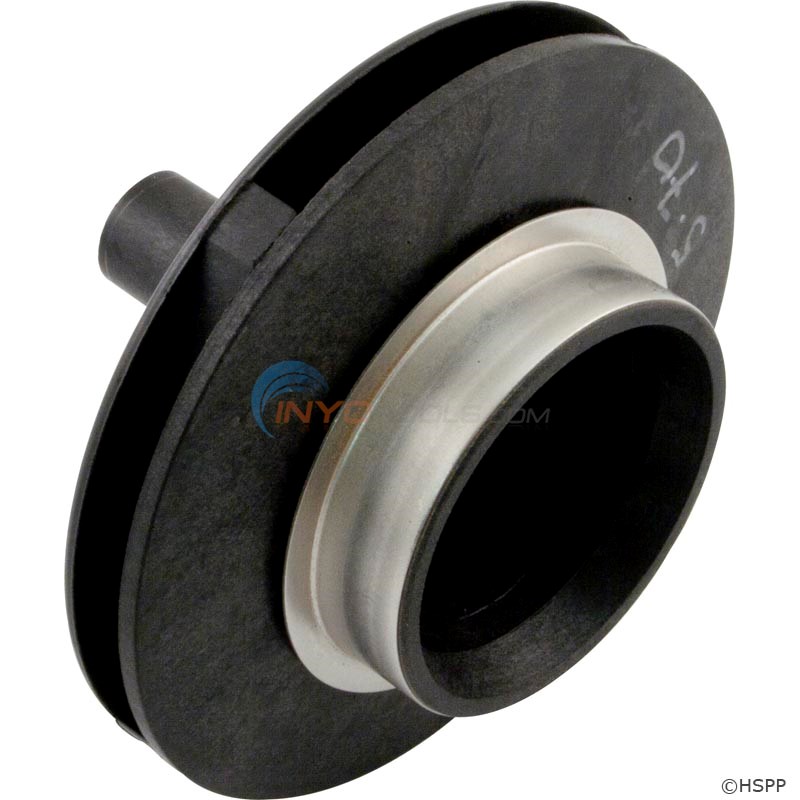

PROUCT DESCRIPTION
THIS INLET HAS A METAL RING AROUND THE OUTSIDE.
NUMBER OF VANES: 4
OUTSIDE DIAMETER: 3-11/16"
THICKNESS: 1/4" (INSIDE VANE THICKNESS AT OUTSIDE EDGE OF IMPELLER)
THICKNESS: 7/16" (OUTSIDE VANE THICKNESS AT OUTSIDE EDGE OF IMPELLER)
FRONT TO BACK: 2-5/8" (FROM END OF SHAFT TO FRONT ON INTAKE)
INLET INSIDE DIAMETER: 1-13/16"
INLET OUTSIDE DIAMETER: 2 "
INLET LENGTH: 1/2" TOTAL

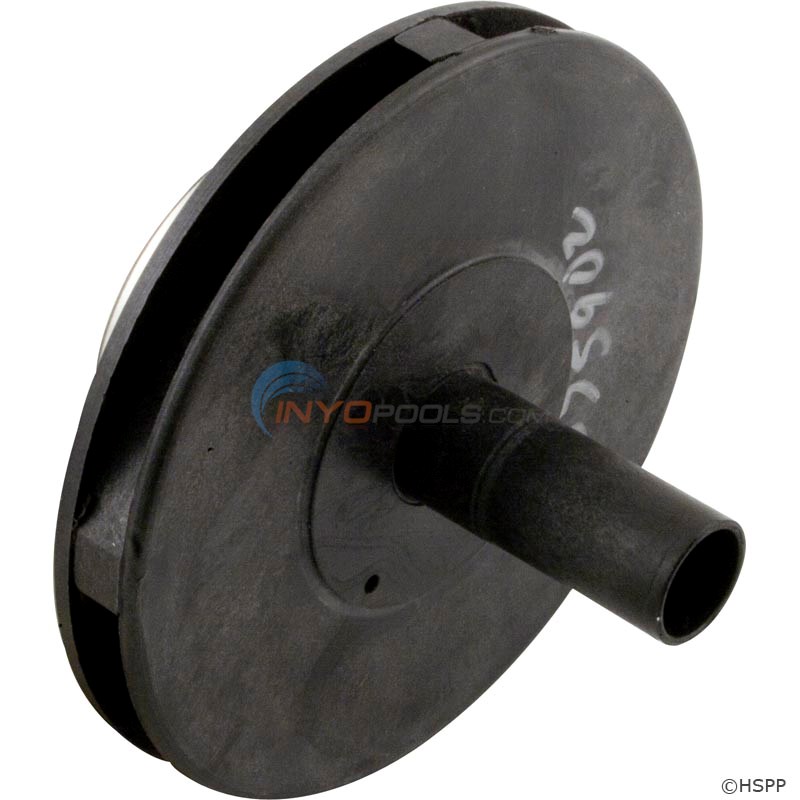

MARKINGS: THE PART NUMBER IS WRITTEN IN INK ON THE IMPELLER BUT THIS WILL PROBABLY NOT BE VISIBLE AFTER MUCH USE.
SHAFT SEAL USED WITH THIS IMPELLER: 5250-104
I have a LR series pump that i need s new impeller and mechanical seal. I believe i need mechanical seal # 5250-104 but not sure on the impeller. Is#5063-08a a match for the seal kit.My current motor has a half inch motor shaft with 4" dia. impeller 4 vane. Are these the right parts I need?
Reply
Hi, Randy. The Jacuzzi L-1 H.P. Impeller - 05382106R000 matches the dimensions of your impeller. If you can provide us with the motors PART or CAT # I can confirm which impeller is compatible with that motor.
Reply
