Set Screw (071652)

Part # 5074-14

By Pentair Pool Products

  5 Average

Details

Top

Part # 5074-14

Manufacturer Code 071652

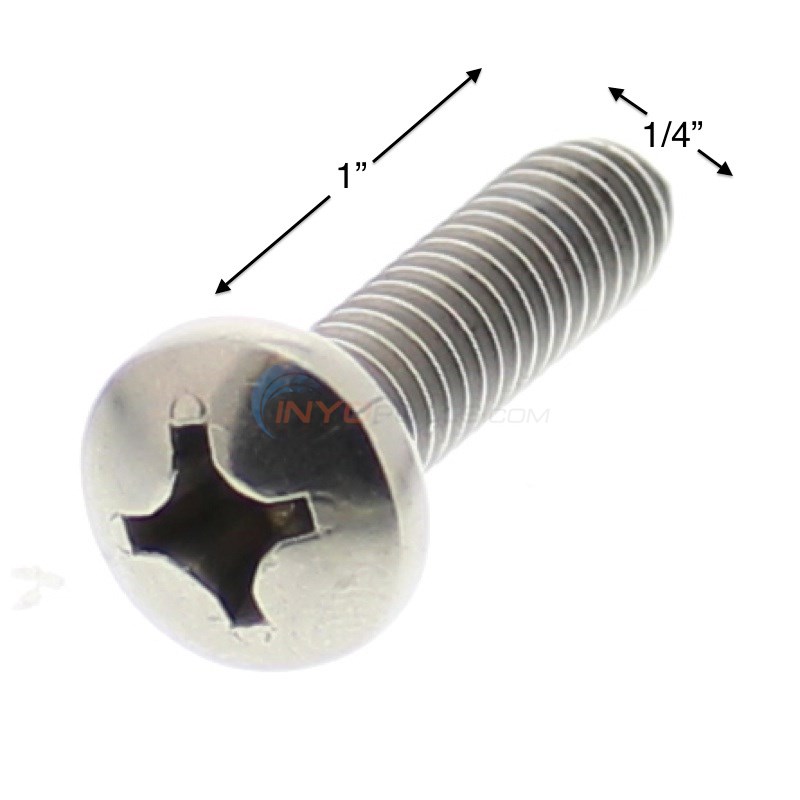

Dimensions 1.15" L x 0.5" W x 0.5" D

Alternate Part #'s 071652, 71652, P26942, PUR1016175

Product Description

Set Screw for Whisperflo Impeller

Top

?     Asked on 5/5/2013 by Guest

What size is the Pentair WhisperFlo impeller screw?
 Reply

A  Answered on 5/5/2013 by InyoPools Product Specialist Patrick P.

The Pentair WhisperFlo impeller screw measures 1/4 - 20 x 1 inch.
 Reply


?     Asked on 4/23/2013 by Guest

I am having an issue removing the impeller screw from my Pentair WhisperFlo. Is there a trick to getting this part out?
 Reply

A  Answered on 4/23/2013 by InyoPools Product Specialist Patrick P.

There is no trick to removing the screw but it is a reverse thread. So, if you've been trying to use the "lefty loosey" method then you will not get very far. Turn the opposite way and it should come out with a few good turns.
 Reply
