Union Connectors (Set Of 2) - SP1500UNPAK2

$16.99

IN STOCK

Part # 2110-12

By Hayward Pool Products

  5 Average

Details

Top

Part # 2110-12

Manufacturer Code SP1500UNPAK2

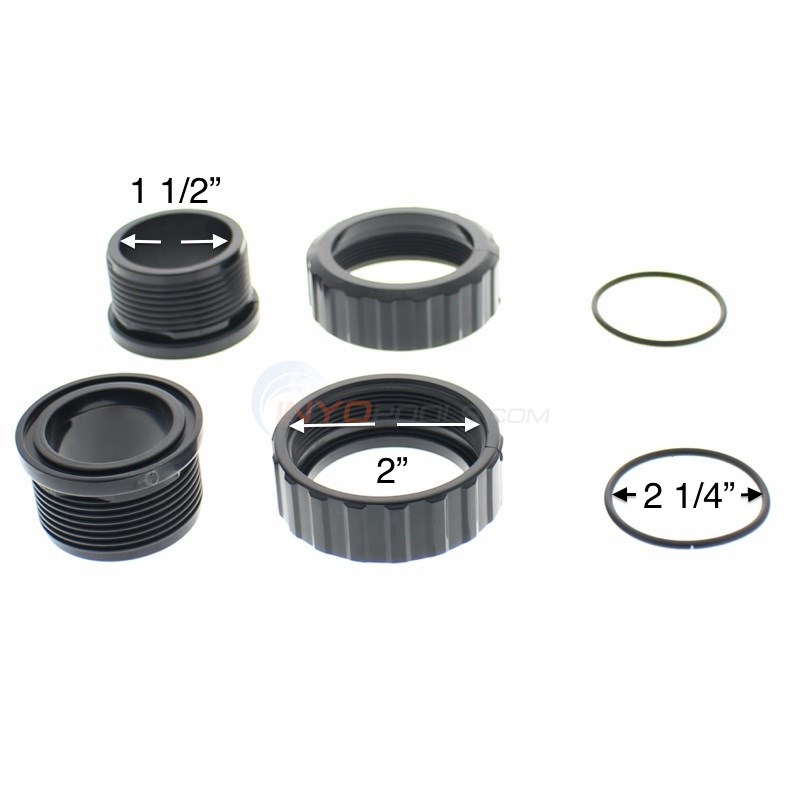

Dimensions 7" L x 3.5" W x 2" D

Alternate Part #'s 1016067, SP1500UNPAK2

Product Description

THIS IS A SET OF 2, HAYWARD PUMP UNIONS SP1500UNPAK2 ..... INCLUDES (2) SPX1500G UNION NUTS (MARKED SP-1500-G-1) (2) SPX1500JS UNION CONNECTOR With O-RING GROOVE) . (1-1/2" SLIP INSIDE, UNION THREADS OUTSIDE) . (MARKED SP-1500-JS-1) (2) SPX1495Z1 UNION O-RING

Top

?     Asked on 4/16/2020 by Mario Martinez

I have a Pentair Whisper Flow Pump with 2" PCV SCH 40 piping. The pump outflow connector is leaking water through the threads. Will this Union replace my faulty threaded connector?
 Reply

A  Answered on 4/16/2020 by InyoPools Product Specialist Hector F.

Unfortunately, no these fittings will not thread to your pump. If the leak is coming directly from the female threads on the inside of the discharge pump port then that will need to be replumbed and inspected for any damage to the threads or port. You can use any standard male threaded MPT fitting for that port.
 Reply


?     Asked on 7/16/2019 by christi fleeger

Hi I have a hayward model sp15932s pump and need the union to go to a swim pro sw150mddvpaks filter. Will this work?
 Reply

A  Answered on 7/17/2019 by InyoPools Product Specialist Lennox H.

Hi, Christi. These Union Connectors - SP1500UNPAK2 will work based on your piping.
 Reply


?     Asked on 10/17/2018 by

Description is incorrect. This item does not contain two (2) SPX1500JS, it comes with two (2) SP1500JS (note there is no "X" in there).
 Reply

A  Answered on 10/17/2018 by InyoPools Product Specialist Hector F.

I can see how this can seem confusing. Some of these parts actually have alternate part numbers, and this one does. The part number that includes the "x" is an alternate part number.
 Reply


?     Asked on 7/26/2018 by Greg Kiefer

Does the threaded male fitting glue on to return line? If so what type of glue do I need?
 Reply

A  Answered on 7/26/2018 by InyoPools Product Specialist Lennox H.

Hi, Greg. The threaded male end does not require glue.
 Reply


?     Asked on 9/6/2017 by

the male end, is the thread 1.5 or 2 inch
 Reply

A  Answered on 9/8/2017 by InyoPools Product Specialist Lennox H.

Hi. The threads are 1-1/2" MBT.
 Reply


?     Asked on 7/15/2017 by Ray

The original connectors accept 1.25 schedule 40 abs which has an outside diameter of 1.75 inches. Will these actually fit since you claim a different size slip joint? Ray
 Reply

A  Answered on 7/16/2017 by InyoPools Product Specialist Lennox H.

Hi, Ray. You will need Item # SP1500UNMPAK1.
 Reply


?     Asked on 6/22/2016 by Paul

I have a haywood super pump SP2607x10 and want to know if this will fit. My pipe connection has a 2 inch slip (3 inches in diameter thread) and want to know if that too will fit.
 Reply

A  Answered on 6/22/2016 by InyoPools Product Specialist Patrick P.

Hi Paul, For your application, you would require this 1.5" Male x 2" Slip Union
 Reply


?     Asked on 3/21/2016 by Jerry S

On these unions, when I install them on either the chlorinator or pump, do I use teflon tape and or pipe compound on the threads. I thought that as these have a rubber o ring the tape and dope would not be necessary. Thank you.
 Reply

A  Answered on 3/22/2016 by InyoPools Product Specialist Hector F.

Whenever any threaded male ends are plumbed into any piece of equipment either or both teflon tape and plumbers dope can be used. Keep in mind that there are multiple types used for such plumbing work.
 Reply


?     Asked on 4/24/2015 by kim

are these mail ?
 Reply

A  Answered on 4/25/2015 by InyoPools Product Specialist Joe S.

These units are 1-1/2" SLIP INSIDE, UNION THREADS OUTSIDE
 Reply
