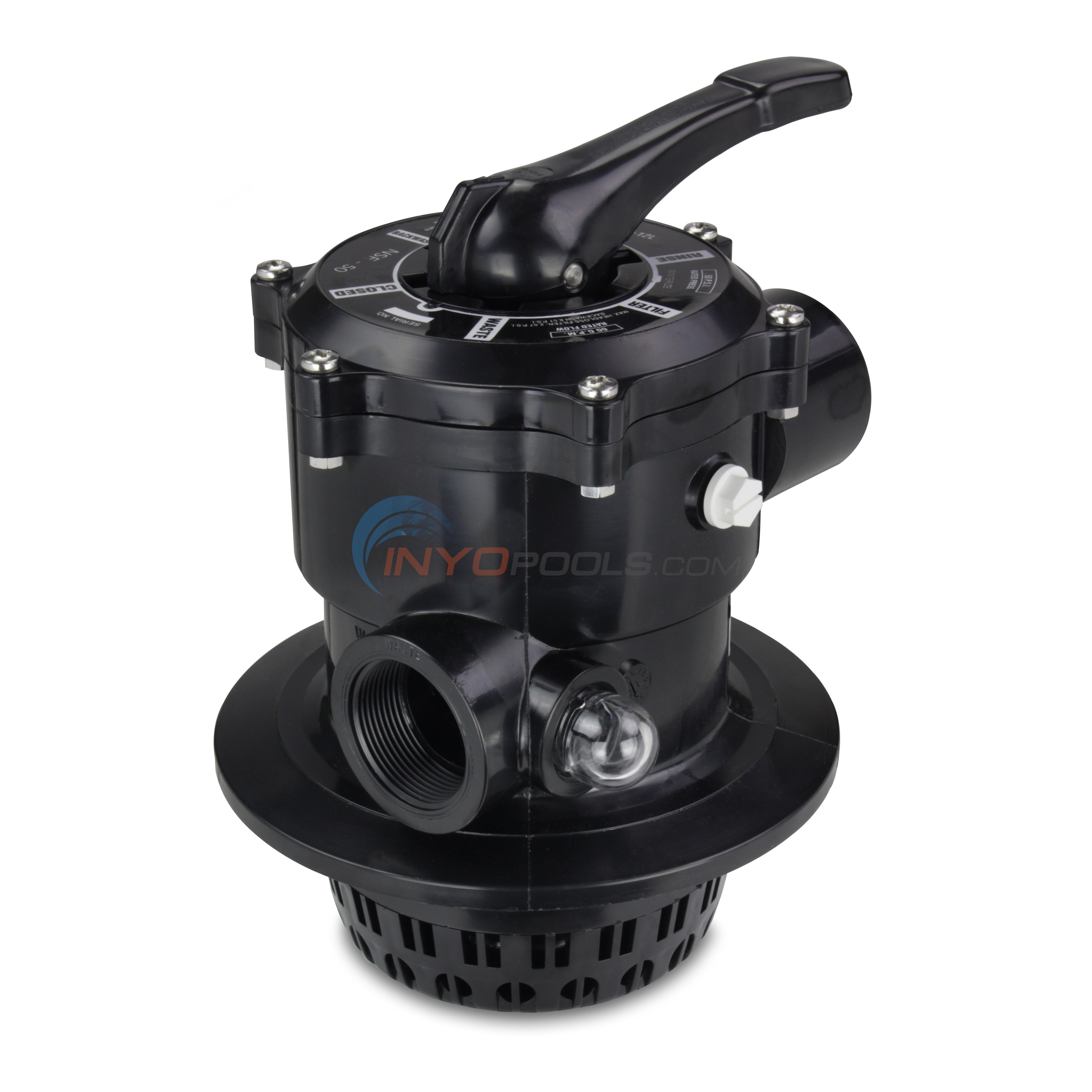

Praher Top Mount Valve 6-Way - TM-12-L

$76.99

IN STOCK
FREE SHIPPING

Part # 4770-01

By Praher

  4.75 Average

Details

Top

Part # 4770-01

Manufacturer Code TM-12-L

Dimensions 12" L x 8" W x 8" D

Alternate Part #'s 2080, 22315124011, 22315128354, 22315206175, 261186, 301066, 30C0056, 373613, 4572-050, 4742-017, 4770-01, 602012, 602952, 603178, 603327, 77704-0104, 78837980382, 906800062, JSAL-01/03, JSAL-02-04, PRA-06-212, PRTM12L, STA149650013, TM12L, WC112-148

Product Description

The 6-Way Praher Valve Assembly (TM-12-L) is used for the Baker Hydro III/ Cooper & Millenium sand filter, W Cooper Ranger RS Series sand filters, Waterway Smartclean sand filter and Speck Aquaswim AS-250.

  • Valve Flange Diameter 8-1/4"
  • Spider gasket 5-3/16" OD; 3/4" ID (center hole)

VALVE, 1.5" TOP MOUNT FLANGED

Product Specifications

Manufacturer:
Praher
Model:
Sta-Rite Cristal-Flo, Poolco, W. Cooper Ranger
OEM #:
TM-12-L
Plumbing Size:
1-1/2 in.
Plumbing Port Type:
Female Pipe Thread (fpt)
Top

?     Asked on 5/22/2019 by viv

Hi I have a millennium granular sand filter and my multi valve port handle broke off. I don’t have a serial number as I can’t find it can you please help me and let me know what part I need. Here are some pictures.

 Reply

A  Answered on 5/22/2019 by InyoPools Product Specialist Patrick P.

Hi Viv, You will require this Millenium Sand Filter Valve Handle
 Reply

  • Commented on 5/22/2019 by Product Owner

    Thank you so much! I just ordered it. I hope it’s easy to put on.
     Reply

    • Commented on 5/23/2019 by InyoPools Product Specialist Patrick P.

      Hi Vivian, that's great news, it should be relatively easy to replace.
       Reply


?     Asked on 5/21/2019 by brandon

will this valve replace my current one? look the same i have no model number.. have attached photo.

 Reply

A  Answered on 5/21/2019 by InyoPools Product Specialist Patrick P.

Hi Brandon, Yes the valve listed on this page will replace the valve you have supplied in your photos.
 Reply


?     Asked on 5/20/2019 by Teddy

I have a Columbia PL25 I need a replacement valve head would you carry one that would fit thanks
 Reply

A  Answered on 5/20/2019 by InyoPools Product Specialist Patrick P.

Hi Teddy, Are there any part #'s on the valve which start with TM? Please click on the reply link below provide us with any of those part #'s off of the valve. Also if you could take a few photos of the valve and send those to us. To send the photos simply click the reply link below and upload your photos.
 Reply


?     Asked on 5/15/2019 by JWright

This is a Jandy st 24-1 filter. the top handle broke off. is this the correct replacement?

 Reply

A  Answered on 5/16/2019 by InyoPools Product Specialist Lennox H.

Hi, JWright.  This valve will not work with the Jandy ST-24 sand filter, you will need P/N 228042 (OEM) or TM-12-B (Generic).
 Reply


?     Asked on 5/14/2019 by Cheri

Have an older top mount valve no name on it . Have a part number ser. Number. Would you be able to help me with the correct part I need? Part # 272526 Ser.# 05183620502492 VIVSD22/22 5.1 HIGHFLO THANK YOU FOR YOUR TIME

 Reply

A  Answered on 5/14/2019 by InyoPools Product Specialist Hector F.

The current replacement valve is part number 4600-2506.
 Reply


?     Asked on 5/7/2019 by Cindy

I ordered this multi port valve online. My old calve has a GPM of 75, the new valve is a 60 GPM. Is this going to be an issue for running my filter? Thanks

 Reply

A  Answered on 5/9/2019 by InyoPools Product Specialist Lennox H.

Hi, Cindy. It will not be an issue as long as your flow rate does not exceed the rated flow rate.
 Reply


?     Asked on 5/6/2019 by Mike

Will this assembly replace a wc-112-148 on a sta-rite 240-bp Thanks
 Reply

A  Answered on 5/6/2019 by InyoPools Product Specialist Patrick P.

Hi Mike, Yes this TM-12-L valve is the correct replacement for the WC112-148 valve.
 Reply

  • Commented on 5/10/2019 by Product Owner

    Does The clamp on the filter now will work with the new valve?
     Reply

    • Commented on 5/13/2019 by InyoPools Product Specialist Patrick P.

      Hi Mike, Yes the clamp on your current valve will work on this valve.
       Reply


?     Asked on 5/4/2019 by JACOB

I have a 18 years old Niagara Pool model RS2515 sand filter. The valve is no longer working properly. No markings on the valve. Your valve - " Praher Top Mount Valve 6-Way - TM-12-L" looks the same as mine. I am attaching pictures. Would this valve fit ? Thank you for your time.

 Reply

A  Answered on 5/5/2019 by InyoPools Product Specialist Lennox H.

Hi, Jacob. Based on your model RS2515 which cross-reference to the W Cooper Ranger Top Mount Sand this valve will work.
 Reply

  • Commented on 5/5/2019 by Product Owner

    Thank you for your help!
     Reply

    • Commented on 5/6/2019 by InyoPools Product Specialist Patrick P.

      You're Welcome!
       Reply


?     Asked on 5/3/2019 by

Will this valve work with jacuzzi 190L sand filter
 Reply

A  Answered on 5/3/2019 by InyoPools Product Specialist Lennox H.

Hi. This valve will not work with the Jacuzzi 190L filter, you will need to use p/n TM-12-JL7.
 Reply

  • Commented on 5/4/2019 by Product Owner

    Ok thanks. Also, will i need to use diverter or do i omit it with this valve?
     Reply

    • Commented on 5/4/2019 by InyoPools Product Specialist Lennox H.

      Ken, Yes, you will have to omit the Diverter and Basket Assembly if you want to use the TM-12-JL7 valve or use the DVK7 Valve - 39262803R
       Reply


?     Asked on 4/28/2019 by Michael Buffman

Does the O Ring come with #4770-01 top mount valve
 Reply

A  Answered on 4/30/2019 by InyoPools Product Specialist Lennox H.

Hi, Michael. The Valve/Tank O-ring is included with this valve.
 Reply


?     Asked on 4/14/2019 by

does the tm-12-l fit the sta-rite bp-1 filter
 Reply

A  Answered on 4/14/2019 by InyoPools Product Specialist Lennox H.

Hi. Yes, this TM-12-L valve will fit the Sta-Rite Cristal-Flo Sand Filter models ending in BP-1.
 Reply


?     Asked on 1/7/2019 by Steve

Trying to find proper spider gasket for my TM-12-L. I have a Ranger series sand filter. thank you
 Reply

A  Answered on 1/7/2019 by InyoPools Product Specialist Hector F.

The spider gasket is part number 4600-1104
 Reply


?     Asked on 6/19/2018 by Rick

what is clear bulb on side for?
 Reply

A  Answered on 6/19/2018 by InyoPools Product Specialist Hector F.

This is a sight glass so you can see the dirty filter water that is being flushed from it.
 Reply


?     Asked on 8/1/2017 by John

I have a Ranger RS24 sand filter, the valve is no longer working properly. Would this valve fit on the base of the RS24 model? Let me know. thanks,
 Reply

A  Answered on 8/2/2017 by InyoPools Product Specialist Lennox H.

Hi, John. Yes, this TM-12-L valve will fit the Ranger RS Series sand filter.
 Reply


?     Asked on 6/24/2017 by

I have a TM-12-L. Recently changed pipe from 1-1/4" to 1-1/2". Started leaking through backwash, changed spider gasket. Still leaking. Changed back to 1-1/4", still leaking. I have a 1hp pump, can this valve Handel the flow rate or does it need replaced?
 Reply

A  Answered on 6/26/2017 by InyoPools Product Specialist Alex V.

Jeremy, I would recommend inspecting the spring on the handle assembly. if the spring is not compressing/expanding like it should, you will not get a water tight seal.
 Reply


?     Asked on 6/8/2017 by John

How do you remove the whole valve to change the sand? Does it unscrew? Previous unit had a clamp. Regards John
 Reply

A  Answered on 8/4/2017 by InyoPools Product Specialist Alex V.

John, This valve is a clamp on style valve. You would release the pressure in the system then remove the clamp assembly to remove the valve.
 Reply


?     Asked on 6/4/2017 by Donella

I have a Pentair 8 way part number 50118200. I see the tm-12-s or the tm-12-s8 is the replacement for it as the 50118200 is discontinued. What is the difference between the tm-12-s and the tm-12-s8. I see both of them being listed as replacement for my 50118200. Which one is correct? thank you
 Reply

A  Answered on 6/5/2017 by InyoPools Product Specialist Patrick P.

Hi Donella the only difference is the color the TM-12-S is white where the TM-12-S8 is black.
 Reply


?     Asked on 5/23/2017 by Safwat

Can I use this head for any tank ?
 Reply

A  Answered on 5/23/2017 by InyoPools Product Specialist Hector F.

No, these valves are designed to work with specific model filters. You can call in with that model information or if you do not have that you can email some images through our support request page of the filter and valve.
 Reply


?     Asked on 5/13/2017 by Robert Ferralasco

Will this valve assembly fit my 21" Ranger series sand filter by Cooper industries that has 6 way selector valve?
 Reply

A  Answered on 5/14/2017 by InyoPools Product Specialist Lennox H.

Hi, Robert. Yes, this TM-12-L valve will fit a 21" Ranger Sand filter.
 Reply


?     Asked on 4/30/2017 by Mike

I have a Ranger series 25 inch sand filter with 1 1/2 valve outlets that needs a new top valve assembly. Do you have one that would fit? Thank you Mike
 Reply

A  Answered on 4/30/2017 by InyoPools Product Specialist Patrick P.

Hi Mike, Yes the TM-12-L is the correct replacement valve for your Ranger 25 filter. This valve will fit.
 Reply


?     Asked on 3/18/2017 by Praher TM-12-L O-Ring

What is the round O-ring part number that fits the TM-12-L valve. I don't know what kind of sand filter I have as its about 17 years old. I clamp the valve to the filter. The O-ring is round and about 1/4" thick and 7" to 8" in diameter (it fits in the valve groove so there cant be many) Thanks guys.
 Reply

A  Answered on 3/20/2017 by InyoPools Product Specialist Lennox H.

Hi, The Valve Flange O-ring - U9-369 is the o-ring that goes between the filter and valve.
 Reply


?     Asked on 9/9/2016 by Jay Jones

Ho doI identify the Multi port valve that is used with our 20 year old Baker Hydro San Filter H-17650? It is 2 inch and has 6 settings. It no longer has stickers. I need to replace the gaskets in the valve. Thanks in advance for your help Jay
 Reply

A  Answered on 9/9/2016 by InyoPools Product Specialist Stacey M.

Hello Jay, You can send us pictures at upload@inyopools.com to better see the valve and diagnose which valve you have. Most of the Baker units have 1-1/2" Multiport valves.
 Reply


?     Asked on 9/9/2016 by K T Hng

I want to buy a whole assembly set for sand filter S600. Delivered to :- 117 Jln kemuning 5, Sg pasir Park, Sg. Pasir 08000, Sg. Petani, Kedah Malaysia Tel: +60164161933
 Reply

A  Answered on 9/9/2016 by InyoPools Product Specialist Scott W.

It would get shipped UPS World and the shipping charge would be about $80-90 US.
 Reply


?     Asked on 9/7/2016 by Jason

Hi, I just installed a new Praher TM-12-L 1.5 Top Mount Multiport Valve and I have a leak at the interface between the valve pump and return ports and the 1 1/2" PVC male-slip adapters I installed there. Is there a recommendation for thread sealant or something before screwing in the adapters? Thanks
 Reply

A  Answered on 9/8/2016 by InyoPools Product Specialist Stacey M.

Hello Jason, You can use a strong base silicone and make sure it is dry before turning on, which is a few hours from time of application.
 Reply


?     Asked on 7/30/2016 by Howard

Hi Folks I have a 15 year old pool with a very minor drip on the bottom two inch connection of my Hayward 6-way valve. It is the output connection to the Triton DE filter. I am contemplating using a "Leak-B-Gone" snap on connector and gluing to the bottom of the valve. Frankly I don't want to replace the valve and re plumb because I will undoubtedly screw up "something". Any thoughts? Thanks for reading, Howard
 Reply

A  Answered on 8/4/2016 by InyoPools Product Specialist Lennox H.

Hi Howard, Anything less than re-plumbing the valve will only be a temporary fix. If you're unable to do the job you can have someone do it.
 Reply


?     Asked on 7/11/2016 by Rick

I have a TM-12 top mounted on a WMC sand filter - model F500. The "backwash" fitting leaks when in the "filter" position. Do I need rebuild internal parts or would you recommend a complete assembly and, if so, which model would I order? Thanks, Rick
 Reply

A  Answered on 7/17/2016 by InyoPools Product Specialist Lennox H.

Hi Rick, You can rebuild the valve that you have or replace the valve depending on the valve age. A list of available parts can be located on the Pentair - Praher 1 1/2" TM12 & SM10 Parts page.
 Reply


?     Asked on 7/8/2016 by Doug

I have an older Ranger rs18 and just the spider gasket needs replacing, do you carry those?
 Reply

A  Answered on 7/13/2016 by InyoPools Product Specialist Lennox H.

Hi Doug, If you have this valve then the Diverter Gasket (E12S1) is the replacement spider gasket.
 Reply


?     Asked on 7/3/2016 by Curt

The pipe from the pump to the multiport: should it go to the top of the multiport, ie is this the hole for the intake to the filter? Service people have it going to the bottom hole and dirty water is shooting out the returns when I vacuum? Mysterious??
 Reply

A  Answered on 7/9/2016 by InyoPools Product Specialist Lennox H.

Hi Curt, The pipe from the pump will go to the port on the valve that is labeled "PUMP" which is the top left port. The lower right port is the "RETURN" port which is goes back to the pool.
 Reply


?     Asked on 6/18/2016 by

What's the difference between the Praher TM-12 and the TM-12S?
 Reply

A  Answered on 6/19/2016 by InyoPools Product Specialist Matt S.

The TM-12 has quite a few different versions, the letter suffix denotes the valves and which specific sand filter it belongs to. What is the model number of your sand filter?
 Reply


?     Asked on 6/13/2016 by

We do not know how to set valve open or close to stop losing prime
 Reply

A  Answered on 6/18/2016 by InyoPools Product Specialist Lennox H.

Hi, Pump primes from the suction side of your pool, not the pressure side. You can review our How To Determine Why a Pool Pump Won't Prime for insight.
 Reply


?     Asked on 6/3/2016 by Terry Lowe

I had to replace my top mount MPV with TM 12 S .My problem is that the old clamp is just a little small. I Measured the old MPV and it measures 22 1/4 around and the new MPV measures 23 1/4 around. I need a clamp that will fit the 23 1/4 and the screw that can tighten it on. How long is the provided screw.thank you
 Reply

A  Answered on 6/11/2016 by InyoPools Product Specialist Lennox H.

Hi Terry, You will have to make your that you ordered the correct replacement valve. The TM-12-S and the TM-12-L valve are different and uses different clamp.
 Reply


?     Asked on 5/28/2016 by Kay Fowler

The label has worn off filter head. Could you send me a picture of setting on filter so we know which way to turn handle. We have a ranger sand filter
 Reply

A  Answered on 6/4/2016 by InyoPools Product Specialist Lennox H.

Hi Kay, Click link >Top Assy to view the position of the settings for this valve.
 Reply


?     Asked on 5/25/2016 by don

I have a ranger series sand filter RS 2015 by w. cooper industries. I am needing the valve assembly 2080 for the filter. do you have it?
 Reply

A  Answered on 5/25/2016 by InyoPools Product Specialist Patrick P.

Yes this is the correct valve replacement for the 2080 valve going on a ranger series sand filter RS 2015 by w. cooper industries. We do have this in stock.
 Reply


?     Asked on 4/28/2016 by Dan

Is the spider gasket in the praher TM-12-L valve the kind you can replace?
 Reply

A  Answered on 4/29/2016 by InyoPools Product Specialist Lennox H.

Hi Dan, You can replace the Diverter Gasket (4600-1104) for the TM-12-L valve. Click link >Pentair - Praher 1 1/2" TM12 & SM10 Parts for additional replacement parts for this valve.
 Reply


?     Asked on 4/5/2016 by Elvy

I don't see a smaller gasket in the exploded view of the valve assembly. Its about 2 inches in dia. and fits inside the bottom of the valve assembly. Mine is bad and does inyopools sell this gasket?
 Reply

A  Answered on 4/6/2016 by InyoPools Product Specialist Lennox H.

Hi Elvy, I'm not sure exactly which part you're referring to, you can locate all the parts for this valve via the Pentair - Praher 1 1/2" TM12 & SM10 Parts.
 Reply


?     Asked on 2/28/2016 by Darin

Is this valve a replacement for a WC112-148?
 Reply

A  Answered on 2/29/2016 by InyoPools Product Specialist Robert M.

Hello Darin - The TM-12-L is the correct replacement for the WC112-148.
 Reply


?     Asked on 7/10/2015 by john

Which valve port is the return?
 Reply

A  Answered on 7/11/2015 by InyoPools Product Specialist Patrick P.

Hi John, If you look at the picture on this page of the valve you will see one side of the valve which has two ports. The inlet port would be the top port and the return port is the bottom port. The port on the opposite side is the backwash port.
 Reply


?     Asked on 6/22/2015 by Joe

I have a Ranger 25 with the valve on top, only problem is after 12 summers the labels have faded and I can't read them I know where filter and back wash are but need to know where the recycle or bypass settings are. Thank you
 Reply

A  Answered on 6/23/2015 by InyoPools Product Specialist Lennox H.

Hi Joe, You can replace the Valve Cover Decal (E5-T1) for the Praher 6 Way Valve Assembly (TM-12-L).
 Reply


?     Asked on 6/3/2015 by

if ordering this valve i would have to order the flange o ring separately to go with it?
 Reply

A  Answered on 6/3/2015 by InyoPools Product Specialist Andy O.

When ordering the Valve Assembly, 6-way Praher (tm-12-l) part number 4770-01 you would need to buy the gasket for the top of the filter separately.
 Reply


?     Asked on 6/3/2015 by Tom

mine is a 2000 yr. model millennium filter not sure size. its on a 24 ft. round. valve is a1.5 " cooper industries rated at 50 psi and 75 gpm will this work? the body still seems ok so will the top valve assembly work in this?
 Reply

A  Answered on 6/3/2015 by InyoPools Product Specialist Wes B.

Hello Tom, Yes the (TM-12-I) will be the correct replacement for your W Cooper Ranger Filter.
 Reply


?     Asked on 5/29/2015 by

Does the valve assembly come with the gasket / o-ring to mount to tank?
 Reply

A  Answered on 5/29/2015 by InyoPools Product Specialist Patrick P.

No it does not come with the o-ring that goes between the valve and the tank. This o-ring is actually considered part of the filter so could you let us know the make and model of your filter?
 Reply


?     Asked on 5/25/2015 by doug

Have a 6 way Praher (tm-12-l) valve on top of sand filter, Came with used house we bought, no book on filter, Need find out what kind of sand filter we have also where can I find owners manual, or info on how to change out sand, also need to replace valve, as it has a crack in pipe connection ? Note system was winterized but service company did poor job , did not leak last summer . Thanks
 Reply

A  Answered on 5/25/2015 by InyoPools Product Specialist Patrick P.

Hi Doug, This would be the correct replacement valve for your filter. We do have a good Video on How to Replace the Sand in Your Pool Filter which should be of help to you.
 Reply


?     Asked on 7/10/2014 by Guest

Will this valve work on my PoolCo Ultra Clear sand filter?
 Reply

A  Answered on 7/10/2014 by InyoPools Product Specialist Patrick P.

Yes this valve does work on the Ultra Clear sand filter
 Reply


?     Asked on 6/28/2013 by Guest

Is part number TM-12-L (4770-01) the correct valve for a W Cooper Ranger RS-16?
 Reply

A  Answered on 6/28/2013 by InyoPools Product Specialist Patrick P.

Yes, the TM-12-L is the correct valve for a W Cooper Ranger RS-16.
 Reply


?     Asked on 4/19/2013 by Guest

For part # 4770-01, "Valve Assembly, 6-way Praher (tm-12-l)" what is the plumbing size?
 Reply

A  Answered on 4/19/2013 by InyoPools Product Specialist Patrick P.

The plumbing is 1.5" for valve part # 4770-01, "Valve Assembly, 6-way Praher (tm-12-l)"
 Reply


Top

Review Summary

 (Average 4.75  out of 5 stars)
12 Rating
5 star:

(9)
4 star:

(3)
3 star:

(0)
2 star:

(0)
1 star:

(0)

The Most Helpful Review


The Most Recent Reviews
