By Maytronics


Details

Top

Part # 9995851-DIY

Alternate Part #'s MAY9995851-DIY

Product Description

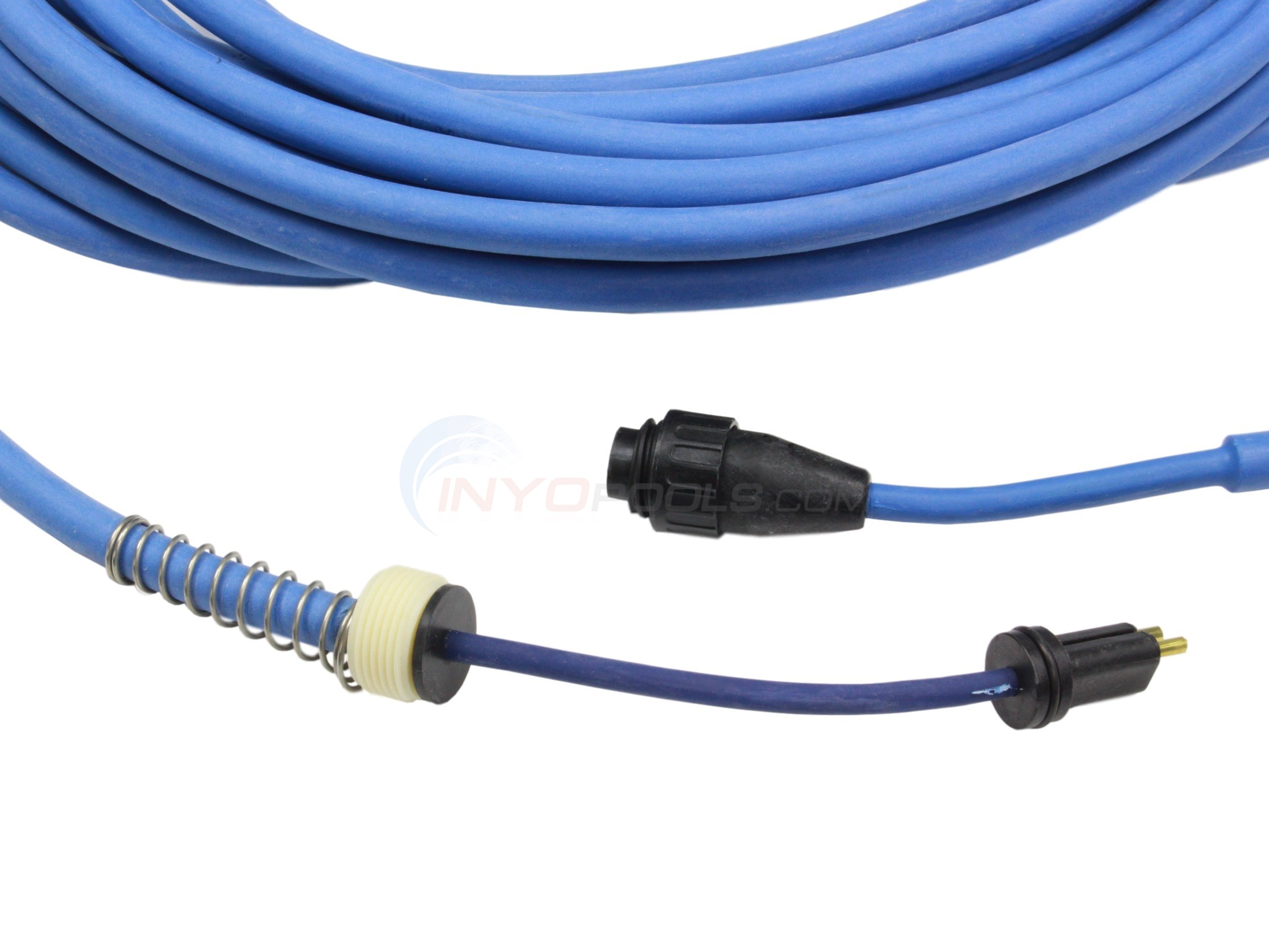

60' Cable, with NO Swivel, Molded (DIY) Motor Plug, Metal Spring, and 2 wires

Maytronics Robotic Cables are currently designated as Assembly (ASSY) or DIY (Do It Yourself) depending on the design of the plug on the motor end of the cable. For most of the older Robotic models, the cord was installed through the small hole in the SIDE panel of the cleaner. The opening on the side was too small for the cord to go through with the plug on the end, so the wires needed to be threaded through the opening first and then attached to a plug before being connected to the motor. These cables with “assembled” plugs are designated as “ASSY” at the end of the cable’s manufacturing code.

To improve the plug design, Maytronics created a molded plug that was permanently attached to the motor end of the cable. Instead of coming through the small hole in the side, the cable entered through the TOP of the cleaner and was simply plugged into the top of the motor. Because this cable design was much simpler to install, it was designated as “DIY” for Do It Yourself at the end of the cable’s manufacturing code.

Other differences between the Robotic cables include: the length of the cable; whether they have a swivel; their type of protective spring (DIY cables only); and whether they have 2 wires or three. For more information on these cables descriptions, see our guide on “How to Select the Right Maytronics Dolphin Cleaner Replacement Cable”.

Used on the following Maytronics Dolphin Robotic Pool Cleaners:

  • Deluxe 3
  • Supreme M3
  • Endeavor
  • Quest
  • Saturn
  • Primal X3
  • Orion lI
  • Atlantis
  • Nautilus
  • Neptune
Top

?     Asked on 3/31/2018by Curtis Hamm

I need a 99996323 Dolphin Nautilus Swivel Cable 60-Feet replacement. Is this cable equivilent?
 Reply

A  Answered on 4/4/2018 by InyoPools Product Specialist Kevin G.

Hello, in order to select the proper replacement for your system, I highly recommend reviewing this article
 Reply
