How do I know wheather I need the T101M or the T104M?
Reply
T101 or T104 should be on the inside door of your current timer or somewhere on the timer. If you cannot find this information you can unclip the timer clock mechanism and on the back of the timer there will be a motor. If there is a part # of WG1570 or 120V marked on the back of the timer motor then you would require a T101M 120V timer mechanism. If there is a part # of WG1573 or 240V marked on the back of the timer motor then you would require the T104M 240V timer mechanism. You may view or purchase these timers through this link http://www.inyopools.com/controls_intermatic_timer_parts.aspx
Reply
I think mine is a 110 V not sure. How hard is timer to install. Don't have plug in rec. Have a flip switch, Will timer work on 110V?
Reply
We have a guide here showing How To Install a Pool Timer Mechanism and it is not too difficult. This timer will not work on 110V you would require the T101M 110V Timer Mechanism.
Reply
The Polaris timer works correctly, but the Pool timer has quit moving. I can turn it on and off manually, but the timer does not move with the time of day. Is this the part I need to replace, and if so, is it hard for us to replace?
Reply
Hi Debbie, This would be the part I would recommend, in some case you could replace the motor WG157310D. If you're not comfortable working with electricity you can have a professional complete the installation or review our How To: Replace an Intermatic T104 Clock Motor and or How To: Install an Intermatic T104 Timer for DIY installation instructions.
Reply
pool pump wouldn't turn on or shut off consistently, so I changed the ON and the OFF triggers, but still having the same problem.. Help
Reply
Hi DiRuzzio, It sounds like you will have to replace the entire mechanism.
Reply
I want to purchase an Intermatic T104M Mechanical Time Switch 220 and make sure this item is for 220 hook up. My current unit has (5) wire connection points. Does this timer switch have (5) wire connection points? I want to avoid purchasing the wrong switch. I await your advice..
Reply
Hello Gene, The timer has a number of connection points. Here is a link to the Intermatic Timer Mechanism Only 220V T104 wiring diagram. If you need help installing the timer, we have a How To Install an Intermatic T104 Timer that can provide additional assistance. This timer is for a 220v hook up.
Reply
I HAVE A T2104R 220V CLOCK DOES NOT RUN ON EITHER POOL OR CLEANER MOTOR CAN MANUALLY TURN ON EITHER ONE , IF IS THE CLOCK MOTOR WHAT IS THE PART# NOT LISTED IN THE T2104R PARTS?????
Reply
Hello Wayne, We do have the T104M motor replacement fo 220v. You can click on the link, Intermatic Time Clock Motor 220V and that will take yo to the product description. The T2104R series uses the T104M 220V timer.
Reply
I currently have an Intermatic model #T21004R timer. If I want to replace the whole unit, which model # do I purchase? I have been operating the switch manually and have been reluctant to purchase anything new, because mine reads that it is a 60 amp switch and mostly all that I have looked at, are only 40 amps. This unit runs both the pool and spa together, hence the need for a 60 amp model......I suppose! Thanks in advance for any suggestions and/or help.
Reply
Hi Scott, We do carry the Intermatic T21004R Timer 60 AMP and that is what I would suggest for your set up.
Reply
I have a Paragon T104-71M switch. The timer need replacing. Are they available or can you cross to another brand? Thanks
Reply
Hi Randy, The Intermatic T104M is the replacement for the Paragon T104-71M.
Reply
Replaced a t104m timer , but the timer only works when I manually turn the pool motor on. I thought I replaced the wires correctly but I must have missed something. Any suggestions?
Reply
Hi Barry. If the timer only works when manually switch it might be that the trippers are not set or installed properly. Checking the trippers would be my suggestion.
Reply
I have a PF1222T unit. Is the T104M the correct replacement for this unit? The markings
on the timer unit on the inside says T1202M
Reply
Hello- Per Intermatics schematics for that PF1222TB the T104m Intermatic Timer Mechanism Only 220V is the correct mechanism.
Reply
I have the T30004R with 2 timers. One for the low pump and one high.
My pump was running continuously so went to look at the timer. The time was incorrect so I reset it and went back to check, it hadn't moved. However I looked thru the view hole and the motor was still turning the gears. I detached the motor from the clock. The clock side gears move freely with no slipping noted. The motor side gears can be turned manually with no slipping noted. How is that possible? What should I replace
Reply
Good morning Matt, Sounds like it is wired wrong. You can see this if you watch the gears when it is on and off if they stop when it is on then the lead wire is not on the right terminal.
Reply
In the T30004R panel with two timers, are both timers the same replacement part? I know the 'low' timer is wired from the breaker and the "high" is piggy-backed onto the first.
Reply
Hello I need a timer for a T40003RT3. I am not sure if this is the correct timer, my actual timer box label states the follow: In rainproof (type 3R) enclosure for indoor/outdoor use. Suitable for swimming pool/spa applications and for direct connection of underwater lights. 100AMP. 120/240 VOLT OR 120/208 VOLT SINGLE PHASE (THREE WIRE) AC. IS this the correct one?
Reply
Hi. The correct replacement timer mechanism is the T103M which is a 12hr, 120V. We do not have this item available.
Reply
My current timer is a Model J1104R. Does this timer work to replace it?
Reply
This item does not work on the Jandy Aqua Switch J1104R. You will require the Jandy 7152 Timer with Wiring Harness if you don't need the wiring harness then you can go with this Intermatic PB913N66 Timer Only as a replacement for the J1104R.
Reply
Model# T104.......probably 20 years old and still looks new. Is it possible for the timer motor gears to spin as seen through the view slot but have the clock wheel never move? If the clock is pulled to set time, all feels perfectly normal...........no binding or ratcheting, etc. Motor is running and spinning it's gear but wheel refuses to move.............GG
Reply
I have the PF1202T timer on my pool. The problem I am having is the timer clock moves correctly, but when it gets to the ON or OFF mark it stops and does not make the switch turn ON or OFF. The timer not working is for the pump. I currently manually turn it on and off. I have a sweeper set on auto on the second timer and it is working correctly. Do I need a new timer for the pump?
Reply
Hi. You may want to start by replacing the timer trippers. If that does not work then you will need to replace the entire mechanism.
Reply
Ok I am a strong believer in simplicity and all these Intermatic timer switches are confusing me.Why do you make a 120V and 220V timers?? Is it for efficiency, the need for more power or simply a stronger application? Do all of the inside timer mechanisms themselves work in all of the Dial boxes no matter what they're rated for? They certainly look like they would being almost identical in site.Anyway I thought I'd ask those questions because I've been looking for the answers for two hours.TYOU
Reply
Bear, The reason why there are 2 different voltages is some older homes will only have 115/120v and newer homes will have 230/240v. The internal parts are not the same except for design. The "guts" will be rated for the voltage as well.
Reply
I have a T101 timer that failed. Label a bit faded and hard to read. Operates manually. Checked trippers , seem ok. What is model # for clock / motor timer mechanism? I think its 220v but would welcome info on 110v also. Thanks
Reply
I have a T104p3 timer.
I need to replace the board, motor makes sound but clock does not turn.
I picked up a T104M at the local big box store, got it home and it does not have as many lugs as the timer I have.
What is the correct board with 5 lugs across the bottom?
Thanks
Mike
Reply
Hi, Mike. The T104M is the correct replacement based on your model. There is not another model or version of the replacement mechanism for the T104P3 timer.
Reply
What is the replacement for T30404R timer mechanism? The motor is WG1573
208/277v, 60hz,3W
Reply
Hi. Yes, this T104M - 220V Timer Mechanism is the correct replacement for the T30404R controller.
Reply
My panel is the T40004RT3, the motor on the back of the current timer says WG1573-5 60 Hz, I _believe_ this one, the T104M is the correct timer but I wanted to double-check?
Thanks.
Reply
Hi, Joe. Yes, this T104M Mechanism is the correct replacement.
Reply
I have the T104 with the heater controls, however I removed the heater a few years ago, it has been completely removed from the plumbing circuit. My timer is having contact issues - the motor works fine but when it trips on, many times the pump will not start unless I flip the manual switch back and forth. Can I replace my unit with the heater controls with this one, since I no longer have any need for it to control the heater?
Reply
Hi, Randy. Yes, you can.
Reply
I have an Intermatic III T104-R pool timer. The cloock does not seem to be running prperly. It runs, but is several hours behing. I turn the pool on manually and it does turn off, but the next day the clock is 3 to 4 hours behing. Do I need to replace the entire timer.
Reply
My pump motor is not turning on. The pump motor is good. I checked the power from the breaker to the timer mechanism and it shows 240 volt. However, there is no voltage when I check the two wires going to the motor from the timer. mechanism. The timer mech clock is still working. Is the timer mech bad and need replacement? Is this difficult to install?
Reply
Hi, John. Yes, it sounds like the mechanism is bad if you're not getting power to the motor.
Reply
To make sure I am ordering the correct timer mechanism. the back of the current one has the following part #WG1570-4; 125 V, 60 Hz. Do I order the T101 or T104? The pump motor runs at high voltage -240V
Reply
Josh, Based on the timer motor model provided, you will need to purchase the T101M - 120V Mechanism which is unable to power a 240 equipment. Either you're mistaken on the motor voltage operation or the timer is not operating the pump.
Reply
I found an intermatic timer on your web site. The numbers are slightly different. Numbers on the back are T104 2 27J. The intermatic on the back (attached) has the same numbers, WG1573 5E 208/277 V. Are these interchangable. Overall dimmensions are the same. Hole pattern and white wire appear to be the same.
Reply
Hi Bill, Yes this T104M timer mechanism would be the proper replacement for your WG1573.
Reply
I have a T104P201 timer and the clock doesn't seem to work anymore. The box is in good condition so is this the correct replacement mechanism for the timer?
Reply
Hello Stacey, yes the Intermatic Timer Mechanism Only 220V T104M would be the correct unit.
Reply
I have a T40004RT3 duel timer system. I can't keep the circuit breaker from tripping.It trips when I flip the red arm on the rt timer. Could this be a timer issue. Thank you Don
Hi, Donald. It's hard to say, I can really follow the wires since they're all black. If the timer does not have a load on it and it's tripping the breaker, it is a timer issue.
Reply

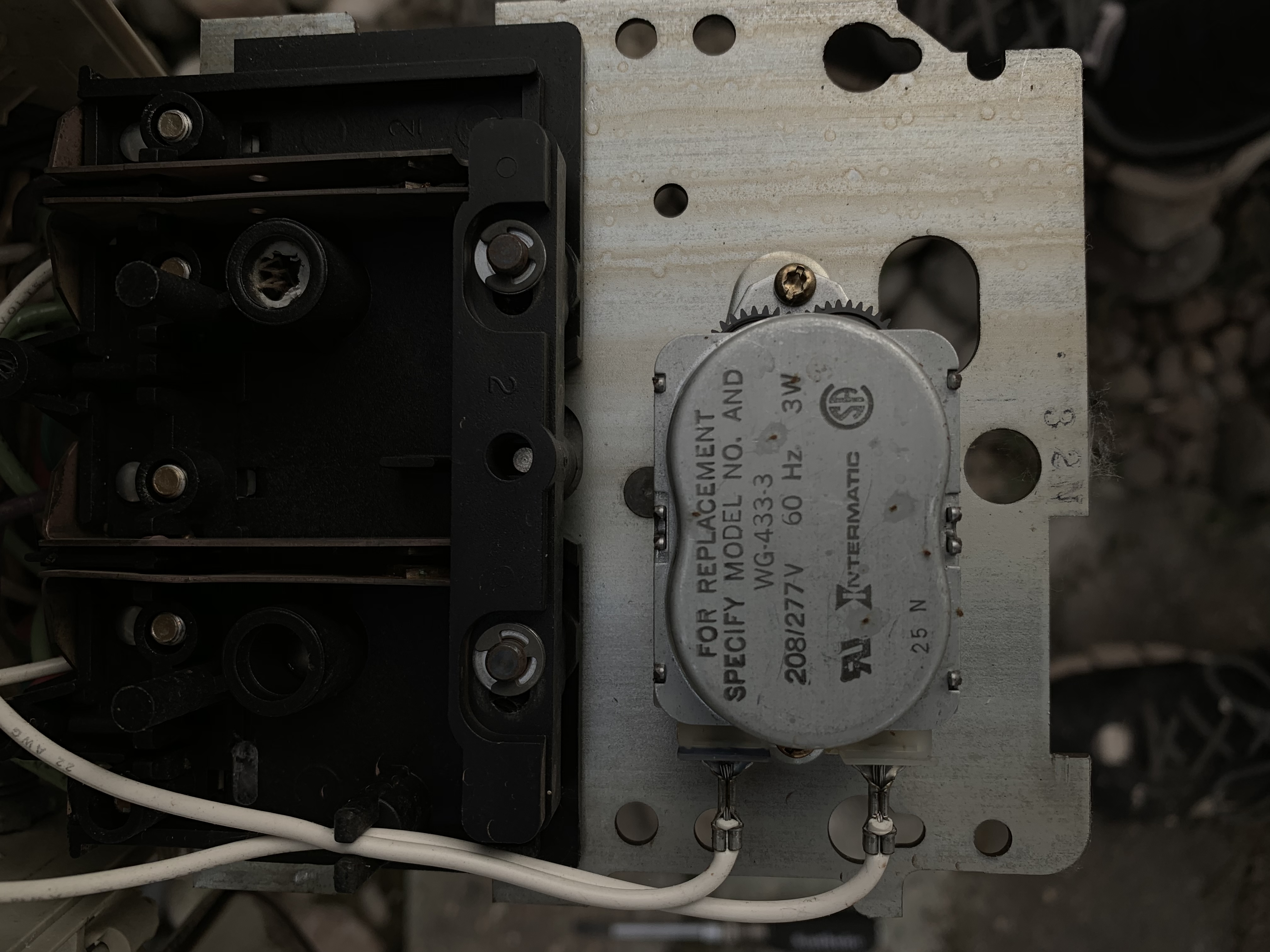

Hi, my timer has stopped working, however, I can manually flip the switch to start the filter/pump. My timer mechanism is T104P201. My timer motor is WG433-3.
Would the T104M work for me? Do I need the whole timer mechanism or just the timer motor? Thanks in advance.
Tony

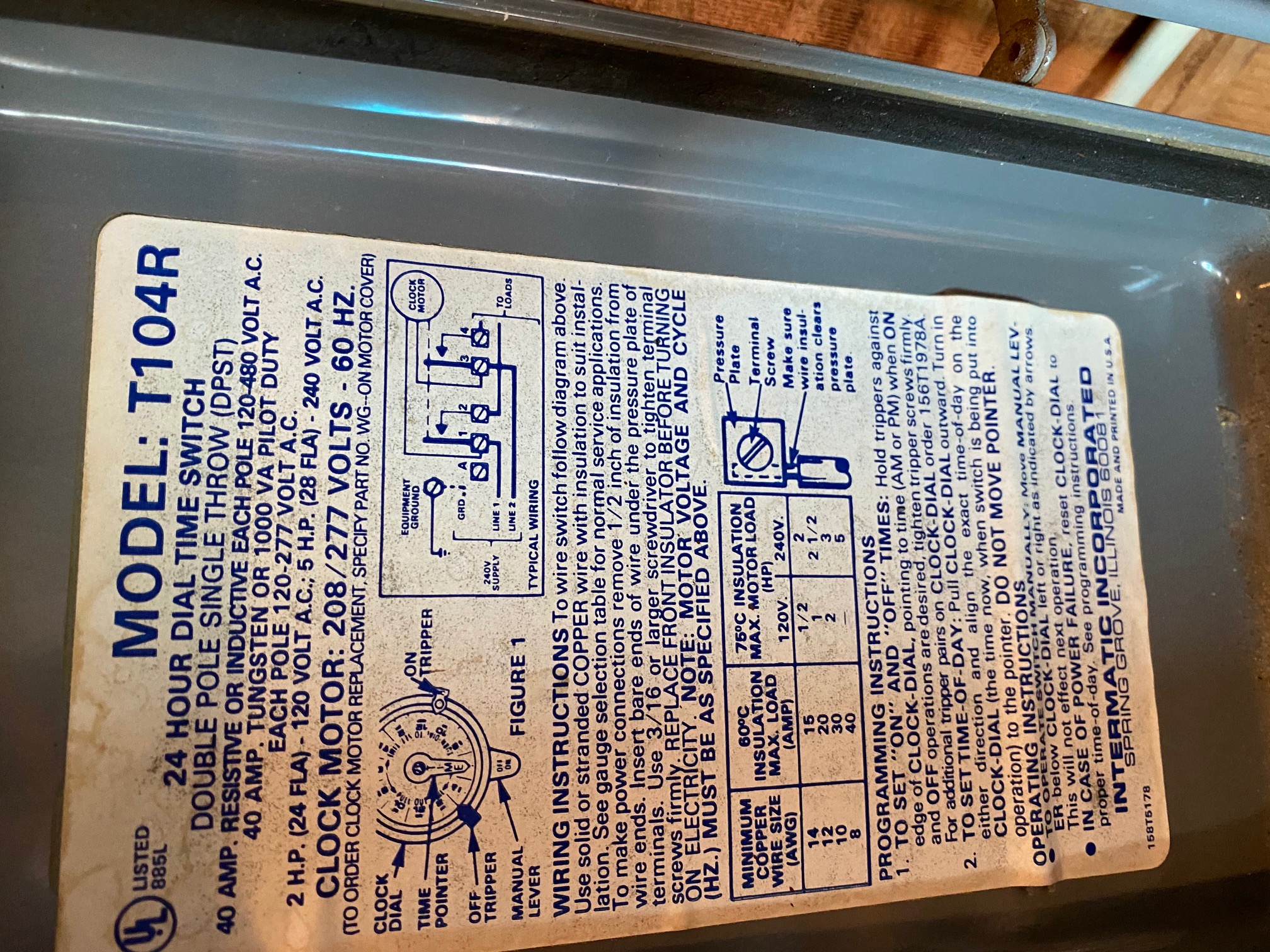

I have a T104R timer but the clock is not moving. I can hear what sounds like the motor operating. I assume the gears are the issue but wanted to verify that I should start with the Timer Mechanism for now.
Thanks,
Aaron
Reply
Good day, you can test the voltage on the timer motor. Most times customer will just replace the complete timer. Here is a How to Replace an Intermatic T104 Mechanism
Reply
I have a new pool, so my timer is only about 8 months old. The timing mechanism is not moving, and there is no sound coming from the timer. The manual switch does not turn the pump on. I can move rotate the shaft on my pump, so the pump does not appear to be seized.
The picture I attached shows that the plastic is melted around the one lug on the left with the red wire. I didn't see or hear anything short out, and it doesn't smell like it fried. But, it is melted. Any idea?
Reply
The timer could have faulted due to a power or storm surge or bad breaker releasing an over-current to the timer. I would replace the timer mechanism.
Reply
I recently replaced a intermatic t104 and wired the same as it was. The reason I replaced was because gears were totally broken and when I did the new timer would not shut off at all even when I turned it off. The timer does have a light switch right under timer box which is not even for the pool light so I was wondering if maybe I can get some help for a solution. Thank you
Hi, Herb. The reason the timer is not working properly timer is that it's wired incorrectly. Use our How To Install an Intermatic T104 Timer for wiring instructions.
Reply
I'm replacing an old anthony TB220 with the intermatic 104. The old one has 2 screws on the left marked line, and 2 on the right marked load. The 104 is marked line 1 and load 2 on the left and line3 and load 4 on on the right. how do I reconcile the wiring?
Reply
Hi, Charles. The incoming Lines from the Breaker will go to Terminal 1 and 3 and the Load Line from your equipment will go to Terminal 2 and 4. Check out our How to Replace an Intermatic T104 Mechanism Guide.
Reply
I wanted to make sure I was buying the correct replacement part for this. Is this T104M the correct internal replacement?
Hi David, yes this is the correct timer mechanism for your Intermtic timer model T104R.
Reply
I have a T10004RT1, the dog does not turn it on anymore, we have replaced the dog but still does not work. Will this timer fit our model?
Reply
Hi Darin, Yes this is the correct time clock replacement for your T10004RT1 timer.
Reply
Will this fit a T30004R ?
Reply
Hello Joseph. The Intermatic Timer Mechanism Only, part number T104M is compatible with the Intermatic T30000R Series Control Panels. Attached please find an exploded parts diagram for the T30000R Series Control Panels. Please reference Key 3. T30000R Series Control Panels
Reply
is the Intermatic T104M a good replacement for a T104P, which i currently have, but the gears are not turning.
thank you
Reply
Hi Steven, it would be correct for your T104P timer, but you can probably save a few dollars by replacing just the time clock motor (and it is pretty easy to do). Our article on How To Replace an Intermatic T104 Clock Motor will show you how it is done.
Reply
but, it could also be the timing mechanism , as you say in that article. replacing the motor would not solve that, right? "It may be due to one of two failures, the timer motor or the timer mechanism."
Reply
Hi Steven, I concur with you regarding the replacement of the Intermatic Timer Mechanism Only 220V - T104M. The better investment is the Intermatic Timer Mechanism Only 220V - T104M.
Reply
What is a Intermatic PF1222T
Reply
Hello Dave. The Intermatic PF1222T is a Freeze Protection 4/8 Breaker Base Panel with 2 Timers and Thermostat for 240VAC Cleaner Applications, Heater Protection, Type 3R Metal Enclosure. The PF1222T protects pool/spa equipment against freeze damage by turning the pump and heater ON when the outdoor temperature drops below the user-adjustable setpoint on the thermostat.
Reply
My pool cleaner timer has quit working...pretty sure it's the motor as I can turn on the switch manually. In looking at replacement timers Part #T104M, I notice some of them have the RU logo with a number E10694 underneath, others have nothing. My parallel timer which controls my Pool Pump, has the E10694 marking but the one I need to replace for the pool cleaner, does not. Is that a significant issue or not when buying the replacement timer?
Reply
Hi Rick, that's not an issue at all. Some have the sticker and some have it stamped on the back of the motor. The more important item to match is the stamped "T104" number on the back towards the upper left. Be sure that number matches with your unit and it will be a perfect replacement. If everything else is working, you can few dollars by getting the Time Clock Motor 208-277V only.
Reply
