| Part # | Item | Amps | Commonly Used On | Frame | HP | Service Factor | Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|
| ST1052 |
A.O. Smith 1/2 HP Round Flange 56J Full Rate Motor - ST1052
**Free Shipping** Normally $172.99! |
11./5.5 amp | Hayward Max Flow, Hayward Super Pump, Hayward Super II, Hayward Northstar and Jacuzzi Magnum | 56J | 0.5 HP | 1.6 | 115/230 V | $160.99 | Description |
| UST1072 |
A.O. Smith 3/4 HP Round Flange 56J Up Rate Motor - UST1072
**Free Shipping** |
11.0/5.5 amp | Hayward Max Flow, Hayward Super Pump, Hayward Super II, Hayward Northstar and Jacuzzi Magnum | 56j | 0.75 HP | 1 | 115/230 V | $138.99 | Description |
| PL1102 |
1 HP Round Flange 56J Up Rate Motor - PL1102
**Free Shipping** Normally $139.99! |
15.0/7.5 amp | Hayward Super Pump, Hayward Super II and Jacuzzi Magnum | 56J | 1 HP | 1.0 | 115/230 V | $124.99 | Description |
| PL1152 |
1.5 HP Round Flange 56J Up Rate Motor - PL1152
**Free Shipping** Normally $149.99! |
18.0/9.0 amp | Hayward Super Pump, Hayward Super II and Jacuzzi Magnum | 56J | 1.5 HP | 1.0 | 115/230 V | $144.99 | Description |
| UST1252 |
A.O. Smith 2.5 HP Round Flange 56J Up Rate Motor - UST1252
**Free Shipping** Normally $307.99! |
12.6/11.4 amp | Hayward Max Flow, Hayward Super Pump, Hayward Super II, Hayward Northstar and Jacuzzi Magnum | 56J | 2.5 HP | 1.1 | 208 - 230 V | $270.99 | Description |
| ST1302 |
A.O. Smith 3 HP Round Flange 56J Full Rate Motor - ST1302, ST1302V1
**Free Shipping** Normally $409.99! |
14.5 - 13.8 amp | Hayward Max Flow, Hayward Super Pump, Hayward Super II, Hayward Northstar and Jacuzzi Magnum | 56J | 3 HP | 1.15 | 208 - 230 V | $370.99 | Description |
| Part # | Item | Amps | Frame | HP | Service Factor | Timer | Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|
| B973T |
3/4 HP Full Rate Two Speed Motor W/ Timer - Round Flange (B973T, B2973T) 115V
**Free Shipping** |
12.2/2.2 amp | 56J | 75/.10 HP | 1.50 | Digital | 115 V | $302.99 | Description |
| B966T |
3 HP Full Rate Two Speed Motor W/ Timer Round Flange
**Free Shipping** |
13.8/4 amp | 56J | 3.0/.38 HP | 1.15 | Digital | 230 V | $477.99 | Description |
| Part # | Item | Amps | Commonly Used On | Flange | Frame | HP | Service Factor | Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PL1116 |
1.5 HP Round Flange 56J Variable Speed Motor - PL1116
**Free Shipping** Normally $499.99! |
7.0 - 1.0 amp | Hayward Super Pump, Hayward Super II, and Jacuzzi Magnum | Round | 56J | 1.50 - .25 HP | 1.0 | 230 V | $379.99 | Description |
| ECM16CU |
V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU
**Free Shipping** Normally $509.99! |
10.5 - 0.5 amp | Hayward Super Pump, Hayward Super II, and Jacuzzi Magnum | Round | 56J | 1.65 - .50 HP | 1.0 | 208 - 230 V | $427.99 | Description |
| ECM27CU |
V-Green 2.7 HP Round Flange 56J Variable Speed Motor - ECM27CU
**Free Shipping** Normally $899.99! |
10.5 - 0.5 amp | Hayward Super Pump, Hayward Super II, and Jacuzzi Magnum | Round | 56J | 2.7 - .75 HP | 1.0 | 208 - 230 V | $647.99 | Description |
| Part # | Item | Price | |
|---|---|---|---|
| UST1202 |
A.O. Smith 2 HP Round Flange 56J Up Rate Motor - UST1202
**Free Shipping** Normally $230.99! |
$207.99 | Description |
| Part # | Item | Amps | Frame | HP | Notes | Service Factor | Speed | Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UCT1072 |

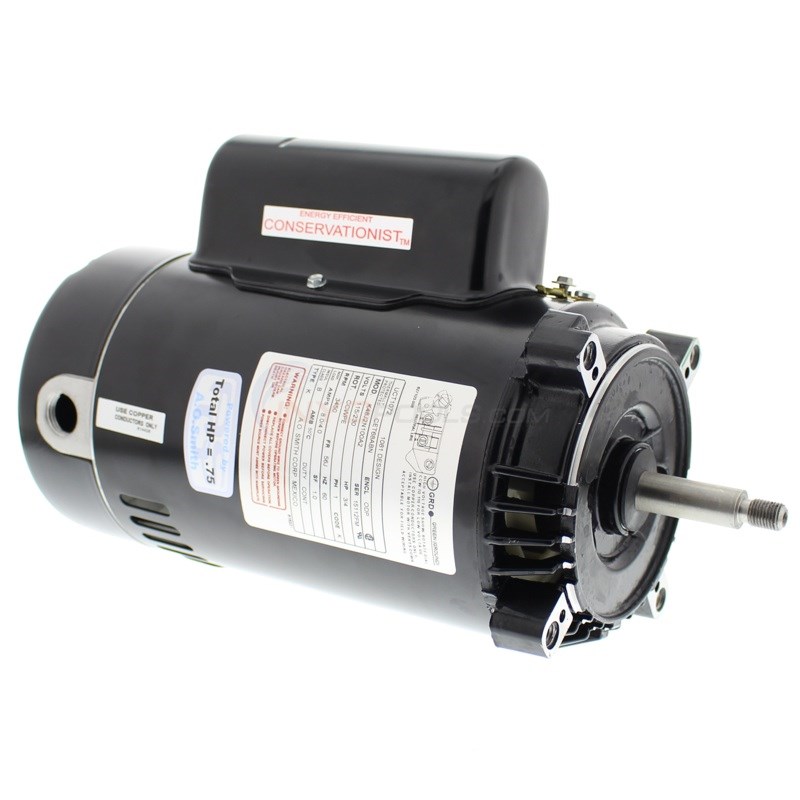

A.O. Smith 3/4 HP Round Flange 56J Up Rate EE Motor - UCT1072
**Free Shipping** |
8/4 amp | 56J | 0.75 HP | California Title 20 Compliant | 1 | Single | 115/230 V | $208.99 | Description |
| UCT1102 |
A.O. Smith 1 HP Round Flange 56J Up Rate EE Motor - UCT1102
**Free Shipping** Normally $223.99! |
11.0/5.5 amp | 56J | 1 HP | NOT California Title 20 Compliant | 1 | Single | 115/230 V | $219.99 | Description |
| UCT1152 |
A.O. Smith 1.5 HP Round Flange 56J Up Rate EE Motor - UCT1152
**Free Shipping** |
14.6/7.3 amp | 56J | 1.5 HP | NOT California Title 20 Compliant | 1 | Single | 115/230 V | $242.99 | Description |
| Model Number | Pump Model | Pump Series | Horse Power | Speed | Flange | Frame | Voltage | Max Amps |
Service Factor |
Price | Description (Purchase) |
| ST1052 | Magnum | N/A | 0.5 | Single | Round | 56J | 115/230 | 11.0/5.5 | 1.6 | $154.99 |  |
| UST1072 | Magnum | 7UMF-S | 0.75 | Single | Round | 56J | 115/230 | 11.0/5.5 | 1.0 | $137.99 | |
| UST1102 | Magnum | 1UMF-S | 1 | Single | Round | 56J | 115/230 | 15.0/7.5 | 1.0 | $109.99 | |
| UST1152 | Magnum | 15UMF-S | 1.5 | Single | Round | 56J | 115/230 | 18.6/9.3 | 1.0 | $164.99 | |
| UST1202 | Magnum | 2UMF-S | 2 | Single | Round | 56J | 115/208-230 | 19.6/10.4-9.8 | 1.1 | $230.99 | |
| UST1252 | Magnum | 25UMF-S2 | 2.5 | Single | Round | 56J | 208-230 | 12.6/11.4 | 1.1 | $307.99 | |
| ST1302 | Magnum | N/A | 3 | Single | Round | 56J | 208-230 | 14.5/13.8 | 1.15 | $409.99 | |
*Two-speed motors are shipped less hi/lo switch for remote operation.
Jacuzzi Magnum Energy Efficient Motors
Replace your Jacuzzi Magnum Motor with an Energy Efficient model below. Our Energy Efficient replacement motors below cost roughly 33% less to operate than the standard Magnum replacement motors above. In most states you will recoup the cost difference between the standard motor and Energy Efficient Motor within 4-6 months.
| Model Number | Pump Model | Energy Efficient | Pump Model # | Horse Power | Speed | Flange | Frame | Voltage | Max Amps |
Service Factor |
Price | Description (Purchase) |
| UCT1072 | Magnum | Energy Efficient | 7UMF-S | 0.75 | Single | Round | 56J | 115/230 | 8.0/4.0 | 1.0 | $197.99 | |
| UCT1102 | Magnum | Energy Efficient | 1UMF-S | 1 | Single | Round | 56J | 115/230 | 11.0/5.5 | 1.0 | $208.99 | |
| UCT1152 | Magnum | Energy Efficient | 15UMF-S | 1.5 | Single | Round | 56J | 115/230 | 14.6/7.3 | 1.0 | $231.99 | |
Jacuzzi Magnum Safety Vacuum Release (SVRS) Motors
Replace your Jacuzzi Magnum Motor with a Safety Vacuum Release Motor (SVRS). Our Guardian SVRS replacement motors below helps prevent body entrapment on drains due to suction. In some pool configurations, if a person’s body covers the drain, the person can be trapped by suction, leading to drowning. When this blockage occurs, the SVRS turns off the pump and releases the suction. The Guardian® motor shuts off the motor/pump if any of the following conditions occur: Dry, blocked or jammed pump conditions; locked rotor, loss of prime, or abnormal voltage variations. Detects clogged or blocked filters and shuts down the pump. A. O. Smith Guardian® complies with requirements for Safety Vacuum Release Systems in the Virginia Graeme Baker Pool and Spa Safety Act of 2007.
| Model Number | Pump Model | SVRS | Pump Model # | Horse Power | Speed | Flange | Frame | Voltage | Max Amps |
Service Factor |
Price | Description (Purchase) |
| USTG1102A | Magnum | SVRS | 1UMF-S | 1 | Single | Round | 56J | 115/230 | 15.0/7.5 | 1.1 | $334.99 | |
| USTG1152A | Magnum | SVRS | 15UMF-S | 1.5 | Single | Round | 56J | 115/230 | 18.6/9.3 | 1.0 | $349.99 | |
|
  |
||||
