Century 2.0 HP Thru-Bolt 48Y Dual Speed Low Amps Motor - BN61

$290.99

IN STOCK
FREE SHIPPING

Part # BN61

By Magnetek

  5 Average

Details

Top

Part # BN61

Warranty 1 Year

Dimensions 13.5" L x 8.5" W x 5.5" D

Alternate Part #'s 10-182912-03, 17525, 182862, 182912, 184224, 186270, 186285, 186540, 196047, 5KCR39UN2904X, 5U150, 7-182862-03, 7-182862-40, 7-182912-02, 7-182912-03, 7-182912-83, 7-184224-40, 7-186540-01, 7-193227-01, 8-182862-02, C1327, sph20fl2s, AOSBN61, MGT-60-5253

Product Description

Century 2.0 HP Thru-Bolt 48Y Dual Speed Low Amps Motor - BN61

Application: Above Ground Pools & Spas Replaces: Sta-Rite, Hayward, American Products, Hydra Bath, Pac Fab, Jacuzzi, Doughboy, Etc... Features: All copper windings, Auto protector, Open drip proof, Stainless steel threaded shaft, Thrubolt pump mount, "1081" design, 60 HZ , 230V, H.P = 2 High Speed / .25 Low Speed, Full load Amps = 8.5 High speed / 2.8 Low Speed, Frame 48Y, Threaded Shaft

**NOTE THIS MOTOR IS SHIPPED LESS HI-LO SWITCH. YOU MAY PURCHASE THE HI-LO SWITCH SEPARATELY BY ORDERING PART # 18313301.**

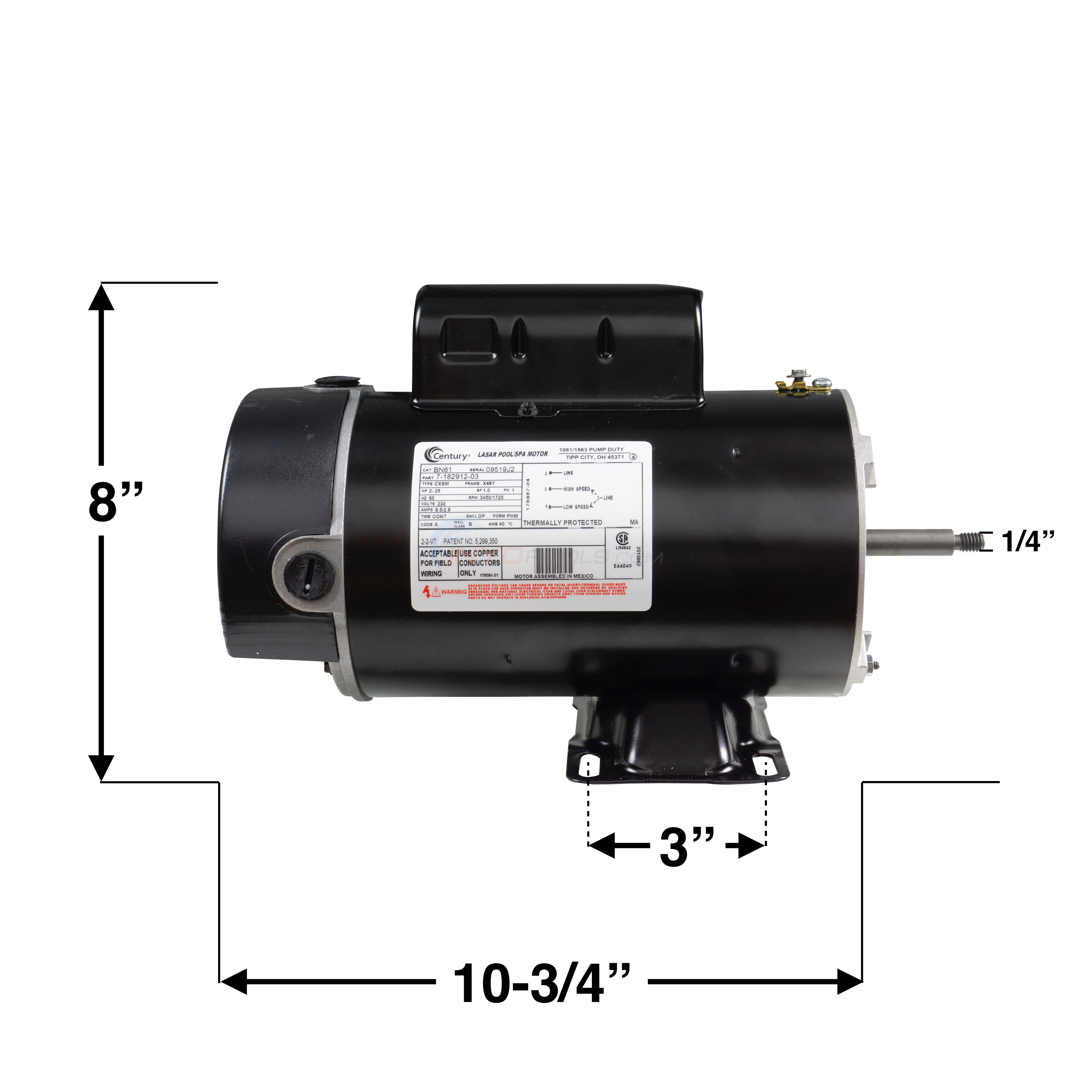

Motor Dimensions Motor Dimensions

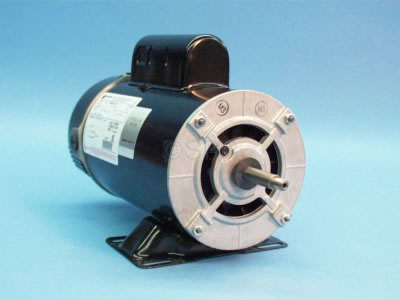

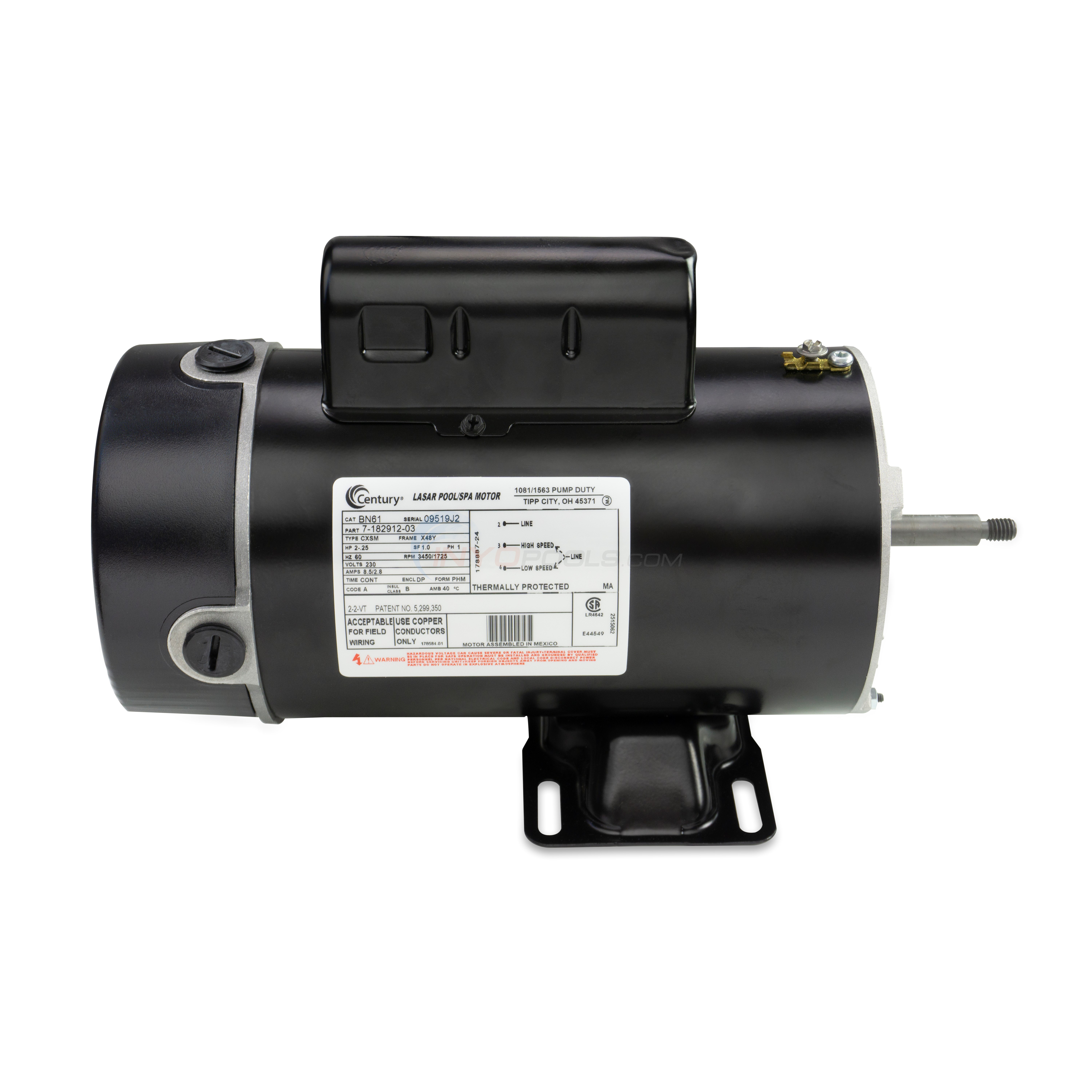

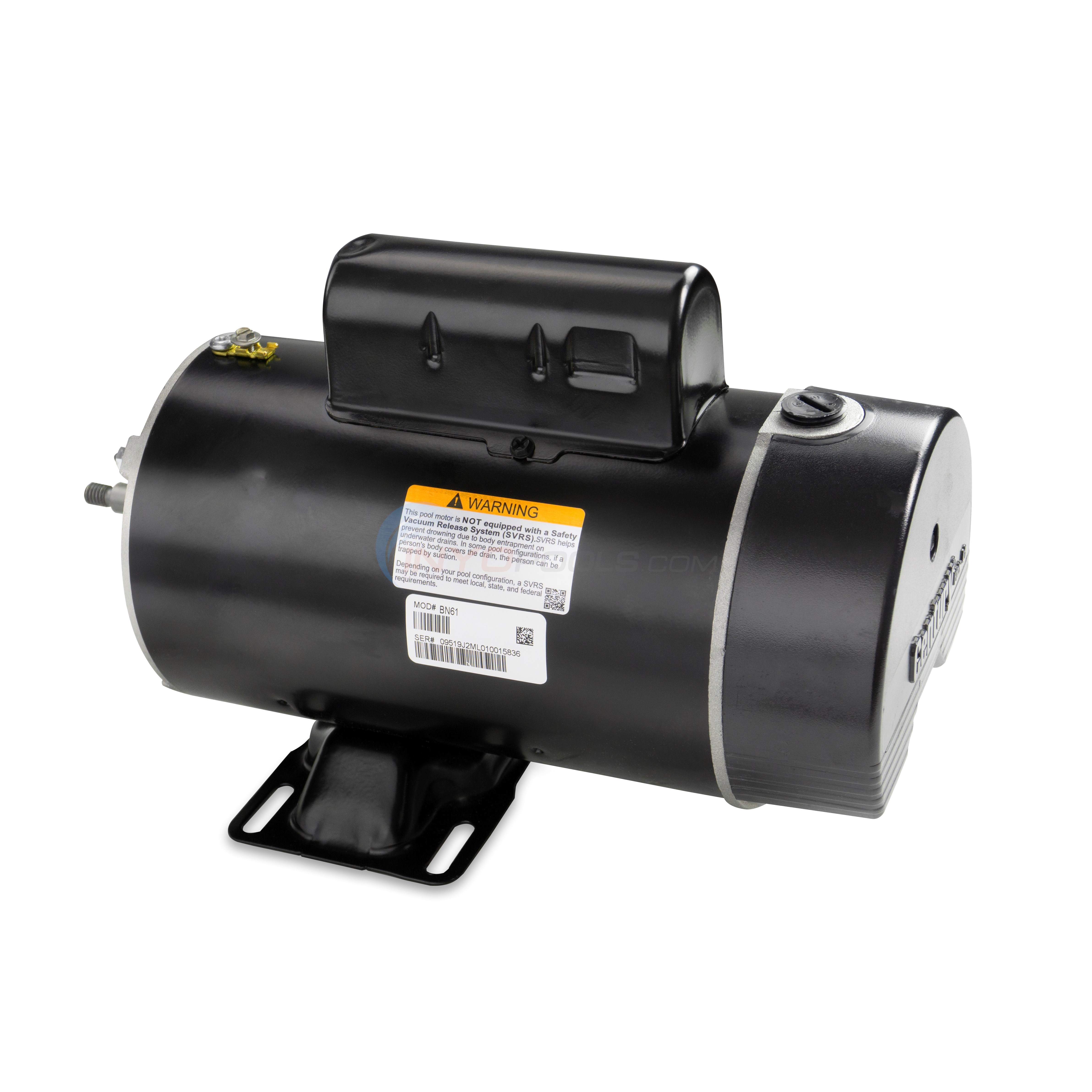

Motor Image Motor Image

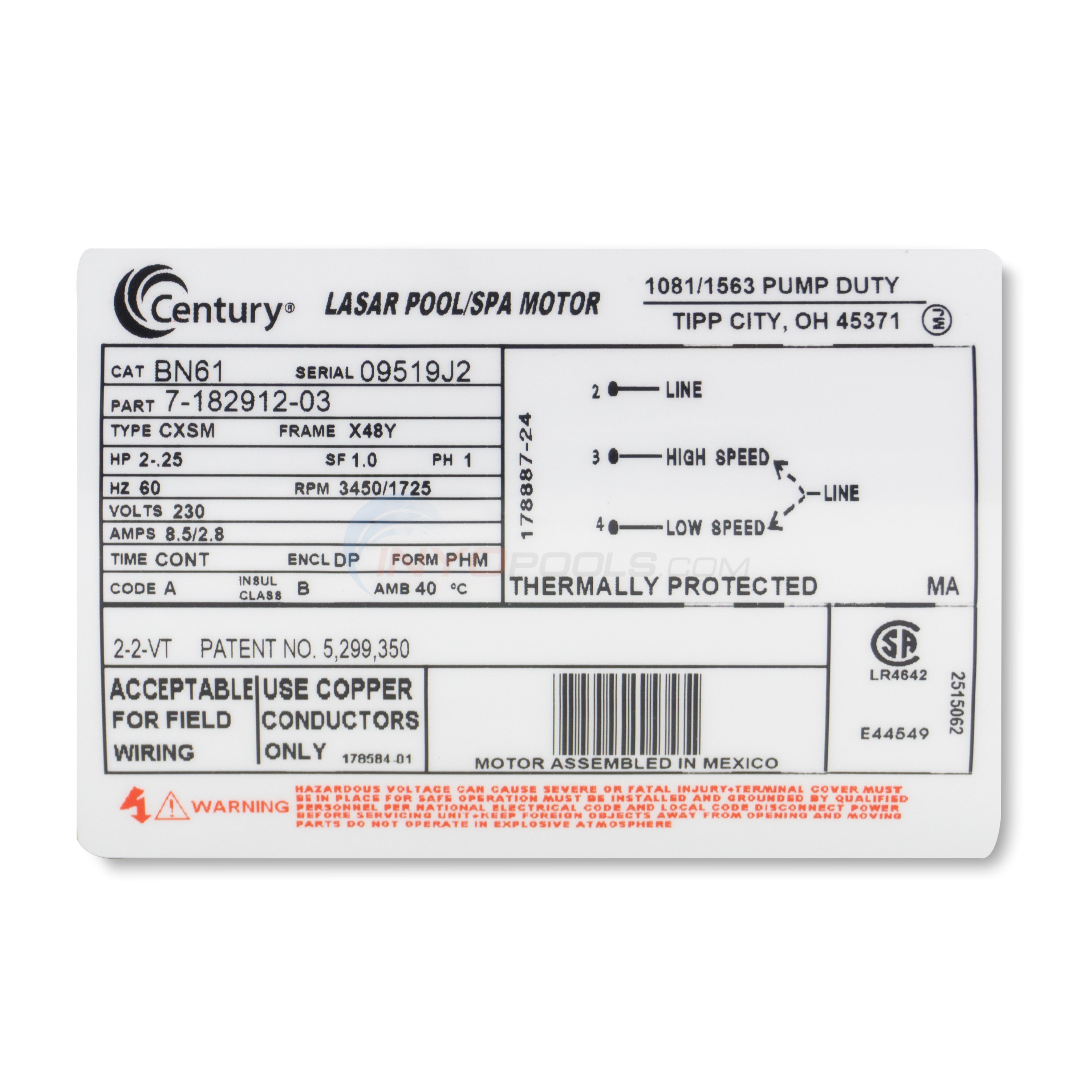

Product Specifications

Motor Name:
2 HP BN61 Replacement Pool Motor
HP:
2/ .25 HP
Speed:
Dual
RPM:
3450/1725 RPM
Volts:
230 V
Amps:
8.5/2.8 amp
Service Factor:
1
Total HP:
2 HP
Frame:
48Y
Stock #:
BN61
Shaft:
Threaded
Overload Protector:
Auto
Dimension Letter:
C
Dimensions:
13.33 in.
Hz:
60 Hz
Notes:
California Title 20 Compliant
Top

?     Asked on 1/30/2021 by Larry

Hi- Looking to replace my pool motor. Current specs of the one I have:a Part # 7-K56ab47a01-05 Cat #B2979 Type CXCP FR Y56J HP 2-2.5
 Reply

A  Answered on 2/4/2021 by InyoPools Product Specialist Hector F.

Hi Larry, the correct single speed replacement motor for your motor Cat #B2979 is the 5389X. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest using our live online chat feature. Once we get those photos we can make the proper recommendation for your seal kit.
 Reply


?     Asked on 10/9/2020 by jOHN

DO YOU STOCK THE BASKET FILTER AND IMPELLER ASSYMBLY WITH THIS MOTOR?
 Reply

A  Answered on 10/9/2020 by InyoPools Product Specialist Hector F.

We may however that will depend on the model name or number of the front pump wet end housing that the motor is actually attached to. If you cannot locate that, you can send us an image to upload@inyopools.com for review.
 Reply


?     Asked on 9/27/2020 by Charles Doughty

I'm looking to replace the seal for this motor but want confirm I purchase the correct one. Thanks!
 Reply

A  Answered on 10/30/2020 by InyoPools Product Specialist Hector F.

Hi Charles, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
 Reply


?     Asked on 6/2/2020 by Guest

I'm looking to replace my current motor Cat BN61 FR. X48Y HP 2.0 -.25 SF-1.00 230Vlts Amps 8.5/2.8. Would this be the correct motor?
 Reply

A  Answered on 6/10/2020 by InyoPools Product Specialist Hector F.

Yes, this would be the correct replacement motor for your motor model BN61.
 Reply


?     Asked on 7/7/2018 by Jack

Our Baja Spa Model 1068, has an A.O.Smith Century Lasar Pool/Spa motor. Serial number CA07-07, Part Number7-186540-01. HZ 60 PH1, Volts 230, Amps-8.5/2.8,HP 3.6-.40 SPL. Is this the correct replacement?
 Reply

A  Answered on 7/8/2018 by InyoPools Product Specialist Hector F.

Yes, this is the correct replacement motor for your model 186540 pool pump motor.
 Reply


?     Asked on 6/5/2018 by Ervin Sinay

The Jacuzzi pump is label 3.0 HP, however the motor is BN61 with no Horsepower on label. 8.5/2.8 amps. 230 Volts, of course, Is there some sort of service factor that will enable this motor to work beyond 2.0 HP? Should I stick to BN61 or bump it up to BN62?
 Reply

A  Answered on 6/20/2018 by InyoPools Product Specialist Andy O.

Hello Ervin- If the pump is a 3.0 spl then this is the correct motor. The BN61 only comes in this HP and I would not recommend going up in size as you may have to change parts on the pump.
 Reply


?     Asked on 10/2/2017 by rshay

I am looking to replace my current motor, part # 7-K56AB47A01-05, CAT B2979, Type CXPM, FR Y56J, connected to a Hayward Pool pump Model # SP3015X202AZ. It is a 2 HP, 2 speed system. Is this the correct replacement motor flange type?
 Reply

A  Answered on 10/2/2017 by InyoPools Product Specialist Lennox H.

Hi, Rshay. This BN61 motor is not the correct replacement motor, you will need the Century B2979 motor.
 Reply


?     Asked on 7/15/2017 by tom k

I have a Hot Spring Depalma model where the pump has stopped working changing out capacitors did cure problem. Motor housing label is discolored (over heat short?) shaft turns easily unit is a AO Smith 7-184834-02 will this pump replace it?
 Reply

A  Answered on 7/22/2017 by InyoPools Product Specialist Lennox H.

Hi, Tom K. I was not able to cross reference the AO Smith # 7-184834-02 to this motor or any other replacement. If you can email a picture of the motor label to upload@inyopools.com, we can locate a replacement.
 Reply


?     Asked on 12/14/2015 by Thomas Terwilliger

I have a pool that has a BN60 motor that is 115V. I think that the capacitor has gone out on the motor. it gets power and hums, but does not turn. can you help guide me in the right direction.
 Reply

A  Answered on 12/15/2015 by InyoPools Product Specialist Charlie R.

Thomas,You can view your replacement BN60 motor here. The mfg also recommends replacing your pump's shaft seal whenever you replace your motor as well.
 Reply


?     Asked on 5/10/2015 by Doug

Is this motor able to be converted to 115v ?
 Reply

A  Answered on 5/10/2015 by InyoPools Product Specialist Patrick P.

Hi Doug, No this motor cannot be converted to 115v it only can be 230v.
 Reply


?     Asked on 1/18/2012 by Guest

Can you direct me to the proper hi low switch for this motor?
 Reply

A  Answered on 1/18/2012 by InyoPools Product Specialist Patrick P.

Unfortunately the manufacturer does not offer the switch for the 2 speed 220v motors any longer. If you already have a 220 volt timer (on/off) you would need an Intermatic T106R to switch from high to low speed. If you do not have a timer currently you would need the T10604R which is a 220v on/off timer and a high/low timer.
 Reply


?     Asked on 1/12/2012 by Guest

Why should I purchase a Tune Up Kit?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
 Reply


?     Asked on 1/12/2012 by Guest

Why do I need to purchase a new shaft seal?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
 Reply


?     Asked on 1/11/2012 by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply
