A.O. Smith 1/2 H.P Square Flange Full Rate Motor - SQ1052

$169.99

IN STOCK
FREE SHIPPING

Part # SQ1052

By A. O. Smith

  4.84 Average

Details

Top

Part # SQ1052

Warranty 1 Year

Dimensions 11.5" L x 6.5" W x 6.5" D

Alternate Part #'s 14796, 165904, 168451, 182824, 186639, 19700, 1K051, 2K404, 5KC38NN2520X, 6K946, 7-168451-24, 8-168451-20, 8-168451-24, 89700, 93620, A100CH, A100CHL, A100CL2, B361, B524, B846, B880, C1169, C1304, C48A44A71, C48A96B67, C48J2DE11, C48J2E11, C48J2E11A1, C48J2E11A3, C48J2E12, C48J2E12A1, C48J2E12A2, C48J2EA11, C48J2EA11A1, C48J2EA11A2, C48J2EA11A3, C48J2EA12, C48J2EA12A1, C48J2EA12A2, C48J2EAA, C48J2EB100, C48J2EB11, C48J2EB11A3, C48J2EB12, C48J2EB12A1, C48J2EB12A2, C48J2EC101A2, C48J2EC102, C48J2EC1024A2, C48J2EC102A2, C48J2EC104, C48J2EC11, C48J2EC11A1, C48J2EC11A3, C48J2EC11A4, C48J2EC11B1, C48J2EC11C1, C48J2EC12, C48J2EC12A1, C48J2EC12A2, C48J2EC15, C48J2ED11, C48J2EM101, C48J2EM102, C48J2P100, C48J2P102, C48J2PA100, C48J2PA104A2, C48J2PA105, C48J2PA105A2, C48J2PA105A6, C48J2PA105C1, C48J2PA105C4, C48J2PM100, C48J2PU100, C56H2B22, C56H2B36, C56J2B17, C56J2B18, C56J2B28, EB846, M56620, MTR262, S48B52B76, S48H2EC15B1, S88-880, SQ1052, SQD50FL1, V14796

Product Description

Voltage 115/230, Max Amps 115 Volts = 11.8 Max Amps 230 Volts = 5.9 , Single Speed, Square Flange, RPM = 3450, Threaded Shaft, Frame = 48Y Used on the following models: Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max Pentair Whisperflow, Pinnacle and Anthony AR2 Series.

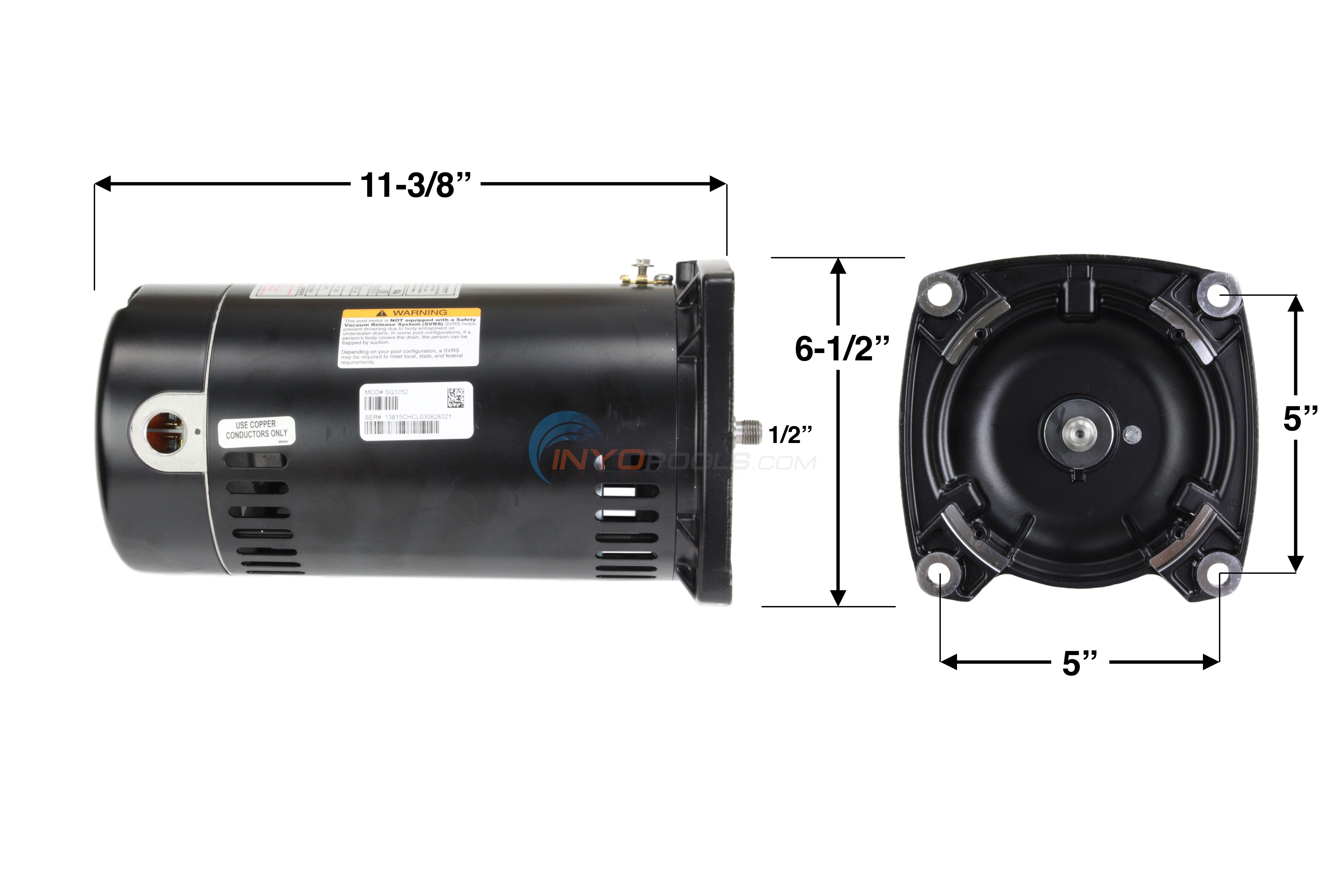

Motor Dimensions Motor Dimensions

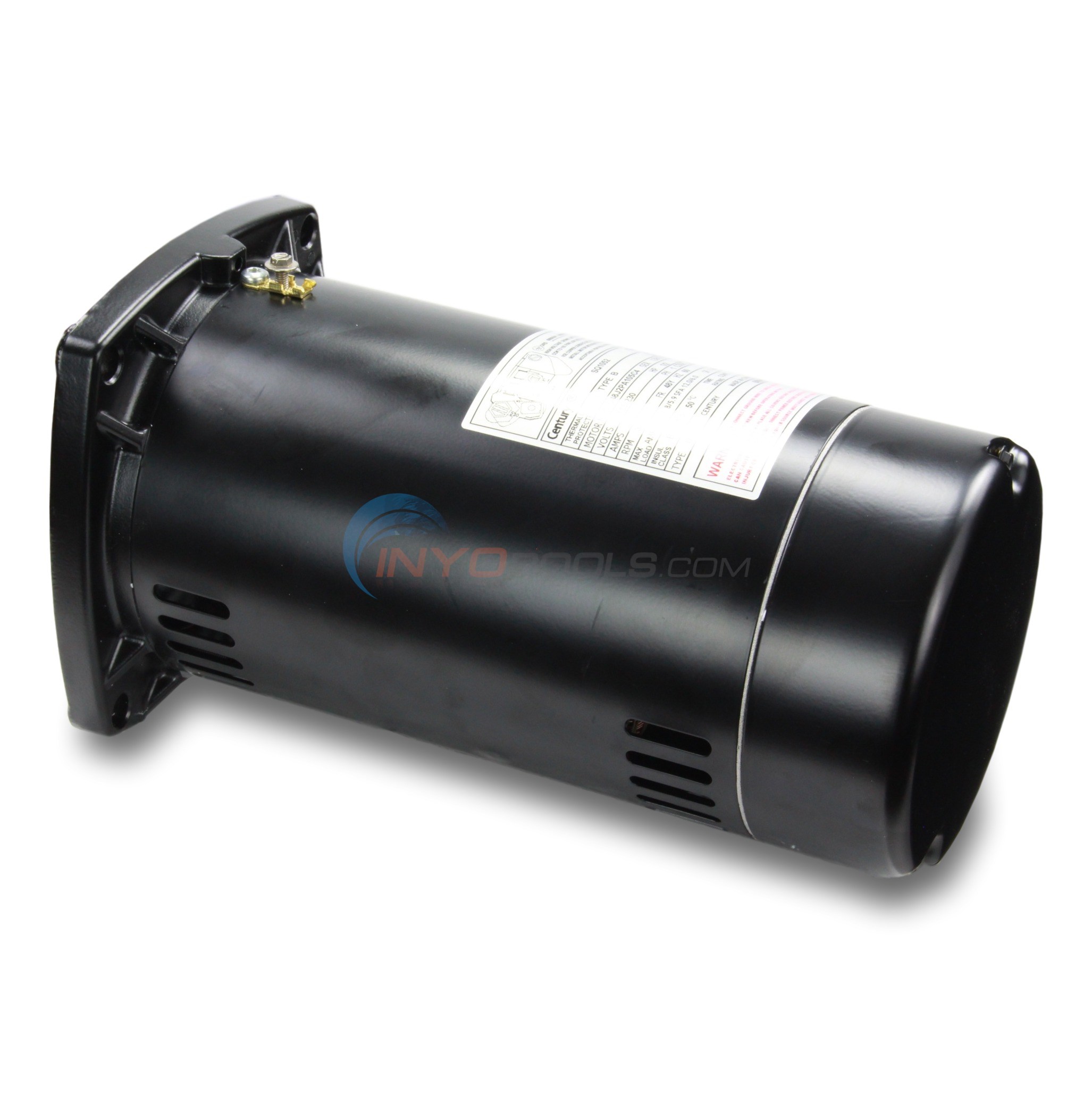

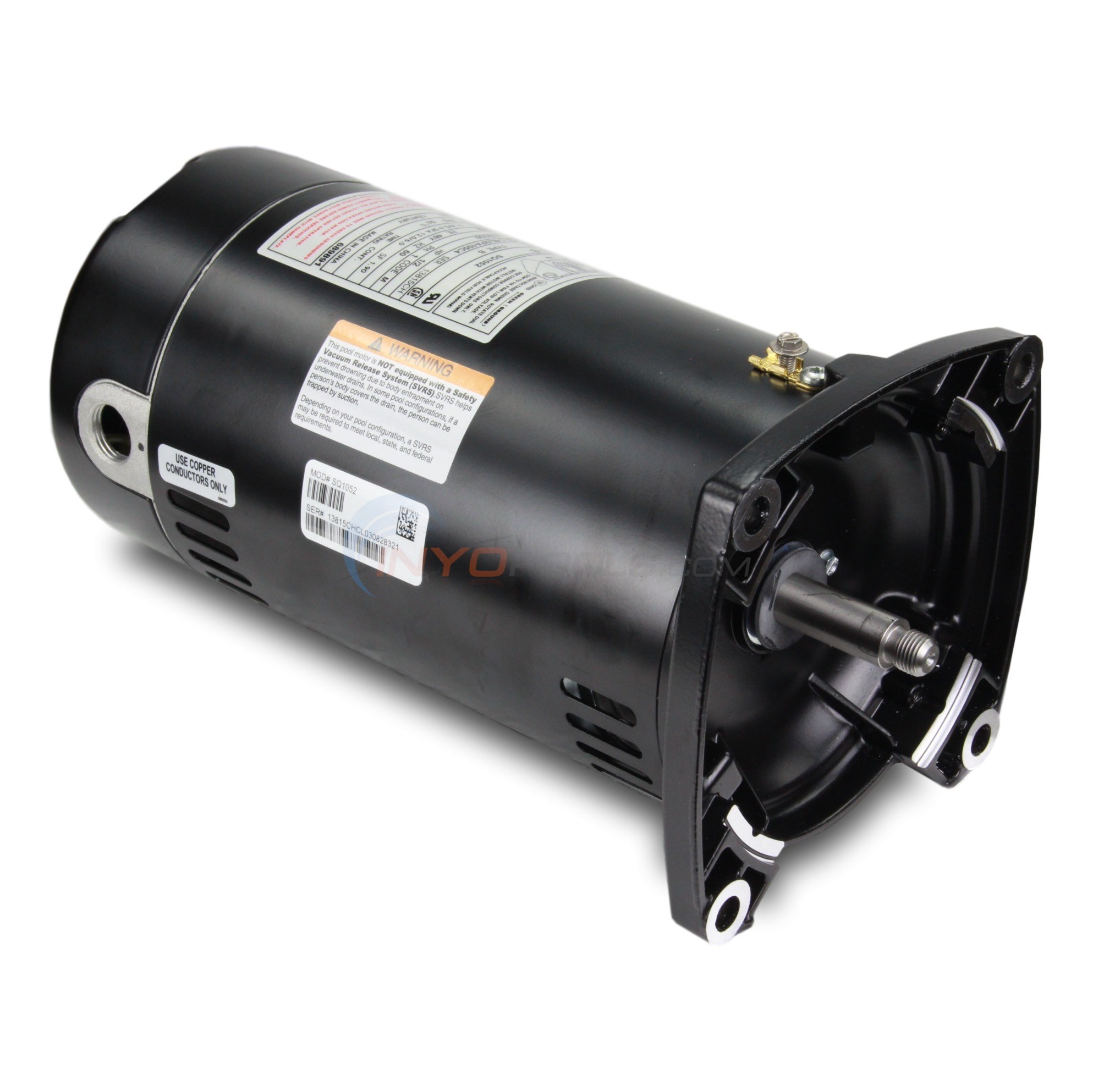

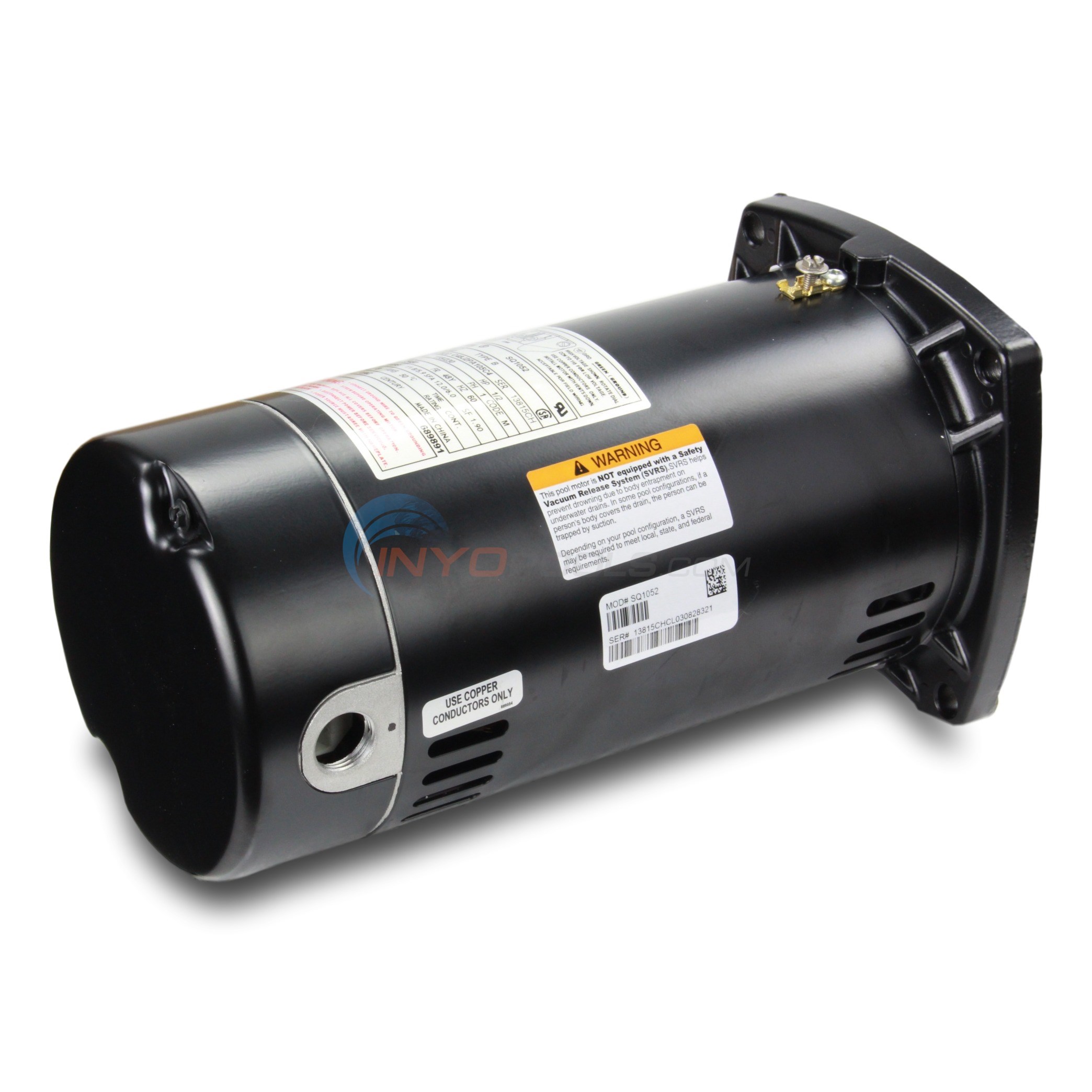

Motor Image Motor Image

Product Specifications

Motor Name:
0.5 HP SQ1052 Replacement Pool Motor
HP:
0.5 HP
Speed:
Single
RPM:
3450 RPM
Volts:
115/230 V
Amps:
13.4/6.7 amp
Service Factor:
1.9
Total HP:
0.95 HP
Frame:
48Y
Stock #:
SQ1052
Shaft:
Threaded
Overload Protector:
Auto
Dimension Letter:
AG
Dimensions:
12 - 1/8 ft.
Commonly Used On:
Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max Pentair Whisperflow, Pinnacle and Anthony AR2 Series
Flange:
Square
Top

?     Asked on 8/1/2017 by Jeff Davis

My Waterfall pump is a AO Smith Model # C48J2PA105C1 which is a 3/4 hp pump. The Inyo crosses it up to a Century C48J2PA105C4 which is a 1/2 hp pump. Is this correct?

A     Answered on 8/2/2017 by InyoPools Product Specialist Lennox H.

Hi, Jeff. You can use either the Century SQ1052 or USQ1072 motor as a replacement for MOD # C48J2PA105C4.

?     Asked on 12/26/2016 by

My motor is a Centurian AOS 7-168451-24 and this motor list it as a replacement for it. The nameplate list on my is a P56Y frame and yours states it is a 48 frame. Which is correct?

A     Answered on 12/27/2016 by InyoPools Product Specialist Andy O.

Hello- The SQ1052 A.O. Smith 1/2 H.P Square Flange Full Rate Motor is 48Y which is interchangeable with the 56Y models. The only difference is the barrel of the motor is 1" in diameter smaller so you may need to raise it on your motor stand.

?     Asked on 7/10/2016 by Louie Adame

Does this motor replace the Sta-Rite Max E-Glas K48J2PA105C1?

A     Answered on 7/14/2016 by InyoPools Product Specialist Lennox H.

Hi Louie, This SQ1052 or the UQC1072 can be used as replacements for the K48J2PA105C1 motor. The shaft seal and o-rings will also need to be replaced which can be found on the Sta-Rite Dura-Glas and Max-E-Glas Parts page.

?     Asked on 2/6/2016 by

Will this motor replace my existing Hayward Tristar motor (1/2 hp, sf 1.99, part # 7-196341-20)?

A     Answered on 2/8/2016 by InyoPools Product Specialist Lennox H.

Hi, This A.O. Smith 1/2 H.P Square Flange Full Rate Motor (SQ1052) will work on a Hayward TriStar pump that has the specs provided.

?     Asked on 3/21/2015 by roger

Will this motor replace a Sta-rite Max-E-Glas PEXC-180L motor on a solar pump for pool? Motor model number K48J2PA10501 1/2HP.

A     Answered on 3/23/2015 by InyoPools Product Specialist Robert M.

Roger - The SQ1052 could be used as the replacement for your motor. We also offer the energy efficient version, QC1052.

?     Asked on 1/19/2012 by Guest

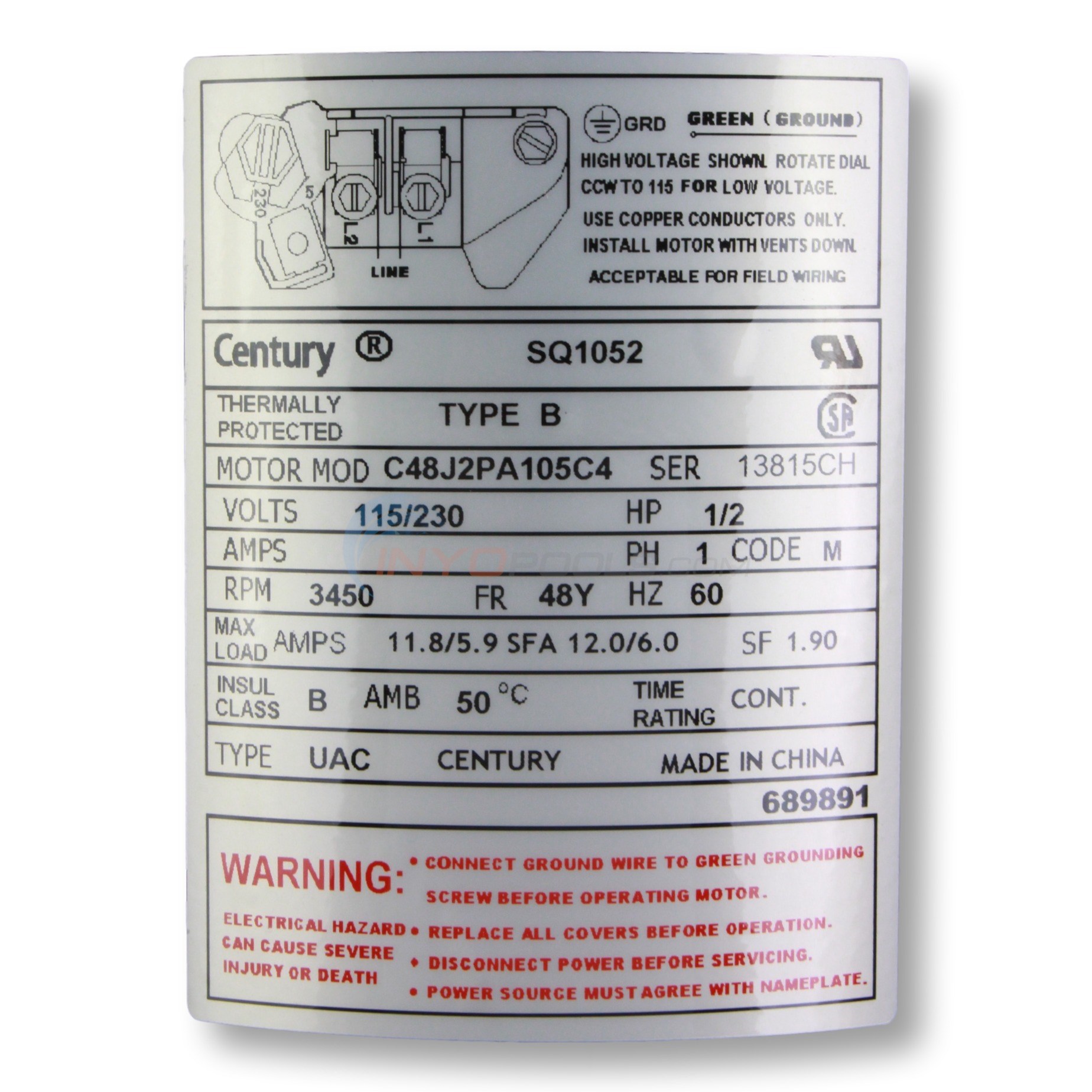

I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?

A     Answered on 1/19/2012 by InyoPools Product Specialist Patrick P.

Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.

?     Asked on 1/12/2012 by Guest

Why should I purchase a Tune Up Kit?

A     Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.

?     Asked on 1/12/2012 by Guest

Why do I need to purchase a new shaft seal?

A     Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.

?     Asked on 1/11/2012 by Guest

What is Service Factor?

A     Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
