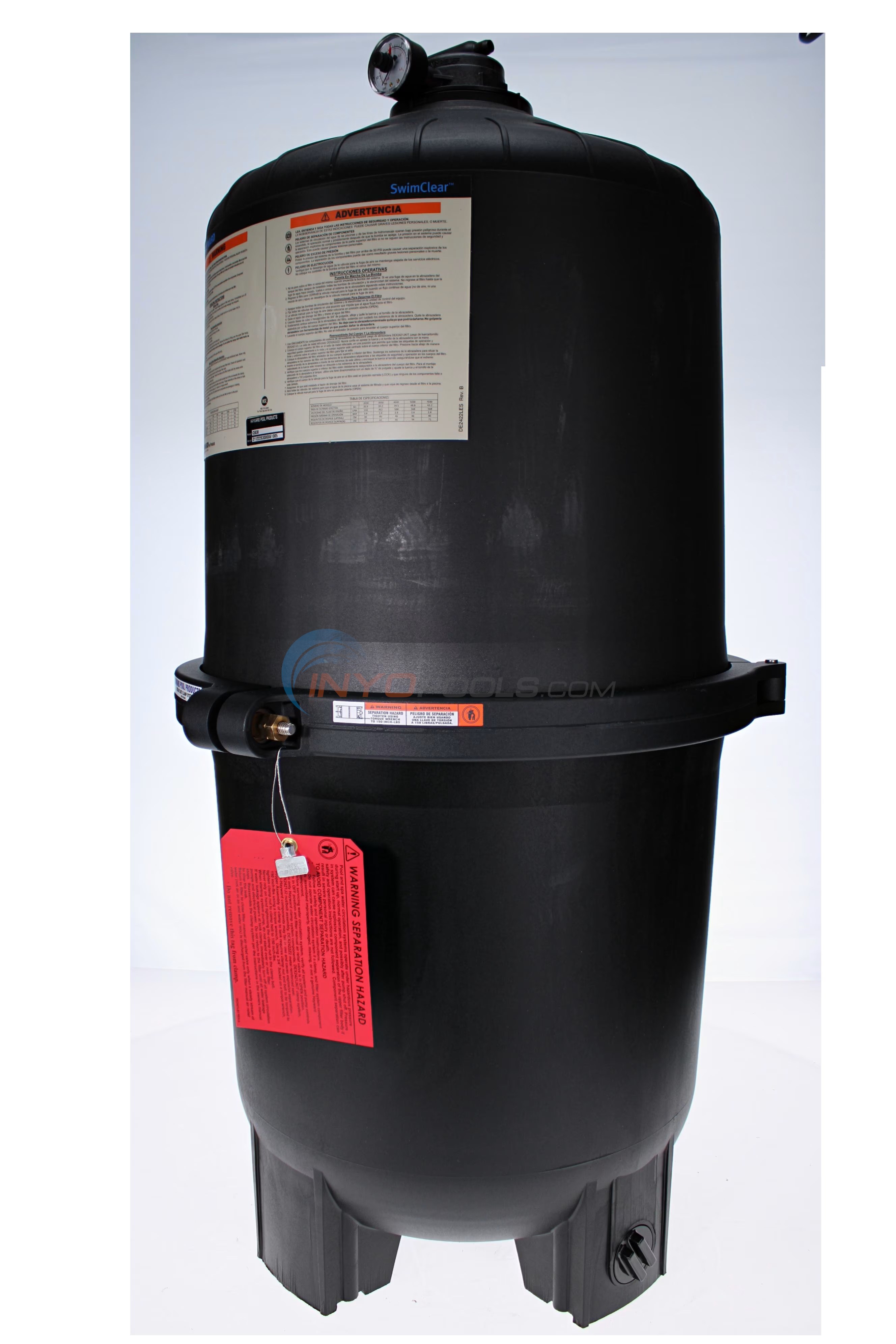

Hayward Swimclear Cartridge Filter 525 Sq Ft. Filter - C5030



Part # C5030

By Hayward Pool Products



Part # C5030

Alternate Part #'s HAYC5030

Product Description

Utilizing a cluster of four reusable cartridge elements, Hayward Swimclear cartridge filter offers a choice of 225, 325, 425 or 525 square feet of heavy-duty dirt-holding capacity for extra-long filter cycles, up to an entire season without cleaning. With filter tanks constructed of improved PermaGlass XL™ material, SwimClear filters will provide years of trouble-free operation and crystal clear, sparkling water.


  • In-ground pools
  • In-ground pool/spa combinations
  • In-ground spas (residential or commercial)


  • Patent pending Innovative Automatic Air Relief Valve provides peace of mind when it automatically purges any entrapped air during filter operation
  • Self-Aligned tank top and bottom make access to serving the Quad-ClusterTM cartridge elements fast and simple
  • Quad-ClusterTM of high-quality polyester cartridge elements provide 225, 325, 425 or 525 square feet of filter area for extra dirt-holding capacity and long, long filter cycles
  • Union coupling connection accepts 2" or 2 1/2" piping for plumbing versatility
  • New, stronger PermaGlass XLTM filter tanks made from extra durable glass reinforced copolymer
  • Heavy-duty, tamper-proof, one-piece clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections
  • Non-corrosive top closure plate prevents elements from lifting and allowing unfiltered water to by-pass into pool or spa during operation
  • 2" full-flow internal piping and plumbing for less resistance to flow and maximum performance.
  • Full size 1 1/2" integral drain allows for fast, 100% clean-out and easier flushing of tank

Click here for more Hayward Filters

Product Specifications

Port Size:
2" or 2 1/2 in.
Flow Rating:
150 GPM
Filtration Area:
525 sq. ft.
Turnover 8 Hrs.:
72000 gal.
Turnover 10 Hrs.:
90000 gal.

?     Asked on 5/11/2017 by Bonnie

what size swimclear do we need? pool 25 x 40 pool is 40 feet from pump. hayward super pump II

A     Answered on 5/11/2017 by InyoPools Product Specialist Patrick P.

Hi Bonnie, Our suggestion on a 25' x 40' pool would be this C5030 Cartridge Filter.

?     Asked on 4/17/2017 by

Is the c5030 a replacement for the c5025

A     Answered on 4/17/2017 by InyoPools Product Specialist Patrick P.

Yes the C5030 is the replacement for the Hayward C5025 Cartridge Filter.

?     Asked on 2/13/2017 by Scott

I have 25,ooo gallon in ground pool with caretaker in ground cleaning system 2hp Hayward super pump 2 what size cartridgefilter should I be looking at as far as sq.ft. Size to avoid cleaning all the time? 400 sq. Feet plus? Thanks

A     Answered on 2/13/2017 by InyoPools Product Specialist Scott W.

What is the distance from your pump to your skimmer so I can calculate the estimated flow rate.

?     Asked on 1/31/2017 by Mike R.

I have a 10,500 gallon in ground play pool that includes 500 gallon spa over flowing into the pool. What size cartridge filter would you recommend to replace my DE 20 year old filter. My pool pump is a 2 hp challenger brand pump.

A     Answered on 2/1/2017 by InyoPools Product Specialist Scott W.

I need to know the distance in feet from the pump to the pool's skimmer(s) so I can calculate the flow rate. This will let me know what size filter you need based on the flow rate.

?     Asked on 9/17/2016 by Gary

How do I winterize my earth filter for the season?

A     Answered on 9/19/2016 by InyoPools Product Specialist Stacey M.

Hello Gary, there is a "how to" walk through on closing down your pool.

?     Asked on 6/17/2016 by Bob W.

I have a 40,000 gal pool. What cartridge filter would be appropriate?

A     Answered on 6/17/2016 by InyoPools Product Specialist Lennox H.

Hi Bob, The Hayward C5030 is adequate for a 40,000 gallon pool.

?     Asked on 5/22/2016 by Ron

I have a 45'X16' rectangular pool, 21000 gallons, what size cartridge would be best?

A     Answered on 5/22/2016 by InyoPools Product Specialist Patrick P.

Ron, when it comes to filters the bigger the better with that being said this would be a great filter for your pool as it is as big as it gets!

?     Asked on 4/11/2016 by steve

I have a 32 by 16 rectangle pool 8 feet deep end 3 ft shallow end 20066 gallons a 1 hp Hayward super pump. what size cartridge filter do I need?

A     Answered on 4/12/2016 by InyoPools Product Specialist Hector F.

Based on approximate surface area of the pool and pump strength I would recommend no less than a 150 square foot cartridge filter.

?     Asked on 7/12/2015 by April

I have a kidney shape pool, 30 ft long, 18 wide at deep end, 10 wide at shallow end, it is 9 ' deep in deep end and 3 in shallow. What size cartridge filter do I need?

A     Answered on 7/12/2015 by InyoPools Product Specialist Patrick P.

Hi April, The C5030 SwimClear Cartridge Filter would be an ideal filter for your sized pool.

?     Asked on 6/20/2012 by Guest

What is the measurement from the ground to the center of the intake and discharge?

A     Answered on 6/20/2012 by InyoPools Product Specialist Patrick P.

The measurement from the ground to the center of the intake is 12.5" and 17.5" on the discharge.

?     Asked on 9/21/2006 by Guest

Does this come with the filter cartridge and gauges?

A     Answered on 9/21/2006 by InyoPools Product Specialist Patrick P.

This filter comes direct from the manufacturer and includes the cartridge and gauges.
