Part # FG1005PACK
Alternate Part #'s FC-9550, FS2005, PFS3060
Generic replacement DE filter grids offer an economical way to maintain your pool filter's optimal performance. Seeing DE powder in your pool is a typical sign of one or more torn grids which need to be replaced.
Features:

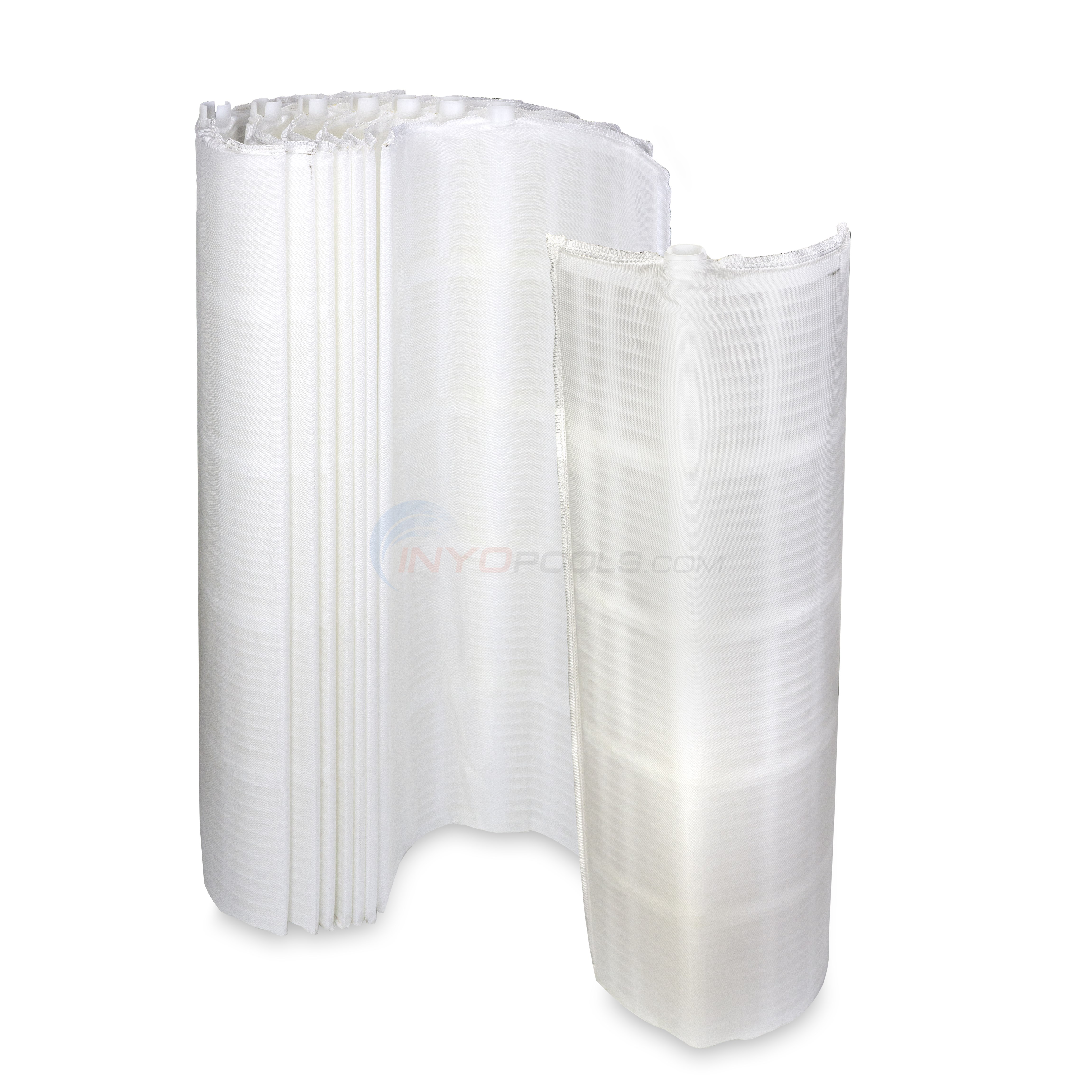

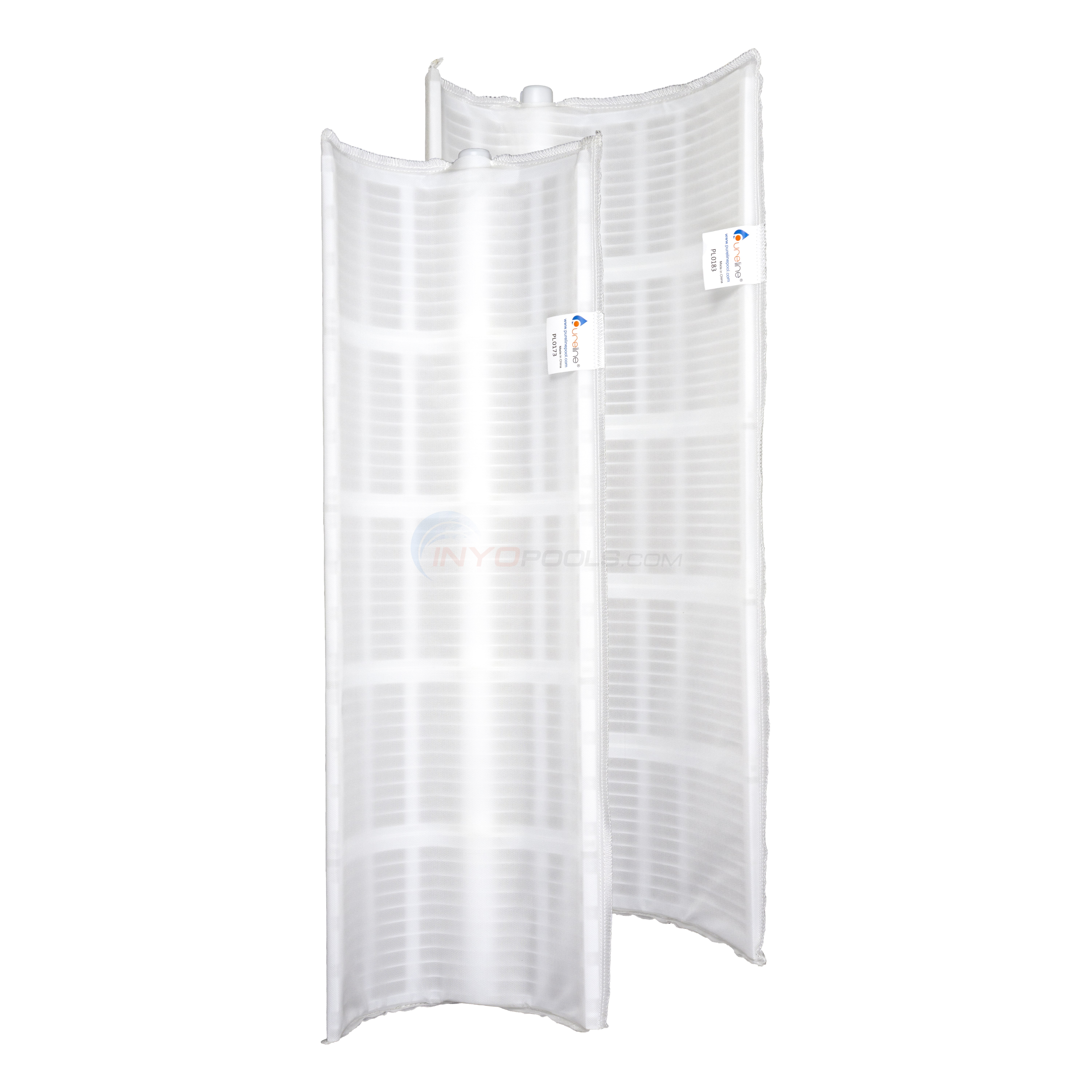

*Most DE filters require 7 full grids and 1 partial grid. This is a pack which includes 7 full grids & 1 partial grid.
| Filter Area (Sq. Ft.). | Grid Length | Indentification | Full Grid Part # | Partial Grid Part # | Full Grid Width | Partial Grid Width |
| 24 | 12" | American, Hayward, Pac-Fab, Pentair, Sta-Rite |
FG1002 PL0180 |
PG1902 PL0170 |
11 - 1/2" | 9 - 1/2" |
| 36 | 18" | American, Hayward, Pac-Fab, Pentair, Sta-Rite |
FG1003 PL0181 |
PG1903 PL0171 |
11 - 1/2" | 9 - 1/2" |
| 48 | 24" | American, Hayward, Pac-Fab, Pentair, Sta-Rite |
FG1004 PL0182 |
PG1904 PL0172 |
11 - 1/2" | 9 - 1/2" |
| 60 | 30" | American, Hayward, Pac-Fab, Pentair, Sta-Rite |
FG1005 PL0183 |
PG1905 PL0173 |
11 - 1/2" | 9 - 1/2" |
| 72 | 36" | American, Hayward, Pac-Fab, Pentair, Sta-Rite |
FG1006 | PG1906 | 11 - 1/2" | 9 - 1/2" |

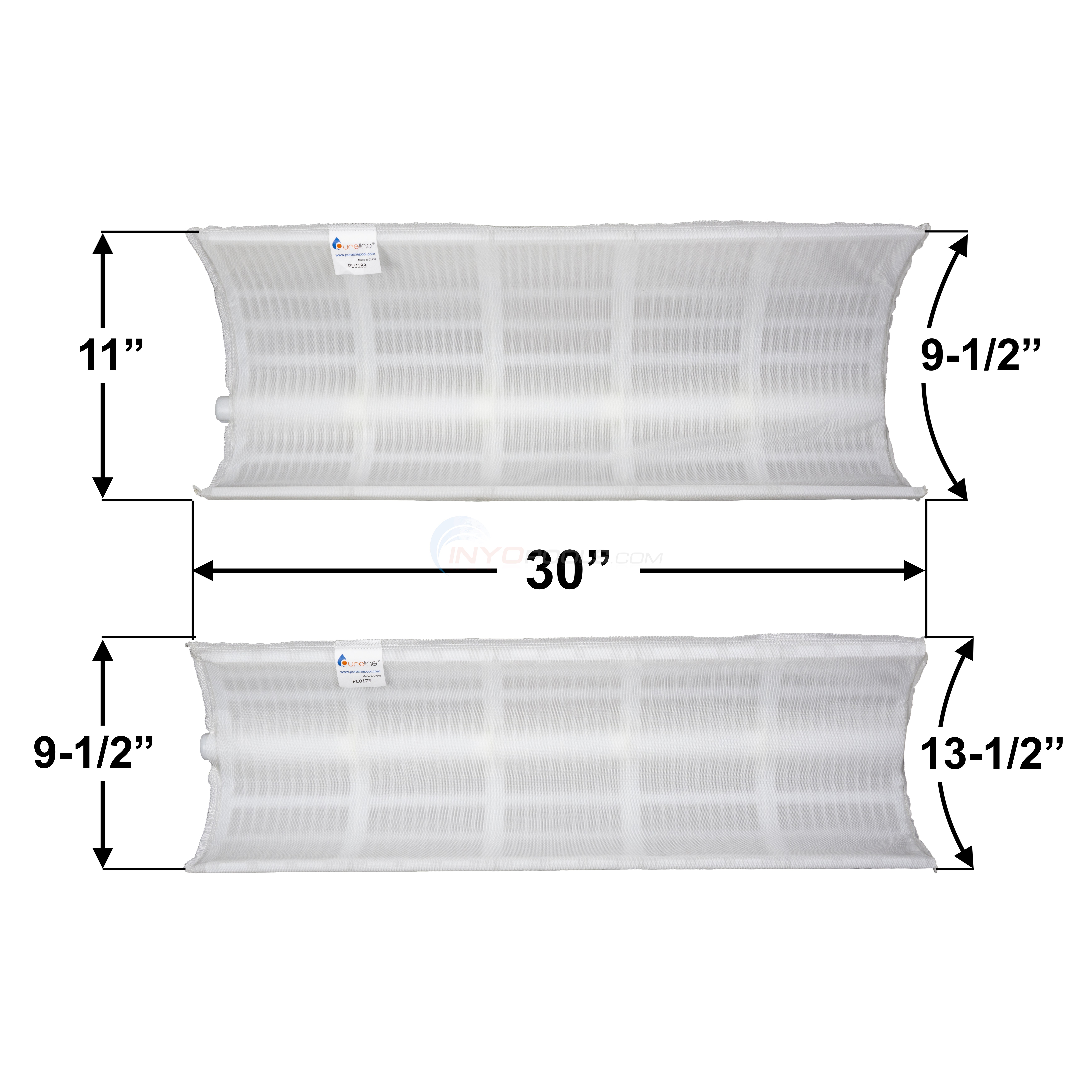

Note: Collar has open slot (2 notches). Length is measured from one end of the grid to the other (collar not included).
I need to replace my 2" multiport valve ,it is leaking thru , I have a Pentair DE filter and have replace the filter with INYO before , can you check and see if you can give me a stock # for the mulitport valve that I need going by the filter you have sold me in the passed
Reply
Please contact customer service to review the order history, you may reach them at https://secure.inyopools.com/Support/SupportRequest.aspx or by using our live chat feature. You are welcome to submit an image of the top of the MPV showing the handle and labeling on it, many times the label will have a model or p/n that we can use to cross-reference.
Reply
What filter grids do i need for a DE6020 salt filter?
Reply
Hi, Keith. This 60 sqft Grid Pack 30" (7 Full & 1 Partial) - FG1005PACK will fit the DE6020 model filter and is okay to use with saltwater pools.
Reply
Can you kindly confirm that this is the correct grid pack for my Nautilus FNS DE system. Please see attached photo. Thanks in advance.
Hi, Aaron. I am confirming that these are the correct replacement grid for your model filter.
Reply
Hallo, is this filter pack compatible for my Hayward DE6020 filter. Do you ship to Greece?
Hi, Protopapa. Yes, this is the correct grid pack for your model filter. We can ship to Greece, however, you may want to use a carrier service to have this delivered.
Reply
I am looking for an American Products Titan Vertical Grid Filter 60, "lower housing/body", mine has cracked.
Any suggestions??
At this point before the 4th of July I am willing to buy new or used...
Thanks,
Ken~
Reply
I have an old pool can you tell me if these grids will fit my filter. The pool companies want to charge me over $300 just to buy the grids. I am hoping you can help me.
Hi. These might be the correct size grids, however, just to confirm use our How to determine D.E. Filter Grid size since I'm unable to confirm without your grids measurements.
Reply
do these grids fit a Pentair FNS Plus 60 filter?
Reply
Hi. Yes, this 60 Sq. Ft. Grid Pack - FG1005PACK will fit the Pentair FNS Plus 60 filter.
Reply
Hi, will this fit a Jandy DEL Series Pool Filter 60 sq feet?
Reply
Hi, Maria. Yes, this 60 Sq. Ft. Grid Pack - FG1005PACK will fit the Jandy DEL60 model.
Reply
I have a Jandy DE filter (DEL-60), which is 12 years old. Two years ago, I replaced the grids with this set purchased from INYO. This year, I removed and completely cleaned the grids prior to opening the pool. However, after opening the pool, the filter has extremely short cycles between backwashing. Now, after backwashing the pressure will only go down to about 16 psi, and it's back up to 30 psi after two hours. Aside from replacing the grids again, do you have any other suggestions?
Reply
Hi, Greg. Make sure you put in the correct amount of DE powder. Also, if the pool is dirty, then regular backwashing is normal until the pool is cleaned. If those are good, then replace the grids.
Reply
Can you please furnish the shipping weight and dimensions of the shipping box for this 60 sq foot grid pack? I have a large pool in Panama with two FLT FNS PLS 60 filters and plan on having some cartons reshipped to Panama and need to know if I can use air cargo or have to use ocean freight. (The grids/elements don't seem to last long here and we find we are replacing many of them every year.)
Thanks
Reply
Hi, John. The shipping dimensions is 16"x16"x32" and the weight is 20 pounds.
Reply
Will this fit a Pentair FNS Plus (FNSP 60) DE filter? P/N 190029 60 sqf.
Reply
Hi. Yes, this 60 Sq. Ft. Grid Pack - FG1005PACK will fit the Pentair FNSP 60 filter.
Reply
I have the Jandy DEL 48. Are these the correct replacement filters? Can I get the filters complete with the manifold.
Reply
Hi, Janice. This is not the correct grids, you'll need p/n FG1004PACK or the Complete Gird Assy DEV/DEL 48 - R0501300 for the Jandy DEL 48 filter.
Reply
I need to replace my old Titan model 56623200 filters. The specification on the outside list 60 sq ft with circular 36 inches and vertical 55 inches. 50psi. How can I make sure I am ordering the correct filter replacements?
What is your return policy if the part does not fit?
Reply
Hi, Sundar. This grid pack will fit the Titan 60 sq. ft. filter- 56623200. Click this link to view our Return Policy.
Reply
Hi have a Hayward de6020 was wondering which grid is needed, just cleaned no desire to take apart and measure if I dont have to. Also can you give me pack part # too
Reply
Hello Mark, yes that FG1005PACK is the correct grid pack for the DE6020.
Reply
I need to replace vertical DE grids for a Titan model# 56623200 (60 sq feet). What grid pack would you recommend?
Thank you
Reply
Hi, Kelly. This Grid Pack - FG1005PACK is the correct size for the Titan 60 sq ft unit.
Reply
Hello into, I have a DE6000 filter can you please tell me which of you grid packages is the correct one for my purchase? Thanks so much.
Reply
Hi, Carrie. This is the correct grid pack for the DE-6000 model filter.
Reply
I need to replace my grids in my Pentair 4000 series filter. I am not sure what size of filters I need and does your prices reflect a whole set of 8 grids?
Reply
Hello Kathy- These grids will not fit in your Pentair 4000 series, the correct grids are listed under Key #8 on the Purex 4000 Series Molded D.E. Parts diagram.The prices for those would reflect a single grid.
Reply
I need the whole grid and assembly parts top and bottom. I am only finding FG1005 PACK for my Pentair 170018 DE filter FNSP 60.
Please help me to get the assembly too, and filter pack, give price. 6199-447-0960
Reply
Hi, Ken. The Grid Assy. 60 SqFt - 59023300 is the correct assembly for the FNSP 60.
Reply
Does these cartridges work for a Purex Triton pump? I checked them elsewhere and I found that they are for Hayward pumps.
Please confirm as I would like to buy them only is they are for the pump I have that needs the replacement filter.
Thanks
Reply
Purex was bought out by Pentair so you are going to want to buy grids for a Pentair filter. The FG1005PACK will work in a Pentair filter, but I will need to know what model Purex Triton you have, either 2000 or 4000 series, so I can locate the correct size grid set for you. If you are not aware please attach some pictures of you filter and the dimensions of the grids.
Reply
60 Sq. Ft. Grid Pack (7 Full & 1 Partial) - FG1005PACK - Is this the correct Full Grid Set to replace NS 60 #19-5058?
Reply
Good Morning Franklin,Yes 60 Sq. Ft. Grid Pack (7 Full & 1 Partial) - FG1005PACK Will work as a replacement. If You are looking for an entire setup it would be Grid Assy., 60sq.ft. - Ns60 - 192327. If you have any other questions. Feel free to ask. We are here to help.
Reply
I need to replace my old Titan RPM model 56623200 filters. The specification on the outside lisst 60 sq ft with circular 22 inches and vertical 55 inches. 50psi. How can I make sure I am ordering the correct filter replacements?
Reply
Yes, the FG1005PACK would be the correct grid set for your titan rpm.
Reply
i have a Titan pool filter model # 56623200 it's 60 sq ft and i need to replace the filter grids. Do you have replacements and how long to receive them? Cost?
Reply
Yes, that would be the correct grids for your Titan, part number FG1005PACK. Depending on which state you live in, it would take 3-5 business days for you to receive them.
Reply
I have a Monarch DE filter Model MSCV 2-60, 7 full, 1 small grid. they seem to measure the same size as your grids. 50 PSI max. 150 GPM w/o slurry, 180 gpm w/ slurry. Would your grid package work. should i order the manifolds as well and would the filter come assembled?
Reply
Hello Steve, just make sure your width and sq ft is what fits your unit.
Reply
I have a Nautilus FNS DE 36. De is pumping into the pool after I backwash. I have installed a new port. Do I need new grids? I have hosed off the grids, but could not remove them. My pool water is milky white, despite several days of running pump on filter setting.
Reply
I would inspect your grids to make sure no rips have occurred as well as the ribs in the grids making for none are broken. Also, if the stand pipe is set all the way it will leak DE into the pool as well. These are good places to start after replacing the valve.
Reply
good afternoon, i bought a pool pump from you guys last year and am looking for the de filter replacements .The filter is a Pentair FNSplus seriel #0809000102k.
thanks what do you recommend and how much?
thanks
glenn
Reply
Hello, Glenn. I will provide a link with the schematic for the Pentair FNS Plus D.E. Filter Parts, click here to view. Unfortunately, I cannot verify the size of your filter by the serial number. Only the manufacturer Pentair can do so, at 1-800-831-7133. If you ordered the filter with us you may call us at 1-877-372-6038 and we can review your order history.
Reply
I have an old SWIMQUIP DES60 do you have replacement filters for that model?.
Reply
Hi Rich, Yes we do carry this item and you would require these DES60 Replacement DE Grids.
Reply
I have an older Aquatech FNS 60 D.E. Filter on my pool. Is this the appropriate replacement pack? I'm actually looking for a complete grid assembly and replacement gaskets as well - is this something you can help me with?
Reply
Hi Michael, This is the correct grid pack for the FNS-60. The FNS60 Grid Assy-195070 is the correct grid assy that will fit into the Aquatech FNS-60, however, the tank o-ring is no longer available for your filter.
Reply
My Pool Filter is DE-LE-42056. Pls let me know which Grid Pack fit my pool filter.
Is this pack fit mine ?? What is Partial Grid ?? I don't found any partial grid in my pool filter ??
Reply
Hi Derek, This 60 Sq. Ft. Grid Pack will work with your filter. I can assure you their is a partial size grid, its smaller than all the other grids.
Reply
Hi, I have an old American Products, Titan Vertical Grid Filter; 60 square foot filter area and a max work pressure of 50psi. What filter pack do i need? Thanks.
Reply
Hello Frank, The FG1005PACK 60 Sq. Ft. Grid Pack (7 Full & 1 Partial) would be the correct grid set for your titan.
Reply
I have a pentair 60 grid. Could you provide assembly instructions, since it is apart for cleaning?
thank you
Reply
Here are the instructions from the Manual for the FNS PLUS 60 DE filter (PAGE 7). To Reassemble: A. Starting with the "SMALL GRID" element, place the element on the bottom spreader in the position marked "SMALL GRID". B. Continue positioning the remaining elements onto the spreader in the same manner as the small element. C. After all elements have been positioned on the bottom spreader, place the plastic template over the element spouts. This will keep the elements positioned correctly. D. Position the top manifold over the elements with the stand pipe inlet port pointing in the direction of the small element. Using moderate force push down on the manifold to seat it on to the elements. Ensure template is not caught or trapped between manifold and element spouts. E. Replace the two nuts and the two plastic stand-offs, (if equipped). F. Replace the completed element assembly into the filter tank.
Reply
I need a filter replacement for a Hayward D4820. Does it come all together so I don't have to put it together?
Reply
Hi Tony, You will need the 48 Sq. Ft. Grid Pack (7 Full & 1 Partial) (FG1004PACK) which is the replacement grids only, or if you want it all assembled with the manifolds you will need the Grid Assy. 48 Sq.ft. Micro Clear (DEX4800DC) for your Hayward DE4820 Filter.
Reply
I have a Hayward DE6020 filter is this replacement compatible and basically the same design as the OEM model or significantly different
Reply
Hi Hal, Yes this DE grid set is compatible with the Hayward DE6020 filter and has the same design as the Hayward OEM DE grids.
Reply
I need the Zodiac dev60 part # for replacement filters?
Reply
Hi Mike, If you have a Zodiac DEV60 then this filter should have fabric covered grids that get covered in DE powder. If this is the style of filter you have then the grid pack on this page is the appropriate de grid pack for your Zodiac DEV60 filter.
Reply
Hi,
I have a Titan vertical grid D.E. Filter (Model 56623200) (60 SQ Feet) and I would like to replace all the filters. I'm having a hard time trying to figure out which kit to buy. Any help???
Thanks...
Reply
Ken, These grids will work for your American Products Titan 60sq ft D.E. Filter. If you want to get the complete set including the top and bottom manifolds P/N Grid Assy., 60 Sq.ft. Titan
Reply
I have a FNS 60 model, does your part # FG1005 Pack work for this?
Reply
FG1005PACK will indeed work for a Pentair FNS 60 DE Filter.
Reply
I have a nautilus filter, mod. NS 60, filter area 60 sq. ft. Pressure DE , serial 93 , flow 120 gal. P M , and I would like the complete assembley ??
Reply
The Nautilus NS60 Grid Assembly is available. This includes 8 DE grids, top manifold, bottom manifold, air relief strainer, extension and tie rod.
Reply
The Most Helpful Review
3 0
(5 out of 5 stars) Filter grids
Reviewed By: Gregory R. from San Antonio, Texas ()
Pros: Shipped quickly and packaged safely.
Quality replacement part, just as good as OEM part at a fraction of the price. Why would you want to buy from a local pool supply outlet when you can get the same thing delivered to your door at a much lower price?
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars) Much cheaper to buy on this website
Reviewed By: ()
I use these all the time. It is much cheaper to buy on this website rather than our local retail store.
Was this review helpful to you?
(5 out of 5 stars) Good Value, Well Made and a Perfect Fit
Reviewed By: ()
Good value, well made, and a perfect fit to replace my factory filters, 2 of which had small tears and therefore not filtering well.
Was this review helpful to you?
(5 out of 5 stars) Filter Replacement
Reviewed By: ()
Great quality and easy to install! The D.E. powder does not recirculate back into the pool...problem fixed!
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: ()
Worked perfect great price
Was this review helpful to you?
1 0
(5 out of 5 stars) Great Replacement Filters
Reviewed By: Happy DIYer from Clovis, CA ()
We are really happy with these replacements for our pools filtration system. I shopped several sites and was astonished at some of the prices. These were much more affordable and seem to be doing the job. I have purchased products from Inyo Pools before and will continue due to there knowledge, fair pricing and excellent customer service.
Was this review helpful to you?
(5 out of 5 stars) So far the pool is very clean.
Reviewed By: Pat P. from Bakersfield Ca ()
Pros: Good Product so far
I have a hayward filter. There were several model numbers on the filter container. None of them were marked. The sale person at Inyopools was very helpful over the phone. He had me take some measurements of the filters. Usually I don't order over the internet, in less I am sure on what I am ordering but the filters that were sent were the right ones. Also save me some money. Great product so far. Thanks again for the good service, Pat.
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Jeremy G. from NJ ()
Great site to use. Products get to you fast.
Was this review helpful to you?
