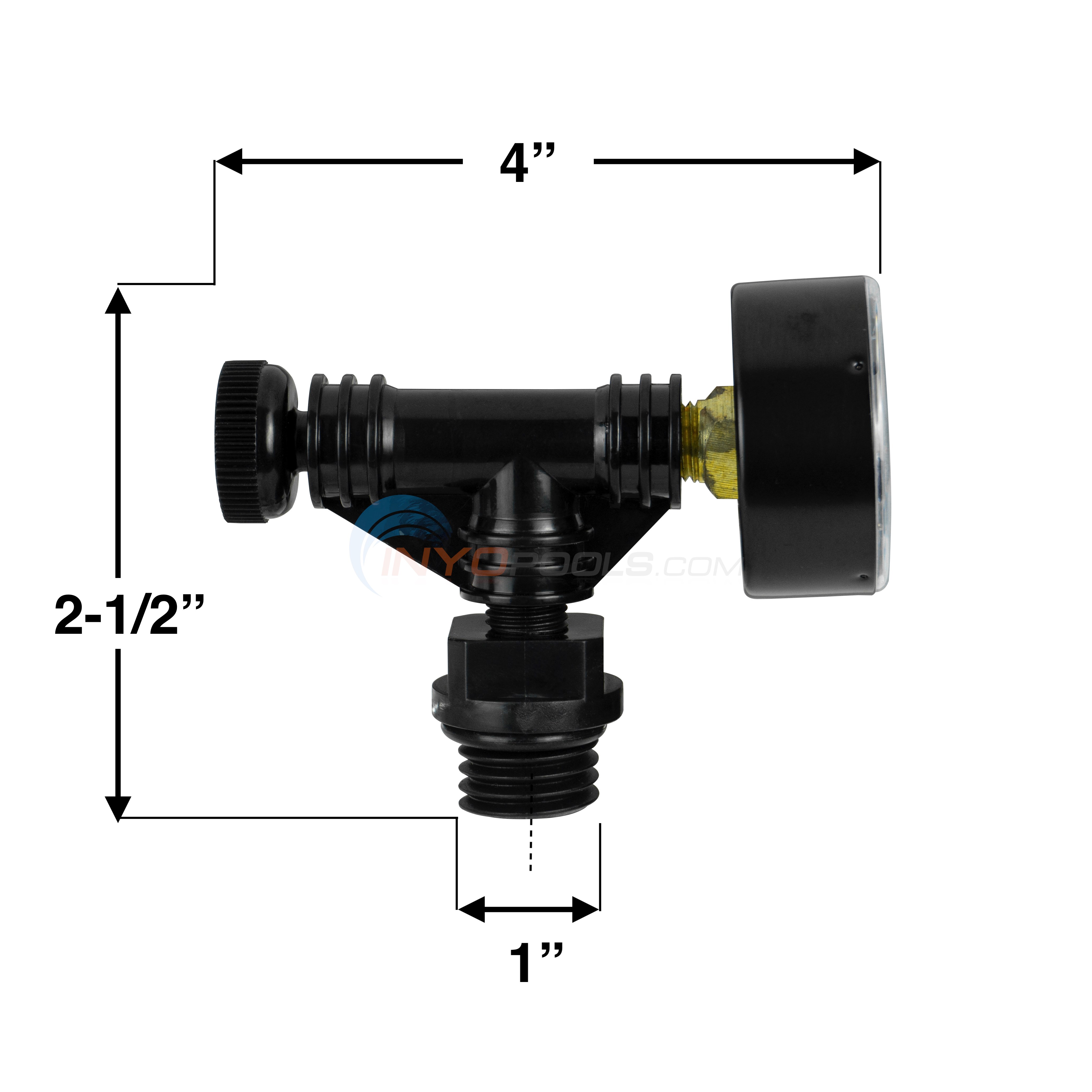

Air Relief Manual Valve Assembly - 98209800

$17.49

IN STOCK

Part # 4655-03D

By Pentair Pool Products

  4.75 Average

Details

Top

Part # 4655-03D

Manufacturer Code 98209800

Alternate Part #'s 98209800

Product Description

This Air Relief Manual Valve Assembly - 98209800 is used on various Pentair, American Products and Pac Fab filters including the Sandpiper, Clean & Clear, Clean & Clear Plus, Predator and FNS Plus.  The assembly includes the following parts:

  • (1) High flow manual air relief manual valve
  • (1) Plastic Clamp
  • (1) Pressure Gauge
Top

?     Asked on 5/19/2019 by Danny

Will this item for a pentair 4000 series.. see the screen shot

 Reply

A  Answered on 5/20/2019 by InyoPools Product Specialist Lennox H.

Hi, Danny. This Air Relief Manual Valve Assembly - 98209800 is compatible with the SMBW 4000 Series filter if it was manufactured or your lid was replaced after 1999.
 Reply


A  Answered on 5/20/2019 by Industry Professional

Yes, this is the high flow Air Relief valve for the SMBW 4000 series filter
 Reply


?     Asked on 4/30/2019 by Paul

Will this work on starite system 3 model S7M120
 Reply

A  Answered on 4/30/2019 by InyoPools Product Specialist Patrick P.

Hi Paul, No this air relief assembly does not work on the Sta-Rite System 3 S7M120. However, we do carry the Air Relief Assembly for the Sta-Rite System 3. You can view or purchase the S7M120 Air Relief Assembly or individual parts for the S7M120 Air Relief Assembly through this link Sta-Rite System 3 S7M120 Parts Page (Assembly is key 25)
 Reply


?     Asked on 4/27/2019 by

Is this compatible with Sta rite system 3 modelS7M120
 Reply

A  Answered on 5/3/2019 by Industry Professional

Hi. No, the item to use on the Sta-Rite System 3 is 24850-0105
 Reply


?     Asked on 4/22/2019 by

What size hose attaches to the air relief valve for discharge?
 Reply

A  Answered on 4/26/2019 by Industry Professional

Normally this doesn't have a hose attached to it
 Reply


A  Answered on 4/29/2019 by Industry Professional

Even though it is a barb fitting No hose actually attaches to the air relief valve. A relief valve is just that, needing an immediate relief, attaching a hose to it will slow down the release pressure.
 Reply

  • Commented on 4/29/2019 by Product Owner

    My pool equipment is located indoors and I don’t want water blowing all over the walls when bleeding the air. The filter has been delivered now so I was able to measure the barb. 3/4 clear tubing fit perfectly. Thanks for the replies.
     Reply


?     Asked on 4/15/2019 by

Does this fit model # CCP420?

 Reply

A  Answered on 4/15/2019 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Air Relief Assembly - 98209800 will fit your CCP420 model filter.
 Reply


?     Asked on 11/1/2018 by Jim

I have a Pentair FNSP 60 filter. Will this assembly fit?. I also see what appears to be a hose clamp in the picture. Is this a needed part. I don't seem to have that on my filter.
 Reply

A  Answered on 11/28/2018 by InyoPools Product Specialist Andy O.

Hello Jim- Yes the Air Relief Manual Valve Assembly (98209800) would be the correct assembly for your filter. The clamp is for the older models that had a hose that connected to the air relief on the side.
 Reply


?     Asked on 10/27/2018 by

does thisnparticular air relief valve have an :o: ring
 Reply

A  Answered on 11/6/2018 by InyoPools Product Specialist Lennox H.

Hi. There is an o-ring that is included in this Air Relief Assembly.
 Reply


?     Asked on 7/22/2018 by Tom Greene

I replaced the relief valve and gauge last year. Seems to be working fiine, but recently when I turned the cap to relief the pressure it wouldn't click back into closed position. It's not leaking, but I don't think it's closed properly. Is that adjustable? Any thoughts?
 Reply

A  Answered on 7/24/2018 by InyoPools Product Specialist Lennox H.

Hi, Tom. It's not adjustable. I would recommend that you inspect it closer since it's not leaking.
 Reply


?     Asked on 5/23/2018 by Pat

Opened my pool and can't get my filter completely air tight. No drips or leaks present. Cleaned the pump thoroughly. My question is this: could the pressure monitor be the cause of my problem?
 Reply

A  Answered on 5/25/2018 by InyoPools Product Specialist Lennox H.

Hi, Pat. If the filter is not airtight, since it's on the pressure side of your system water will out of the area where it is not sealed including the air relief assembly. The problem may not be the filter. You can use our How to Identify and Correct Air Leaks guide to help you resolve this matter.
 Reply


?     Asked on 4/9/2018 by Vern

Will this work on an American Products Titan CM model 57026000 DE filter? All I really need is a replacement manual bleed valve stem - the washer is bad & it leaks air/water. Does that part exist?
 Reply

A  Answered on 4/9/2018 by InyoPools Product Specialist Hector F.

Yes, this assembly will work with the model American Products CM Titan filter.
 Reply


?     Asked on 9/25/2017 by James

What's the outer diameter of the air/water output on this? (You know, the part that sprays you if you stand in front of it) I need to attach a small piece of tubing to redirect the water that sprays out when I release the pressure and I don't see that listed on the spec sheet(s).
 Reply

A  Answered on 9/27/2017 by InyoPools Product Specialist Lennox H.

Hi. James. The Air Relief port diameter is 5/8".
 Reply


?     Asked on 8/11/2017 by Matt

Will work on American Products Titan model no. 56623200?
 Reply

A  Answered on 8/18/2017 by InyoPools Product Specialist Lennox H.

Hi, Matt. Yes, this Air Relief Manual Valve Assembly will work with the American Products Titan filter.
 Reply


?     Asked on 7/18/2017 by Rhonda

Is the Pentair 98209800 valve interchangeable with the 98209804 valve? I have the American Products Commander lid & I thought I was buying the correct valve when I bought the 98209804.
 Reply

A  Answered on 7/18/2017 by InyoPools Product Specialist Lennox H.

Hi, Rhonda. The two parts are somewhat interchangeable but are used in different applications and include different parts.
 Reply


?     Asked on 6/20/2017 by Lee

What is the difference between parts 4677-16 n 4655-03D
 Reply

A  Answered on 6/21/2017 by InyoPools Product Specialist Lennox H.

Hi, Lee. The Gauge Assembly, Complete (073027) - 4677-16 includes this Air Relief Manual Valve Assembly (98209800) - 4655-03D plus additional parts specifically for the Purex 4000 Series Molded D.E. Filter.
 Reply


?     Asked on 6/6/2017 by Jose R Gutierrez

I like to know how to install FNS relief valve
 Reply

A  Answered on 6/26/2017 by InyoPools Product Specialist Lennox H.

Jose. Installation instructions are provided on page 7 of the FNS® Plus Vertical Grid D.E. Filter Owner's Manual
 Reply


?     Asked on 4/11/2017 by Gulkarov Nikolay

Which model number air Relief Manual Valve Assembly (98209800)
 Reply

A  Answered on 4/11/2017 by InyoPools Product Specialist Scott W.

What is your filter model?
 Reply


?     Asked on 10/25/2016 by Richard

I just ordered one of these assemblies tonight from you. My pressure relief valve is leaking at the base where it screws into the filter top. It looks like it has a crack in the relief valve body at the threads. My question is: what is the plastic clamp used for and where does it go? I don't see that clamp anywhere on my filter (Pentair Clean and Clear model 160317).
 Reply

A  Answered on 10/26/2016 by InyoPools Product Specialist Alan M.

Hello Richard- The clamp affixes to the small white air bleed sock on the top of the manifold.
 Reply


?     Asked on 10/6/2016 by Beth

Hi will this valve work with a Pentair 2000 series?
 Reply

A  Answered on 10/11/2016 by InyoPools Product Specialist Lennox H.

Hi, Beth. This Air Relief Manual Valve Assembly will not work with the Pentair 2000 Series filter. You can view the parts needed via the Purex 2000 Series Stainless DE Parts page.
 Reply


?     Asked on 10/2/2016 by suzanne

does the 98209800 air release valve replace my Purex triton model DM 180 air release valve (part # 175666)?
 Reply

A  Answered on 10/4/2016 by InyoPools Product Specialist Stacey M.

Hello Suzanne, yes the 98209800 air assy will replace the 175666 air release.
 Reply


?     Asked on 7/6/2016 by Francia

Will this fit a Pentair CC75?
 Reply

A  Answered on 7/10/2016 by InyoPools Product Specialist Lennox H.

Hi Francia, Yes, this Air Relief Manual Valve Assembly will fit the Pentair CC75.
 Reply


?     Asked on 6/27/2016 by David

Will this fit. an american titan, and where ,mine does not have a relief valve
 Reply

A  Answered on 6/28/2016 by InyoPools Product Specialist Matt S.

Whcih American Titan Filter do you own? Is it the Stainless Steel, CM, or RPM?
 Reply


?     Asked on 6/1/2016 by Dave

Is a Purex Triton FNS Plus filter the Same as a Pentair FNS Plus.
 Reply

A  Answered on 6/1/2016 by InyoPools Product Specialist Megan C.

Hello, Dave. Yes, the Pentair FNS Plus D.E. Filter is comparable to the Purex Triton FNS Plus D.E. Filter. You may use the Pentair FNS Plus D.E. Filter Parts Page as a guide for all parts needed for replacement.
 Reply


?     Asked on 5/15/2016 by Tracy

Will this assembly replace p/n 98723300?
 Reply

A  Answered on 5/17/2016 by InyoPools Product Specialist Lennox H.

Hi Tracy, This Air Relief Manual Valve Assembly will replace p/n 98723300.
 Reply


?     Asked on 4/28/2016 by

Sometimes it will show no pressure unless you release water [air]. When pressure is released then it will fil5ter again,
 Reply

A  Answered on 4/30/2016 by InyoPools Product Specialist Lennox H.

Hi, It sounds like you have a suction leak causing air to get into your system. You can review our How To: Identify and Correct Air Leaks to find out how to fix your problem.
 Reply


?     Asked on 3/23/2016 by Ed

Will this assembly fit and work OK, on my 38 year old American 582090 vertical grid DE filter, which I believe is now owned by Pentair?
 Reply

A  Answered on 3/24/2016 by InyoPools Product Specialist Lennox H.

Hi ED, This Air Relief Assembly will fit onto the American Products 582090 filter.
 Reply


?     Asked on 8/28/2015 by Mckki

the pressure gauge broke but I only need the bottom black part not the actual gauge is that part sold separately?
 Reply

A  Answered on 8/31/2015 by InyoPools Product Specialist Lennox H.

Hi, The Air Relief Manual Valve Assembly (98209800) is olny sold as a kit which includes the pressure gauge.
 Reply


?     Asked on 8/10/2015 by Jeff

Does the Air relief manual valve assembly come with a O-ring ?
 Reply

A  Answered on 8/10/2015 by InyoPools Product Specialist Matt S.

Hello Jeff, yes the air relief valve stem o-ring does come with the assembly.
 Reply


?     Asked on 5/20/2015 by Charlie

My relief valve is dripping. I have a Purex-Triton Filter model #CC100.. Design flow=100 g.p.m. and 6.5 psi residential. There is a pin number on the tank housing =178555..Do I need to purchase the entire relief valve OR the very small "O" rings inside the valve? I have had this unit since 2000. I do not know if this assembly 998209800 is the correct fit But it sure looks like it! Thanks
 Reply

A  Answered on 5/20/2015 by InyoPools Product Specialist Patrick P.

Hi Charlie, This would be the correct air relief for the Purex-Triton Clean & Clear CC100 filter. For the CC100 filter I do not show where the small o-ring is sold separately so I would suggest the entire air relief.
 Reply


?     Asked on 5/15/2015 by fred

where do I get just the two O-rings on the bottom of the relief valve?
 Reply

A  Answered on 5/15/2015 by InyoPools Product Specialist Lennox H.

Fred, The o-ring that goes on the bottom of this air relief assembly is P/N 57006800.
 Reply


?     Asked on 4/21/2015 by Jim

Will this valve assembly work on an Aquatec FN/FNS-48 filter?
 Reply

A  Answered on 4/22/2015 by InyoPools Product Specialist Andy O.

Jim, This air relief valve part # 4655-03d would be the valve used on FNS PLUS model. If you have the FNS it would be a part # 4600-3550.
 Reply


?     Asked on 2/14/2015 by

Can I install this myself?
 Reply

A  Answered on 2/16/2015 by InyoPools Product Specialist Robert M.

The Air Relief Assembly can be installed by a homeowner. It requires that you unthread the old one, wrap some teflon tape around the threads of the new valve, and thread it back into place.
 Reply


?     Asked on 1/16/2012 by Guest

Does this item include the pressure gauge?
 Reply

A  Answered on 1/16/2012 by InyoPools Product Specialist Patrick P.

Yes it does.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

None

Leaking Valve

Written on 4/8/2019 by Guest

We unscrewed the old and screwed in the new.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Pliers, Wrench Set

Old Air-Relief Manual Valve Just Needed to be Replaced

Written on 2/27/2019 by Guest

Used wrench to take the old one off and replace with new one.

Were these instructions helpful?
