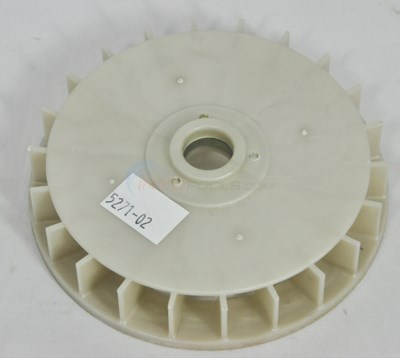

Cooling Fan, Plastic Ammo-SE (Saw-54)

$32.99

IN STOCK

Part # 5271-02

By Essex Group

  5 Average

Details

Top

Part # 5271-02

Manufacturer Code SAW-54

Alternate Part #'s 606661, 616603, SAW54, 35-125-2076, AOS606661

Product Description

Internal Cooling Fan

Product Specifications

Outside Diameter:
4-11/16 in.
Inside Diameter:
21/32 in.
Top

?     Asked on 6/29/2020 by Gaetan Trudeau

I want to know if this fan goes to my motor C48K2N143B3
 Reply

A  Answered on 10/22/2020 by InyoPools Product Specialist Hector F.

Hi Gaetan, Yes this cooling fan is the correct fan for the motor model C48K2N143B3.
 Reply


?     Asked on 4/6/2020 by Tim

Hi there, Looking at replacing my bearings, seals and cooling fan on my pump - Hayward Super Pump A O Smith C48L2N134B4. Would this be the correct cooling fan? Do you ship to Canada?
 Reply

A  Answered on 4/6/2020 by InyoPools Product Specialist Patrick P.

Yes this is the correct cooling fan for your C48L2N134B4 and yes we do ship to Canada.
 Reply


?     Asked on 4/5/2020 by Ramon Naveda

Excuse me, I forgot to mention that I also want to change the front cover of the engine, which is a little worn, you have it in the photo with the number 14 sell it? Thank you

 Reply

A  Answered on 4/6/2020 by InyoPools Product Specialist Patrick P.

Hi Ramon, I'm sorry we do not carry key #14 I don't think the motor manufacturer sells this as a replaceable part.
 Reply


?     Asked on 4/5/2020 by Ramon Naveda

Good afternoon, I am repairing the motor of a pump, model C48L2N134C2, 56J, ST1102, the cooling fan is destroyed, I would like to know if this model is the one I need, I also want to change the rollers and the seal, which they recommend. Thank you
 Reply

A  Answered on 4/6/2020 by InyoPools Product Specialist Patrick P.

Hi Ramon, Yes this is the proper cooling fan for the ST1102 motor.
 Reply


?     Asked on 3/27/2020 by Gary

Will fan 5271-02 fit an AO Smith #SP1510Z1XBC motor? The motor uses bearing #6203.
 Reply

A  Answered on 3/27/2020 by InyoPools Product Specialist Patrick P.

Hi Gary, Yes this the proper fan for your motor.
 Reply


?     Asked on 2/29/2020 by Bruce

I need a cooling fan for a 1 HP, model C48D52A03, electric motor. What is the correct part number?
 Reply

A  Answered on 3/2/2020 by InyoPools Product Specialist Lennox H.

Hi, Bruce. Unfortunately, our list does not list that motor model. We're unable to confirm if this cooling fan will work.
 Reply


?     Asked on 1/13/2020 by Robert

I have a super pump AO smith motor model C48L2N134B1. I disassembled the motor knowing the motor bearings were bad. I noticed the plastic cooling fan has a crack close to the shaft. I won't to replace the cooling fan as well. just looking to confirm that part # is 5271-02 is indeed the fan I need. Regards, Rob
 Reply

A  Answered on 1/14/2020 by Industry Professional

Hey Robert, the Essex Group Cooling Fan, Plastic Ammo-SE (Saw-54) would be the correct unit for that motor.
 Reply


?     Asked on 4/25/2018 by ROSA GONZALEZ NAVA

Please let me kniw if this Cooling Fan, Plastic Ammo-SE (Saw-54) work with motor C48L2N134B5?? Thanks for your answer
 Reply

A  Answered on 4/26/2018 by InyoPools Product Specialist Hector F.

This is the correct fan for that motor model.
 Reply


?     Asked on 9/10/2017 by Gerald

Hello, does it work for Hayward SP-1610-Z1MBK internal fan replacement (C48L2N134B3) ? Thank you ! Gerald
 Reply

A  Answered on 9/10/2017 by InyoPools Product Specialist Lennox H.

Hi, Gerald. Yes, this Cooling Fan will fir the C48L2N134B3 motor.
 Reply


?     Asked on 6/27/2017 by Peter

Does this plastic fan need screws/bolts to hold it onto the motor shaft please ?
 Reply

A  Answered on 7/29/2017 by InyoPools Product Specialist Alex V.

Peter, The cooling fan looks to be held in place by the bearing once installed
 Reply


?     Asked on 6/11/2017 by

WOULD THIS FIT AO SMITH J04853L
 Reply

A  Answered on 6/17/2017 by InyoPools Product Specialist Lennox H.

Hi. Unfortunately, I can not confirm if this Cooling Fan will fit the J04853L. You will need to contact A.O. Smith/Century directly at 937-667-2431.
 Reply


?     Asked on 6/9/2017 by Peter

will this fit USQ1072 -48Y Please
 Reply

A  Answered on 6/9/2017 by InyoPools Product Specialist Hector F.

Yes, this is the correct fan for the USQ1072 .
 Reply


?     Asked on 5/24/2017 by

Will this work for a USQ1102?
 Reply

A  Answered on 5/24/2017 by InyoPools Product Specialist Hector F.

Yes, this is the correct cooling fan for your motor.
 Reply


?     Asked on 4/26/2017 by Harvey

which replacement fan do I need for my motor model # sr4g25712
 Reply

A  Answered on 4/26/2017 by InyoPools Product Specialist Lennox H.

Hi, Harvey. Unfortunately, we do not carry any parts for the motor used on the Roaring River Pool Pumps.
 Reply


?     Asked on 4/26/2017 by Harvey

I have a roaring river pool pump , above ground ., motor number RS4G25712 , what fan do I need , mine is broken ? Is the fan number 5271-02 or 5271-o4 ? Thanks I need to get it going
 Reply

A  Answered on 4/26/2017 by InyoPools Product Specialist Lennox H.

Hi, Harvey. Unfortunately, we do not carry any parts for the motor used on The Roaring River Pool Pumps.
 Reply


?     Asked on 4/22/2017 by Patrick

Test question
 Reply

A  Answered on 4/22/2017 by InyoPools Product Specialist Patrick P.

Test Reply
 Reply


?     Asked on 7/22/2016 by alfredo

i have hayward super2 pump 2hp you now whichone is the correct for this model
 Reply

A  Answered on 7/24/2016 by InyoPools Product Specialist Lennox H.

Hi Alfredo, The Super II Pump has a 56J frame motor which uses the Cooling Fan (SAW-48). If you can provide the actual MOD, CAT or PART number we can confirm.
 Reply


?     Asked on 6/18/2015 by Al

I have a ao smith model#c48k2n143b1, 1hp what internal cooling fan do I need
 Reply

A  Answered on 6/18/2015 by InyoPools Product Specialist Dennis R.

Al, The correct colling fan for a 1 HP model c48k2n143b1 motor [also UST1102] is part number: 5271-02.
 Reply


?     Asked on 4/18/2015 by Armand

I have a USQ1072 motor 3/4 HP. What fan do I need?
 Reply

A  Answered on 4/20/2015 by InyoPools Product Specialist Robert M.

Hello Armand - The correct fan for the USQ1072 is part number 5271-02.
 Reply


?     Asked on 1/24/2015 by Taed

I have a 1.5hp model k48m2pa105c4 (SQ1152). What fan do I need?
 Reply

A  Answered on 1/26/2015 by InyoPools Product Specialist Robert M.

Hello Taed - The correct fan is part number SAW-48 (5271-04).
 Reply


?     Asked on 12/4/2014 by Ira Paul

Will this fan fit my A. O. Smith motor model # K48K2PA101? It looks exactly like it except mine is black. If it will fit, I'll order it. Thanks!
 Reply

A  Answered on 12/5/2014 by InyoPools Product Specialist Robert M.

Hello Ira - The correct fan for model K48K2PA101 (QC1072) is part number 5271-02.
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Pliers, Adjustable Wrench, circlip pliers

0     1

Cooling fan broke loose

Written on 10/31/2017 by Guest

I live in a rural area over 200 miles from Tucson where I had this pump motor rebuilt. The guy told me the fan was broken and he didn't have a replacement, so he "siliconed" it, and it should be fine. It let loose just a few weeks later after just a few hours use. I was tired of being held hostage by these guys who charge me over $100 for a few parts and a few minutes work, so I got on line, found INYO Pools where I got excellent information and support. Two days later I had the partd I needed, and viola, a few tools and I had a fixed pump motor. Thanks to INYO pools, they made it really easy.
