Part # 4600-1104

Manufacturer Code 271104

Dimensions 5-1/4" X 0.75"

Alternate Part #'s 1106, 14971-SM10E12, 14971SM10E12, 2603101002, 271104, 30C3011, 873-E12S1, 873E12S1, E12S1, G-416, 27-253-1058, AEQG416, ALDG-416, APCG3337

Product Description

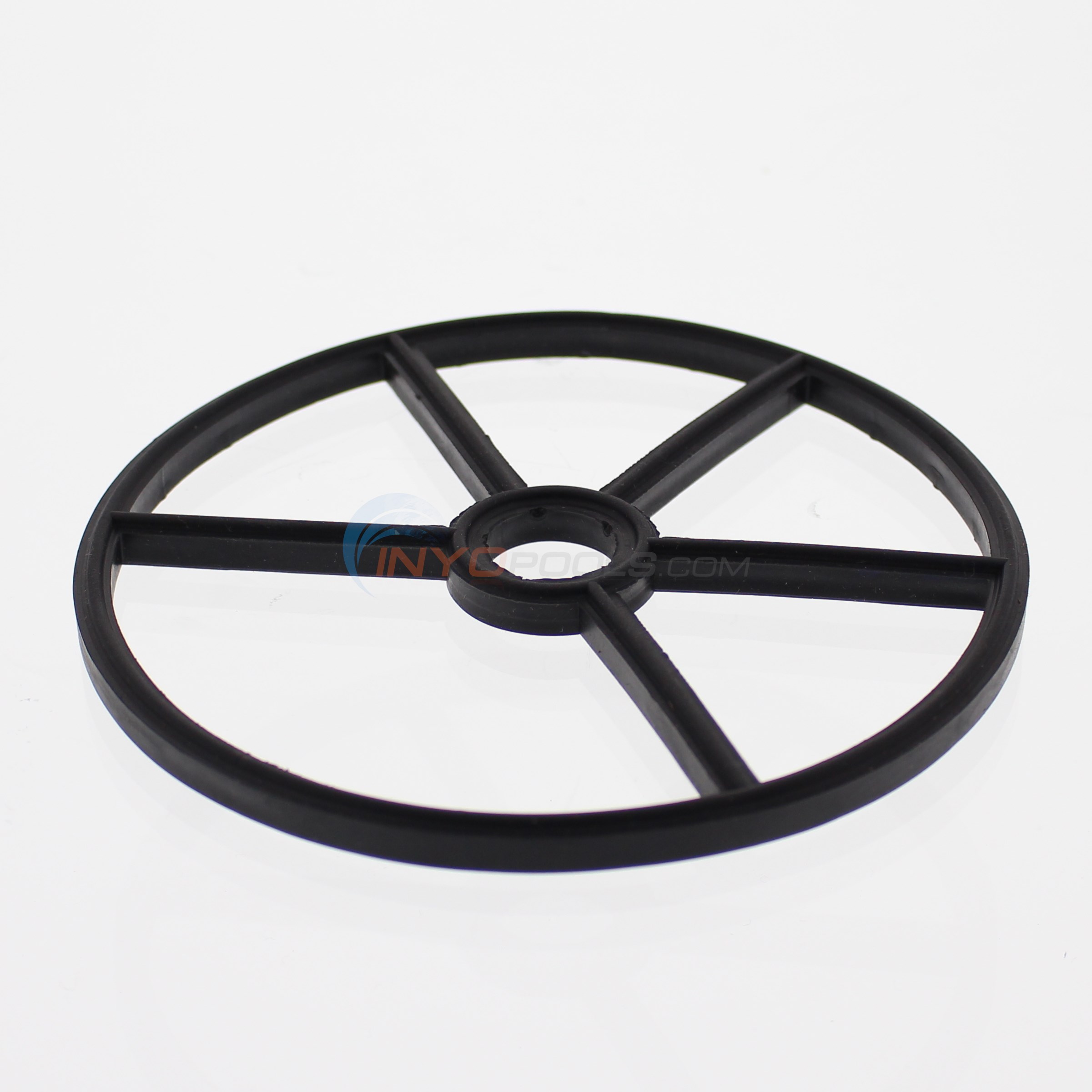

Diverter Gasket, 1-1/2" - 271104

This 5-spoke valve diverter (spider) gasket is a replacement part for several valves including Pentair / Praher 1.5" TM12 and SM10, Sta-Rite SideMount 1.5" and 2", Poolco Multiport, Speck 1.5" Top Mount, and Baker Hydro Side Mount Multiport.  Other related valves can be seen under the tab above labeled "Parts".

Frequently Bought with Spider Gaskets

RTV Silicone for Keeping Spider Gasket in Place (Do Not Use Glue)

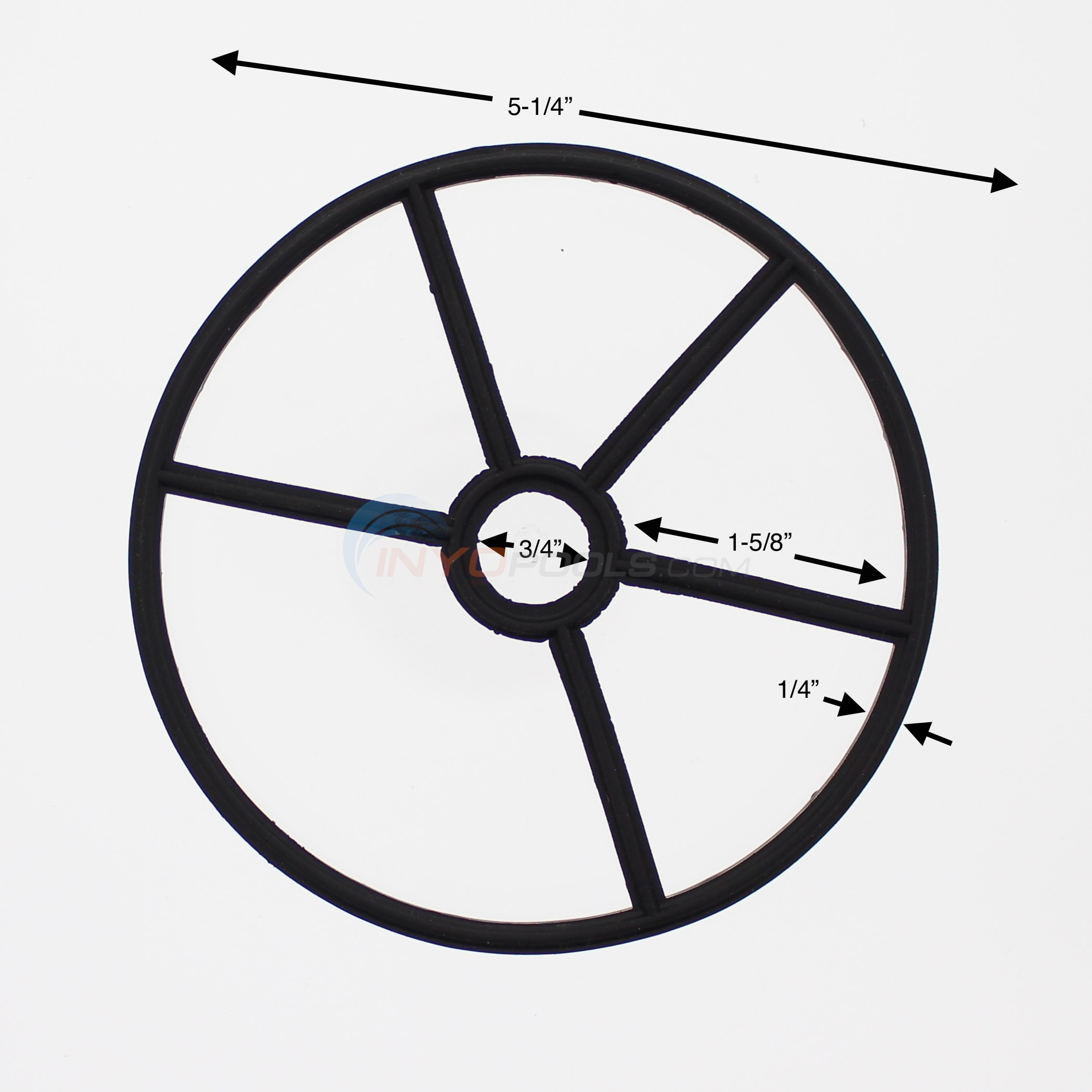

USED ON PAC FAB, PRAHER 1-1/2" VALVES 5 SPOKE GASKET

OUTSIDE DIAMETER: 5-3/16" CENTER HOLE
INSIDE DIAMETER: 3/4"
THICKNESS: 1/4" (TOP TO BOTTOM)
SPOKE THICKNESS: 3/16" (SIDE TO SIDE)
OUTSIDE RING THICKNESS: 3/16" (SIDE TO SIDE)

Top

?     Asked on 10/7/2014by Guest

I am wondering how thick (vertically) the gasket is ? last year I bought one somewhere on line ( lost my records) that fits horizontally but seems to be too thick. When the diverter is turned it is very tight and wrinkles the gasket ! The one I have is about 5/16 " thick.
 Reply

A  Answered on 10/7/2014 by InyoPools Product Specialist Patrick P.

Here are the dimensions : OUTSIDE DIAMETER: 5-3/16" CENTER HOLEINSIDE DIAMETER: 3/4"THICKNESS: 1/4" (TOP TO BOTTOM)SPOKE THICKNESS: 3/16" (SIDE TO SIDE)OUTSIDE RING THICKNESS: 3/16" (SIDE TO SIDE)
 Reply


?     Asked on 5/27/2015by Inyo Visitor

Need a replacement spider gasket for a Praher TM-12_L. Does this get glued in when installed?
 Reply

A  Answered on 5/27/2015 by InyoPools Product Specialist Patrick P.

Yes this gasket here is the correct spider gasket for the TM-12L valve. You would glue the gasket into the valve and here we have a guide with Video on How to Replace Your Spider Gasket which goes into the gluing of the gasket.
 Reply


?     Asked on 6/3/2015by Bruce

Does this go to the RS-2515 filter
 Reply

A  Answered on 6/4/2015 by InyoPools Product Specialist Patrick P.

Hi Bruce, Yes this spider gasket does go with the RS-2515 Ranger filter valve.
 Reply


?     Asked on 7/1/2015by debbi

does this spider gasket work on a Jacuzzi Splash filter? thanks.
 Reply

A  Answered on 7/2/2015 by InyoPools Product Specialist Lennox H.

Hi Debbi, The Diverter 1 1/2" (E-12-S1) Gasket will not work on a Jacuzzi Splash Filter.  We would need to know the model valve that you on your Jacuzzi Splash Filter.
 Reply


?     Asked on 7/15/2015by ted

do you glue the gasket in a model tm-12 also are does fir in slot
 Reply

A  Answered on 7/16/2015 by InyoPools Product Specialist Lennox H.

Hi Ted, You will have to glue in the Diverter Gasket into the valve body on the TM-12 valve.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers

Water dripping from waste line…

Written on 8/17/2022 by Guest

Removed cover from my 6 way diverter valve. Found that the diverter gasket was torn in several places. Replaced the gasket and glued it in with some silicone gasket cement. Be sure to clean the area where the gasket mounts before installing the new one. I used a small flat tip screwdriver to clean the area . Replace cover, secure screws but don’t over tighten. The Inyopools diverter gasket fit perfectly on my Pentair TM-12 valve.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

Did not have a problem with the existing gasket but purchased the new one to have on hand .

Written on 7/10/2022 by Guest

have not replaced gasket yet but have done it before and it is a relatively easy procedure. just remove old one clean seating surface and install new one I use dabs of rtv silicone to hold it in place.

Were these instructions helpful?


Difficulty

Est. Repair Time

4 to 8 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set, Adjustable Wrench, Clamps to compress spring and replace

Torn Spyder diverter gasket

Written on 6/9/2022 by Guest

1) Remove top of diverter valve.
2) Remove spyder gasket. This proved to be very tedious and time consuming since factory had glued entire gasket seat onto the valve head.
3) After making sure all of prior gasket and adhesive was removed, strategically glue and reinsert new gasket. Apply silicone lubricant to gasket.
4) Replace all additional parts to be replaced. Handle washer, spring, spring washer, 2 O-rings.
5) Reattach valve head.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

Old Diverter Gasket was Bad

Written on 5/18/2022 by Guest

Removed screws from the top of the multi-function valve.
Took the top off.
Removed old diverter gasket.
Cleaned and lubricated all of the gasket seating area.
Put the top back on.
Replaced all of the screws.

Were these instructions helpful?


Difficulty

Est. Repair Time

More than 8 hrs

Tools Needed

Screwdriver, Wrench Set, Silicone gasket adhesive

Pool was draining out the backflush when filter valve was in filter mode. Spider gasket was torn.

Written on 5/10/2021 by Guest

Ensure all intake/exhaust valves are closed so water won't fill the valve area
Remove 6 screws and nuts that fasten the valve
Remove the valve and ensure the valve retracts when engaging the handle. The gasket probably torn because the cams on the handle are worn, not allowing the valve to retract fully from the gasket, thereby ripping the gasket when the valve is rotated to a different position or mode.
Remove the gasket by pulling it out with your fingers. Remove all residue where the gasket sets. I used a small flathead screwdriver.
Ensure the grooves that retain the gasket are free from water and gasket residue
Coat smooth side of gasket with adhesive and set into place, pressing to ensure the gasket is seated evenly all around.
The adhesive I used required a 24 hour set time before use
Reinstall the valve and open all the appropriate water valves. You may have to prime the filter

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

1     0

Worn out gasket causing improper filtering

Written on 5/4/2020 by Guest

We used a screwdriver to remove the multi port valve housing. Took old gasket out and placed the new one in the housing. Returned the top and used screwdriver to tighten. Project complete!

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Adjustable Wrench

1     0

leaking from backwash pipe

Written on 8/15/2018 by Guest

Unscrewed top of valve, pulled out old gasket, cleaned plastic channels, added adhesive in corners of valve, placed new gasket into position, replaced top of valve screwed closed waited for twenty- four hours for glue to set, restarted pool filter and checked for leaks. No longer noticed leaking from backwash pipe. INYO provided all the directions to complete the repair. Would recommend replacing the top diverter valve gasket as the same time..

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers, Socket Set

3     0

I had small leak in the discharge pipe after I back washed my pool

Written on 6/26/2018 by Guest

I removed the top of the multi-port valve (carefully) and removed water that was still in the bottom of the valve. The gasket had not been changed since the pool was put in (20 years) so the removal of the old gasket took some time. Carefully scraping the old gasket out with a small screwdriver, I removed all the old pieces, replaced it with the new gasket and coated it with generous amounts of silicone based gasket lube. Be sure to use this lube whenever any gasket is replaced. I secured the top of the valve and was back swimming!

Were these instructions helpful?
