Diverter Gasket 2" Valve 5-Spoke - E-12-S-2

$20.99

IN STOCK

Part # 4600-1148

  4.62 Average

Details

Top

Part # 4600-1148

Manufacturer Code E-12-S-2

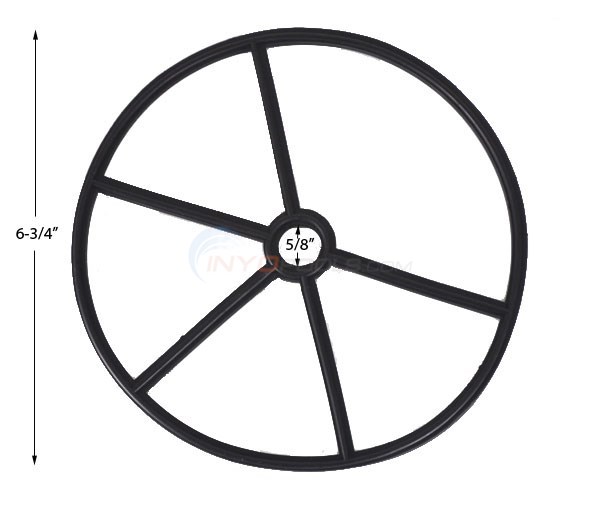

Dimensions 6.75" X 0.64"

Alternate Part #'s 13107404R, 14971SM20E12, 271148, 30C3111, 621261, 873-E12S2, 873E12S2, E12S2

Product Description

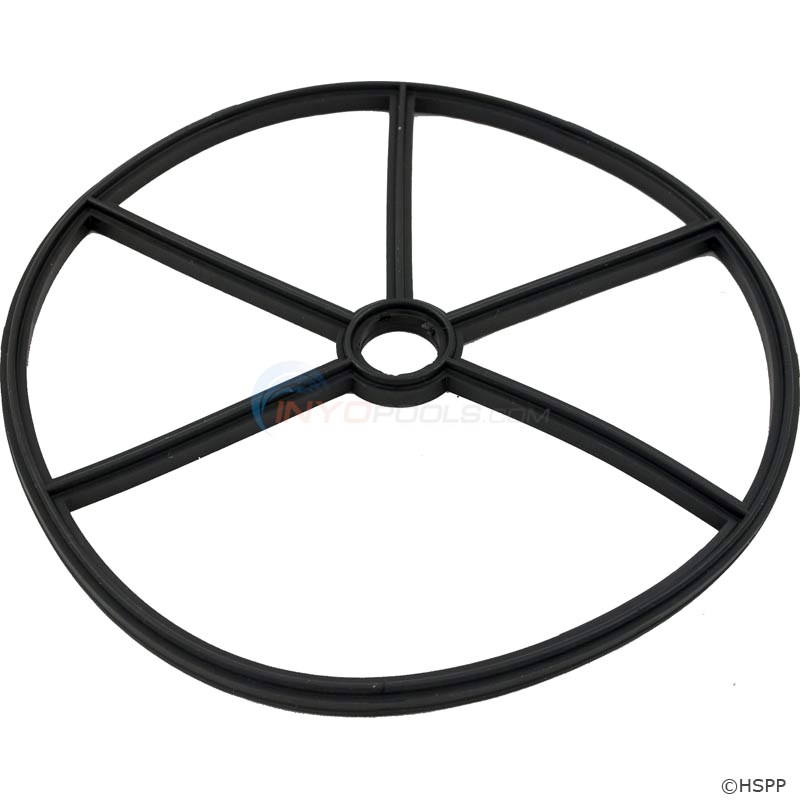

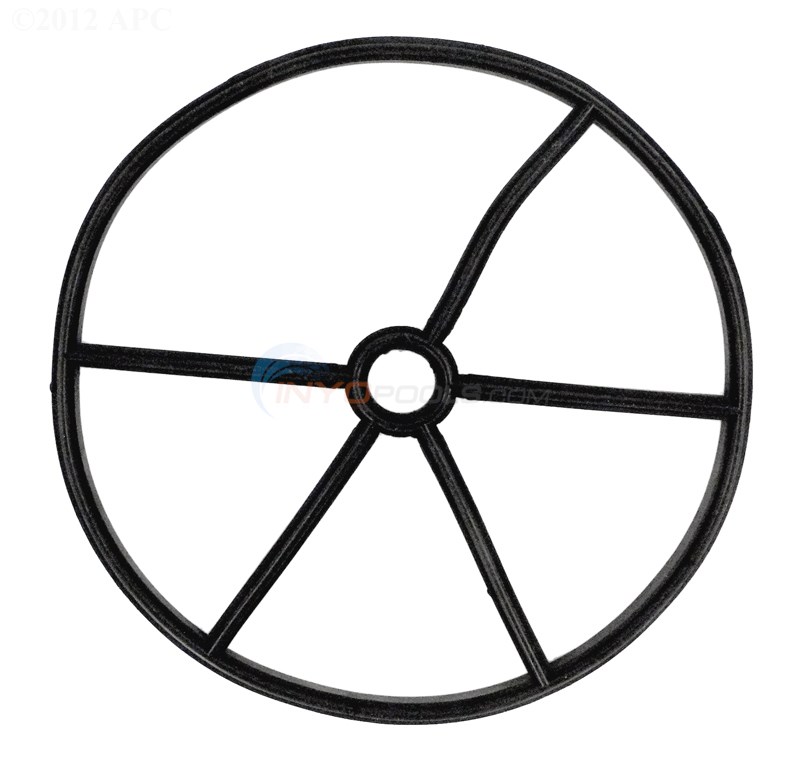

This is a 2 inch, 5-spoke Diverter Gasket (E-12-S 2") used on a number of 2 inch top mount and side mount filter valves including the Pentair Praher TM22 and SM20, Water Crystal Water DE, Sta-Rite Multiport 2" Top Mount and Jacuzzi Top Mount 2".  This part is commonly replaced to resolve leaks in multiport valves.  Outside diameter is 6.75" and inside diameter (center hole) is 0.64".

Top

?     Asked on 8/21/2019 by Phil

I replaced my spider gasket. When screwing multiport back together it seemed very tight (gasket might be too thick). Now my filter gauge is reading a very high pressure. I backwash and it soon gets high again. Is this related to the new gasket?
 Reply

A  Answered on 9/25/2019 by InyoPools Product Specialist Lennox H.

Hi, Phil. The issue that you're experiencing is not related to the new gasket.
 Reply


?     Asked on 6/9/2019 by john senecal

Hello If the spider gasket was worn out could DE leak by into pool. Thinking DE is going into pool? Thanks
 Reply

A  Answered on 6/10/2019 by Industry Professional

No typically not.I would check the grids and manifold for a tear or crack.
 Reply


A  Answered on 6/10/2019 by Industry Professional

NO, usually your grid, fingers have tears inthem and need replacement
 Reply


A  Answered on 6/10/2019 by Industry Professional

Yes, a worn spider gasket could cause de to leak into the pool
 Reply


A  Answered on 6/10/2019 by Industry Professional

More likely there is a tear in the fabric of the filter element.
 Reply


?     Asked on 5/6/2019 by Jeanine

Does this fit a Pentair Valve Assembly model SM2-PP2 / Valve Model SM-20-2
 Reply

A  Answered on 5/6/2019 by InyoPools Product Specialist Patrick P.

Hi Jeanine, yes this spider gasket does fit a Pentair Valve Assembly model SM2-PP2 / Valve Model SM-20-2
 Reply


?     Asked on 3/26/2019 by Jean Griggs

I replaced my Multi Function Valve last fall. When I try to vacuum my pool to waste, it will not work. Bypass and all the other functions are completely fine. What am I doing wrong?
 Reply

A  Answered on 3/26/2019 by InyoPools Product Specialist Lennox H.

Hi, Jean. The issue could be that the water level drops too low when vacuuming to waste or you're losing suction.
 Reply


?     Asked on 3/24/2019 by John K

I am changing the lid assembly (e-50-s2/4600-1152) on my 2" PRAHER valve assembly. I am also replacing the Spider gasket (e-12-s 2"/4600-1148). Do I need to glue in the new spider gasket? Do I need to lubricate the gasket before installing the new lid assembly?
 Reply

A  Answered on 3/24/2019 by InyoPools Product Specialist Lennox H.

Hi, John K. The Diverter Gasket - E-12-s 2" will have to be glued into the Valve Body. Once it is dried, the top portion will have to be lubricated before installing the Top Assembly.
 Reply


?     Asked on 2/13/2019 by Michael

We have a Pantair TR 100 and a Pantair TR 140. I need to replace the spider gasket in both. I'm showing a part numbers I'm showing on both is: Valve P/N 261055 and Label P/N 273208 Rev G. The outside diameter is 6.75" and .58" inner. What is your part number for these gaskets?
 Reply

A  Answered on 2/13/2019 by InyoPools Product Specialist Hector F.

Both of these valves use spider gasket part number 4600-1148
 Reply


?     Asked on 2/13/2019 by Michael

What type of glue should I use to install a diverter gasket? What type of lubricant should I use on top of the gasket?
 Reply

A  Answered on 2/13/2019 by InyoPools Product Specialist Lennox H.

Hi, Michael. You can use our Adhesive - 6550-0 or a similar product like E-6000, Loctite 401, 403, or 416.
 Reply


?     Asked on 11/19/2018 by Pete Horne

I have a 2003 Pentair SM-20-3 valve. When in filter mode water is coming out the discharge pipe. Does not fill the sight gless, but enough to see the flow. Valve appears to be working, except for this. Could it just be the diverter gasket or would I need to replace the valve too?
 Reply

A  Answered on 11/20/2018 by InyoPools Product Specialist Hector F.

Most commonly what you are describing is due to the spider gasket failing. For your model valve that would be part number 4600-1148. You may also want to consider silicone part number 6558-0
 Reply


?     Asked on 6/27/2018 by mark

what is Hayward part for spider gasket 271148
 Reply

A  Answered on 6/28/2018 by InyoPools Product Specialist Hector F.

This part number is only for a Pentair/Praher series multiport valve. If you click here you will be directed to that parts diagram. You would need to know the Hayward valve model in order to cross reference the gasket.
 Reply


?     Asked on 5/30/2018 by L. Sean DeWeese

Does this fit the sta-rite 18201-200?
 Reply

A  Answered on 6/8/2018 by InyoPools Product Specialist Megan C.

Yes, it is correct for the Valve Assy., Multiport 2in (18201-0200) (wc212-150pn)
 Reply


?     Asked on 5/30/2018 by Mike

Does this gaskey have to be glued in?
 Reply

A  Answered on 5/30/2018 by InyoPools Product Specialist Lennox H.

Hi, Mike. Yes, this Diverter Gasket has to be glued to the valve body.
 Reply


?     Asked on 11/27/2017 by

I have a Swimquip model 1497-12 which requires a 5 spoke spider gasket. I think it is 6.75 inches. what is the correct part number? would also like the top handle which I think is worn where it will not lift properly and a new label for the top. thanks for your assistance.
 Reply

A  Answered on 11/29/2017 by InyoPools Product Specialist Lennox H.

Hi. This is the correct Diverter Gasket - E12S2 for your SwimQuip valve. I would recommend replacing the Top Valve Assy -  E-50-S2B (Black) or E-50-S2 (White).
 Reply


?     Asked on 9/15/2017 by Rick

Hi there. I've got a Pentair multiport valve, Model # 27-3208, need the spider gasket, and might as well get the O-ring (aprox 9 inch diameter?) while I'm at it. Can you provide a part # so i get it right the 1st time? Thanks!
 Reply

A  Answered on 9/20/2017 by InyoPools Product Specialist Lennox H.

Hi, Rick. This Diverter Gasket - 271148 and the Cover O-ring - 271151 are the parts you'll need for your model valve.
 Reply


?     Asked on 9/4/2017 by Ricky

I need a 4 spoke spider gasket for a model 272526 valve. Do you carry those?
 Reply

A  Answered on 9/6/2017 by InyoPools Product Specialist Lennox H.

Hi, Ricky. The diverter gasket is not sold separately, you will have to replace the entire Valve Diverter w/ Gasket - 272512
 Reply


?     Asked on 8/21/2017 by Patrick

For my Jandy DEL60 system, will this part fit to replace my Mutiport Valve spider gasket?
 Reply

A  Answered on 8/22/2017 by InyoPools Product Specialist Stacey M.

Hello Patrick, yes this is the correct spider gasket for you DEL60 valve.
 Reply


?     Asked on 7/31/2017 by Chuck

I have the Sta-rite 2" multiport selector valve, model 18201-0300. Is this the correct gasket for this valve?
 Reply

A  Answered on 8/3/2017 by InyoPools Product Specialist Lennox H.

Hi, Chuck. This Diverter Gasket - 271148 will fit the Sta-Rite MPV - 18201-0300.
 Reply


?     Asked on 6/20/2017 by

I have a model number sm20-3 sand filter diverter and need a 5 spoke spider gasket. is the 271148 gasket the correct one for this and is it glued in and if so what glue is suggested.
 Reply

A  Answered on 6/21/2017 by InyoPools Product Specialist Patrick P.

Yes this is the correct spider gasket replacement for the SM20-3 backwash valve.
 Reply


?     Asked on 6/18/2017 by

The valve is part of my 5000 gallon koi pond. I think this part is also referred to as a spider gasket my question is do I need to use glue or Loctite when I replace it?
 Reply

A  Answered on 6/25/2017 by InyoPools Product Specialist Lennox H.

Hi. You can use the Adhesive For Valve Seat Gasket - 81731 or a similar Loctite product when installing the diverter gasket.
 Reply


?     Asked on 6/5/2017 by Jim

We have a Pentair Tagelus filter P/N 145241 TA60D with a 6 way valve. Would you know what spider gasket we need and do you have it?
 Reply

A  Answered on 6/9/2017 by InyoPools Product Specialist Lennox H.

Hi, Jim. The Diver Gasket is not sold as a separate part for the TA60D OEM Valve, it's available only with the Valve Diverter w/ Gasket - 272512
 Reply


?     Asked on 6/1/2017 by Bill

I opened my multipart valve to change the spider gasket and it appears that it doesn't have one. How do I stop it leaking out the waste port when it is on filter?
 Reply

A  Answered on 6/7/2017 by InyoPools Product Specialist Lennox H.

Hi, Bill. All MPV have a  diverter gasket, some of them are glued into the diffuser. If you can provide the valve model I can try to locate the correct gasket.
 Reply


?     Asked on 5/25/2017 by andrew j muma

I have a Pentair model 271140 and would like to know what spider gasket to purchase?
 Reply

A  Answered on 5/25/2017 by InyoPools Product Specialist Patrick P.

If you have 2" plumbing connecting to your valve then this is the the correct spider gasket. If you have 1.5" plumbing connecting to your valve then you will need the 271104 Spider Gasket
 Reply


?     Asked on 5/22/2017 by sam

what is the thickness in millimeters?
 Reply

A  Answered on 5/27/2017 by InyoPools Product Specialist Lennox H.

Hi, Sam. This gasket is 6.35 mm thick.
 Reply


?     Asked on 5/19/2017 by Brian

was wondering if part number 271148 is what I am needing. I have a Pentair Tagelus TA-40d. I picked up a 271104 but the middle hole on the gasket was to small. any help would be greatly appreciated!
 Reply

A  Answered on 5/20/2017 by InyoPools Product Specialist Lennox H.

Hi, Brian. In order to locate the correct diverter gasket, I will need to know the model of the valve. If you have the original valve, the diverter gasket is not sold separately. You will have to replace the Valve Diverter w/Gasket - 272512.
 Reply


?     Asked on 5/17/2017 by Kerry

Do you happen to know if this will fit the Aquatools AT3125?
 Reply

A  Answered on 5/20/2017 by InyoPools Product Specialist Lennox H.

Hi, Kerry. We will need to know the valve model used on the AT3125 filter in order to determine if this gasket will fit.
 Reply


?     Asked on 5/16/2017 by Teresa Braden

I am interested in buying the correct multiport diverter gasket for my Hayward S310T sand filter. I have received the incorrect size in the past and want to be sure it fits and made for Hayward S310T .
 Reply

A  Answered on 5/16/2017 by InyoPools Product Specialist Hector F.

We would actually need the model of that multiport in order to cross reference the gasket for that valve. You can call in with that or if you are not sure you can email us images of that valve through our support request page.
 Reply


?     Asked on 5/15/2017 by Christy Birmingham

Which water diverter gasket do I need for Eco kleer sand filter
 Reply

A  Answered on 5/16/2017 by InyoPools Product Specialist Hector F.

We actually would need the model of the valve itself in order to cross reference that gasket. You can call in with that information or you can email us images of that valve through our support request page so we can assist in identifying it.
 Reply


?     Asked on 5/11/2017 by mike

I need help finding the correct gasket for Pentair spider valve P/N 262506 1.5" HIFLO TM 6POS. I received a gasket P/N 271104 which will will not fit. It has a smaller diameter at inside hole and an extra spoke. It seems to be for a 5 port valve and not 4 ports. I can email a photo if it would help. Thanks !
 Reply

A  Answered on 5/11/2017 by InyoPools Product Specialist Hector F.

The spider gasket comes with the diverter and not sold separately. It is part number 4600-2512. Please call in to set up the return if you need assistance as well.
 Reply


?     Asked on 5/4/2017 by Jennifer

In the gasket installation video after the gentleman glues the gasket down he lubes it with something but doesn't say what. Is that a step that can be skipped? If not, what does he use?
 Reply

A  Answered on 5/4/2017 by InyoPools Product Specialist Hector F.

In this video, the technician is using magic lube used on o-rings and gaskets. Some people use that on these gaskets and some do not. It doesn't hurt to use it.
 Reply


?     Asked on 3/31/2017 by Bill

How long after gluing the gasket do i need to wait before using?
 Reply

A  Answered on 3/31/2017 by InyoPools Product Specialist Hector F.

For best results wait 24 hours.
 Reply


?     Asked on 3/17/2017 by Spider Gasket Adhesive

I see that you are now recommending Permatex Super Weatherstrip Adhesive (81731). I replaced the gasket about 3 years ago and used the recommended 3M Industrial Adhesive 4799 which I still have. Would you still recommend the 3M adhesive today?
 Reply

A  Answered on 3/17/2017 by InyoPools Product Specialist Lennox H.

Hi. Yes, you can still use the adhesive that you have.
 Reply


?     Asked on 2/23/2017 by Frank Robertson

Does this gasket require glue in the pentair SM20-2
 Reply

A  Answered on 2/24/2017 by InyoPools Product Specialist Stacey M.

Hello Frank, Yes there is an Adhesive For Valve Seat Gasket (81731) if you would like a tutorial video How to Replace a Spider Gasket on a Multiport Valve.
 Reply


?     Asked on 1/19/2017 by Alberto

I would like to know whats the right Spider Gasket for Praher Model SM20-1 , 50 P.S.I.
 Reply

A  Answered on 1/24/2017 by InyoPools Product Specialist Alan M.

The correct spider gasket for the Praher SM20-1 is the Gasket, Diverter 2in 5-spoke (e-12-s 2") (271148).
 Reply


?     Asked on 8/4/2016 by Ron

How much gasket adhesive do I use, and should I put it in the gasket channel or do I put it on the gasket? I tried looking at your how-to video but I can't get it to load for some reason. Thanks in advance. RON
 Reply

A  Answered on 8/4/2016 by InyoPools Product Specialist Alan M.

Hello Ron, You can add the adhesive to the channel and set the gasket in place. I would recommend using enough glue to ensure the gasket is properly fixed in place.
 Reply


?     Asked on 8/4/2016 by Ron

How much gasket adhesive do I use for the spider gasket, and do I put it on the bottom of the whole gasket?
 Reply

A  Answered on 8/4/2016 by InyoPools Product Specialist Alan M.

Hello Ron, You can add the adhesive to the channel and set the gasket in place. I would recommend using enough glue to ensure the gasket is properly fixed in place.
 Reply


?     Asked on 7/9/2016 by

I have a STA-RITE sand filter Cristal-Flo model T-300BP-2 does the following gasket fit this filter: MANUFACTURER CODE 271148
 Reply

A  Answered on 7/15/2016 by InyoPools Product Specialist Lennox H.

Hi, This Diverter Gasket (271148) will fit the TM-22-L valve. If you have the original valve we will need to know themodel number to confiem if this gasket can also be used.
 Reply


?     Asked on 6/27/2016 by dave

I have a Pentair valve, model SM-20-2. I need to replace the spider gasket. Which one do I need?
 Reply

A  Answered on 6/28/2016 by InyoPools Product Specialist Matt S.

The Diverter Gasket 271148 is the correct replacement for the SM20-2 multiport valve.
 Reply


?     Asked on 6/17/2016 by Adrian

Hello, I need need the rubber spider valve gasket. My numbers say, SM-20-3 and 27-3208 REV. F . Not sure what I need exactly as no other match up. Any guidance is greatly appreciated.
 Reply

A  Answered on 6/17/2016 by InyoPools Product Specialist Patrick P.

Hi Adrian, this would be the correct spider gasket the valve with the part #'s you referenced. We also have a Video on How to Replace a Spider Gasket which you may find helpful.
 Reply


?     Asked on 6/1/2016 by Dennis

Pump runs but no discharge. Come out of backwash. Gcf8704@yahoo.com
 Reply

A  Answered on 6/7/2016 by InyoPools Product Specialist Lennox H.

Hi Dennis, I would recommend that you check the pump to make sure the motor is spinning or the pump is primed.
 Reply


?     Asked on 5/28/2016 by joe turgeon

why do I see several gaskets with part number 271148 but various outer dimensions (7", 6.5', 6.75")? I have a pentair valve model sm-20-2, valve assy SM2-PP2. Which is the right valve?
 Reply

A  Answered on 5/30/2016 by InyoPools Product Specialist Lennox H.

Hi Joe, We have the dimensions listed on the Product Dimension image. The SM2-PP2 will replace the SM20-2 for DE filters.
 Reply


?     Asked on 5/20/2016 by carl

I have a purex triton model SM20-2 valve i believe the gasket is leaking also the top part of the valve is hard to move i believe the spring is frozen and wouldlike to replace the top assemby what would you recomend?
 Reply

A  Answered on 5/21/2016 by InyoPools Product Specialist Lennox H.

Hi Carl, I would recommend that you replace the Top Valve Assy and the Diverter Gasket.
 Reply


?     Asked on 5/8/2016 by Jim

i have a Praher model SM20-1 valve and need to know what spider gasket I need.
 Reply

A  Answered on 5/11/2016 by InyoPools Product Specialist Lennox H.

Hi Jim, This Diverter Gasket will be the correct one for the Praher SM20-1 valve.
 Reply


?     Asked on 7/30/2015 by Barbara

Ordered a diverted valve gasket (had to buy whole assembly) for what Ithought was a Hayward filter. Turns out it has a Praher Valve Assembly. Received the wrong part. Only need to replace gasket. You show a 2" and a 1 1/2" 5 port gasket. What are the measurements, the pipe or the size of the gasket?
 Reply

A  Answered on 7/31/2015 by InyoPools Product Specialist Lennox H.

Hi Barbra, The 2in 5-Spoke Diverter Gasket measurements are - outside diameter is 6.75" and inside diameter (center hole) is 0.64". If you can reply with the with the manufacture and model of the valve you have we can get you the correct replacement gasket.
 Reply


?     Asked on 12/21/2014 by eduard shnaider

My backwash valve (model SM-20-2 and assembly model SM2-PP2) liking from waist lane. I was told to install a new gasket (diffuser gskt f/2" fns)-I did -still liking. Did I install gasket wrong way or I install a wrong gasket? Please help. Thank you
 Reply

A  Answered on 12/22/2014 by InyoPools Product Specialist Brian M.

Good Day Eduard. Given the model of the valve and the number for the gasket, those are a correct match. As for putting it in wrong, that is indeed a possibility.  This is a link to How to Replace a Spider Gasket on a Multiport Valve from our site. Please take a look, perhaps something was missed.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set, Blade to scrape old gasket .

Leaking Through Wastewater Line

Written on 11/20/2018 by Guest

Had to remove the top of the sand filter valve and remove old gasket. Replaced new gasket and built back together. Worked perfect.

Were these instructions helpful?


Top

Review Summary

 (Average 4.62  out of 5 stars)
26 Rating
5 star:

(20)
4 star:

(4)
3 star:

(1)
2 star:

(0)
1 star:

(1)

The Most Helpful Review


The Most Recent Reviews
