Gasket, Pot To Volute (c-20-103-r) - G-99R

$7.99

IN STOCK

Part # 5050-21R

  4.67 Average

Details

Top

Part # 5050-21R

Manufacturer Code G-99R

Dimensions 4.5" X 4.5"

Alternate Part #'s 34-050-309, 34050309, 351021380, APCG3431, C-20-103-R, C20123, G-4441, G-99R, G-99RS, G99R, STA1013721, STC00103R

Product Description

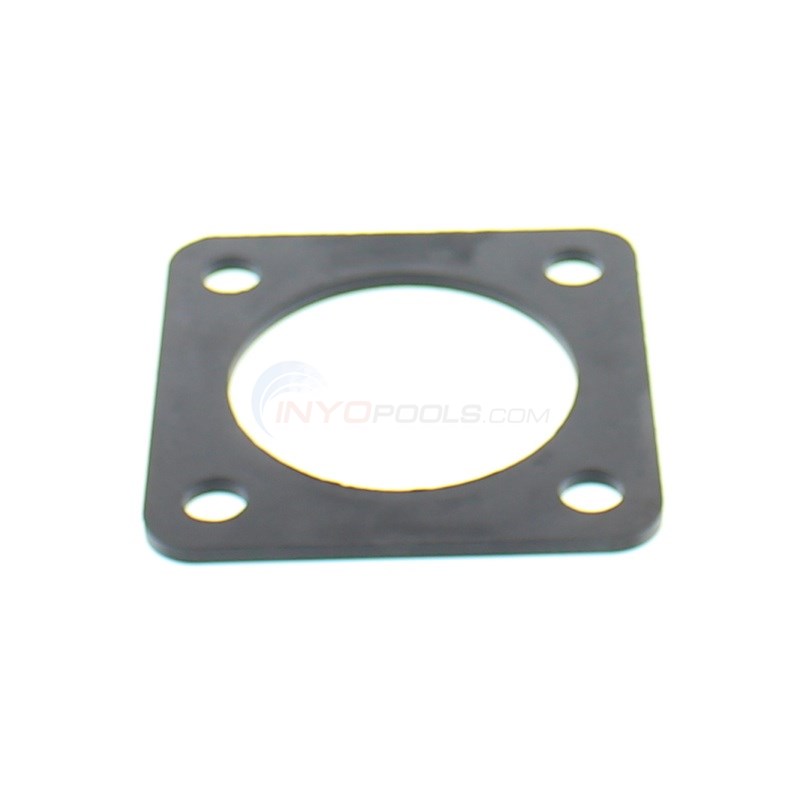

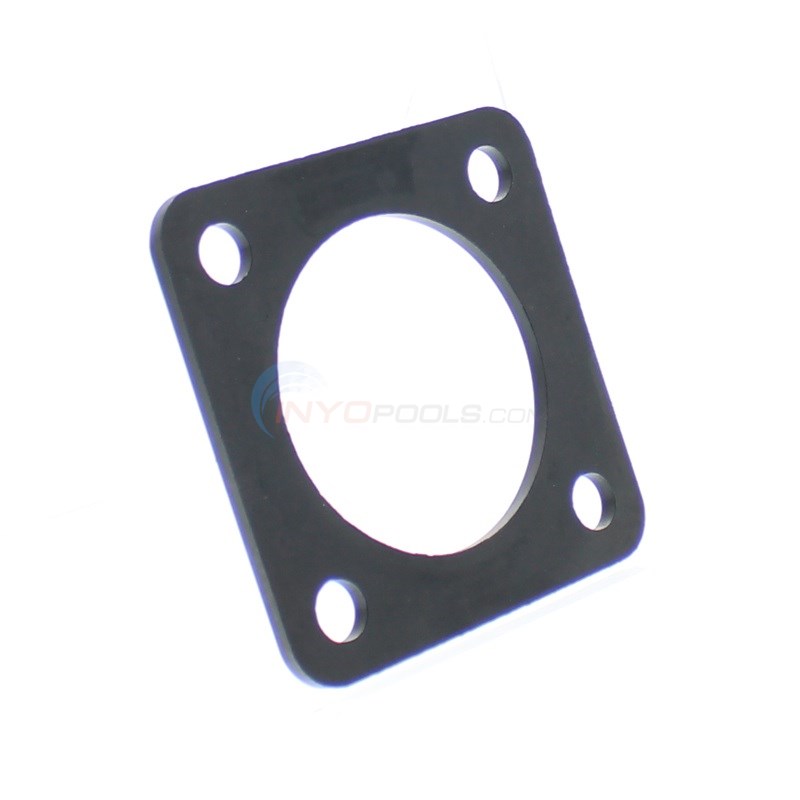

INYO # 5050-21R STA-RITE/PENTAIR # C20-123 GENERAL DESCRIPTION: THIS IS A SQUARE GASKET WITH A ROUND HOLE USED IN STA-RITE AND OTHER PUMPS

**********************************************************************

MATERIAL: RUBBER

**********************************************************************

BASIC SHAPE: SQUARE WITH ROUNDED EDGES THERE IS A LARGE CENTER HOLE AND A BOLT HOLE IN EACH CORNER

**********************************************************************

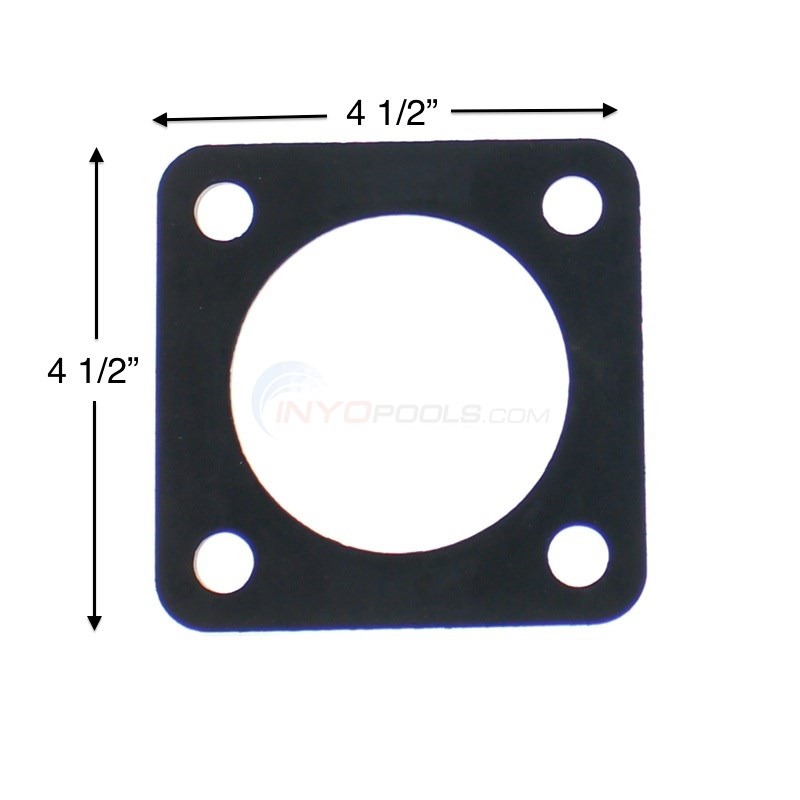

DIMENSIONS: LENGTH: 4-1/2" WIDTH: 4-1/2" THICKNESS: 1/8" BOLT HOLES: 5/16" DIAMETER CENTER TO CENTER MEASUREMENT: 3-5/16" (THIS IS SIDE TO SIDE) CENTER TO CENTER MEASUREMENT: 4-11/16" (THIS IS DIAGONAL) CENTER HOLE: 3-1/16" DIAMETER

**********************************************************************

SPECIAL NOTE, PART NUMBER 5050-21 WILL REPLACE THIS AND IS A CARDBOARD GASKET

Top

?     Asked on 4/8/2020 by David T Cooley

Is the gasket as well as the drain plug below it on the suction side or pressure side? Thanks!
 Reply

A  Answered on 4/9/2020 by InyoPools Product Specialist Lennox H.

Hi, David. The Drain Plug - U178-920P is sold separately.
 Reply


?     Asked on 12/22/2017 by Gene

I have an older model Dura-Glas H/L series, model P2RA5YF-125 hot tub pump. The old gasket has pretty much disintegrated but it appears to cover only the perimeter (including, of course, the screw holes) and not right up to the 3” pipe as does the c-20-103-r Will this one work? (the dimensions seem to be the same otherwise) I’m hopeful the screw holes will align.
 Reply

A  Answered on 12/22/2017 by InyoPools Product Specialist Megan C.

Yes, the Gasket, Pot To Volute (c-20-103-r) is correct for the Sta-Rite Dura-Glas and Max-E-Glas pump model that you own.
 Reply
