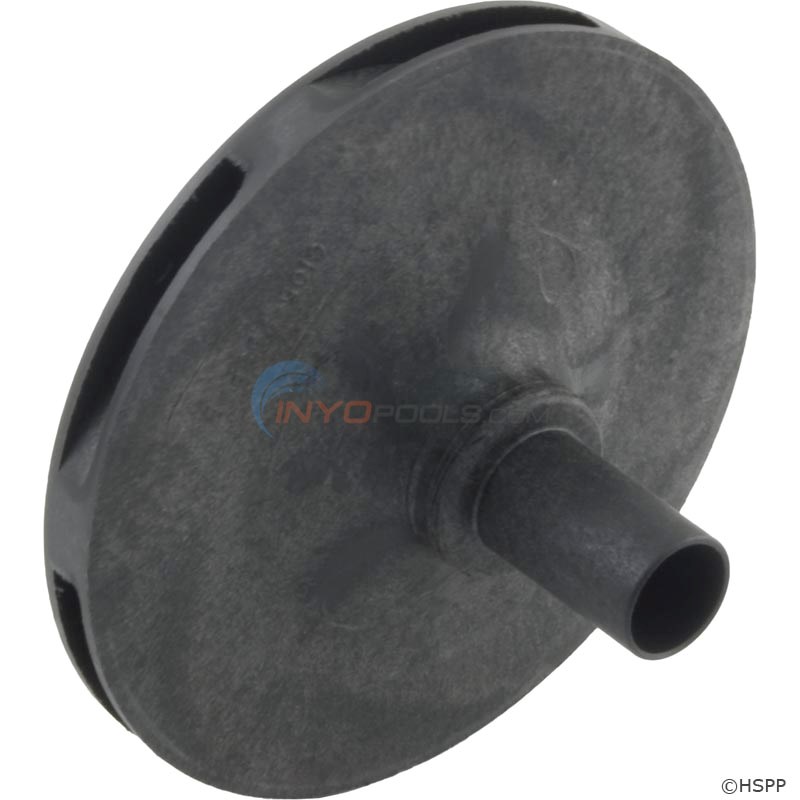

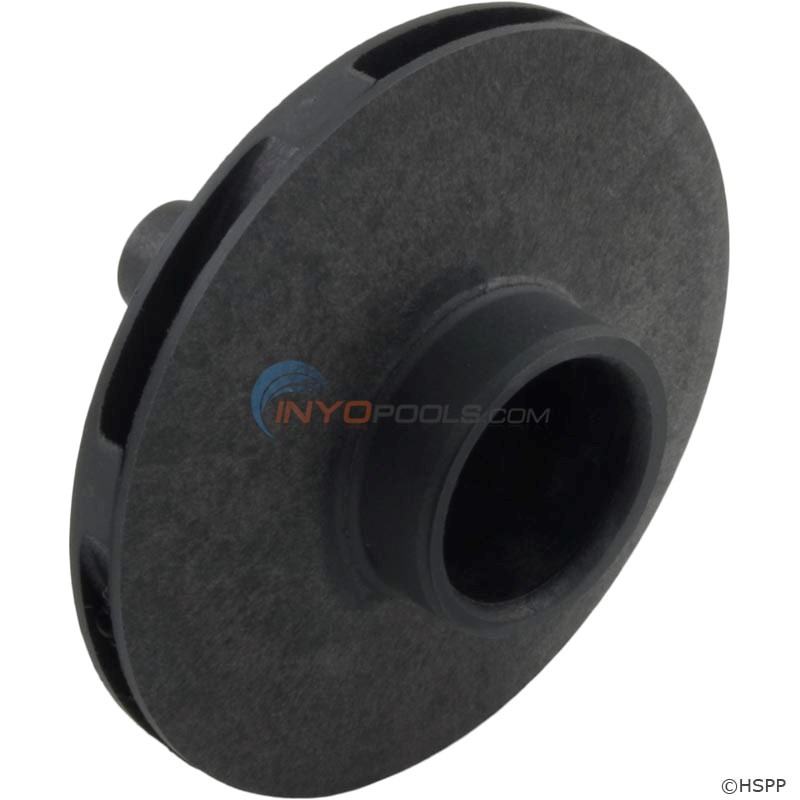

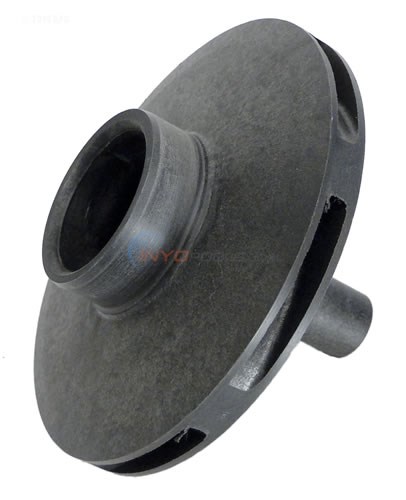

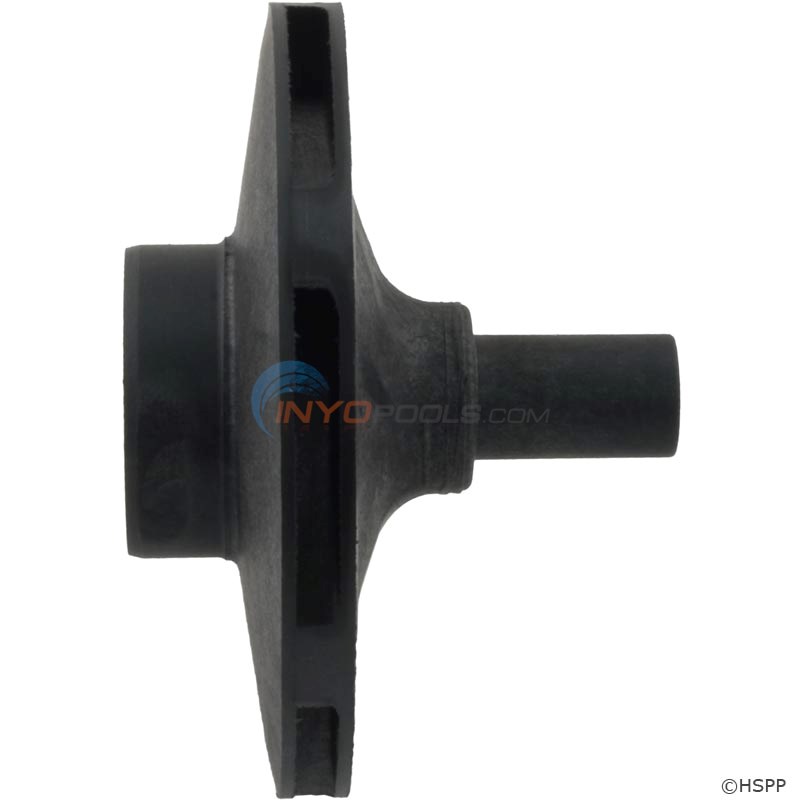

Impeller 1 HP / 1.5 HP - C105-238PB

$71.99

IN STOCK
FREE SHIPPING

Part # 5055-11A

By Sta-Rite

  5 Average

Details

Top

Part # 5055-11A

Manufacturer Code C105-238PB

Dimensions 4.75" L x 4.75" W x 3.28" D

Alternate Part #'s 351021152, C105238PB, STA1018552

Product Description

Impeller 1 HP / 1.5 HP - C105-238PB

Top

?     Asked on 7/28/2019 by John Berry

I have a Sta-Rite Model P4E6E-187L Need Impeller 1.6hp of the elect motor Do I order the impeller for 1 to 1.5 hp Impeller; I will also need a seal assy Would you have information on haw to install the seal assy
 Reply

A  Answered on 8/7/2019 by InyoPools Product Specialist Kevin G.

Hello, the correct impeller you need is the 5055-11A. The kit is the GOKIT38.
 Reply


?     Asked on 7/28/2019 by Bryan

I have an HSQ125 motor which is 1.25 HP 1.00 SF. What impeller and diffuser I have to add to the cart?
 Reply

A  Answered on 7/28/2019 by InyoPools Product Specialist Michelle B.

Hello, What is the brand and the model of the entire pump so we can look into this for you.
 Reply


?     Asked on 6/4/2019 by Steven

I would like to rebuild my P4EA6F-187L, replace motor, all seals o-rings, and impeller. Is this the correct parts? - GOKIT38 seals - SQ1152 motor or USQ1152 motor? - 5055-11A
 Reply

A  Answered on 6/4/2019 by InyoPools Product Specialist Patrick P.

Hi Steven, Yes this is the correct parts list. For the motor, you can go with either the USQ1152 1.5 HP Uprated Standard Efficiency Motor or the UQC1152 1.5 HP Up Rated Energy Efficient Motor. The Energy Efficient Motor will cost about 20% less to operate.
 Reply

  • Commented on 6/4/2019 by Product Owner

    I noticed these are all 48Y frame motors. The Sta-Rite pump has a 56Y frame motor. Do the 48Y frame motors ship with a conversion pad?
     Reply

    • Commented on 6/4/2019 by InyoPools Product Specialist Patrick P.

      Hi Steven, Yes the 48Y motors do come with a rubber spacer pad.
       Reply


?     Asked on 6/29/2018 by Jimmy

Does this impeller fit for STA-RITE MAX-E-GLAS II P4E AND P4E62 series pump 1 1/2 HP
 Reply

A  Answered on 6/30/2018 by InyoPools Product Specialist Lennox H.

Hi, Jimmy. This impeller can be used with the following models that is close to the partial number provided, P4E62E-187L or P4E62E-151L. I will need the complete model number of your pump in order to confirm.
 Reply


?     Asked on 8/29/2017 by Sebastien

I have a impeller that was touching the inner part of the diffuser that had corroded: any readon for corrosion? I put acid in small quantity pump down. I need to change impeller and diffuser: which references please. Motor indicates: P6RA6E 205L. thank you
 Reply

A  Answered on 8/31/2017 by InyoPools Product Specialist Lennox H.

Hi, Sebastien. The Impeller - C105-238P and Diffuser - C1-271P1 are the parts needed for the P6RA6E-205L pump.
 Reply


?     Asked on 8/14/2017 by Les

What seal or seal kit goes with part number 5055-11A, it's a c105-238pb impeller, and it is a salt water pool. Thanks
 Reply

A  Answered on 8/15/2017 by InyoPools Product Specialist Alex V.

Le, This impeller goes to 2 different pumps. Which one do you have?
 Reply


?     Asked on 8/3/2017 by John

we have a Sta-Rite pool pump 1 HP, model P4E6E-151L, Code 1C95E (old style (pre-1998) The impeller is screwed onto the shaft and we are looking for a new one. From the details I've seen this is not detailed, can you help answer this issue. Thanks
 Reply

A  Answered on 8/10/2017 by InyoPools Product Specialist Lennox H.

Hi, John. The correct impeller is Part # C105-238PB
 Reply


?     Asked on 7/24/2017 by Stan

In changing my motor how do I remove and replace the impeller? How is it attached to the motor?
 Reply

A  Answered on 7/26/2017 by InyoPools Product Specialist Lennox H.

Hi, Stan. You will have to lock the motor shaft, remove the impeller screw and then remove the impeller. You can see how this is done in our How To Replace a Sta-Rite Max-E-Pro Pump Impeller guide.
 Reply


?     Asked on 7/7/2017 by Bob

I am replacing the motor on my sta-rite P6RA6G-207L with a 1 1/2 HP uprated Century USQ1152 motor. The original impeller is a C105-238P and is a "bolt on" style. The shaft on the new motor is a "spin on" style. Is this the correct impeller to replace it in my pump housing? Will it fit? Thanks for taking my question.
 Reply

A  Answered on 7/8/2017 by InyoPools Product Specialist Lennox H.

Hi, Bob. To convert the pump from 2 hp to 1-1/2 hp you will need this Impeller - C105-238PB, Diffuser - C1-271P1 and the Tune Up Kit - GOKIT79.
 Reply


?     Asked on 6/15/2017 by Chris

Is this the right impeller for a Sta-Rite MAX-E-Glas II (P4E6E-187L) with a QC1102 motor?
 Reply

A  Answered on 6/16/2017 by InyoPools Product Specialist Lennox H.

Hi, Chris. Yes, this is the correct impeller for the P4E6E-187L pump operated by the QC1102 motor.
 Reply


?     Asked on 3/1/2017 by Doug

Revived impeller #C105238PB and it says 1 1/2 HP Impeller? This parts list says 1 HP and that's what I need. SEE previous question request for addition comments on this part and order. I have requested a return and I really need an impeller please
 Reply

A  Answered on 3/2/2017 by InyoPools Product Specialist Lennox H.

Hi, Doug. The C105-238PB impeller is rated for a 1HP Full Rate or 1-1/2HP Up Rate motor.
 Reply
