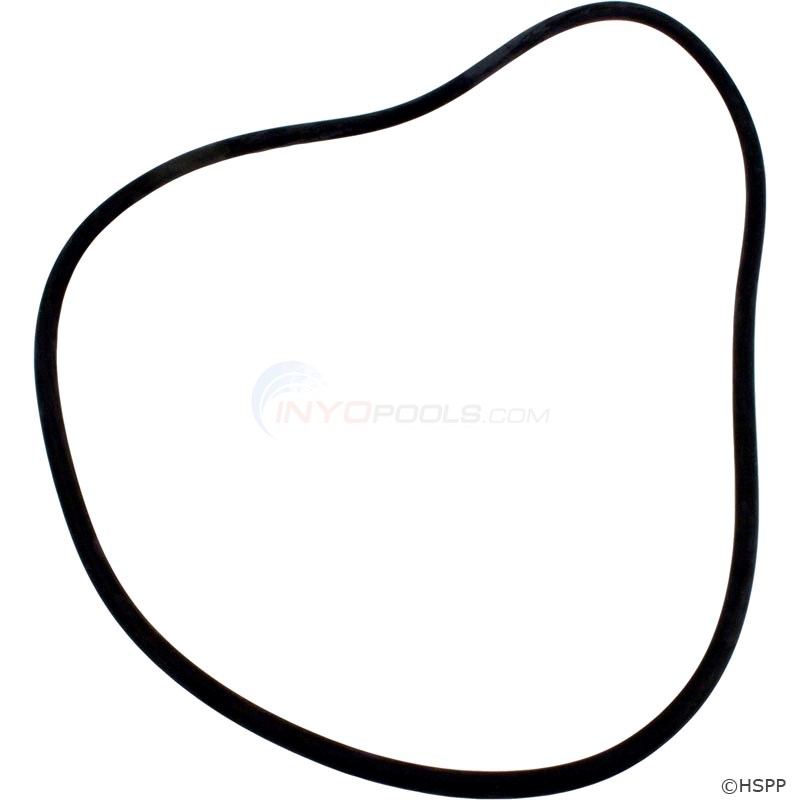

Tank Body O-ring - Generic - P24218



Part # 4610-38

By Armco

  4.6 Average



Part # 4610-38

Manufacturer Code P24218

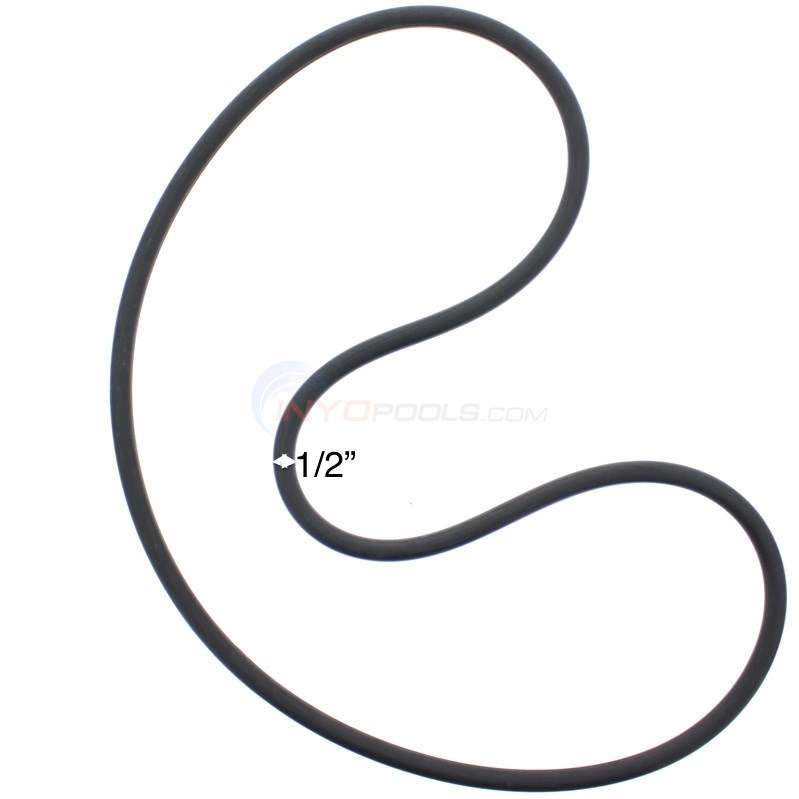

Dimensions 19-1/4" ID, 1/2"

Alternate Part #'s 071439, 39010200, 71439, o-333, O333, P24218, PUR0514907

Product Description

Filter tank body o-ring for the following filters:

  • Pentair Clean & Clear Plus (1998 - current)
  • Pentair FNS Plus
  • Pentair Quad
  • Purex 4000 Series Molded D.E.
  • Purex CFM Fiberglass Cartridge
  • American Products Quantum RPM
  • American Products Titan RPM D.E.

O-ring serves as a seal between the top and bottom halves of the filter tank.


?     Asked on 1/1/2020 by Dale D

I have a Pentair 420 Model 178557 Rev E which I need to replace the 0-ring which has enlarged over time and hard to reassemble after cleaning filters. Please confirm the correct part # so I can order it from you. Thank, Dale D

A  Answered on 1/7/2020 by InyoPools Product Specialist Matt S.

Hello - if you have the Pentair Clean & Clear Plus Cartridge Filter, this is the correct replacement tank body o-ring. Unfortunately, I cannot verify that model number (178557) in our database or Pentair's catalog. Can you confirm on your end that the amount listed above is correct?

?     Asked on 7/15/2019 by Paul Taylor

Will this fit CCP320?

A  Answered on 7/15/2019 by InyoPools Product Specialist Matt S.

Yes, the P24218 tank body o-ring is the replacement for the Pentair Clean & Clear 320 Sq Ft.

?     Asked on 6/17/2019 by sandra

will this fix a pure 4000 series de filter that was installed in year 2000?

A  Answered on 6/19/2019 by InyoPools Product Specialist Matt S.

This body o-ring is the correct replacement for the Purex 4000 Series.

?     Asked on 5/19/2019 by Danny

Will this item fit the pentair 4000 series?


A  Answered on 5/20/2019 by Industry Professional

Yes this is For Use With SMBW CF/4000 Series, Clean & Clear and FNS Plus Filters

A  Answered on 5/20/2019 by Industry Professional

Yes, this is the generic oring for the 4000 series

A  Answered on 5/21/2019 by Industry Professional

yes it is correct for the 4000 series

?     Asked on 4/28/2019 by Larry1

I Bought P24218 for Titan RPM. Its 1/2 inch , too thick. Is there another size lid Oring that may fit the titan? Titan RPM Vertical Model # 56623200. 60 Sq ft

A  Answered on 4/29/2019 by InyoPools Product Specialist Lennox H.

Hi, Larry1. There is not another size o-ring that will work with the Titan RPM Vertical Grid D.E. Filter. This is the only size that will fit.

?     Asked on 4/14/2019 by ML

Hi, Can you please direct me to the Main "O-Ring" for PN DE4820? Manufacture is Hayward. I need the Part Number to "Main O-Ring" PN______________________________? I Also need the COMPLETE ASSEMBLED Part Number for filter 3620DE, The one "already to go" out of box and put inside the Filter Tank.This is where I would be be needing the main o-ring seal once I close tank and tighten with "Clamp Screw-On" I will send photos if require. I think my desdription should be sufficient.

A  Answered on 4/20/2019 by InyoPools Product Specialist Lennox H.

Hi, ML. The Tank O-ring - DEX2400K (OEM), O-429 (Generic), DEX2422Z2 (OEM) are the options for your model filter. The Grid Assembly 36 sq.ft. - DEX3600DC is the complete assembled replacement.

?     Asked on 12/5/2018 by Teresa

Is this the correct o-ring for a purex triton fns plus de filter? I found the bag of the one we're currently using and it says American o-497-9. When I compare the two, they are different diameters and thickness. Which one is the correct one? Thanks!

A  Answered on 12/5/2018 by InyoPools Product Specialist Lennox H.

Hi, Teresa. This is the correct Tank O-ring - 071439 for the Triton FNS Plus DE filter. The o-ring p/n O-497-9 will not work.

?     Asked on 6/8/2018 by Marc

What is the right O-ring and tank clamp for a Pentair DE Filter FNS PLS 36?

A  Answered on 6/8/2018 by InyoPools Product Specialist Lennox H.

Hi, Marc. This Body O-ring - 071439 is the correct one for the Pentair FNS Plus 36 DE Filter.

?     Asked on 5/26/2018 by

Is this o ring the right size for my Pentair quad D E 100?

A  Answered on 5/26/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Body O-ring - 071439 will fit the Pentair Quad DE100 filter.

?     Asked on 5/25/2018 by James Chandler

what is the diameter of the "0"ring

A  Answered on 5/25/2018 by InyoPools Product Specialist Lennox H.

Hi, James. This O-ring is 19-1/4" ID.

?     Asked on 5/24/2018 by

Looking for an o ring, gauge - part number 15-4661. This is for a PAC -Fab Nautilus DE filter Model # NSS-48. This is from an older model service manual.

A  Answered on 5/24/2018 by InyoPools Product Specialist Lennox H.

Hi. The O-ring, Bleeder Adapter - 154661 is available.

?     Asked on 12/16/2017 by Eric Brisco

I have a purex triton fnsp 36 every time I type this in it goes to Pentair are these the same looking for big o ring for lid and few other parts but having trouble looking up is the 4610-38 the right one. thanks

A  Answered on 12/18/2017 by InyoPools Product Specialist Kevin G.

The 4610-38 would be the correct o-ring.

?     Asked on 8/23/2017 by

Will this fit the Pentair clean and clear CCP320?

A  Answered on 8/24/2017 by InyoPools Product Specialist Hector F.

If your filter was manufactured from 3/2003 to 7/2003 then yes and if not it would be part number 4654-42

?     Asked on 7/6/2017 by Kim

Does this o-ring fit Pentair FNS Plus 60 model #180009?

A  Answered on 7/6/2017 by InyoPools Product Specialist Lennox H.

Hi, Kim. Yes, this Body O-ring - 071439 will fit the Pentair FNS Plus Filter.- 180009.

?     Asked on 6/28/2016 by Clinton Hales

Is this O ring the correct part for my Nautilis NS-24 filter. They don't give a lot of dimensions except 1/2 inch thick. I need a 56 in circumference and 18 inch diameter.

A  Answered on 7/4/2016 by InyoPools Product Specialist Lennox H.

Hi Clinton, The 18" Tank O-ring (PF15-2127) is the correct o-ring for the Nautilus NS Filter.

?     Asked on 6/17/2016 by John

I need to replace the body O ring I do not see the exact Purex Filter I have . It is over 25 years old and it is DE fiber

A  Answered on 6/19/2016 by InyoPools Product Specialist Matt S.

John, can you please provide the model number of your filter?

?     Asked on 5/9/2016 by Jim Beaty

is this the o ring that connects the 2 tank sections together via a SS ring on outside? Please give part # for this. (quad 60 model) jimcha@sbcglobal.net

A  Answered on 5/12/2016 by InyoPools Product Specialist Lennox H.

Hi Jim, This is the o-ring for the Pentair Quad D.E. Filter that goes in between the top lid and bottom tank. You can locate all the part via the Pentair Quad D.E. Filter Parts.

?     Asked on 4/23/2016 by Cheryl Hayden

Will this O ring fit American Titan vertical grid filter Presure DE model number 582090 filter area 36 square feet?

A  Answered on 4/25/2016 by InyoPools Product Specialist Hector F.

No but here is the parts diagram for your filter. Please click here.

?     Asked on 4/13/2016 by David Heinze

will this o ring fit purex cc520p filter body

A  Answered on 4/13/2016 by InyoPools Product Specialist Lennox H.

Hi David, The Body O-ring will fit the CC520P filter manufactured between 3-03 to 7-03.

?     Asked on 7/22/2015 by

Will this fit model SM/SMBW-4048

A  Answered on 7/22/2015 by InyoPools Product Specialist Hector F.

Yes this o-ring does work on that model filter.

?     Asked on 4/23/2015 by Lonnie

Does the 4610 O-ring fit the FNS Plus Pentair 48" Tank ? It's not clear to me.

A  Answered on 4/23/2015 by InyoPools Product Specialist Brian M.

Yes , the 4610-38 will fit the 48 sq ft FNS Plus tank. It will fit all the FNS Plus tank models.

?     Asked on 8/23/2013 by Guest

Will this fit a #160301 Clean & Clear Plus Series Cartridge Filter, Model #CCP420?

A  Answered on 8/23/2013 by InyoPools Product Specialist Patrick P.

The o-ring will fit the CCP420 filters manufactured 1998-current.


Est. Repair Time

Less than 1 hr

Tools Needed

Adjustable Wrench

old oring stretched out

Written on 7/28/2017 by Guest

The hardest part of tjis process was getting the right size , other sites said theirs would fit. Lucky, Inyo pools has a chat service which give immediate confirmation on fit based on the model number of your unit. Old one off , new one on. Presto!
