Part # 4652-03
Manufacturer Code 447
Dimensions 9-1/2" L x 9-1/2" W x 1/4" D
Alternate Part #'s 447, 447-7470-10, 448449, 4652-03, 47044706, 608733, 64946, 66105, 71441, 87300400, 90-423-5447, 9X313B60, APCO2045, O-191, O-343, P24220, SPG-601-1169, SPP-4470

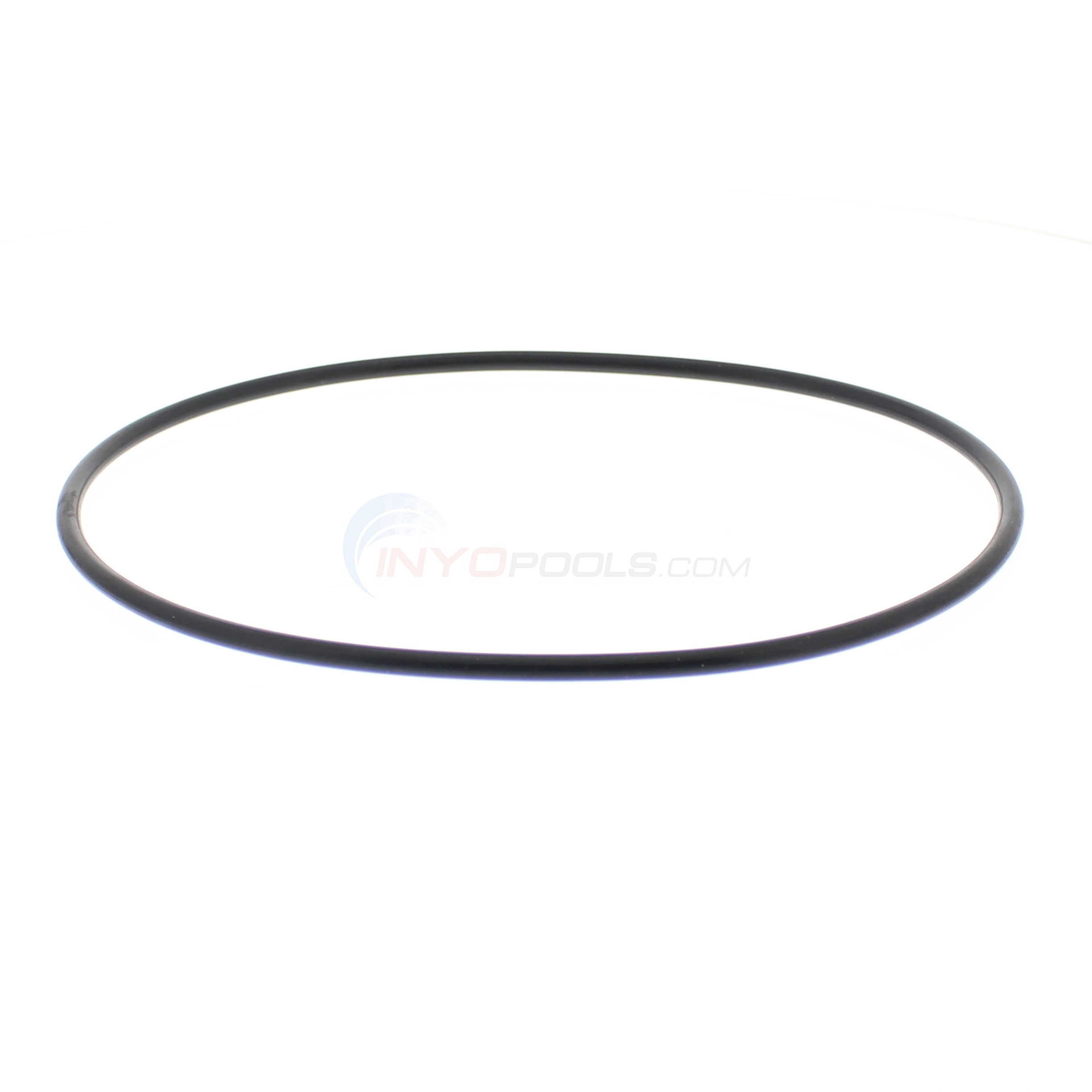

Predator/Clean and Clear Tank O-ring - Generic
OUTSIDE DIAMETER: 9-1/2" INSIDE DIAMETER: 9" THICKNESS: 1/4" THIS O-RING MAY LOOK TOO SMALL BUT IT IS THE CORRECT SIZE IT IS MADE TO STRETCH A LITTLE WHEN IT FITS AROUND THE BODY
I'm not sure which Pentair filter I have. Can you assist me? My filter leaks quite a bit around the middle seal and at the bottom clean out. The bottom o-ring is visibly cracked but the middle seal is fairly new and still leaks alot.
I'm not sure if I need to replace parts or purchase a new filter system?
My pump is a Waterway SMF-115.
My pool/spa is about 8000CF in ground
Hello Jeff, thank you for contacting INYO POOLS. Based on the information we would suggest a new filter. Based on the photos I would recommend the Clean & Clear RP Cartridge Filter 150 sqft. - 160355. This would be an easy install as the outlet would match your current outlet. The inlet would be in the mid of the filter so no need to go from the high angle to a 90 degree to another 90.
will this oil ring fit a pintair clean and clear plus model #ccp-420?
Hi Lawrence, There are two o rings that are compatible with the Pentair CCP filter series. Part number 4654-42 for all models manufactured except from, 3/03 to 7/03, and 4610-38 for models manufactured 3/03-7/03. If you are not sure when your filter was manufactured then you can provide us with the serial number and we can confirm for you.
I have a Pentair Warrior #56408800 and need a new o ring. My unit is about 11” in diameter. Your ring 4652-03 is much smaller. Do you have a larger one?
I want to purchase this O ring and just before I do I want to make sure it is for
Pentair model no. 160354 so I do not order the wrong thing.
Mine says Clean and Clear but i do not see the work Predator on it anywhere.
I would appreciate a reply at your earliest convenience so I can order it.
I replaced the large 9.5 inch O-Ring on my pentair warrior filter and it still leaks, but only on one side. The O ring fit very tight had to streach it a bit . Is there more than one size, you only show one.
The O-ring on my filter/pump is 12"x 1/4" in size. It is a Predator filter with a Tropica pump. I found one in the separation tank area. Will this O-ring fit my filter?
This is the correct o-ring for the Predator cartridge filter lid.
Less than 1 hr
Shut off electricity to water quality system
1. Close inlet and outlet filter valves.
2. Vent filter and drain to point below o-ring
3. Remove locking ring and filter cover.
4. Remove existing o-ring
5 Coat new o-ring with with o-ring lubricant and install on filter body
6. Install cover and locking ring.
7. Refill filter, venting air until a bubble free stream is obtained.
8. Close vent, and open inlet and outlet valves.
9.Project is done.
