Switch, Stationary Single Speed - 629002-001

$59.99

IN STOCK
FREE SHIPPING

Part # 5270-64

By Century Motors

  5 Average

Details

Top

Part # 5270-64

Manufacturer Code 629002-001

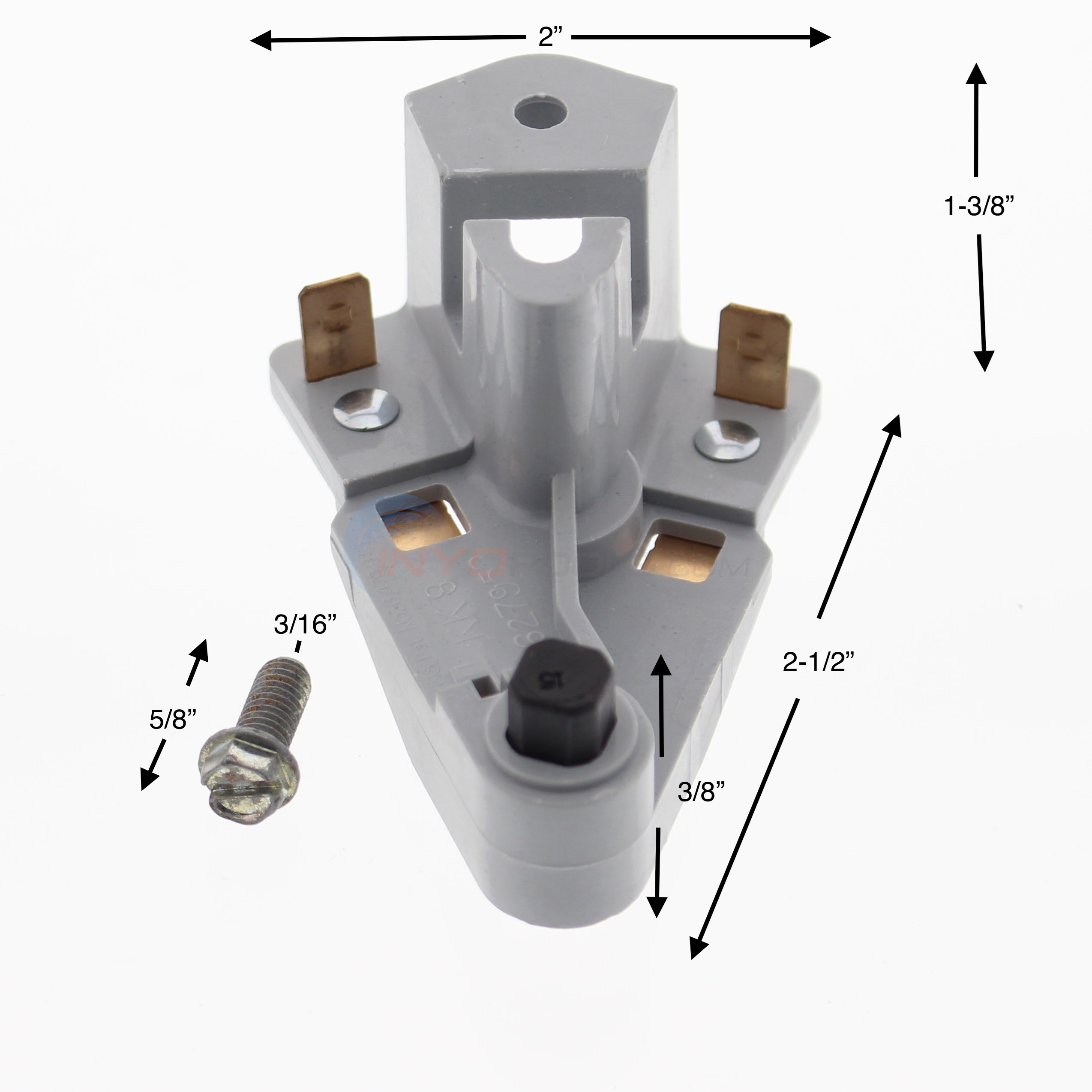

Dimensions 2" D x 2-1/2" L x 1-3/8"H

Alternate Part #'s 614234-1, 614234-2, 614234-6, 614234001, 614234002, 614234006, 614239, 627953, 629002-001, 629002001, SAW25, U18-1098

Product Description

Stationary switch used on A.O. Smith single speed pump motors.  Replaces 627953 switch among others (see alternate part numbers above).

  • Capacitor Microfarad Rating (+/- 10%):  10 mfd
  • Voltage: 370v
Top

?     Asked on 12/20/2019 by

I have a A> O. Smith motor 1/2 hp, 3450 rpm 6169970A starter switch will this work as replacement
 Reply

A  Answered on 12/24/2019 by Industry Professional

yes the 629002-001 should be the correct replacement
 Reply


?     Asked on 10/31/2019 by dan

will this AO smith switch 629002-001 work on sp3220z1bemotor
 Reply

A  Answered on 10/31/2019 by Industry Professional

Yes, it should be correct.
 Reply


?     Asked on 7/6/2019 by John

Correct switch for A.O. Smith model C48M2N111A3 Super pump ll Hayward. ? Thanks
 Reply

A  Answered on 7/8/2019 by InyoPools Product Specialist Joe S.

Hello John, yes the Stationary Switch Single Speed - 629002-001 would be the correct unit for the C48M2N111A3.
 Reply


?     Asked on 4/18/2019 by Southsj

Hi, I have an AO SMith motor Model C48D48D72. Will this start switch fit my motor? Thanks.
 Reply

A  Answered on 4/18/2019 by InyoPools Product Specialist Michelle B.

Hello, Can you please send a picture of the motor label? Nothing had come up with part number C48D48D72 on my end.
 Reply


?     Asked on 8/15/2018 by Roger

Hi, I have a Century SP3215Z1BE and need a single speed switch. Will the A.O. Smith part#5270-64 Work
 Reply

A  Answered on 8/17/2018 by InyoPools Product Specialist Lennox H.

Hi, Roger. Yes, this Stationary Switch - 629002-001 will work with the Century SP3215Z1BE motor.
 Reply


?     Asked on 8/2/2018 by John

I have a A.O Smith QC1102 1HP. Will this Switch, Stationary Single Speed (saw-25) - 629002-001 work on my motor? The part number on the switch is 627953. Thank you.
 Reply

A  Answered on 8/2/2018 by InyoPools Product Specialist Lennox H.

Hi, John. Yes, this Single Speed Stationary Switch - 629002-001 will work with your QC1102  motor.
 Reply


?     Asked on 7/28/2018 by Neil

What size screw does this use to attach to the pump?
 Reply

A  Answered on 8/1/2018 by InyoPools Product Specialist Lennox H.

Hi, Neil. Unfortunately, we do not have the screw specs used with this part.
 Reply


?     Asked on 6/1/2018 by Tim Greene

I have a B2983T Century pump. I needed to replace the bearings and broke this switch in the process (actually there was short when I turned it on and it blew it in two but we can get to that) Right now it is running without the switch. What does the switch do and what is the correct part? Thanks
 Reply

A  Answered on 6/1/2018 by InyoPools Product Specialist Lennox H.

Hi, Tim. This Stationary Switch makes contact with the governor letting the motor know that the shaft is spinning. This Stationary Switch - 629002-001 is the correct one for the B2983T motor.
 Reply


?     Asked on 4/22/2018 by Richard Moore

Checking to be sure this is correct switch for Century SP3210Z1BE; PART 7-196336-20; SERIAL 22714J2; FR Y56Y ; TYPE CP
 Reply

A  Answered on 4/23/2018 by InyoPools Product Specialist Hector F.

The stationary switch for your model motor is the 5270-64
 Reply


?     Asked on 3/3/2018 by Don

Is Switch, Stationary Single Speed (saw-25) - 629002-001the replacement switch for part# 614239 motor model S48L2A6
 Reply

A  Answered on 3/5/2018 by InyoPools Product Specialist Lennox H.

Hi, Don. This Stationary Switch - 629002-001 will replace p/n 614239.
 Reply


?     Asked on 10/22/2017 by Lex

Is this the correct switch for AO Smith model C48L2EC11 ?
 Reply

A  Answered on 10/23/2017 by InyoPools Product Specialist Lennox H.

Hi, Lex. This is the correct Stationary Switch used on the C48L2EC11 AO Smith motor.
 Reply


?     Asked on 8/21/2017 by Diane

Looking for this switch (*looks* identical) I have a partial number off the tag. Here's what I've got: A.O. Smith SQ1202 E25022 MOD K48N2PA------- SER 13711FM 230v 2 HP CCWPE PH 1 Code H RPM 3450 FR 48Y hz 60 11.2 amps Thank you!!!
 Reply

A  Answered on 8/24/2017 by InyoPools Product Specialist Lennox H.

Hi, Diane. Yes, this Stationary Switch will work with the Century SQ1202 motor.
 Reply


?     Asked on 5/27/2017 by Diane

I need Switch for Single Speed A.O Smith Pumps 627953. Do you have it?
 Reply

A  Answered on 5/27/2017 by InyoPools Product Specialist Patrick P.

Yes this would be the appropriate switch.
 Reply


?     Asked on 4/22/2017 by Bill

Is this the switch for model C48K2N143B1 motor for a hayward 1hp super pump?
 Reply

A  Answered on 4/22/2017 by InyoPools Product Specialist Patrick P.

Yes this is the switch for your C48K2N143B1 1 HP Super Pump Motor.
 Reply


?     Asked on 4/15/2017 by Dave

Will this work on MOD. K48L2N100A1 - 1081 Design - CT1102 ? The plastic housing looks different but the underneath view looks pretty much the same. Thanks very much.
 Reply

A  Answered on 4/16/2017 by InyoPools Product Specialist Scott W.

Yes, that stationary switch you work for your motor.
 Reply


?     Asked on 4/9/2017 by Steve D.

Switch, Stationary Single Speed / saw-(25) #629002-001 / Part #5270-64 A.O. Smith. Will this work on my 1.5 HP Century (A.O. Smith) Motor. Part #USQ1152 / Model #C48L2PA103A3 / Serial #SK04 / 230-115 volts / AMPS 19.2-9.6 / Single Phase Code J / Type UAC. I have pictures I could send also if you need them. Thanks, Steve - Sent 4-9-17
 Reply

A  Answered on 4/11/2017 by InyoPools Product Specialist Lennox H.

Hi, Steve D. Based on the parts list we have this switch will not work with the USQ1152 motor. If you can send us some photos we can confirm.
 Reply


?     Asked on 2/16/2017 by Paul

Will this part fit my A.O. Smth motor 1 hp Mod #C48L2D85 Ser 8J90
 Reply

A  Answered on 2/16/2017 by InyoPools Product Specialist Lennox H.

Hi, Paul. Unfortunately, I was unable to locate any info on the motor by the MOD number provided. However, if you can send use a photo of the motor and the rear end of the motor we can confirm if this is the correct switch.
 Reply


?     Asked on 12/9/2016 by robert pednault

Is the product in question exactly what we get if we order it. Here in Quebec, when we ak for this item, we receive a totally different type of AO Smith switch, a SS-32. Which is not compatable or acceptable to our client.
 Reply

A  Answered on 12/9/2016 by InyoPools Product Specialist Scott W.

Yes, it comes as shown in the picture. One of our distributors is A.O. Smith so it will be that A.O. Smith switch.
 Reply


?     Asked on 9/30/2016 by tommy

I'm looking for a replacement part for the Switch #614239 mod # C48L2FC4 Will this fit??
 Reply

A  Answered on 10/5/2016 by InyoPools Product Specialist Megan C.

Hello, Tommy. The Switch, Stationary Single Speed (saw-25) - 629002-001 should be the correct replacement for the C48L2FC4 that cross references to the 1 HP Single Speed Motor - R1102ES. The Stationary Switches for the A.O. Smith motors normally have the same styles but can vary. If you need further assistance you may contact us at 1-877-372-6038 or email us at upload@inyopools.com.
 Reply


?     Asked on 9/13/2016 by Stan

I have a pump motor Model ST1102, not sure of the brand, serial 00612CH0317508. Will this switch fit my motor? Thank You
 Reply

A  Answered on 9/14/2016 by InyoPools Product Specialist Stacey M.

Hello Stan, for an ST1102 motor is an A.O. Smith part number 627957-003 - Start Switch - Old Style - Upto 7.5 Amps. We don't sell these on our site.
 Reply


?     Asked on 6/2/2016 by Carly Pleckaitis

I'm looking for a replacement part for the Switch #614239. Is this it?
 Reply

A  Answered on 6/8/2016 by InyoPools Product Specialist Lennox H.

Hi Carly, I'm not able to confirm if this switch is a replacement for p/n 614239. If you can provide use with the motor PART, CAT or MOD # I can confirm if this switch can be used with with motor.
 Reply


?     Asked on 5/29/2016 by mike kloska

I was surprised at all the broken switch questions that there are so many. I also have a broken switch. Will this sw fit on my model C48L2N134B1 serial no35507FM Mike
 Reply

A  Answered on 6/4/2016 by InyoPools Product Specialist Lennox H.

Hi Mike, This Stationary Switch can be use with the C48L2N134B1 motor that you have.
 Reply


?     Asked on 9/3/2015 by David

What if my switch keeps clicking on and off
 Reply

A  Answered on 9/8/2015 by InyoPools Product Specialist Lennox H.

Hi David, If the switch does not stay on the motor might be overheating causing the motor to stop/start or the switch could be bad.
 Reply


?     Asked on 8/20/2015 by CARL GANZ

How could I tell if this part is bad?
 Reply

A  Answered on 8/24/2015 by InyoPools Product Specialist Lennox H.

Hi Carl, You can tell if the Stationary Switch is bad if with 15 seconds you do not hear a click that would indicate that the switch has been activated making contact with the governor.
 Reply


?     Asked on 8/8/2015 by Jan

Will your switch fit my AO Smith motor with model C48J2PA105 serial 1L91 ?
 Reply

A  Answered on 8/10/2015 by InyoPools Product Specialist Lennox H.

Hi Jan, The Single Speed Stationary Switch (SAW-25) will work with your A.O. Smith motor model C48J2PA105.
 Reply


?     Asked on 7/1/2015 by mikw

will this work with 2hp sp2615x20 Hayward pump?
 Reply

A  Answered on 7/2/2015 by InyoPools Product Specialist Lennox H.

Hi, The Single Speed Stationary Switch (SAW-25) will work on an A.O. Smith motor that can be used on a 2hp SP2615X20 Hayward pump.
 Reply


?     Asked on 5/30/2015 by Matt

Have a 1.5hp ao smith motor that hums when turned on when i hit the backof it with a board it will kick on will this solve my problem
 Reply

A  Answered on 5/31/2015 by InyoPools Product Specialist Patrick P.

Hi Matt, Usually a humming motor is due to a capacitor going bad. Here is a guide showing you How to Select the Correct Capacitor For Your Pool Motor which may be of help.
 Reply


?     Asked on 9/17/2014 by Guest

I accidentally broke this part on the back of my motor and now it will not work. If I replace this saw-25 will that take care of my motor issue?
 Reply

A  Answered on 9/17/2014 by InyoPools Product Specialist Patrick P.

Yes, if this switch has broken then that very well could be the reason that you motor is not working any longer. Replace then test.
 Reply


?     Asked on 7/23/2014 by Guest

I have a 1 horsepower hayward super pool pump with an a.o. smith motor. I broke this plastic part while replacing a seal in the pump. I believe this is the part I need. Is this part used on a Hayward 1 horsepower super pump?
 Reply

A  Answered on 7/23/2014 by InyoPools Product Specialist Patrick P.

Hayward has used a few different motors on there 1 HP Super Pump over the years, however this switch does work on many motors including most of which were used on the 1 HP Super Pump. I would double check your measurements of your switch vs. the measurements we have here 2"DIA X 1-1/4" OVAL X 3-1/8"H and if they match up than I would feel relatively confident this part would work for you.
 Reply


?     Asked on 5/24/2012 by Guest

I have an AO Smith motor with a broken switch. Model nbr C48K2N143C1C. Number on the broken part is 627953. Will your part work?
 Reply

A  Answered on 5/24/2012 by InyoPools Product Specialist Patrick P.

Yes this is the proper replacement switch for the AO Smith 627953 switch.
 Reply
