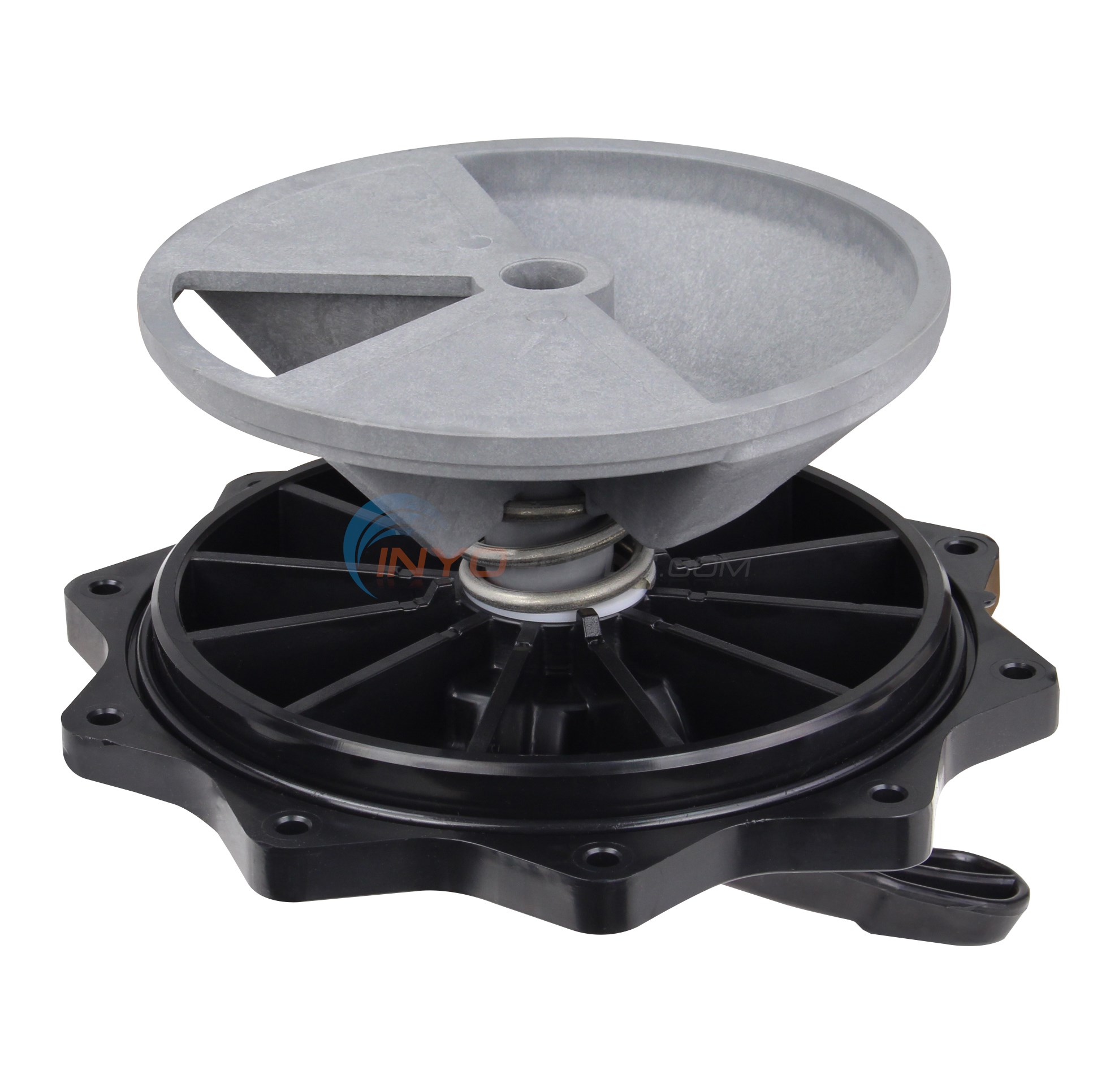

Top Valve Assy., 2" Black - E-50-S2B

$64.99

IN STOCK
FREE SHIPPING

Part # 4602-1152

By Praher

  5 Average

Details

Top

Part # 4602-1152

Manufacturer Code E-50-S2B

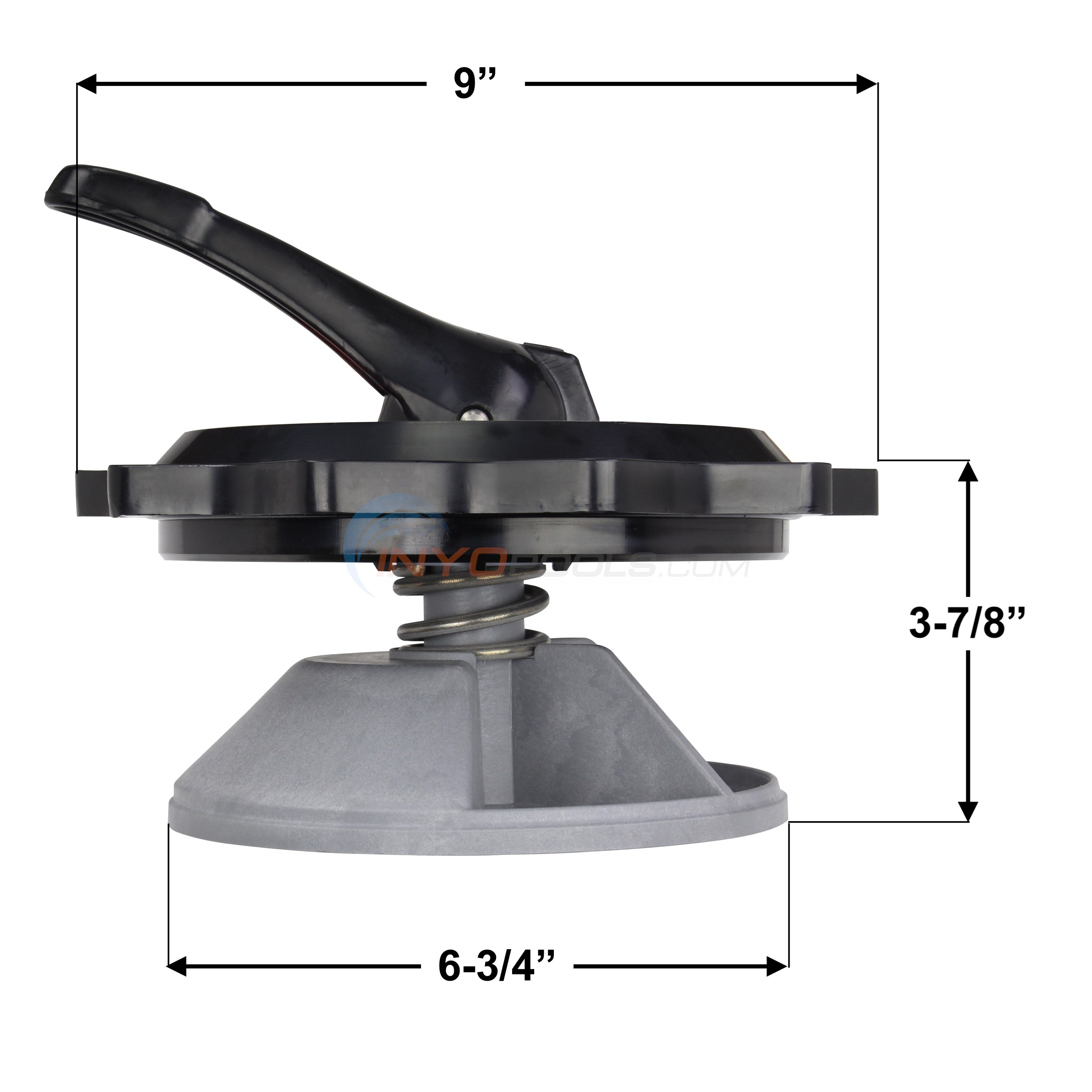

Dimensions 9" x 6-3/4"

Alternate Part #'s 14971-SM20E50, 14971SM20E50, 27-253-1104, 271152B, 4600-1152B, E50S2B, PCPE-50-S2B, PRE50S2B

Product Description

Top Valve Assy., 2" Black - E-50-S2B

Top

?     Asked on 6/9/2018 by Carmine Lombardi

I have a Pentair Valve Mod SM20-2/ Valve Assembly Mod SM2-PP2 that is leaking from the valve handle. Is this the right part and do I have to replace the hole top handle assembly? Thank You.
 Reply

A  Answered on 6/9/2018 by InyoPools Product Specialist Lennox H.

Hi, Carmine. Replacing this Top Valve Assy along with the Cover O-ring - E7S2 and the Diverter Gasket - E12S2 should resolve and prevent any future issues.
 Reply


?     Asked on 5/26/2018 by

Will this fit model # SM-20-3
 Reply

A  Answered on 5/27/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Valve Top Assy will fit the SM-20-3 Valve. The Cover O-ring - E7S2 and the Diverter Gasket - E12S2 will have to be purchased separately.
 Reply


?     Asked on 5/16/2018 by

will this fit a jandy sm20-2 MVP?
 Reply

A  Answered on 5/17/2018 by InyoPools Product Specialist Hector F.

Yes, this assembly will work for that model valve.
 Reply


?     Asked on 5/7/2018 by linda

will this part fit in a jacuzzi replacement value 7 position tm22 sandfilter tm31 filter ty linda
 Reply

A  Answered on 5/8/2018 by InyoPools Product Specialist Andy O.

Hello Linda- The Top Assy, Valve 2" white w/ decal (e-50-s2) 4600-1152 will be the correct top assembly for your TM22 valve.
 Reply


?     Asked on 9/29/2017 by Kurtis Moore

Does this come with new O ring
 Reply

A  Answered on 10/2/2017 by InyoPools Product Specialist Lennox H.

Hi, Kurtis Moore. The Cover O-ring - E7S2 and the Diverter Gasket - E12S2 are sold separately.
 Reply


?     Asked on 9/3/2017 by Simon HIRSCHL

Does this item come with the new spring and washers all inside it, or do I need to buy these parts separately? Simon
 Reply

A  Answered on 9/5/2017 by InyoPools Product Specialist Lennox H.

Hi, Simon. The spring is included with this valve top assembly. The Cover O-ring - E7S2 and the Diverter Gasket - E12S2 have to be purchased separately.
 Reply


?     Asked on 7/27/2017 by

Does this item come with a spider gasket. Do I need anything else?
 Reply

A  Answered on 7/27/2017 by InyoPools Product Specialist Lennox H.

Hi. The Cover O-ring - E7S2 and or the Diverter Gasket - E12S2 is not included with this Valve Top Assy which I recommend getting.
 Reply


?     Asked on 7/19/2017 by Chris

I have a Praher SM20-1 and need the top assembly. The handle is not popping up into place when I move it from one setting to another.
 Reply

A  Answered on 7/21/2017 by InyoPools Product Specialist Robert M.

Hello Chris - You could use either the 4602-1152 (black) or 4600-1152 (white) as the top assembly replacement for the SM20-1. The only difference is the color of the plastic.
 Reply


?     Asked on 5/11/2017 by Stephen

will this replace a millennium unground series model TM-22?
 Reply

A  Answered on 5/11/2017 by InyoPools Product Specialist Lennox H.

Hi, Stephen. Yes, this Top Assembly will fit the TM-22 Series valve.
 Reply


?     Asked on 5/4/2017 by rich

I have a BH 2" DE Multiport valve. The part number is 30B3905932 will e50-s2b be a suitable replacement.
 Reply

A  Answered on 5/5/2017 by InyoPools Product Specialist Lennox H.

Hi, Rich. I was not able to confirm if this Top Assembly will fit p/n 30B3905932. Please email pictures of the valve to upload@inyopools.com.
 Reply


?     Asked on 4/1/2017 by Dale

Will this top assy. replace the top assy of the Baker Hydro Multiport Valve 30B0047 2 inch?
 Reply

A  Answered on 4/3/2017 by InyoPools Product Specialist Lennox H.

Hi, Dale. Yes, this 2 Valve Top Assy - E-50-S2B will fit the Baker Hydro Valve - 30B0047,
 Reply


?     Asked on 3/14/2017 by Lynwood

Is this compatible with tm22 multi port valve?
 Reply

A  Answered on 3/14/2017 by InyoPools Product Specialist Andy O.

Hello Lynwood-  The Top Assy., Valve 2" Black (e-50-s2b) will work for your TM22 Valve.
 Reply


?     Asked on 1/18/2017 by

I have a sta-rite S&D75 filter fitted with a black valve (no markings) which appears identical to the sta-rite 18201-0200 (model B) valve shown on your site. The unit was fitted in 1994. Is this this the correct top valve assembly for the 18201-0200 valve?
 Reply

A  Answered on 1/19/2017 by InyoPools Product Specialist Lennox H.

Hi, Yes, this is the correct Top Assembly for the Sta-Rite Valve - 18201-0200.
 Reply


?     Asked on 1/15/2017 by Gene B.

Will the Top Assembly (Part # 4602-1152) fit my Sta-rite 2" multi-port side mount filter valve? Thanks
 Reply

A  Answered on 1/16/2017 by InyoPools Product Specialist Andy O.

Hello Gene- This will fit the TM22 and SM20 models valves by Pentair. We would need your model to tell you for certain that this will work with your valve.
 Reply


?     Asked on 10/12/2016 by Steve

Will this fit the pentair valve model number SM-20-2, valve assermblt model SM2-pp2? Also, my valve is leaking water up through the handle. Any idea what could be causing that? The washer valve spring?
 Reply

A  Answered on 10/13/2016 by InyoPools Product Specialist Hector F.

Yes that is a correct top valve assembly replacement and there are tune up kits if you choose to replace those seals and such. Those kits are listed as the first items on this parts diagram for your valve.
 Reply


?     Asked on 9/24/2016 by Jean-Loup

I have a Purex triton TM-22. Will this work?
 Reply

A  Answered on 9/27/2016 by InyoPools Product Specialist Lennox H.

Hi Jean. Yes, this Top Assy will fit the TM-22 model valve.
 Reply


?     Asked on 6/7/2016 by AQB

Does this valve assy comes with the cover o-ring?
 Reply

A  Answered on 6/12/2016 by InyoPools Product Specialist Patrick P.

Hi AQB, The cover o-ring is included with the valve but the spider gasket is not.
 Reply


?     Asked on 5/27/2016 by

Can you use this Top Valve Assembly to replace a purex triton model sm 20-3?
 Reply

A  Answered on 5/27/2016 by InyoPools Product Specialist Patrick P.

Yes this top valve assembly can be used on the Purex Triton SM20-3 valve.
 Reply


?     Asked on 5/24/2016 by mike

will this replace a Jandy top Ser #2928274 ?
 Reply

A  Answered on 5/30/2016 by InyoPools Product Specialist Lennox H.

Hi Mike, We will need to know the model # of the instead of the serial number in order to confirm if this top will fit.
 Reply


?     Asked on 4/3/2016 by Paul

will this replace the top of a Purex Triton SM-20. I think there was another letter or number but this has worn off. It has 2" connections.
 Reply

A  Answered on 4/4/2016 by InyoPools Product Specialist Lennox H.

Hi Paul, The E-50-S2B will fit onto the Purex Triton SM-20 Valve.
 Reply


?     Asked on 8/31/2015 by Frank

This will fit/replace the Praher TM-22 valve head will it not? Many thanks!
 Reply

A  Answered on 9/4/2015 by InyoPools Product Specialist Lennox H.

Hi Frank, The 2" Top Valve Assy Black (E-50-S2B) will fit onto your Praher TM-22 Valve.
 Reply


?     Asked on 5/27/2015 by Joe

You told "guest," "Does part # 4602-1152,"Top Assy., Valve 2" Black (e-50-s2b", come with a spider gasket?Inyo AnswerAnswered on 04/18/2013 by Product Specialist Patrick P.Part # 4602-1152, the spider gasket is not included and is sold separately, which is part # 4600-1148. Will I need to order the spider gasket as an extra purchase in addition to the Top Assy? Or, as per your previous answer, all the gaskets, o-rings, spring, etc., are included. Thank you,
 Reply

A  Answered on 5/27/2015 by InyoPools Product Specialist Patrick P.

Joe, I'm sorry about that I did answer your last question incorrectly, the spider gasket does not come with the top assembly. The spider gasket E-12-S-2 is purchased seperately
 Reply


?     Asked on 5/27/2015 by Joe

Will this unit, Top Assy., Valve 2" Black (e-50-s2b), have all the parts, e.g., O-rings, gaskets, etc., I will need to install? Will the unit come with hints, instructions? Thank you,
 Reply

A  Answered on 5/27/2015 by InyoPools Product Specialist Patrick P.

Hi Joe, Yes this top assembly does come will all the parts like the o-rings, gaskets and spring. I don't beleive this comes with any instructions but we do have this Multiport Video here which should be helpful for your installation. You can always call us for assistance as well. Update: All the gaskets minus the spider gasket are included with this top assembly, here is the proper Spider Gasket for This Top Assembly.
 Reply


?     Asked on 5/26/2015 by

will this replace multiport valve on the Praher sm20-2
 Reply

A  Answered on 5/26/2015 by InyoPools Product Specialist Lennox H.

This will replace the Top Assy for your Praher SM20-2 MultiPort Valve.
 Reply


?     Asked on 5/23/2015 by RON

Does this assembly include the diffuser gasket?
 Reply

A  Answered on 5/23/2015 by InyoPools Product Specialist Patrick P.

Hi Ron, No the spider gasket is not included in this assembly, we do carry the Spider Gasket here.
 Reply


?     Asked on 4/13/2015 by

sorry to be redundant but this is a replacement for 14971-sm20e-50?
 Reply

A  Answered on 4/13/2015 by InyoPools Product Specialist Robert M.

This is the correct top assembly for the SM20 series.
 Reply


?     Asked on 11/16/2014 by Mike

Is this a direct replacement for the Pentair TM-22 control valve, top cover on mine is cracked and need a replacement
 Reply

A  Answered on 11/17/2014 by InyoPools Product Specialist Alex V.

Mike, Yes. This will fit the TM22 and SM20 valves.
 Reply


?     Asked on 4/18/2013 by Guest

Does part # 4602-1152,"Top Assy., Valve 2" Black (e-50-s2b", come with a spider gasket?
 Reply

A  Answered on 4/18/2013 by InyoPools Product Specialist Patrick P.

Part # 4602-1152, "Top Assy., Valve 2" Black (e-50-s2b", the spider gasket is not included and is sold separately, which is part # 4600-1148.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set

Valve Assy was leaking

Written on 12/20/2017 by Guest

The replacement was quick and simple, all screws were accessible from the top of the valve. The job took no more than 20 minutes to complete.
