Product Specifications
|
|
Part #:
4090-13
|
|
Manufacture Code:
UNI-89
|
|

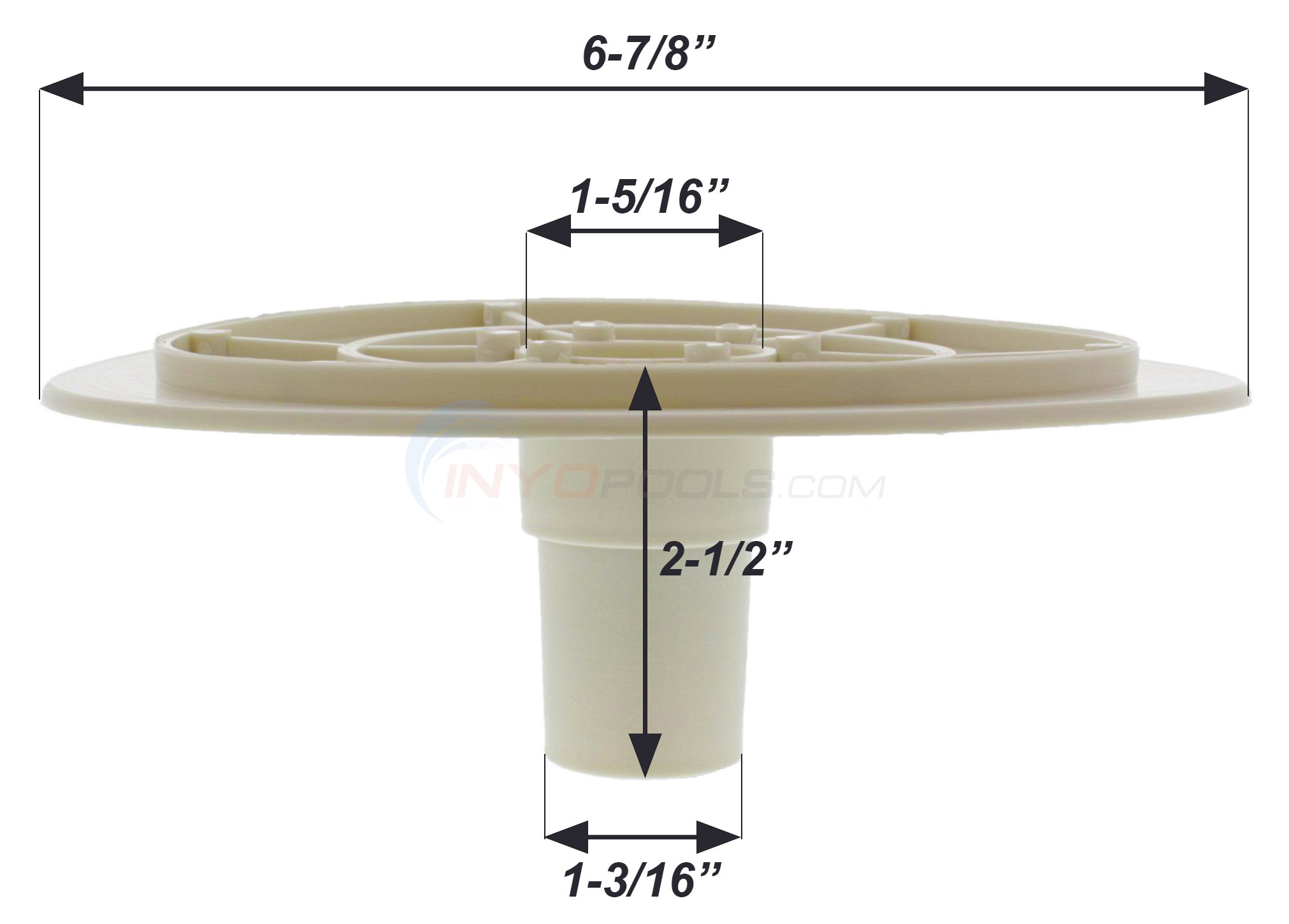

Product Dimensions:
7"
|
|
|
|
Back to Top
|
|
Product Description
|
|

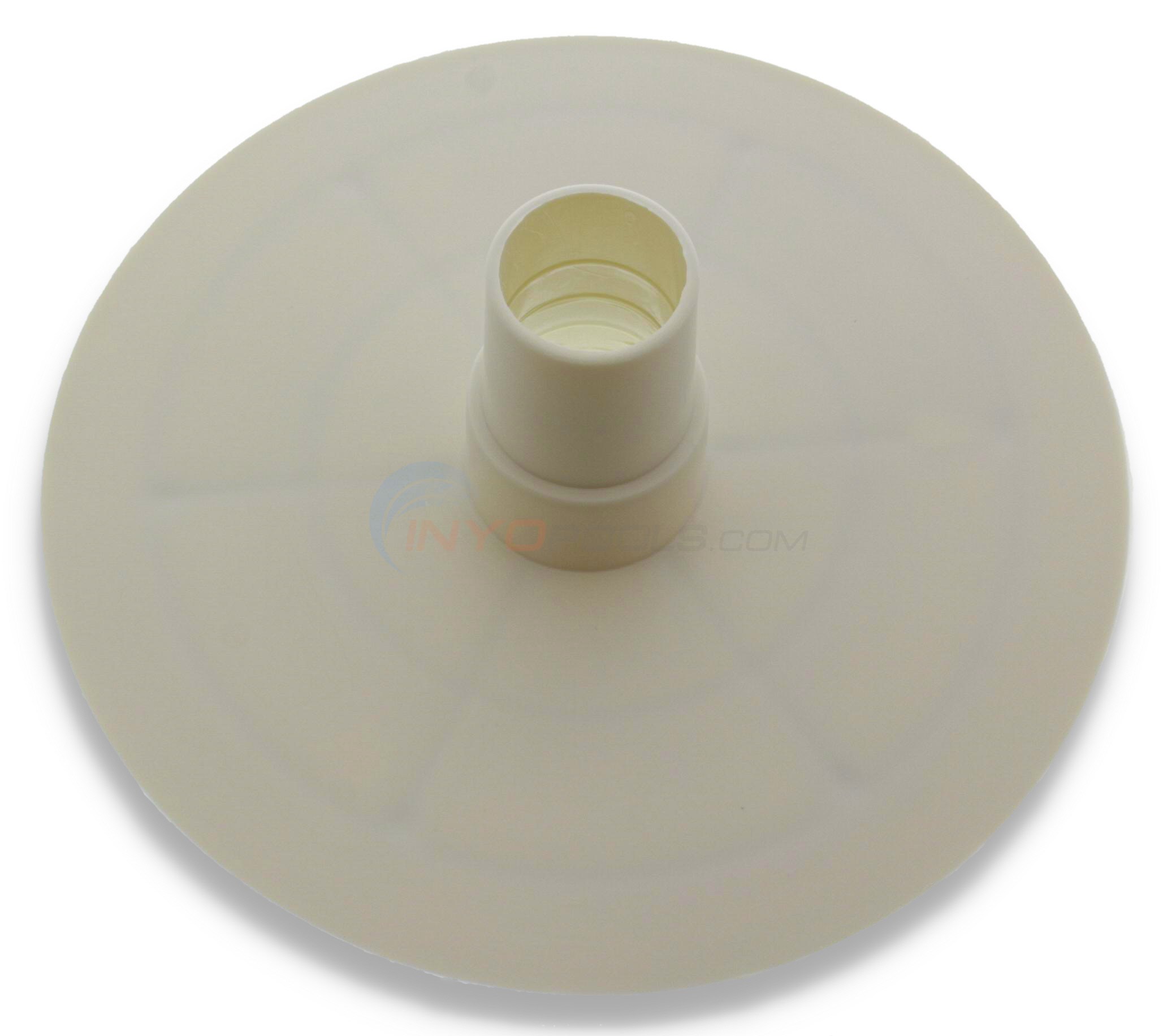

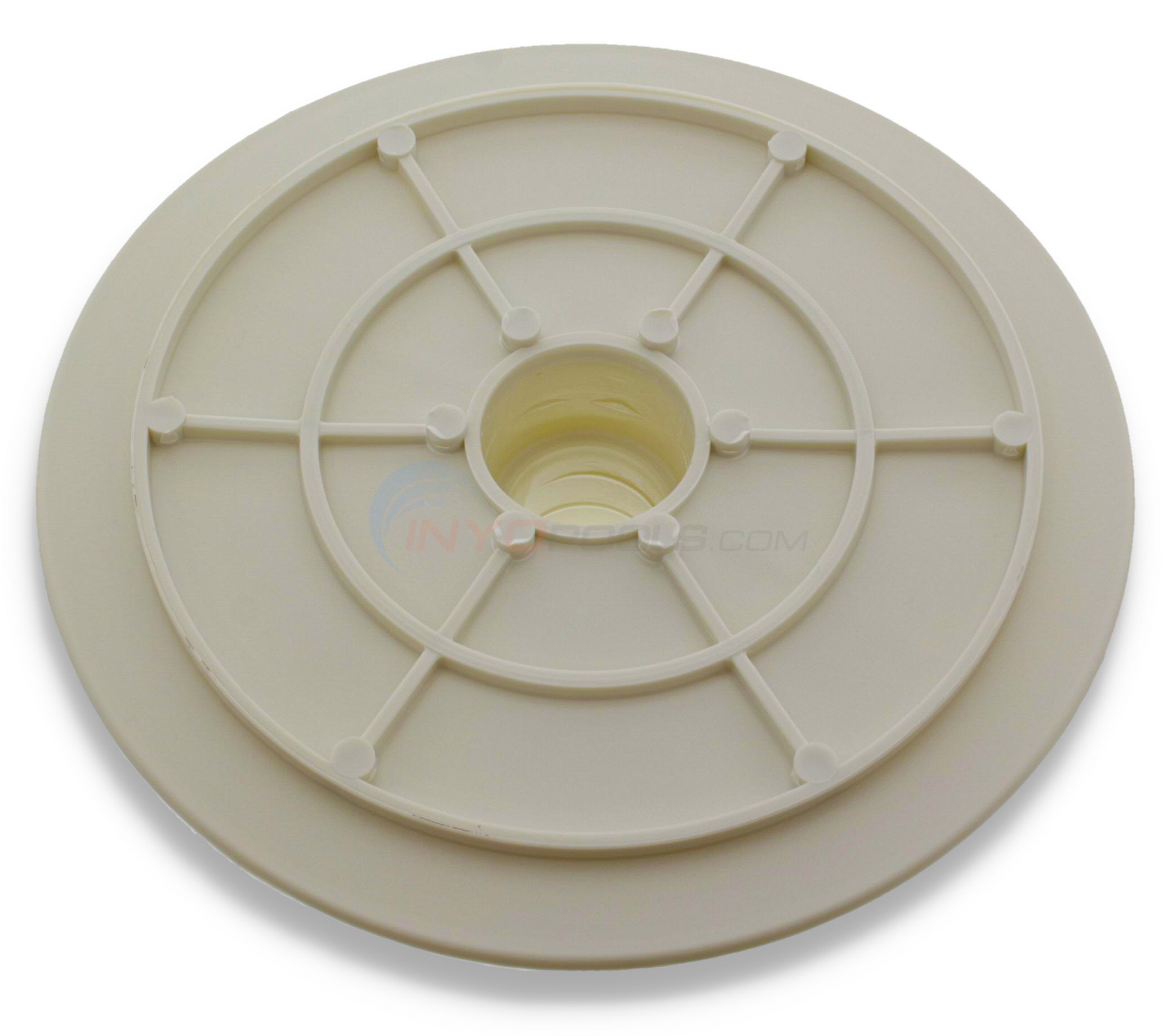

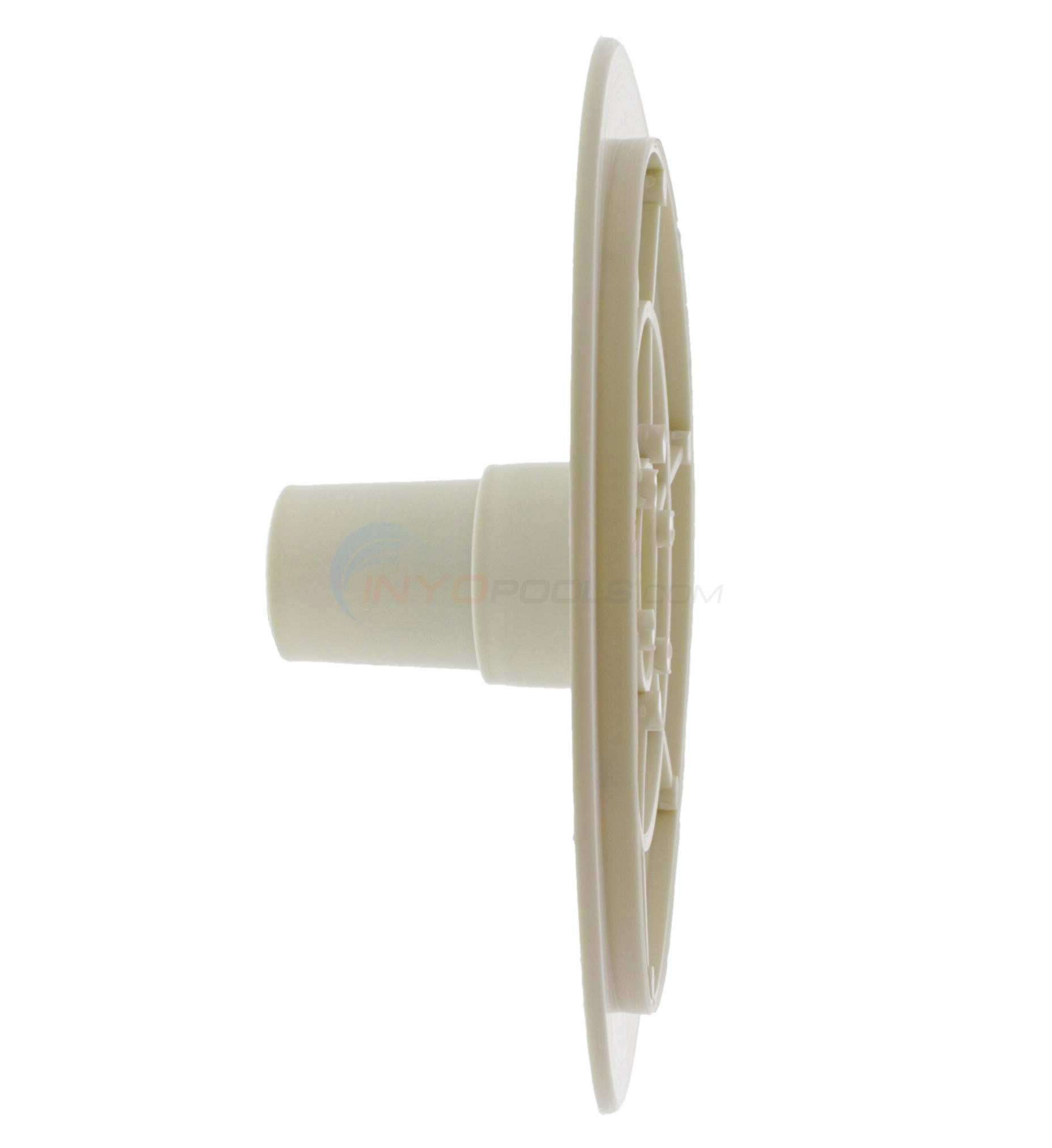

INYO # 4090-13 OLYMPIC # UNI-89 GENERAL DESCRIPTION: THIS IS A ROUND OLYMPIC VACUUM PLATE MATERIAL: WHITE PLASTIC SHAPE: ROUND, WITH A HOSE ADAPTOR ON TOP THIS HAS A NUMBER OF RINGS ON THE BOTTOM THE OUTSIDE RING IS 5-5/8" OUTSIDE DIAMETER THE HOSE ADAPTOR ON TOP IS 1-3/16" AT THE END THIS IS TAPERED AND STEPS UP TO 1-1/2" A LITTLE FARTHER ON ALONG THE ADAPTOR PIECE ******************************************************************************* DIMENSIONS: OUTSIDE DIAMETER: 6-7/8" HEIGHT: 2-7/8" (APPROXIMATE) ******************************************************************************* MARKINGS: THERE ARE NO MARKINGS ******************************************************************************* SUBSTITUTES: THE 3112A VACUUM PLATE WILL REPLACE THIS. IT'S SLIGHTLY SMALLER IN DIAMETER BUT THE OUTSIDE RING ON THE BOTTOM IS 5-11/16" WHICH IS VERY CLOSE TO THE OLYMPIC NOTE DATE: 5-4-2009
|
|
|
|
