Generic - Cover, Strainer, Clear Lexan With O-ring (spx1500d2a) - SPX1500D2A-GENERIC

$28.99

IN STOCK
FREE SHIPPING

Part # 25306-000-020

By Custom Molded Products

  4.88 Average

Details

Top

Part # 25306-000-020

Manufacturer Code SPX1500D2A-GENERIC

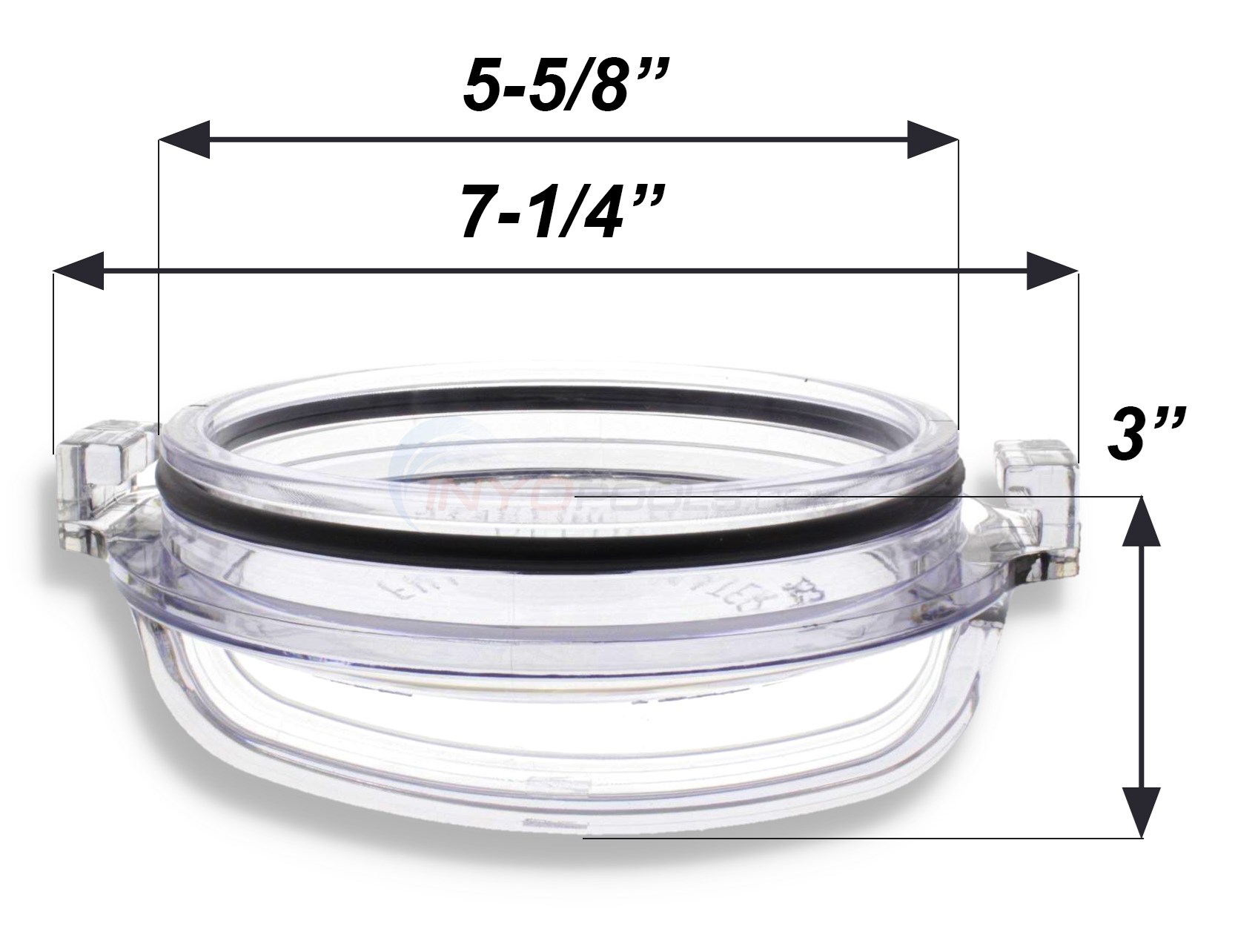

Dimensions 7-1/4" X 5-5/8"

Alternate Part #'s 9348-601, SPX1500D2A

Product Description

GENERIC - COVER, STRAINER, CLEAR LEXAN WITH O-RING (SPX1500D2A)

This is a generic pump strainer lid manufactured by Custom Molded Products as a replacement for the Hayward SPX1500D2A lid.  It is used on some of Hayward's popular above ground pool models such as the Power-Flo LX, Power-Flo 1500 Series, and Power-Flo II & III.

Top

?     Asked on 11/11/2017 by Kevin

I am Looking for a replacement strainer lid for a Hayward Power Flo LX pump model SP-1580Z2. Strainer itself has sp-1515 stamped on side. Lid has sticker with number SP-1515A. I can't seem to match the numbers up exactly. The part numb (spx1500d2a) seems to look close. Will this fit? What is the difference between the two parts 5111-17A and 25306-000-202?

A     Answered on 11/14/2017 by InyoPools Product Specialist Lennox H.

Hi, Kevin. The Strainer Cover - SPX1500D2A (OEM) or 25306-000-020 (Generic) will fit your Hayward Power Flo LX pump.

?     Asked on 10/10/2017 by Sandi

I bought 2 covers this year. And they both starting leaking. Seems the o ring stretches out. Please explain why.

A     Answered on 10/11/2017 by InyoPools Product Specialist Lennox H.

Hi, Sandi. O-rings can become stretch out if they're not properly lubricated. They will absorb water causing them to expand.

?     Asked on 9/2/2017 by mitch

will this cover fit a wayne inground 1.5 hp pump

A     Answered on 9/5/2017 by InyoPools Product Specialist Lennox H.

Hi, Mitch. This cover will not fit any of the Wayne inground pool pumps that I was able to locate.

?     Asked on 7/25/2017 by james skipper

will this fit a dynamo. some of the label is gone. all i see is model no. dyn11-n1-1.5

A     Answered on 7/26/2017 by InyoPools Product Specialist Alex V.

James, Yes, this will fit the Dynamo pumps.

?     Asked on 7/1/2017 by Guy Kovner

How wide is this item. The cover on my strainer is 6.5 inches across.

A     Answered on 7/4/2017 by InyoPools Product Specialist Lennox H.

Hi, Guy. Click link > Product Dimensions to view this lid measurement.

?     Asked on 6/11/2017 by Bob

Hi Will it fit Hayward sp2175csa

A     Answered on 6/17/2017 by InyoPools Product Specialist Lennox H.

Hi, Bob. Yes, this Generic - Strainer Cover - SPX1500D2A will fit the Hayward SP2175.

?     Asked on 6/1/2017 by Brendelee J Marshall

Will this lid replace the Hayward Power Flo LX SP1515Z1BC

A     Answered on 6/1/2017 by InyoPools Product Specialist Hector F.

Yes, this would be the correct replacement.

?     Asked on 5/16/2017 by

Will this replace cover for stark 75117

A     Answered on 5/16/2017 by InyoPools Product Specialist Lennox H.

Hi. This cover will not fit the Stark USA 75117 pump.

?     Asked on 4/15/2017 by Joe R Kephart

Will this fit lomart?

A     Answered on 4/17/2017 by InyoPools Product Specialist Lennox H.

Hi, Joe. Some of the Hayward equipment have been private labeled for different retailers over the years. If you can provide photos of the pump you have we can confirm if this cover can fit your Lomart pump.

?     Asked on 3/18/2017 by Sandi

Will this cover fit a stark model 75039 / DRQD1502?

A     Answered on 3/20/2017 by InyoPools Product Specialist Lennox H.

Hi, Sandi, This cover will not fit the Stark USA pump, you will need the Pool Pump Cover - PO12728CR.

?     Asked on 8/6/2016 by

Will this fit a Utilitech 58410utl1 pump, or do you have any thing that would fit. Thankyou

A     Answered on 8/19/2016 by InyoPools Product Specialist Stacey M.

Hello, The Generic - Cover, Strainer, Clear Lexan With O-ring (spx1500d2a) is a Custom Molded Product and only fits Hayward Power flo, Hydromax, and Hayward Turbo/Power flo.

?     Asked on 7/21/2016 by MauricioGarcia

will it fit a Utilitech 1 HP in and above ground pump #0313509 ?

A     Answered on 7/23/2016 by InyoPools Product Specialist Lennox H.

Hi Mauricio, This strainer cover will not fit the Utilitech pump, we do not have a lid for that pump.

?     Asked on 7/4/2016 by Irene

Will this cover fit the above ground pool filter Starbright? unfortunately I do not have the model number. It holds a 1 HP motor

A     Answered on 7/9/2016 by InyoPools Product Specialist Lennox H.

Hi Irene, This cover can be used with the Starbright Pump.

?     Asked on 6/15/2016 by Ronald Terrell

Hayward strainer cover, part # SP1680E

A     Answered on 6/16/2016 by InyoPools Product Specialist Lennox H.

Hi Ronald, This is the generic replacement cover for the SP1680E.

?     Asked on 6/12/2016 by Penny

Wi'll this fit the Hayward Matrix models?

A     Answered on 6/12/2016 by InyoPools Product Specialist Patrick P.

Hi Penny, This lid fits the Hayward Power Flo LX but not the Matrix pump. You would need this Hayward Power Flo Matrix Lid.

?     Asked on 6/10/2016 by Maria

Does this cover fit the Hayward pump sp1515-1esc

A     Answered on 6/11/2016 by InyoPools Product Specialist Alan M.

Hi, The Generic - Cover, Strainer, Clear Lexan With O-ring is the correct replacement lid for the Hayward Power-Flo 1500 Series pump.

?     Asked on 6/9/2016 by Monica

I need a cover that fits sp1520-z-1-esc

A     Answered on 6/15/2016 by InyoPools Product Specialist Lennox H.

Hi Monica, This cover will fit the Hayward Power Flo Pump's which uses the SP1520-Z-1-ESC motors.

?     Asked on 5/22/2016 by

What if it says power Flo matrix? With model # sp1515-z-1-esc

A     Answered on 5/23/2016 by InyoPools Product Specialist Robert M.

This lid will not work with the Power-Flo Matrix. Part number SPX5500D is the correct lid for the Matrix.

?     Asked on 5/22/2016 by

Will this lid fit a model # sp1515-z-1-esc?

A     Answered on 5/22/2016 by InyoPools Product Specialist Patrick P.

The sp1515-z-1-esc motor is most commonly used on the Hayward Power Flo LX pump and this lid does fit the Hayward Power Flo LX. I would go out to your pump and check to see if you see any reference to Hayward Power Flo LX and if the answer is yes then this is the lid for you.

?     Asked on 11/3/2015 by

Will this fit older models...20+ years old?

A     Answered on 11/3/2015 by InyoPools Product Specialist Lennox H.

Hi, The Generic-Clear Lexan Strainer Cover w/ O-ring (25306-000-020) will fit any older model pump that uses the OEM SPX1500D2A Lid.

?     Asked on 7/28/2015 by

will this fit a blue wave ne6151b 1 hp pump bought at home depot

A     Answered on 7/28/2015 by InyoPools Product Specialist Hector F.

No this is not the correct lid. The part number for your lid is PO12728CR but is currently not in stock.

?     Asked on 7/18/2014 by Guest

Would this lid be compatible with a Hayward Ultra Flo Pump SP2290?

A     Answered on 7/18/2014 by InyoPools Product Specialist Patrick P.

Yes this lid would work on the SP2290 pump.

?     Asked on 4/28/2013 by Guest

Would part # 25306-000-020, fit for my Hayward Pump model SP1580X15?

A     Answered on 4/28/2013 by InyoPools Product Specialist Patrick P.

Yes, part # 25306-000-020, generic replacement lid and o-ring, would be compatible for your Hayward Pump model # SP1580X15.
