Badu EcoMV 2.4 HP Pool Pump (EcoMV/72-V) - 2072266213

THIS PRODUCT IS NO LONGER AVAILABLE

Part # 2072266213

By Speck Pumps

  5 Average

Details

Top

Part # 2072266213

Alternate Part #'s IG245-V240T-000

Product Description

Variable Speed Pump

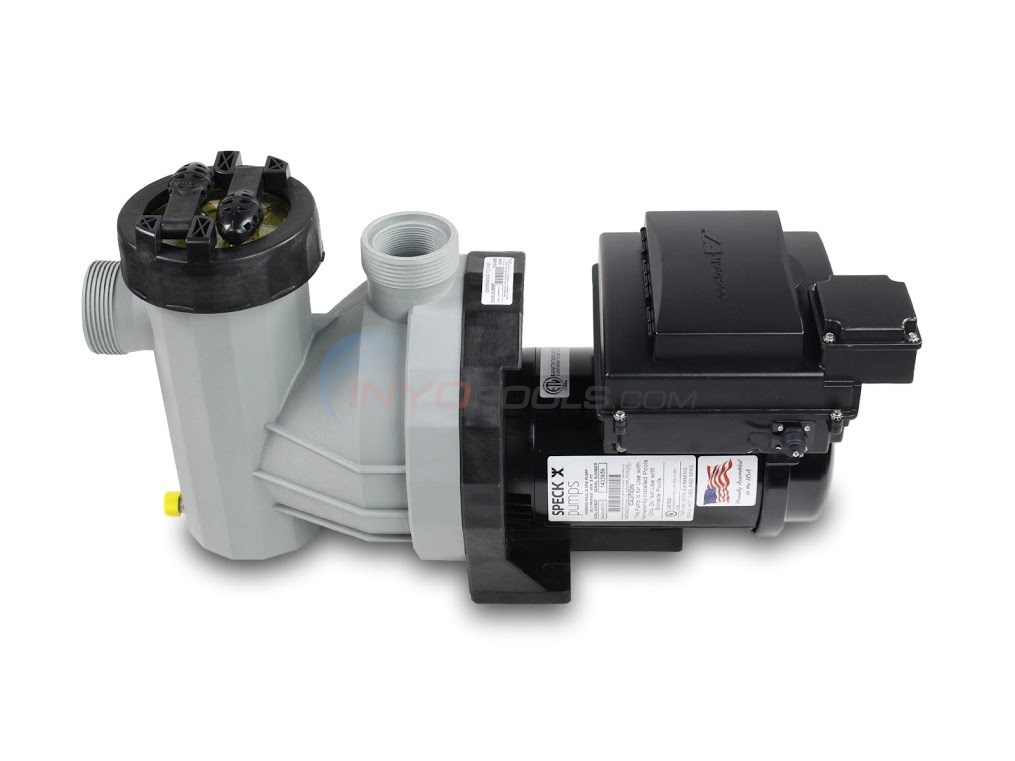

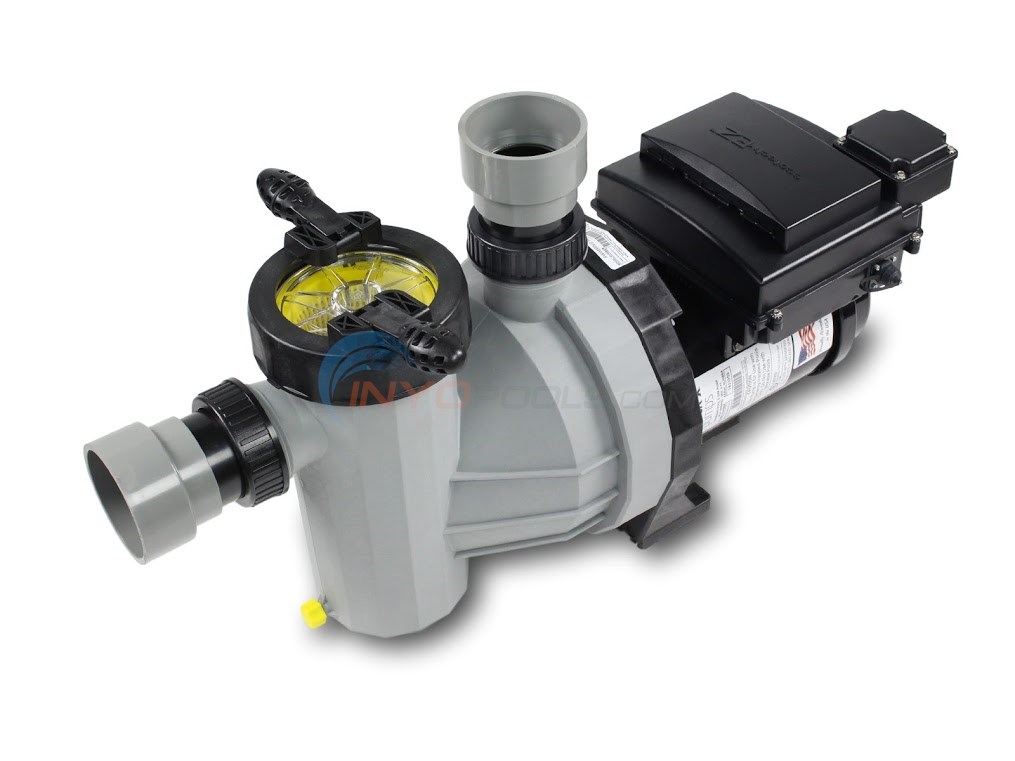

The Speck Badu EcoMV all-plastic, self-priming variable speed pool pump is designed for small commercial and large residential pools and spas. The pump design has been engineered for incredible durability, superior performance, and quiet operation. Speck continues to set standards for the future by using 100% recyclable plastics which benefit the consumer and the environment.

Features

  • This high performance, medium head pump comes complete with our unique mechanical shaft seal that allows the pump, if mistreated, to run dry for up to one hour.
  • Pump parts are made of 100% recyclable plastic. Non-corrosive, chemical/UV resistant, and can withstand temperatures of up to 175° F.
  • The pump can be used for pool water with a salt concentration of up to 5000 ppm.

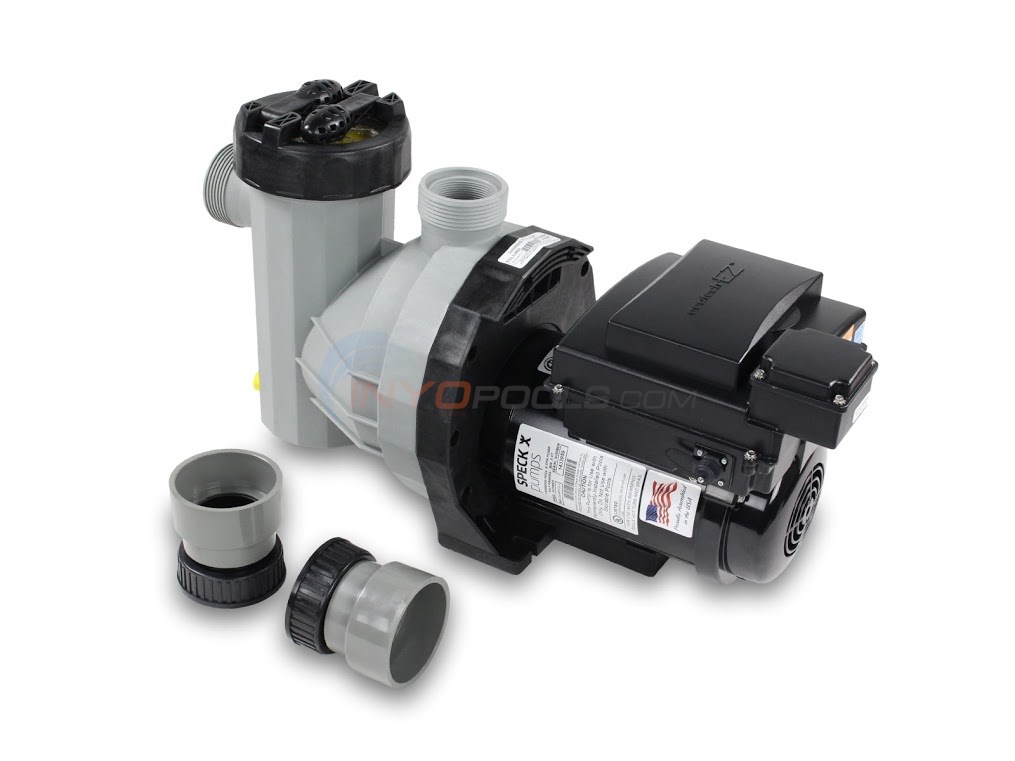

  • Suction and discharge are equipped with 2” quick disconnect unions for easy installation and maintenance. Optional 3" unions available.
  • Motor is easy to remove without disturbing the plumbing. Reusable o-rings throughout.
  • RPM levels can be set for 1035 to 3450. The levels can be set in percentage of full at 5% increments of flow.

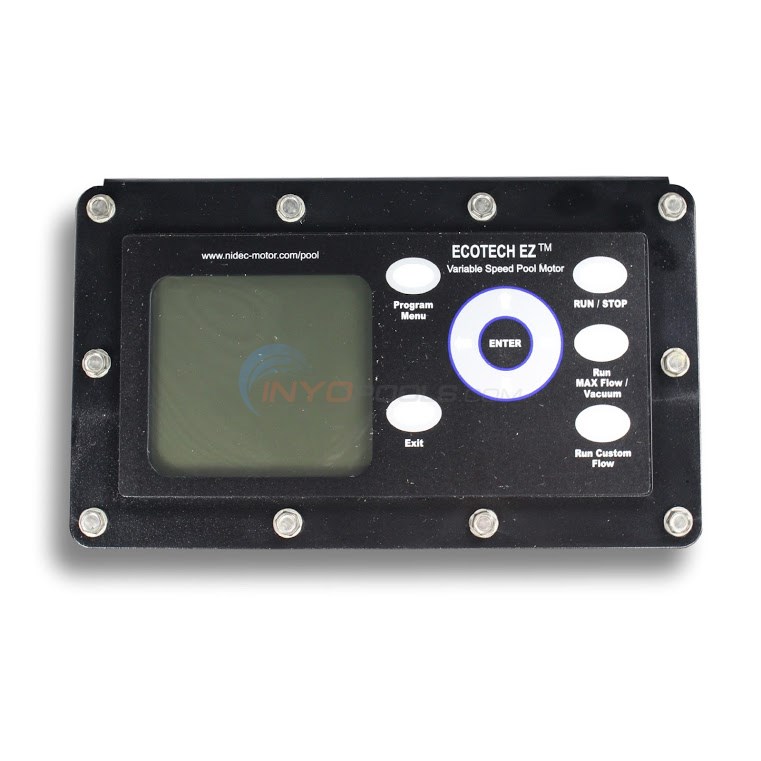

  • Programmable high efficiency TEFC (totally enclosed fan cooled) motor 56 frame has the ultimate flexibility in motor speed and timer settings.
  • Freeze protection feature will run motor at 30% flow.
  • For pool users’ safety, the impeller has a dielectric shaft sleeve that provides absolute separation between pool water and electric parts.
  • Specially constructed clear lid with ring lock design is easy to open. Large strainer basket is always locked in place.
  • Three/Two year warranty on the motor and all pump parts, including normal wear of the mechanical seal.
  • Every pump is performance tested before leaving the Speck factory.
Speck



 Speck



Product Specifications

HP:
2.4 HP
Volts:
208-230 V
Speed:
Variable
Weight:
56 lbs.
Pipe Size:
2 in.
Top

?     Asked on 8/24/2017 by RKM

I contacted Nidec to get the bearing part #'s for others: One 6304 and One standard 6203, both double-sealed of course.
 Reply

A  Answered on 9/6/2017 by InyoPools Product Specialist Lennox H.

Hi, RKM. You can use this 203 Bearing - 6203 and 304 Bearing - 6304 as replacements.
 Reply


?     Asked on 7/6/2016 by Amir

I have aqua link RS4 panel inside home, does it work with this pump or I have to change the Rs4?
 Reply

A  Answered on 7/12/2016 by InyoPools Product Specialist Lennox H.

Hi Amir, Speck does offer the ecotech EZ Interface Adapter Kit (5881778987) for this pump which can be special ordered. If you're interested please let us know.
 Reply


?     Asked on 7/2/2016 by dale

Three/Two year warranty?? Can you tell me about this? Thanks Dale
 Reply

A  Answered on 7/4/2016 by InyoPools Product Specialist Alex V.

Dale, You can read the full terms of the warranty on page 7 of the owner's manual.
 Reply
