Top Ledge - Curved Side Resin (Single) Saltwater Ultimate - CG761-001-R

$79.99

IN STOCK
FREE SHIPPING

Part # CG761-001-R

By Wilbar

  5 Average

Details

Top

Part # CG761-001-R

Product Description

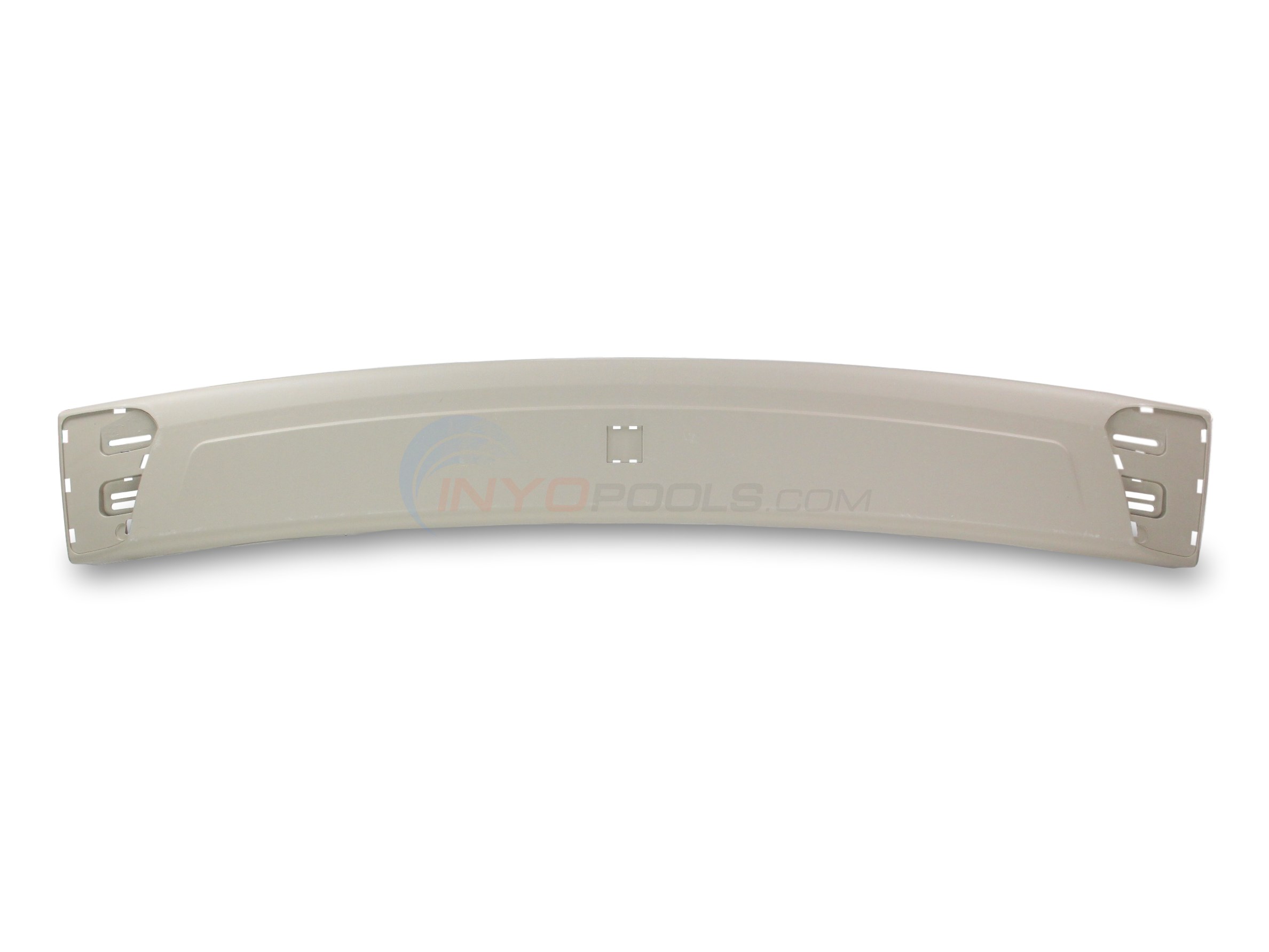

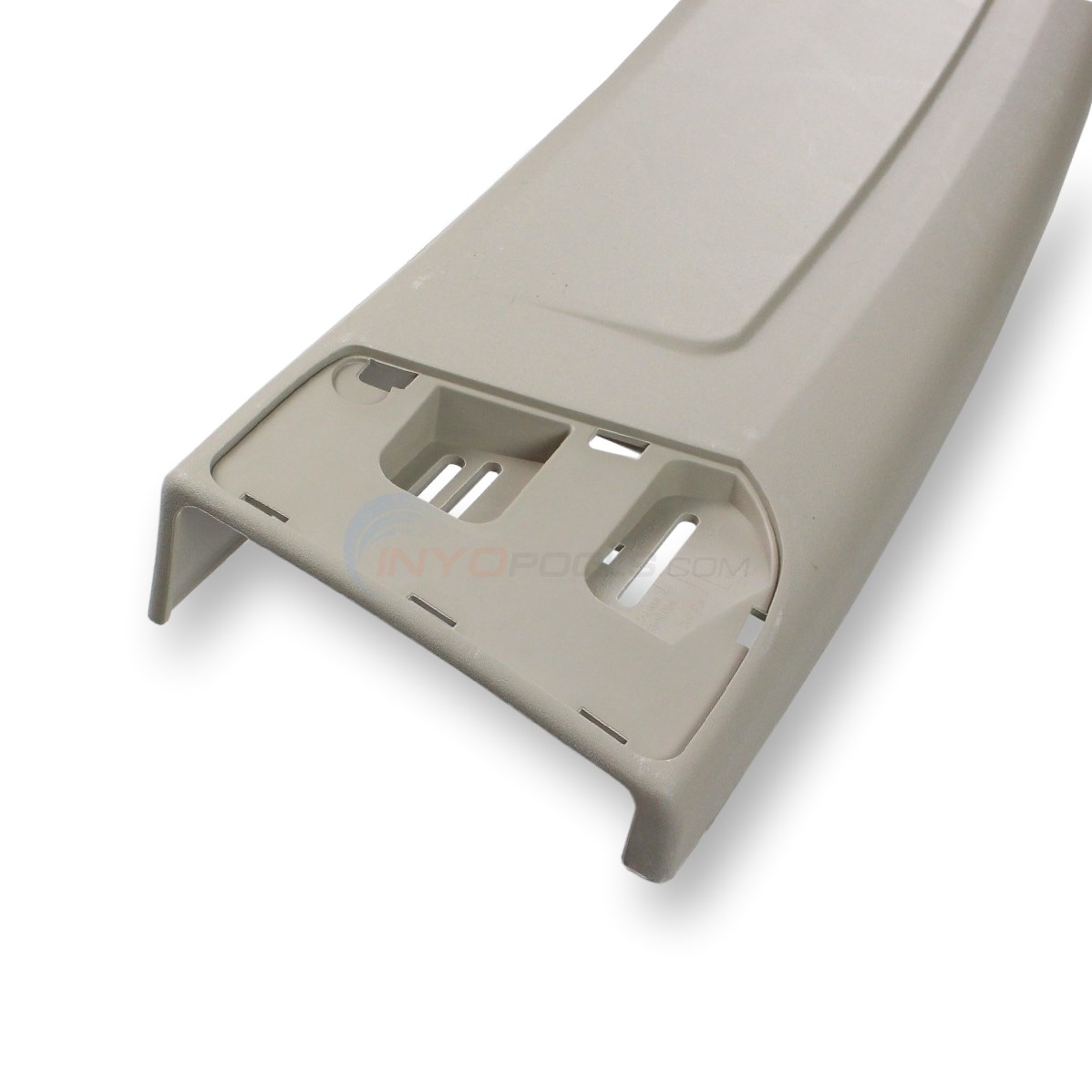

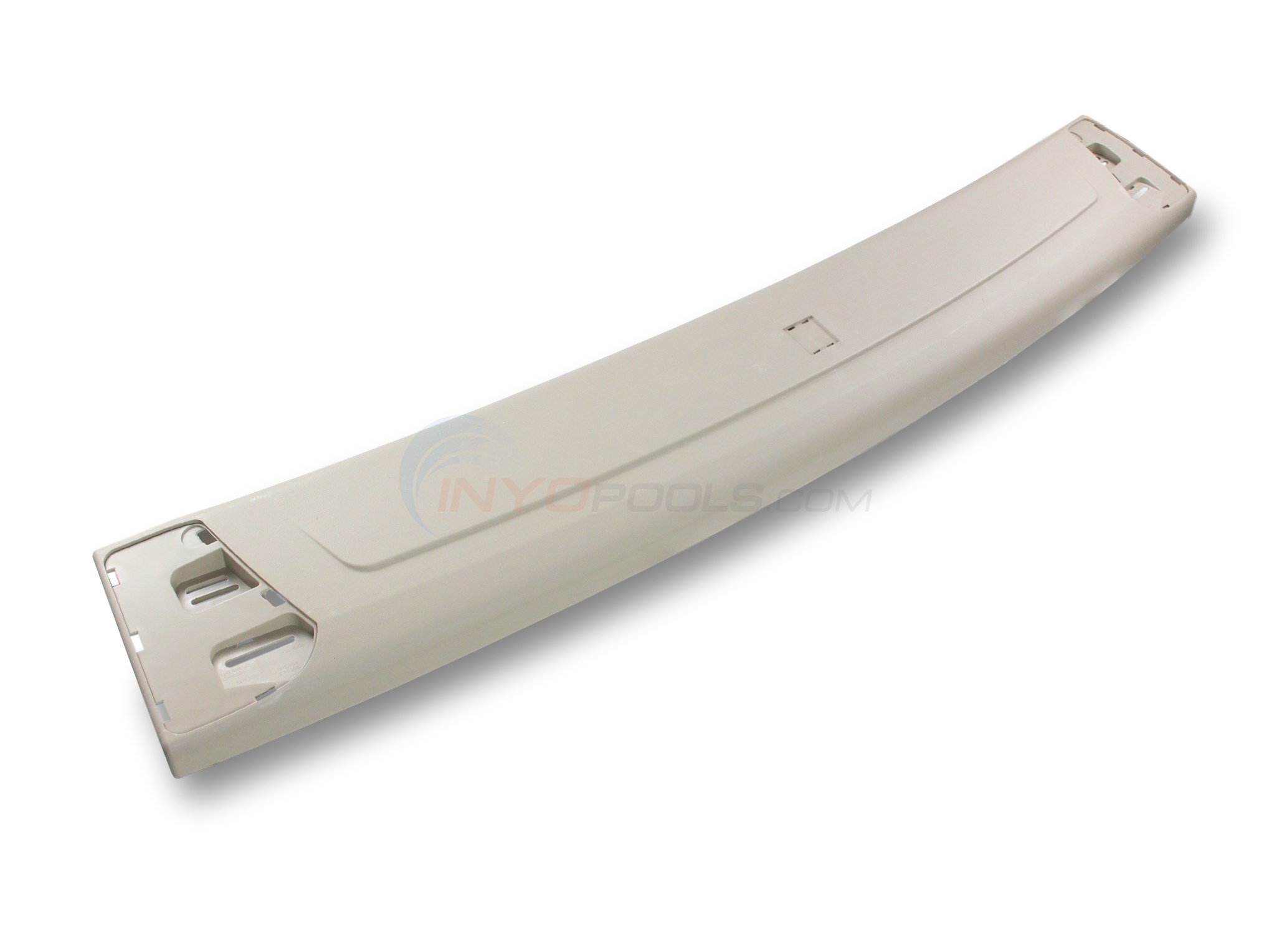

Top Ledge - Curved Side Resin (Single)

Above ground pool parts are not universal and can be difficult to identify. Inyo wants to make every effort  that your order meets your requirements. If you are not confident that you have chosen the right parts - Please send the following information that is requested below.  Inyo will forward to the information provided to the manufacturer to see if they can determine if the pool is one of their models.

Click here to submit the information requested below.

*   Size of the pool & approximate age of the pool?

*   Image of the pool wall.

*   Image of the upright

*   Image of the top rail connection to the upright.

*   Name & age of the pool (if known)

Product Specifications

Commonly Used On:
Vogue Panache, Azor
Top

?     Asked on 12/6/2017 by Tina Clark

I am looking for the part that attached to the top rail and the leg. Kind of under the leg
 Reply

A  Answered on 12/6/2017 by InyoPools Product Specialist Lennox H.

Hi, Tina. Based on your description you're referring to the Top Plate Resin - CC761-20851
 Reply


Top
Difficulty

Est. Repair Time

4 to 8 hrs

Tools Needed

Screwdriver, Small gardening shovel

Wind storm damaged my pool

Written on 6/26/2019 by Guest

I live in buffalo ny & my pool was damaged from a high wind storm. The high winds lifted the winter cover with the cable pulled the pool uprights and top ledge off.

I called Inyo & they were amazing with how helpful they were & saved me $400. It made my day because I was sick from the cost and damage. First i took everything apart that was damaged & made a parts list, ordered the parts & they came not even 6 days later. They shipped everything within 24 hours. (Mind you the pool store I was going to order parts from told me 6 to 8 weeks & wanted charge me $25 shipping. I said summer will be over...)

So the first thing I did was dig around the bottom track where the upright fits in, I used a small garden shovel & screw driver to clean out the slot to clear away dirt. Slid the upright in then attached the top cap using 4 Phillip's head screws. ( when you do this make sure the cap covers the top stabelizer rail.)

Then I attached the top curved rail with 2 Phillip's head screws on each end. Very easy to put back together just time consuming but, I just took my time.

I'm super happy!! Thank you so much Inyo pools you are a life saver!! This is an amazing company that helped me tremendously & I'm a forever customer now! Amy

Were these instructions helpful?


Top

Review Summary

 (Average 5  out of 5 stars)
1 Ratings
5 star:

(1)
4 star:

(0)
3 star:

(0)
2 star:

(0)
1 star:

(0)

The Most Recent Reviews
