PureColors LED Pool Light Fixture 12V 30' Cord - PL5820

THIS PRODUCT IS NO LONGER AVAILABLE

Part # PL5820

By PureLine

  5 Average

Details

Top

Part # PL5820

Warranty 2 Year Warranty

Alternate Part #'s SP058030

Product Description



COLOR CHANGING LED POOL & SPA LIGHTS

PureColors LED pool & spa light fixture's offer seven solid colors, and nine light shows that can instantly transform your pool area into a color-rich paradise. The PureColors bulb uses an Edison screw in base, so the LED bulb is easily replaced if it every burns out. Plus, LED technology makes them the most energy efficient and longest lasting light on the market.

ADVANTAGES:

  • LED technology
  • 80% Operational Cost Savings
  • Standard screw in light base for quick & easy replacement
  • Synchronize multiple lights to operate in unison
  • 50,000 hours Lifespan
  • 2-year warranty
  • 441- LED's

COMPATIBILITY:

  • Hayward Astrolite SP058 Series
  • Pentair Amerlite 784 Series
  • Note: Not compatible with Swimquip Light Fixtures or Hayward SP0540 series.

Product Specifications

Face Ring:
White Plastic
Bulb Type:
LED
Cord Length:
30 ft.
Pool / Spa Type:
Pool
Volts:
12 V
Remote Included:
No
Controller:
Light Switch
Watts:
35 W
Lumens:
White: 2,600 Colors: 850
Incandescent Equivalent:
300 Watts
Top

?     Asked on 6/7/2018 by Ed

Is this compatible with the Fiberstars Jazz J400 AS pool light. If not,what multicolor led 12 volt bulb is. Thank you.
 Reply

A  Answered on 6/9/2018 by InyoPools Product Specialist Alex V.

Ed, Unfortunately, it is not compatible with the Fiberstars Jazz light. There are currently no LED replacements for that fixture.
 Reply


?     Asked on 3/12/2018 by Bill Bob

Pulled my burnt out light out of last year, wanted to replace bulbs, interior of the light was moldy, corroded & fouled up. Want to replace with light fixture & bulb with a screw in type bulb (this 1 had 2 smaller bulbs w what looked like a color prism in it. The name & #'s are: Pentair Series 600019, 600020, & 600037 - 142 Watts - 12 volts, Bulb Type MR16 75W. It says use with Model # 7821XX, 7822XX, 7823XX, 79208900, 7920XXXX or 79206700 US Listing only Fixture housing. Wet Niche. Suggestions?
 Reply

A  Answered on 3/13/2018 by InyoPools Product Specialist Lennox H.

Hi, Bill. You can use the PureColors LED Bulb & Pentair Amerlite Pool Light Fixture Kit 12V - PL5821 (50 ft.), PL5822 (100 ft.).
 Reply


?     Asked on 3/11/2018 by Thomas

I m replacing the 10 year old Pantair W-648614 it does not allow bulb only replacement. I want to use the Pureline PL5820 s it is the same size but my cord is ran around to side of my house which measures 70 feet just on top of the ground. How do I get a longer cord?
 Reply

A  Answered on 3/11/2018 by InyoPools Product Specialist Patrick P.

Hi Thomas, The PL5820 is no longer available and you would need this 100' 12V PureColors Light Fixture if you happen to have 120V then you will need this 120V 100' PureColors Light Fixture Unfortunately you cannot splice wire on pool lights so you will need to go with the 100' version.
 Reply


?     Asked on 2/7/2018 by Raul

Hello again, what does 1 do when finding out that the cable between the trafo and the niche is stuck? Are there any special wiring boxes that can stay submerged in the niche?
 Reply

A  Answered on 2/7/2018 by InyoPools Product Specialist Lennox H.

Hi, Raul. You will have to try to get the cable free to rerun the new fixtures cable. There is not a submersible junction box that is available.
 Reply


?     Asked on 1/30/2018 by kayam baboolal

Hi I am planning to purchase and install 6 off LED PL5820 lights in an inground pool Do i need to buy a transformer if yes how many and what size should i buy , also can i connect each light on a single main cable in series how many of these lights can be used on one transformer Thanks
 Reply

A  Answered on 1/31/2018 by InyoPools Product Specialist Lennox H.

Hi. Kayam. Yes, you will need a transformer to power this PL5820 fixture. All six light can be powered by one 300 Watt Transformer - PX300. You can also refer to the Intermatic PX100 & PX300 Install Manual for additional info.
 Reply


?     Asked on 1/27/2018 by tom

I have a burned out light, SPO525LED100. Will this light work or if I want to replace with a regular light what do I need to buy?
 Reply

A  Answered on 1/29/2018 by InyoPools Product Specialist Megan C.

As long as the voltage and length of the cord are correct you may replace your current fixture with the Pure Colors LED Pool Light Fixture 12V 30' Cord - PL5820 This is a package deal that includes the Astrolite 100 Watt 12 Volt 30' Cord Plastic - SP058030 and LED Pool Bulb Color Changing 12V 35W - PL5808 If prefer to replace the fixture only without color option, you may order the Hayward Astrolite product line.
 Reply


?     Asked on 11/30/2017 by Connie

Would this work for us? Our current pool light info: American Products, 10951 W. Los Angelos Ave., Moorpark, CA 93020. Underwriter Laboratorie Inc., Underwater lighting fixture for swimming pool - wet niche type, No. S-226019, Label #98700600, Series 78350X, 78351X, Watts 100, Volts 12, Bulb Type: T4 GY6.35. Use minimum conduit 1/2 inch. Use with Model No0. 7821XX, 7822XX, (79208900 OR 79206700 U.S. listing only) Fixture housing wet niche type, fresh water only. Thank you so much!
 Reply

A  Answered on 11/30/2017 by InyoPools Product Specialist Lennox H.

Hi, Connie. Yes, this Pure Colors LED Pool Light Fixture can be used to replace your current Pentair light fixture.
 Reply


?     Asked on 11/12/2017 by FRANK NEAL

MY POOL LIGHT LENS SAYS ANTHONY, IS THE PURE COLORS FICTURE COMPATABLE? ANTHONY POOLS
 Reply

A  Answered on 11/13/2017 by InyoPools Product Specialist Lennox H.

Hi, Frank. This Pure Colors LED Pool Light Fixture is not compatible with all Anthony Pool Light niche. We will need to know the niche model and or size to confirm compatibility.
 Reply


?     Asked on 10/24/2017 by William Lamont Mealer

are these lights dmx controlable
 Reply

A  Answered on 10/24/2017 by InyoPools Product Specialist Lennox H.

Hi, William. This light is not DMX controllable.
 Reply


?     Asked on 10/19/2017 by

I have a very old light that needs to be replaced, it is a Hayward SP-573L. Would this be an appropriate replacement?
 Reply

A  Answered on 10/19/2017 by InyoPools Product Specialist Lennox H.

Hi. You can use this Pure Colors LED Pool Light Fixture - PL5820 to replace the SP-573L unit. However, you will need an Intermatic Light Transformer.
 Reply


?     Asked on 10/10/2017 by

I have a very old light that needs to be replaced. The ring says Pool Star and it measures about 10 1/2 inches across and 8 inches deep. Would this Pureline be an appropriate replacement?
 Reply

A  Answered on 10/10/2017 by InyoPools Product Specialist Lennox H.

Hi, This Pure Colors LED Pool Light - PL5820 can be used as a replacement depending on the niche you have. You will also need to purchase a Pool Light Transformer since this is a 12 volt fixture.
 Reply


?     Asked on 10/3/2017 by dc

2600 lumes is stated for the white color. What is that equivelent to in Halogen? I am replacing 300 watt halogen fixtures. Thank you
 Reply

A  Answered on 10/4/2017 by InyoPools Product Specialist Lennox H.

Hi, DC. 2600 lumens is equivalent to a 150 watt halogen bulb.
 Reply


?     Asked on 9/28/2017 by John

Is white one of the colors, I am being told that for a rental home in Florida the bulb needs to be white. Not sure if that is correct or not, so I would like the option that we can use it to change colors and leave it white for renters if that is the case.
 Reply

A  Answered on 9/28/2017 by InyoPools Product Specialist Lennox H.

Hi, John. This color changing LED bulb does have a white option.
 Reply


?     Asked on 9/16/2017 by jon

I have a Jandy CPHVLEDS50 and would like to replace it with this one. Will it fit in the same Niche?
 Reply

A  Answered on 9/20/2017 by InyoPools Product Specialist Lennox H.

Hi. Jon. This fixture is compatible with some of the niche as the Jandy CPHVLEDS50 fixture. A transformer will be needed for this Pure Colors fixture.
 Reply


?     Asked on 9/11/2017 by Raul

Hello, can this one replace Purex model 300, forming shell 425? And are there any fastening accessories for the niche?
 Reply

A  Answered on 9/11/2017 by InyoPools Product Specialist Lennox H.

Hi, Raul. This fixture can be used to replace the Purex fixture depending on the niche that you have. The mounting screw is included with this fixture.
 Reply


?     Asked on 9/5/2017 by Robert Browder

Will this light fit into an Anthony niche?
 Reply

A  Answered on 9/7/2017 by InyoPools Product Specialist Lennox H.

Hi, Robert. This fixture is not compatible with an Anthony niche.
 Reply


?     Asked on 8/21/2017 by Fcraig

I have the Hayward ColorLogic 4.0 Pool and Spa LED lights. They both just quite working. What do you have that will replace these with a 100' cords? Thanks!
 Reply

A  Answered on 8/24/2017 by InyoPools Product Specialist Lennox H.

Hi, Fcraig. You can use either the Hayward Pool & Spa ColorLogic 4.0 or the Hayward Astrolite or Spa Astrolite II
 Reply


?     Asked on 8/15/2017 by

I have a Pentair Series 600019, 600020, 600021, 600037 color light. Can I use the pure color to replace it?
 Reply

A  Answered on 8/15/2017 by InyoPools Product Specialist Alex V.

Hello, Yes, you can replace it with the PureColors light. Please be sure to choose the correct voltage and cord length.
 Reply


?     Asked on 8/7/2017 by David

I need a complete new set up to replace my pool light. I will need the light, junction box and transformer. How do I figure out what components and size I need?
 Reply

A  Answered on 8/9/2017 by InyoPools Product Specialist Lennox H.

Hi, David. You will first need to determine the model of your existing niche. Once you've confirmed if this fixture will fit, you will need a 100W or 300 Transformer and a junction box which is listed on the Pool Light Accessories page.
 Reply


?     Asked on 8/1/2017 by Jim

Is there a spa sized version of the PureLine color light
 Reply

A  Answered on 8/1/2017 by InyoPools Product Specialist Lennox H.

Hi, Jim. There is not a spa version to this PL5820 fixture.
 Reply


?     Asked on 7/27/2017 by Paul

What is the depth from the face plate/ring to the end where the wire comes out ? I am looking for a fixture with a low profile inside the niche
 Reply

A  Answered on 7/27/2017 by InyoPools Product Specialist Alex V.

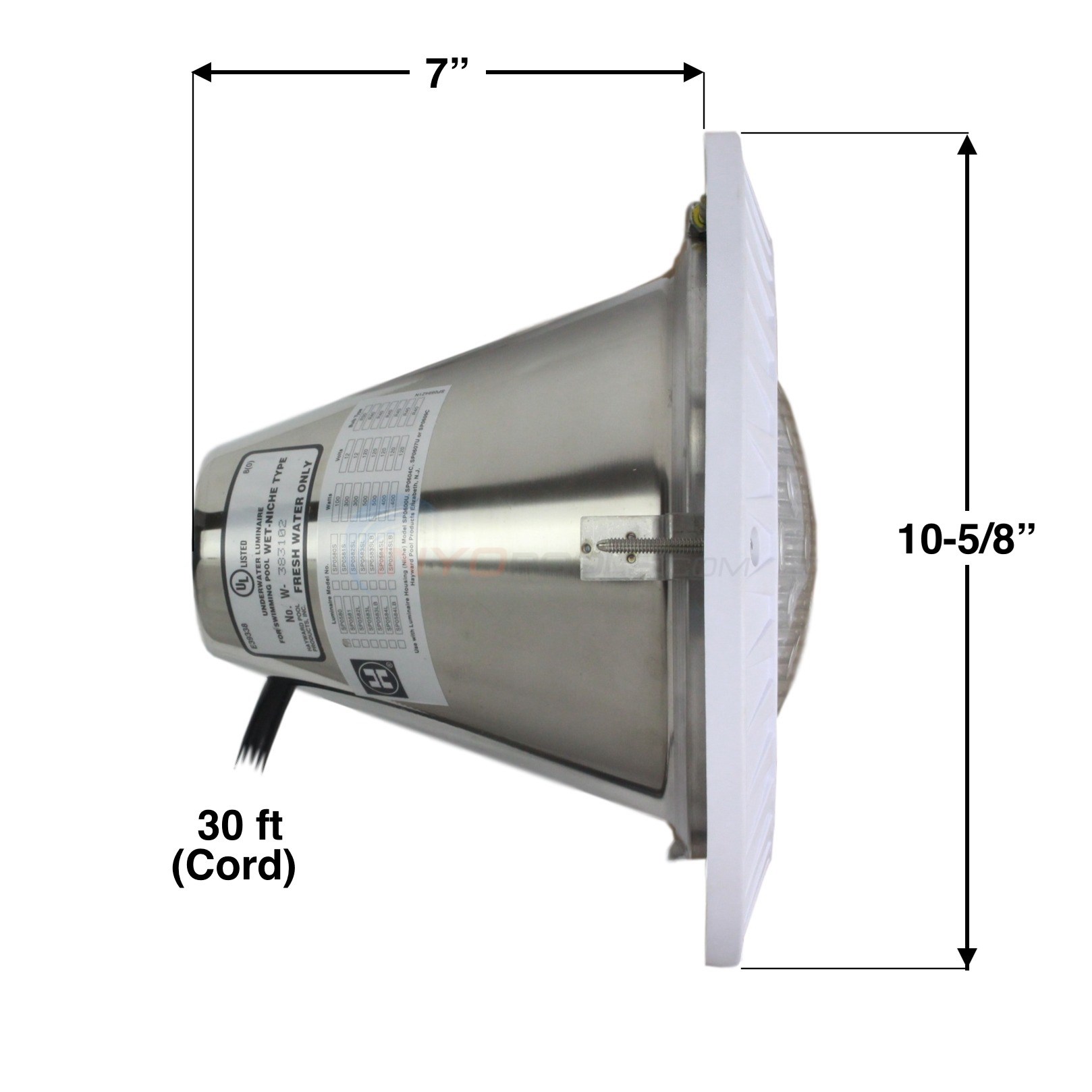

Paul, I have added a dimensional image to the product page. You will be able to view the dimensions shortly.
 Reply


?     Asked on 7/25/2017 by Doug

I can not see a diameter size of fixture, I have a approx 5.5'' diameter hayward hub. It is a inground pool. What fixture would fit
 Reply

A  Answered on 8/4/2017 by InyoPools Product Specialist Lennox H.

Hi, Doug. The diameter of this fixture is 10-5/8" and the diameter of the rear is 2-3/4".
 Reply


?     Asked on 7/24/2017 by Marc Buffkin

I have a SWIMQUIP No. 5086 which needs to be replaced/does not work even after the bulb was changed out. I would like a color changing light so if I am replacing the entire fixture-- which one should I order?
 Reply

A  Answered on 8/17/2017 by InyoPools Product Specialist Andy O.

Hello Marc- The replacement LED light fixture for your swimquip will be the Pentair IntelliBrite LED Light.
 Reply


?     Asked on 7/23/2017 by al duszak

i have a hayward sp580a 120 volt light what would fit?
 Reply

A  Answered on 7/23/2017 by InyoPools Product Specialist Lennox H.

Hi, Al. Yes, this fixture will fit but you'll need an Intermatic Transformer in order to operate this fixture.
 Reply


?     Asked on 7/21/2017 by Keith

I have a Hydrel 7033 installed in my Doughboy above ground pool. The light gave us many years of great service. However I know believe the transformer had taken a dump. What are my options for a possible lighting replacement. The pool, aside from a liner replacement 4yrs ago remains in great shape. Is there anything out there that would accept my existing Hydrel 7033 opening? The housing remains in great shape. Thanks Keith
 Reply

A  Answered on 7/22/2017 by InyoPools Product Specialist Lennox H.

Hi, Keith. This light is not suited for an above ground pool installation. You can choose from our selection of Above Ground Pool Lights
 Reply


?     Asked on 7/18/2017 by Jim

I have the Amerlite(SAM) pentair color underwater light # 600019 whichis discontinued.Can I can replace the whole light fixture with an Intellibrite#601010 5G color LED light?Is that correct and do I just discard the old unit and put the new LED unit in. If yes , what is involved in replacing the old with the new. What are the steps involved. My pool guy thinks it is a difficult job as he believes the issue would be re-attaching the new wire to the old system. Jim
 Reply

A  Answered on 7/18/2017 by InyoPools Product Specialist Lennox H.

Hi, Jim. You can the Pentair Intellibrite 5G 12v 30' Color LED Pool Light - 601010 as a replacement for the Pentair Sam Light 12V 15 Ft Cord - 600019. Our How To Replace a Pool Light Fixture guide will show you all that is involved with the removal and installation.
 Reply


?     Asked on 7/11/2017 by steamer

i have a Hayward color logic spo523sled50 pool light, what are my options, I don't want to replace with colors. thx
 Reply

A  Answered on 7/12/2017 by InyoPools Product Specialist Patrick P.

If you don't want color changing then you could go with the Hayward 120V 50' Incandescent Light SP0582SL50
 Reply


?     Asked on 7/9/2017 by tony

I have a American product light no. s 276527 light series 7878xx 75 watt 12 volts and fixture niche 792066 or 7824xx wet niche type. will this work.
 Reply

A  Answered on 7/10/2017 by InyoPools Product Specialist Patrick P.

The PL5820 is too large and will not work in the 792066 Niche. You would require this PureColors PL5841 12V Small Light
 Reply


?     Asked on 7/7/2017 by Nate

I have a SP0524LED 50 Hayward 12v light that I need to replace. Will this light work?
 Reply

A  Answered on 7/8/2017 by InyoPools Product Specialist Lennox H.

Hi, Nate. Yes, this Pure Colors LED Pool Light Fixture 12V 30' Cord can be used to replace the ColorLogic SP0524LED.
 Reply


?     Asked on 7/6/2017 by

we are getting ready to have a vinyl inground pool installed. They are going to install a Quick Niche Assembly which looks to be made by Pentair (SKU: 620004). will this light fixture work in this niche?
 Reply

A  Answered on 7/12/2017 by InyoPools Product Specialist Patrick P.

Yes the PL5820 Pure Colors light fixture will fit the Quick Niche.
 Reply


?     Asked on 7/5/2017 by joe

what size niche is required for this light I am trying to retro fit old system
 Reply

A  Answered on 7/22/2017 by InyoPools Product Specialist Alex V.

Joe, This light will fit a full sized niche like the Hayward SP0600U. If you need to order a new niche, please make sure you order the wrong one.
 Reply


?     Asked on 6/29/2017 by Chris

I am looking for a good color changing LED that is remote controlled--either by its own remote or through smart phone. Does this exist? I currently have a Pentair Water housing 78456300
 Reply

A  Answered on 7/2/2017 by InyoPools Product Specialist Lennox H.

Hi, Chris. Inyo does have the PureColors LED Bulb - PL5819 that is controlled by a remote. The smartphone option will require pool automation.
 Reply


?     Asked on 6/26/2017 by William Van Rite

Can I use this fixture to replace a Hayward SP057ON
 Reply

A  Answered on 6/26/2017 by InyoPools Product Specialist Lennox H.

William. The Pure Colors LED Pool Light Fixture 12V 30' Cord can be used to replace the Hayward SP057ON fixture.
 Reply


?     Asked on 6/22/2017 by Susan A Newton

Can I us this with Hayward SP-540-Z-1 as a replacement
 Reply

A  Answered on 6/23/2017 by InyoPools Product Specialist Lennox H.

Hi, Susan. The SP-540-Z-1 lens can be used with different fixtures, but this bulb is only compatible with the SP580 Series fixture housing.
 Reply


?     Asked on 6/21/2017 by Bill Pospisil Jr.

I have an older in ground pool with two Halogen (120 V) lights that I want to replace with (12 V) Color LED lights. I want to keep the niches in place and make sure the new LED light fixtures will fit. I don't know the manufacture as they aren't marked and I don't have literature. They are maybe Pentair (but not sure) and the label # on the bottom of the current halogen fixture is 98700600. It also says PAC FAB INC. The niche measures across (diameter) 5 1/2" I could send photo if it helps
 Reply

A  Answered on 6/22/2017 by InyoPools Product Specialist Patrick P.

Hi Bill, Yes if you could reply to this email with photos and include a measuring tape in your photos so we can see some of the key measurements. You can also send to upload@inyopools.com whichever is easiest for you.
 Reply


?     Asked on 6/21/2017 by Bill

Will this fit into the Purex 100-5 forming shell 425 120v 500w lamp R40?
 Reply

A  Answered on 6/21/2017 by InyoPools Product Specialist Lennox H.

Hi, Bill. This bulb is not compatible with the Purex 100-5 light fixture.
 Reply


?     Asked on 6/18/2017 by Vern

Hi, I am trying to replace a hayward unit SP0525LED30 at a more affordable cost, would this be compatible? Many thanks, Vern
 Reply

A  Answered on 6/20/2017 by InyoPools Product Specialist Patrick P.

Hi Vern, yes this would be a cost effecitve alternative to your hayward unit SP0525LED30. I am showing the Hayward SP0525LED30 is 120V where this light is 12V so you would need a Pool Light Transformer. I do like the Pure Colors light fixture because if the bulb ever goes bad it can be replaced, this is an easy replacement at a cost of roughly $150. On the Hayward Color Logic if the bulb goes bad you have to replace the complete light fixture, this is a more time consuming project and the complete light fixture is expensive at $600. Please note that if you have multiple lights in the pool they will all need to be the same brand and model if you want them to synchronize.
 Reply


?     Asked on 6/13/2017 by eric

I have a pentair light more W-452449 120 volt 250 watt would like to replace fixture and put in LED bulb want it to come with new cable as old one has a broken wire.
 Reply

A  Answered on 6/18/2017 by InyoPools Product Specialist Patrick P.

Hi Eric, Are there any model #'s or part #'s on the label that is on the back of the light fixture? If so could you please reply to this email with that information or photos of your light? You can also send to upload@inyopools.com this will allow us to determine if this light will fit in your current niche.
 Reply


?     Asked on 6/11/2017 by anthony

I need replace my pentair light model #78454100. Is the pure color compatible. Also the the retainer ring that holds the light is broken. is there a part to fix it
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Patrick P.

Yes this PureColors is a replacement 78454100, I'm showing that light is a 120V light so you would need to select a 120V PureColors Light here. For a broken light niche tab you need this Light Niche Wedge Tool.
 Reply


?     Asked on 6/6/2017 by Sandi

Would this be an appropriate replacement for a Colorlogic SP0525LED30 light? And is it compatible with a salt water pool? Thanks
 Reply

A  Answered on 6/7/2017 by InyoPools Product Specialist Scott W.

A suitable replacement for your model is part number PL5831.
 Reply


?     Asked on 6/3/2017 by Ann

Will the PL5820 be a correct replacement for a Hayward SP0525LED100?
 Reply

A  Answered on 6/7/2017 by InyoPools Product Specialist Lennox H.

Hi, Ann. The PL5820 can be used to replace the Hayward SP0525LED100 fixture if you have a the Dura Niche.
 Reply


?     Asked on 5/27/2017 by Jan veenendaal

Is there a way i can replace the pentair 7810xxxx 100 watt 12 volt R-20 bulb for a led light or what do i need there is a concrete housing in the pool with the above unit, but we would like to step over to led lights. I changed the bulbs for led ones but its just not the right thing Kind rgeards
 Reply

A  Answered on 5/27/2017 by InyoPools Product Specialist Patrick P.

Hi Jan for the pentair 7810xxxx 100 watt 12 volt R-20 bulb, you can use the PureColors 12V PL5816 LED Color Changing Bulb as a replacement bulb. This will upgrade your Pentair fixtures to LED.
 Reply


?     Asked on 5/23/2017 by Rene

installation information?
 Reply

A  Answered on 5/24/2017 by InyoPools Product Specialist Lennox H.

Hi, Rene. Installation information can be found in the Installation Manual.
 Reply


?     Asked on 5/23/2017 by Pat

Is this light fixture for an above-ground pool? Don't believe it said anything like this. Thanks.
 Reply

A  Answered on 5/23/2017 by InyoPools Product Specialist Patrick P.

This light is for an inground pool.
 Reply


?     Asked on 5/15/2017 by E. Small

I have a Hayward Color Logic pool light SP0523 50w 120v. Has no serviceable parts. Can I install another brand with new housing and when the light fails, I can just get a replacement bulb without buying a whole new unit again? This Hayward light is 10 years old. I just need a light where in future I can just order a new colored bulb. Many thanks
 Reply

A  Answered on 5/15/2017 by InyoPools Product Specialist Patrick P.

Yes this would be your light as it will fit in your Hayward ColorLogic Niche and if the bulb ever goes bad then this light has a replaceable LED bulb meaning the entire fixture does not need to be replaced.
 Reply


?     Asked on 5/14/2017 by Paul

will the PL5820 replace my Hayward SP583-L
 Reply

A  Answered on 5/14/2017 by InyoPools Product Specialist Stacey M.

Hello Paul, This PL5820 light would be compatible with Hayward Astrolite SP058 Series.
 Reply


?     Asked on 5/11/2017 by Goody

I would like to upgrade my pool light to led light but i want to know if led fixture can fit to the jandy light fixture
 Reply

A  Answered on 5/11/2017 by InyoPools Product Specialist Patrick P.

Goody, If you are looking at replacing your entire light fixture then the PureColors PL5820 Light Fixture will fit into the same niche as your Jandy light.
 Reply


?     Asked on 5/10/2017 by Andy

I have 2 Nexus Savi Melody that I would like to replace. Is this an option and if so do they connect to the existing electrical line, or is that permanently affixed to the current lights?
 Reply

A  Answered on 5/13/2017 by InyoPools Product Specialist Lennox H.

Hi, Andy. This fixture can not replace a Savi Melody light. The Savi Melody light fits into a 1.5"  Wall Fitting  the PL5820 requires a large niche SP0600U or SP0607U.
 Reply


?     Asked on 5/9/2017 by Bobby

I need a 100' and a 50' cord. Can I get this light with these length cords?
 Reply

A  Answered on 5/9/2017 by InyoPools Product Specialist Hector F.

Unfortunately, that series does not come in 50 or 100 ft option. You would just need to purchase the Astrolite lights individually being models SP058150 and SP0581100, purchase the Purecolor bulbs separately then change the bulbs before installing back into the pool. The bulb part number is PL5808 for the higher wattage which I'd recommend for a pool light.
 Reply


?     Asked on 5/6/2017 by Tom

will this replace American Production Company 3915 model?
 Reply

A  Answered on 5/6/2017 by InyoPools Product Specialist Scott W.

Yes, that fixture will replace your current fixture as long as your current fixture is 12V with a 30' cord.
 Reply


?     Asked on 5/5/2017 by

I'm installing a new LED light fixture, and a 12V transformer, is there switch that I can set the color I want to use?
 Reply

A  Answered on 5/5/2017 by InyoPools Product Specialist Hector F.

There no switch but you can purchase the kit that has the remote included. It is the PL5823.
 Reply


?     Asked on 4/28/2017 by Richard

I have an old Anthony Sylvan niche. Model 30 I think. Will this unit fit? Do you sell the transformer I would require? Thanks
 Reply

A  Answered on 4/28/2017 by InyoPools Product Specialist Lennox H.

Hi, Richard. I know for sure that the PL5821 is compatible with the Anthony Sylvan Niche, I'm not sure about the PL5820 without needing an adapter ring. You'll need the PX100 or PX300 transformer depending on how many lights you're using.
 Reply


?     Asked on 4/25/2017 by Joe

How do I choose the right led light and fixture, I saw one that's a 12v and another 120v?
 Reply

A  Answered on 4/25/2017 by InyoPools Product Specialist Patrick P.

Hi Joe, If you are replacing an existing light fixture then you will want to look on the bulb of your current light to see if it says 12V or 120V. Another option is to remove the light fixture from the wall on the pool and then there will be a label on the back side of the light fixture that will tell you your voltage. If you see a Pool Light Transformer back by your equipment then you have 12V. If this is for new pool construction then we normally suggest 12V as it is a bit safer than 120V in my opinion.
 Reply


?     Asked on 4/23/2017 by Todd

I have a 120V 500W max pool light I would like to convert to a 120V LED. the Model showes 60-xx5x 500W The present bulb is 120V R40 The housing number is L279742. What are my options?
 Reply

A  Answered on 4/23/2017 by InyoPools Product Specialist Scott W.

The correct replacement LED bulb is part number PL5809.
 Reply


?     Asked on 4/18/2017 by Russell Smith

Will this plastic light fixture with the notch at the bottom and single screw at the top match up with the older metal beauty rings?
 Reply

A  Answered on 4/18/2017 by InyoPools Product Specialist Scott W.

If you are referring to the older stainless stain ring Astrolite then yes, the PL5820 will match up.
 Reply


?     Asked on 4/13/2017 by Laurence R. Callahan

I have a Color Kinetics light in my pool that operates from wall mounted controller.. R1705343 light board,01380134D numbers on back of light. will this operate from my controller and fit in pool
 Reply

A  Answered on 4/14/2017 by InyoPools Product Specialist Lennox H.

Hi, Laurence. Unfortunately, we will need to know the niche model to determine if this fixture will work.
 Reply


?     Asked on 4/10/2017 by ken Beach

will this light fixture fit in a 7 inch deep niche with a 10 inch diameter?
 Reply

A  Answered on 4/10/2017 by InyoPools Product Specialist Scott W.

The depth on that light fixture is 7.6" so it will not fit if the niche is 7".
 Reply


?     Asked on 4/3/2017 by Steve

What is the wattage of the led bulb?
 Reply

A  Answered on 4/4/2017 by InyoPools Product Specialist Patrick P.

Hi Steve, The bulb is a 35 Watt LED Bulb which equivalent to the brightness of a 300 Watt incandescent bulb.
 Reply


?     Asked on 4/1/2017 by JOEGE A PONCE

GOOD EVENING. CAN YOU PLEASE TELL ME IF THE MODEL PL5820 LIGHT FIXTURE INCLUDES THE LED BULB OR DO I HAVE TO BUY IT SEPARETLY. THANK YOU.
 Reply

A  Answered on 4/2/2017 by InyoPools Product Specialist Patrick P.

Hi Joege, Yes the PL5820 does include the LED Bulb and Light Fixture, so this is the complete light!
 Reply


?     Asked on 3/29/2017 by james

is this compatible with sp0527sled50 led light
 Reply

A  Answered on 3/30/2017 by InyoPools Product Specialist Andy O.

Hello James- The Pure Colors LED Pool Light Fixture 12V 30' Cord - PL5820 will fit into the same niche as the sp0527sled50, keep in mind that you will require a transformer to operate this light.
 Reply


?     Asked on 3/23/2017 by Tollie

My Hayward SP0583SL lamp assembly will have to be completely replaced. I'm not sure where to measure but the glass globe is 7.5" . Will this lamp be the correct replacement size? Also my current lamp is 120v. What else will I need to use the new 12v system?
 Reply

A  Answered on 3/23/2017 by InyoPools Product Specialist Lennox H.

Hi, Tollie. You can use the PL5820 light fixture as a replacement, however, you will also need a transformer.
 Reply


?     Asked on 3/21/2017 by

Can you tell me the dimensions of this light?
 Reply

A  Answered on 3/22/2017 by InyoPools Product Specialist Patrick P.

Hi, This light measures 10-3/4" in diameter and measures 8" from the glass lens to the back of the light where the cord comes out.
 Reply


?     Asked on 3/21/2017 by Jim Florance

what are the dimensions?
 Reply

A  Answered on 3/21/2017 by InyoPools Product Specialist Alan M.

We do not have the dimensional information on this yet but the light is compatible with the Hayward Astrolite SP058 Series and the  Pentair Amerlite 784 Series. Note: Not compatible with Swimquip Light Fixtures or Hayward SP0540 series.
 Reply


?     Asked on 3/9/2017 by

does this has a built in transformer so that i can replace the 120V fixture?
 Reply

A  Answered on 3/10/2017 by InyoPools Product Specialist Lennox H.

Hi, This light does not have a built-in transformer, you will have to have one installed in order to operate this light.
 Reply


Top

Review Summary

 (Average 5  out of 5 stars)
2 Rating
5 star:

(2)
4 star:

(0)
3 star:

(0)
2 star:

(0)
1 star:

(0)
